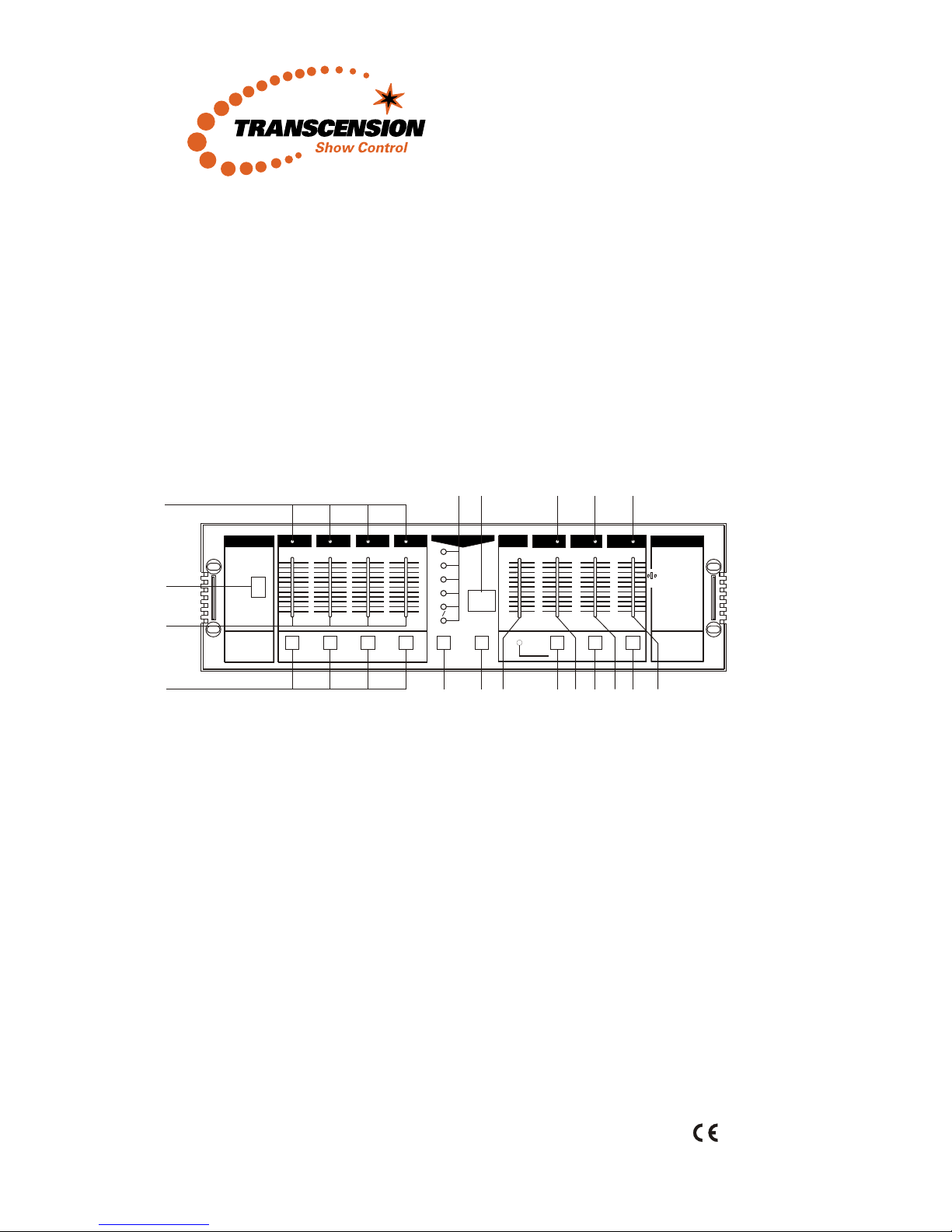

14. MASTER DIMMER CONTROL
This control adjusts the dimming level of whole output.
15. FULL ON BUTTON
Press to activate FULL ON function of whole output.
16. AUDIO LEVEL CONTROL
This control adjusts the sensitivity of music rhythms detected by the built-in microphone or line in.
17. TAP SYNC BUTTON
This button is effective only in Prog Speed and Auto Speed. It is used to define chasing speed. When you
press this button twice in 10 minutes, the interval between two pressing will be assigned to chasing speed.
18. SPEED CONTROL
This control adjusts the chasing speed.

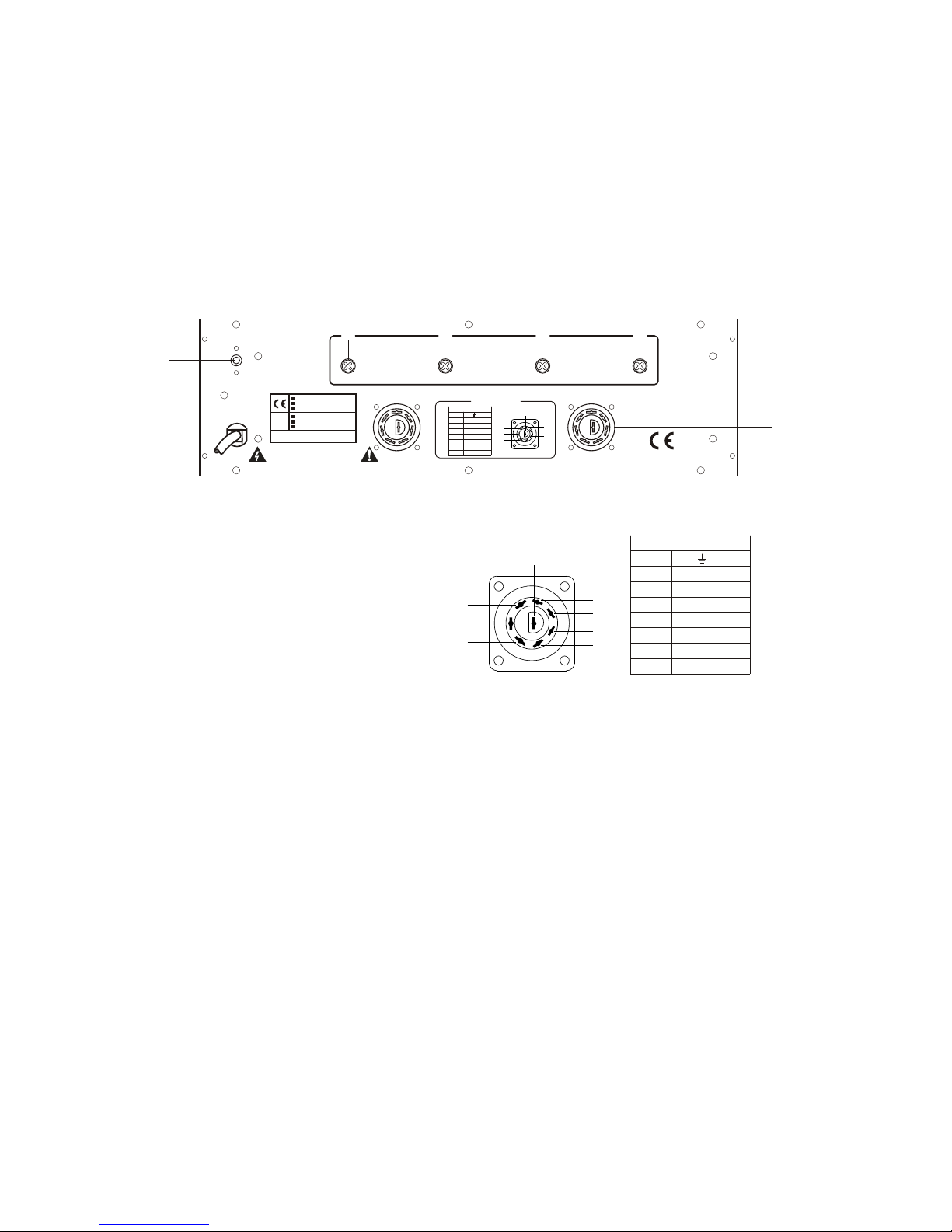

REAR PANEL
1. AC INPUT
Plug in appropriate power supply
2. AUDIO INPUT
Line in 100mV-1Vpp
3. CHANNEL FUSE
F6.3A 250V 5x20mm
4. CHANNEL OUTPUT
2A /CH., 8A /Total (CE)
6.3A /CH., 16A /Total (MAX.).
.
OPERATING INSTRUCTIONS
1. Turn the power switch on.
2. Operating mode is controlled by MODE SELECT.
3. You can select operating mode from Hold Dimmer / Hold Sound / Prog Sound / Prog Speed / Auto Speed /
Auto Sound / Memory.
Hold Dimmer Corresponding indicator lights. Channel output is controlled by Channel Dimmer
control or Master Dimmer control.
Hold Sound Corresponding indicator lights. Music sensitivity is adjusted by the Audio Level control.
Prog Sound Corresponding indicator lights. You can select desired program from 42 pre-set
programs using Prog Select button. Press Prog Select button once, program will be
increased or decreased by one. Press and hold it for 1 second, program will be
increased or decreased by 10 per second. Press Prog Select + Mode Select,
chasing direction will be reversed.
Prog Speed Corresponding indicator lights. You can operate according to the way specified by
Prog Sound and you must always remember chasing speed is not controlled by audio
signal but SPEED CONTROL or TAP SYNC.
Auto Speed Corresponding indicator flashes. You can operate according to the way specified by
Prog Speed. However, in this mode, each program will be executed eight times
continuously and then next program.
Auto Sound Corresponding indicator lights. You can operate according to the way specified by
Prog Sound. However, in this mode, each program will be executed eight times
continuously and then next program.
Memory Up to 32 steps can be memorized.
In this mode, you can select desire operating mode from Program / Manual / Auto
1
2
3
4
Line input
100mV-1Vp-p
AC INPUT
F6.3A 250V
5x20mm
F6.3A 250V
5x20mm
F6.3A 250V
5x20mm
F6.3A 250V
5x20mm
CH4CH3CH2CH1
FUSE(Internal): F0.5A 250V 5x20mm
POWER INPUT: AC 230V~50-60Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 2A / Channel, 8A / Total.
POWER INPUT: AC 220V~50-60Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 6.3A / Channel, 16A / Total.
MAX.
WARNING: THIS APPARATUS MUST BE EARTHED.
N'OUVREZ PAS..RISQUE DE CHOCELECTRIQUE
RISK OF ELECTRIC SHOCK, DO NOT OPEN.
CAUTION:
OUTPUT CONNECTION
PIN ARRANGEMENT
CH-4
1
2
3
4
5
6
7
8
E
N
N
CH-3
CH-2
CH-1
N
PIN ARRANGEMENT
CH-4
1
2
3
4
5
6
7
8
E
N
N
CH-3
CH-2
CH-1
N
1
2
3
4
5
6 7
8
1
2
3
4
5
6 7
8
