MEDIA CONVERTER TECHNICAL SPECIFICATIONS

Host Connection IBM® S/3x (System 34, 36, 38) host, AS/400™

host or 5x94 remote controller

Case dimensions 4.75" x 3.0" x 1.0" (119mm x 76mm x 25mm)

Shipping Weight 2 pounds (0.9 kilograms)

Environment Temperature: 0-50°C (32-122°F)

Humidity 10-90%, non condensing

Altitude 0-10,000 feet

Warranty Five years

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Compliance Information

UL Listed

C-UL Listed (Canada)

CISPR/EN55022 Class A

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in which case the user will be

required to correct the interference at the user’s own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on

the radio interference regulations of the Canadian Department of Communications.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

graphic, electronic, or mechanical – without written permission from TRANSITION Networks.

Trademark Notice

All registered trademarks and trademarks are the property of their respective owners. 33092.B

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten

verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur

Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen

einschliesslich der gegenseitigen Anerkennung ihrer Konformität.

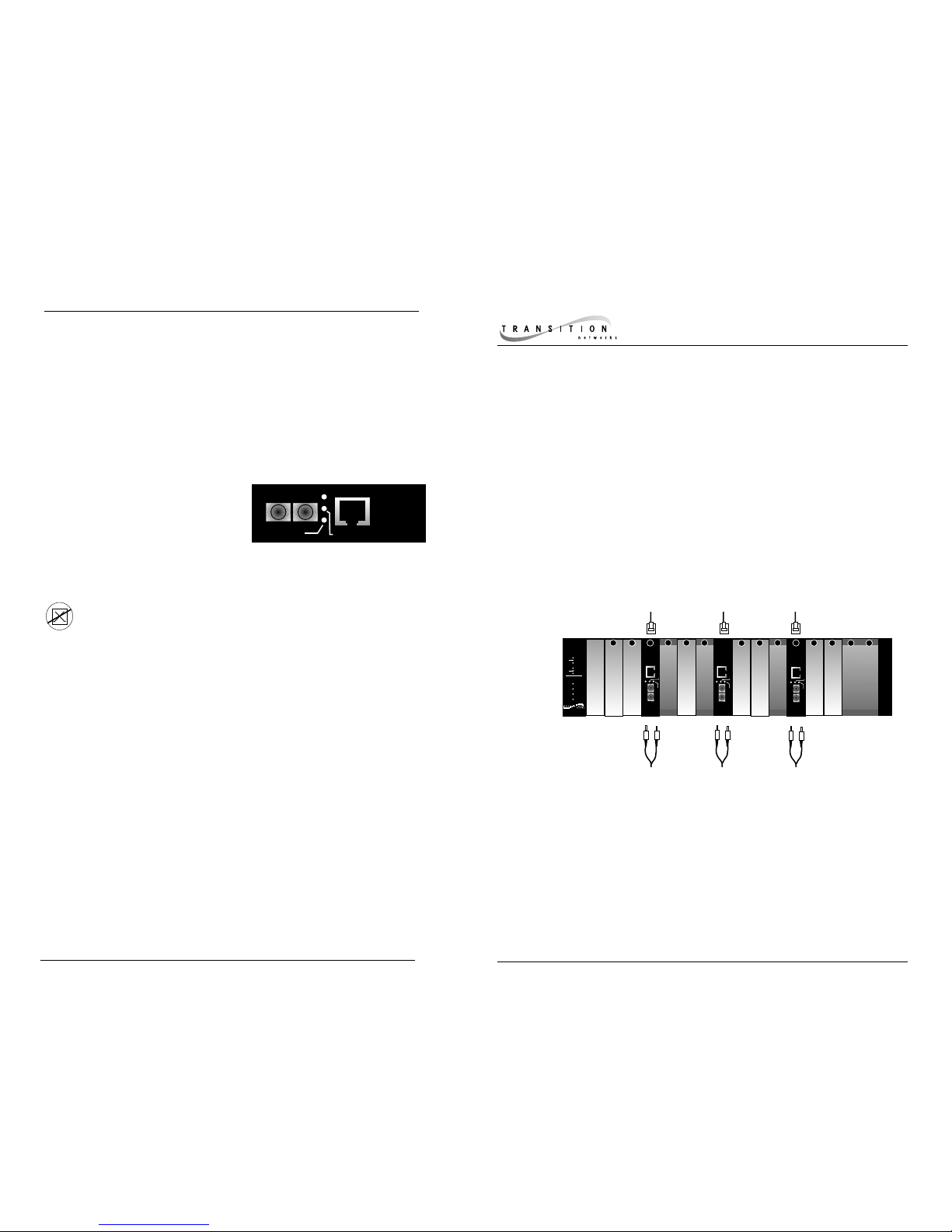

The TRANSITION Networks 5250 Copper to Fiber C/PS-CF-01 series media

converters, designed to be installed in the E-MCC-1600 chassis and to

support all IBM®5250 compliant devices (including devices operating at a

non-standard rates), extends the signal distance of an AS/400™ or S/3x host

computer or a 5x94 remote controller to terminal equipment over twisted-

pair copper and over multimode or singlemode fiber. C/PS-CF-01 series

media converters allow twisted-pair copper network extension distances up

to 1524 meters (762 meters each connection on two media converters) AND

fiber network extension distances up to 2 kilometers on multimode fiber and

up to 8 kilometers on singlemode fiber.*

Minneapolis, MN 55344 USA

5250 Copper/Fiber

Slide-In-Module Media Converters

C/PS-CF-01, C/PS-CF-01(SC), C/PS-CF-01(SM)

USER’S GUIDE

C/PS-CF-01

Provides an RJ-45 twisted-pair

connector to copper cable and a set of

RX (receive) and TX (transmit) ST

connectors to multimode fiber-optic

cable.

C/PS-CF-01(SC)

Provides an RJ-45 twisted-pair

connector to copper cable and an RX

(receive) and TX (transmit) SC

connector to multimode fiber-optic

cable.

C/PS-CF-01(SM)

Provides an RJ-45 twisted-pair

connector to copper cable and an RX

(receive) ST and TX (transmit) SC

connector to singlemode fiber-optic

cable.

Multimode Fiber Singlemode Fiber

C/PS-CF-01

C/PS-CF-01(SC)

C/PS-CF-01(SM)

Fiber UTP/STP

Power

Power Modules

Media

Conversion

Center

E-MCC-1600

Power

In Use

Power

In Use

Manage ent

Module

Power

Link

Fiber UTP/STP

Power

Fiber UTP/STP

Power

Twisted-Pair Copper

*See note at top of pages 4 & 5.

STATUS LEDS

Power Steady green LED indicates

connection to external AC

power.

UTP/STP Blinking green LED

indicates network traffic on unshielded or shielded twisted-pair

link.

Fiber Blinking green LED indicates network traffic on fiber link.

10BASE-T

Fiber UTP/STP

Power

Installation NOTES

To install the C/PS-CF-01 series media converter:

1. Install the C/PS-CF-01 in the E-MCC-1600 chassis.

NOTE: Media Converter Slide-in-Modules can be installed in any

installation slot, in any order.

• Remove Media Converter Slide-in-Module protective plate

from selected installation slot by removing two screws that

secure plate to front of E-MCC-1600. Retain one installation

screw.

• Carefully slide Media Converter Slide-in-Module into

installation slot, aligning Media Converter Slide-in-Module

with installation guides.

NOTE: Ensure that the Media Converter Slide-in-Module is firmly

seated against the backplane.

• Secure Slide-in-Module by installing retained installation

screw.

2. Connect host signal to C/PS-CF-01 media converter.

• Locate or build twisted-pair cables that are compliant with

cable specifications (See page 7) and with male RJ-45 plug

connectors installed at both cable ends.

NOTE: Install TRANSITION Networks balun part number: 3-4554

between RJ-45 cable and Twinax connector.

• Install balun at host Twinax connector.

•. Connect male RJ-45 plug connector at one end of twisted pair

cable to balun on host Twinax connector.

• Connect male RJ-45 plug connector at other end of twisted

pair cable to female RJ-45 connector on C/PS-CF-01 media

converter.

3. Connect C/PS-CF-01 media converter to second C/PS-CF-01 media

converter*:

• Locate or build fiber cable that conform to cable

specifications (See page 7) and with male fiber connectors

installed at both ends.

CABLE SPECIFICATIONS

The physical characteristics of the cable must meet or exceed the following:

FIBER CABLE

MULTIMODE

Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Wavelength: 850nM

Bit error rate: ≤10-9

Maximum Cable Distance: 2 kilometers

SINGLEMODE

Fiber Optic Cable Recommended: 9 µm singlemode fiber

Fiber Optic Transmitter Power: min: -27.0 dBm max: -17.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -13.0 dBm

Wavelength: 1300nM

Bit error rate: ≤10-9

Maximum Cable Distance: 8 kilometers

TWISTED PAIR CABLE AND CONNECTOR

Category 3 wire or better is required; category 5 wire is recommended. Either

shielded twisted pair (STP) or unshielded twisted pair (UTP) can be used. DO

NOT USE FLAT OR SILVER SATIN WIRE.

Category 3:

Gauge 24 to 22 AWG

Attenuation 28 dB/1000’ @ 10 MHz

Differential Characteristic Impedance 100 Ω±10% @ 10 MHz

Category 5:

Gauge 24 to 22 AWG

Attenuation 20 dB/1000’ @ 10 MHz

Differential Characteristic Impedance 100 Ω±10% @ 10 MHz

Minimum UTP/STP Cable Distance: 7.6 meters (25 feet)

Maximum UTP/STP Cable Distance: 762 meters (2500 feet)

Connector: RJ-45 connectors with active

pair pins 4 & 5.

All cable connections to the C/PS-CF-01 MUST be

AT LEAST 7.6 meters (25 feet) in length.

C/PS-CF-01

RJ-45

connector

Straight Through Cable

RJ-45

connector

NOTE: The active pair in a twisted-pair

copper 5250-compliant network are pins

4 & 5. Use only dedicated wire pairs

(such as blue/white & white/blue,

orange/white & white/orange) for the

active pins.

TROUBLESHOOTING SUGGESTIONS

NOTE: Refer to status LED description on last page.

If a Media Converter fails, ask the following questions:

1. Is the Power LED on the media converter illuminated?

NO• Is the power adapter the proper voltage and cycle frequency

for the AC outlet? NOTE: Refer to the “Power Supply

Requirements” on the back page.

• Is the power adapter properly installed in the media converter

and in the outlet?

• Contact Technical Support: (800) 260-1312/(800) LAN-

WANS.

YES• Proceed to step 2.

2. Is the UTP/STP LED illuminated?

NO• Check twisted pair cables for proper connection.

• Check RJ-45 connector for correct twisted pair cable

configuration.

• Contact Technical Support: (800) 260-1312/(800) LAN-

WANS.

YES• Proceed to step 3.

3. Is the Fiber LED illuminated?

NO• Check fiber cables for proper connection.

• Verify that TX and RX cables on media converter are

connected to RX and TX ports, respectively, on other device.

• Contact Technical Support: (800) 260-1312/(800) LAN-

WANS.

YES• Contact Technical Support: (800) 260-1312/(800) LAN-

WANS.

• Connect one end of one first fiber cable to C/PS-CF-01 media

converter TX connector.

• Connect other end of that fiber cable to second C/PS-CF-01

media converter RX connector or to PowerStar™ IV fiber SIC

card.

• Connect one end of second fiber cable to C/PS-CF-01 media

converter RX connector.

• .Connect other end of that fiber cable to C/PS-CF-01 media

converter TX connector or to PowerStar™ IV fiber SIC card.

*Or optionally connect directly to PowerStar™ IV fiber SIC card.

4. Connect second C/PS-CF-01 media converter to terminal equipment

through copper cable.

UTP to RJ-45 Connector:

If connecting to RJ-45 connector on terminal equipment (as on

front of PowerStar™ III or PowerStar™ IV):

• Connect male RJ-45 plug connector to female RJ-45 connector

marked “link” on terminal equipment.

UTP to Twinax Connector:

If connecting to twinax connector on terminal equipment (as on

back of PowerStar™ III or on PowerStar™ IV with Twinax SIC):

NOTE: Install TRANSITION Networks balun part number: 3-4554

between RJ-45 cable and Twinax connector.

• Install balun at terminal equipment Twinax connector.

• Connect male RJ-45 plug connector to balun.

5. Connect C/PS-CF-01(s) to power.

• Locate correct power supply adapter for site installation. (See

back page.)

• Connect C/PS-CF-01 power connector at end of power supply

adapter cord to C/PS-CF-01 power receptacle.

• Connect 2-prong or 3-prong external power connector on

other end of power supply adapter cord to external AC power.

C/PS-CF-01

Multimode Fiber Singlemode Fiber

C/PS-CF-01

C/PS-CF-01(SC)

C/PS-CF-01(SM)

Fiber UTP/STP

Power

Power Modules

Media

Conversion

Center

E-MCC-1600

Power

In Use

Power

In Use

Manage ent

Module

Power

Link

Fiber UTP/STP

Power

Fiber UTP/STP

Power

Twisted-Pair Copper

C/PS-CF-01 series media converters can be installed:

In pairs that connect, through copper cable, RJ-45 connectors, and baluns, then

through fiber, and then through copper cable and RJ-45 connectors, a 5250-

compliant host with a PowerStar™ III or PowerStar™ IV hub.

As a single media converter that extends network distance, through copper cable,

an RJ-45 connector and balun AND through fiber, between a 5250-compliant host

and a PowerStar™ IV hub that has an installed fiber SIC card.

In pairs that connect, through copper cable, RJ-45 connectors, and baluns AND

through fiber, a 5250-compliant host and the Twinax connector at the back of a

PowerStar™ III hub OR a PowerStar™ IV hub that has an installed Twinax SIC card.

MEDIA CONVERTERS in the NETWORK

C/PS-CF-01

NOTE: DEVICES INSTALLED AT MAXIMUM DISTANCES MAY NOT

FUNCTION RELIABLY DUE TO LIMITATIONS IMPOSED BY HOST

TIME-OUTS AND/OR BY TERMINAL EQUIPMENT TIME-OUTS.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Transition Networks Convertitore multimediale

Transition Networks

Transition Networks CSEFE1012-100 Manuale utente

Transition Networks

Transition Networks ARCNET C/AR-CF-01(SC) Manuale utente

Transition Networks

Transition Networks C/E-TX-SX-02 Manuale utente

Transition Networks

Transition Networks SGPOE1013-100 Manuale utente

Transition Networks

Transition Networks M/E-PSW-FX-02(SC) Manuale utente

Transition Networks

Transition Networks CETCT1020-100 Manuale utente

Transition Networks

Transition Networks SBFTF1011-120 Manuale utente

Transition Networks

Transition Networks SPSVT26xx-100 Manuale utente

Transition Networks

Transition Networks CPSVT2611-100 Manuale utente

Transition Networks

Transition Networks SPOEB1011-100 Manuale utente

Transition Networks

Transition Networks SBFTF10XX-10X Manuale utente

Transition Networks

Transition Networks CGETF1013-100 Manuale utente

Transition Networks

Transition Networks E-100BTX-FRL-03(SC) E-100BTX-FRL-03(SM) Manuale utente

Transition Networks

Transition Networks E-100BTX-FX-05(10x) Manuale utente

Transition Networks

Transition Networks E-PSW-SX-01(SC) Manuale utente

Transition Networks

Transition Networks CRS2F3111-100 Manuale utente

Transition Networks

Transition Networks CGFEB1013-100 Manuale utente

Transition Networks

Transition Networks SSDTF3011-110 Manuale utente

Transition Networks

Transition Networks CEMTF1011-100 Manuale utente

Transition Networks

Transition Networks E-TBT-FRL-N-02 Manuale utente

Transition Networks

Transition Networks E-TBT-FRL-N-01(SC) Manuale utente

Transition Networks

Transition Networks M/GE-xSW-SFP-01-xx-U Series Manuale utente

Transition Networks

Transition Networks C/E-100BTX-FX-05(LH) Manuale utente

Transition Networks

Transition Networks C/E-100BTX-SX-01(SC) Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
