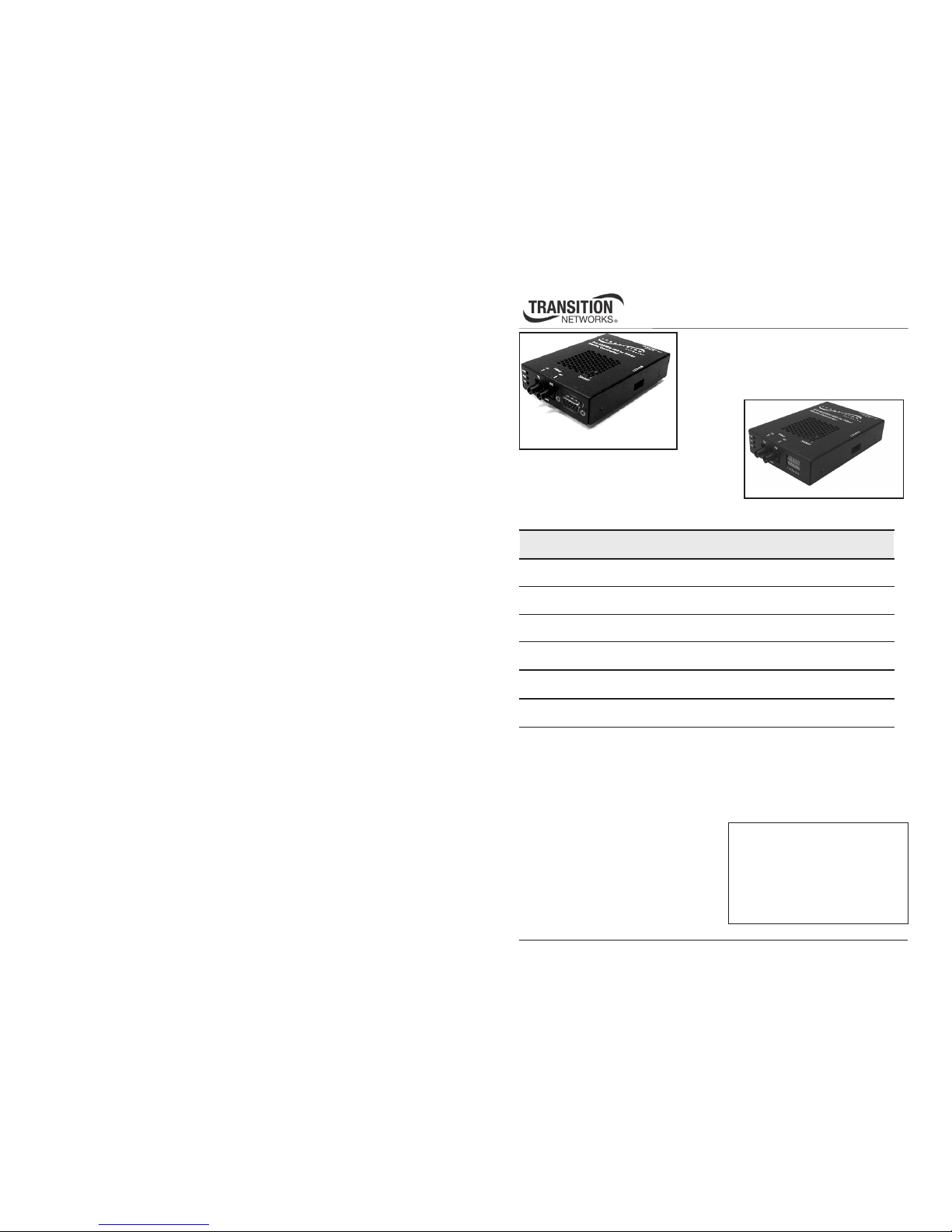

USER’S GUIDE

SRS4Fxxxx-100

Stand-Alone Media Converter

RS-485/422 Copper to Fiber

Transition

Networks

SRS4Fxxxx-100 series media converters connect

RS-485/422 copper cable to fiber-optic cable at

asynchronous data rates up to 1.25 Mb/s.

*Maximum cable distance is 1200m (4000’) @ <90 kb/s decreasing logarithmically to

92m (300’) @ 500 kb/s.

**Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network installation.

Installation . . . . . . . . . . . . . . . . . . . . .3

Operation . . . . . . . . . . . . . . . . . . . . .7

Cable Specifications . . . . . . . . . . . . . .8

Technical Specifications . . . . . . . . . .11

Troubleshooting . . . . . . . . . . . . . . .12

Declaration of Conformity . . . . . . .13

Contact Us . . . . . . . . . . . . . . . . . . .14

Compliance Information . . . . . . . . .15

Part Number Port One - Copper

DB-9 port

Port Two - Fiber-Optic

SRS4F3111-100 RS-485/422

1200 m (4000 ft)*

ST, 1300 nm multimode

2 km (1.2 miles)**

SRS4F3113-100 RS-485/422

1200 m (4000 ft)*

SC, 1300 nm multimode

2 km (1.2 miles)**

SRS4F3114-100 RS-485/422

1200 m (4000 ft)*

SC, 1310 nm single mode

20 km (12.4 miles)**

SRS4F3115-100 RS-485/422

1200 m (4000 ft)*

SC, 1310 nm single mode

40 km (24.8 miles)**

SRS4F3116-100 (LX) RS-485/422

1200 m (4000 ft)*

SC, 1310 nm single mode

60 km (37.3 miles)**

SRS4F3117-100 (LH) RS-485/422

1200 m (4000 ft)*

SC, 1550 nm single mode

80 km (49.7 miles)**

SRS4F31xx-100

SRS4F32xx-100

The SRS4F31xx-100 media converters use a male DB-9 port for the copper link:

2Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

CRS4Fxxxx-10x

Part Number Part One - Copper

DB-9 Port

Port Two - Fiber Optic

CRS4F3129-100 RS-485

1200 m (4000 ft)*

SC, 1310TX/1550RX nm, single mode

20 km (12.4 miles)**

CRS4F3129-102 RS-485

1200 m (4000 ft)*

SC, 1550TX/1310RX nm, single mode

20 km (12.4 miles)**

CRS4F3129-103 RS-485

1200 m (4000 ft)*

SC, 1310TX/1550RX nm, single mode

40 km (24.8 miles)**

CRS4F3129-104 RS-485

1200 m (4000 ft)*

SC, 1550TX/1310RX nm, single mode

40 km (24.8 miles)**

Part Number Part One - Copper -6-

position terminal block

Port Two - Fiber Optic

CRS4F3229-100 RS-485

1200 m (4000 ft)*

SC, 1310TX/1550RX nm, single mode

20 km (12.4 miles)**

CRS4F3229-101 RS-485

1200 m (4000 ft)*

SC, 1550TX/1310RX nm, single mode

20 km (12.4 miles)**

CRS4F3229-102 RS-485

1200 m (4000 ft)*

SC, 1310TX/1550RX nm, single mode

40 km (24.8 miles)**

CRS4F3229-103 RS-485

1200 m (4000 ft)*

SC, 1550TX/1310RX nm, single mode

40 km (24.8 miles)**

The CRS4F3129-100 media converters use a male DB-9 port for the copper link:

The CRS4F32xx-100 media converters use a 6-position terminal block for the copper link:

*Maximum cable distance is 1200m (4000’) @ <90 kb/s decreasing logarithmically to

92m (300’) @ 500 kb/s.

**Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network installation.

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge precautions

when setting the switches. Failure to observe this caution could result in damage to,

and subsequent failure of, the media converter.

Set the 6-Position Switch

The 6-position switch is located on the side of the media converter. Use a small

flat-blade screwdriver or a similar device to set the recessed switches. Refer to

the drawing for the locations of the six individual switches.

Switch 1 - 130 ohm resistor on “receive”

up = Disable.

down = Enable. (Switch 5 must also be set to “4-wire” (down).)

When enabled, switch 1 inserts a 130 ohm resistor on the wire pair:

• Receive (-) (B) RS-485 4-wire, receive (-) RS-422

• Receive (+) (A) RS-485 4-wire, receive (+) RS-422

130 Ohm Resistor on Receive

1K Ohm Pull-Down

1K Ohm Pull-Up

2-Wire/4Wire

RS485/RS232

130 Ohm Resistor on Transmit

4Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

SRS4Fxxxx-100

Installation -- Continued

Set the 6-Position Switch -- continued

Switch 2 - 130 ohm resistor on “transmit”

up = Disable.

down = Enable. (Switch 5 must also be set to “2-wire” (up).)

When enabled, switch 2 inserts a 130 ohm resistor on the wire pair:

• Transmit/Receive (-) (B) RS-485 2-wire, transmit (-) RS-422 and

• Transmit/Receive (+) (A) RS-485 2-wire, transmit (+) RS-422.

Switch 3 - 1K ohm “pull-down”

up = Disable.

down = Enable. (Switch 5 must also be set to “2-wire” (up).)

When enabled, switch 3 enables a 1K ohm pull-down on the wire:

• Transmit/Receive (-) (B) RS-485 2-wire, transmit (+) RS-422.

Switch 4 - 1K ohm “pull-up”

up = Disable.

down = Enable. (Switch 5 must also be set to “2-wire” (up).)

When enabled, switch 4 enables a 1K ohm pull-up on the wire:

• Transmit/Receive (+) (A) RS-485 2-wire, transmit (+) RS-422.

Switch 5 - 2-wire / 4-wire

up = 2-wire.

down = 4-wire.

Set switch 5 to 2-wire (up) to enable the wire pair:

• Transmit/Receive (-) (B) RS-485 2-wire, transmit (-) RS-422 and

• Transmit/Receive (+) (A) RS-485 2-wire, transmit (+) RS-422.

for RS-422 2-wire, half-duplex operation.

Set switch 5 to 4-wire (down) to enable the wire pair:

• Receive (-) (B) RS-485 4-wire, transmit (-) RS-422 and

• Receive (+) (A) RS-485 4-wire, transmit (+) RS-422.

for RS-422 4-wire, full-duplex operation.

Switch 6 - RS-485 / RS-422

up = RS-485.

down = RS-422.

Set switch 6 to RS-485 (up) to prevent echo in the 2-wire mode.

Set switch 6 to RS-422 (down) to allow “transmit only” for the wire pair:

• Transmit/Receive (-) (B) RS-485 2-wire, transmit (-) RS-422 and

• Transmit/Receive (+) (A) RS-485 2-wire, transmit (+) RS-422.

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

Installation -- Continued

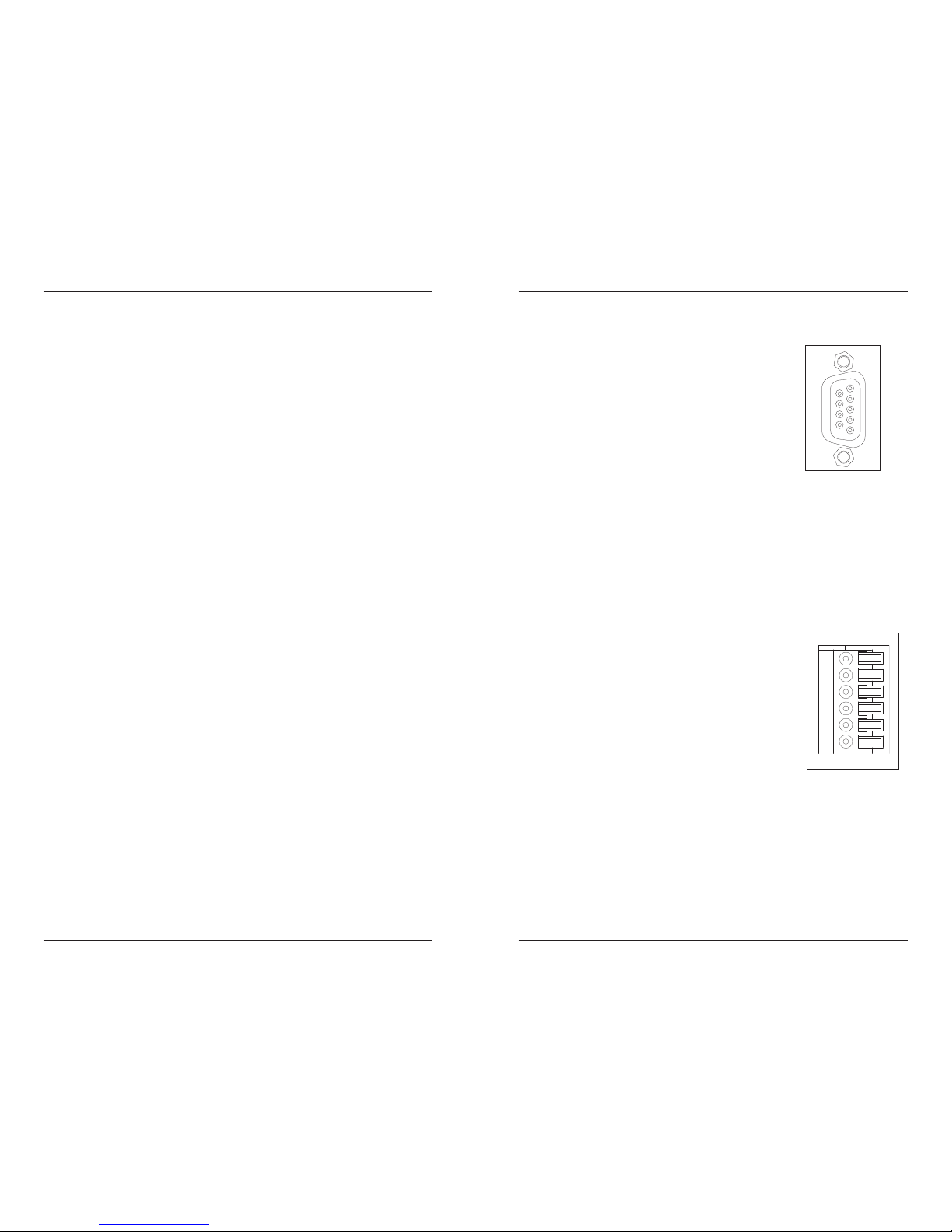

Install the Copper Cable (DB-9 port)

Install the copper cable as instructed if the media

converter has a DB-9 copper port (SRS4F31xx-100

models).

Note: Shielded RS-485/422 cables are required for EMC

compliance.

1. Locate or build RS-485/422 cables with a female DB-

9 connector on one end and a DB-9 connector that

is compatible with the other device on the other end

of the cable.

2. Connect the female DB-9 connector at one end of

cable to the male DB-9 port on the SRS4F31xx-100 media converter.

3. Connect the DB-9 connector at the other end of the cable to the DB-9 port

on the other device.

Install the Copper Cable (6-position terminal block)

Install the copper cable as instructed if the media converter has a 6-position

terminal block (SRS4F32xx-100 models).

Note: Shielded RS-485/422 cables are required for EMC

compliance.

1. Locate or build RS-485/422 cables with the six

individual wires stripped at both ends.

2. Insert the individual wires at one end of cable into the

six terminal block ports on the SRS4F32xx-100

media converter.

3. Insert the individual wires at the other end of the

cable into the six terminal block ports on the other

device, matching the same color of cable with the

number of the port.

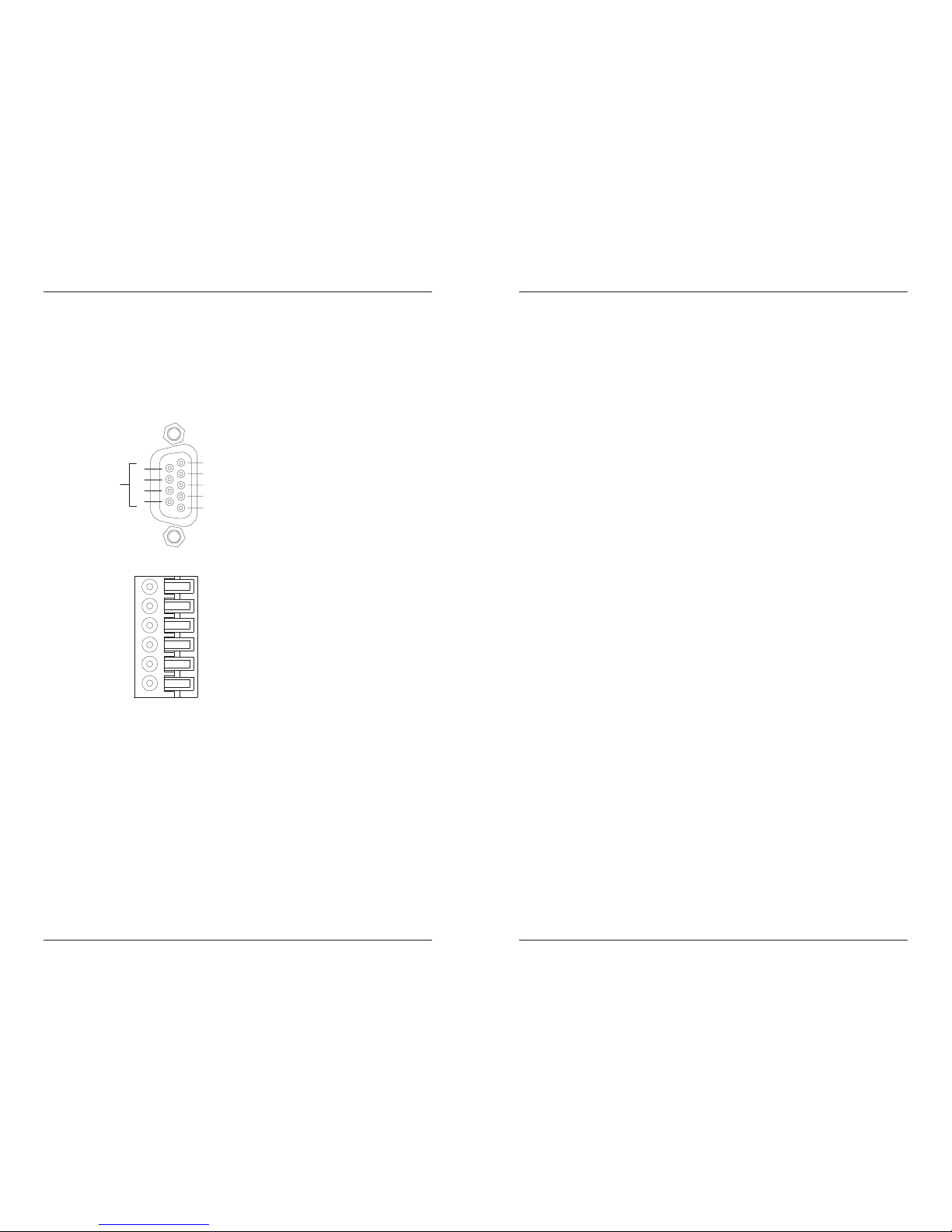

DB-9

1

2

3

4

5

6

6Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

SRS4Fxxxx-100

Power the Media Converter

AC

1. Install the power adapter cord to the back of the media converter.

2. Connect the power adapter plug to AC power.

3. Verify that the media converter is powered by observing the illuminated LED

power indicator light.

DC

Consult the user’s guide for the Transition Networks SPS1872-xx DC external

power supply for powering the media converter.

Installation -- Continued

Install the Fiber Cable

1. Locate or build fiber cable with male, two-stranded TX to RX connectors

installed at both ends.

2. Connect the fiber cables to the SRS4Fxxxx-100 media converter as described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter, hub,

etc.) as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect fiber cable

to media converter

as shown.

Connect fiber cable

to other device

(media converter,

hub, etc.) as shown

RX TX

RX

TX

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Operation

After installation, the media converter should function without operator intervention.

Use the status LEDs to monitor the media converter operation in the network.

PWR On The media converter is connected to external power.

RXF On A link has been established with the fiber link.

RXC On Data has been received on the copper link.

Flashing Data is transferring on the copper link.

SRS4F31xx-100

SRS4F32xx-100

9-BDrebiF

RXC

RXF

PWR TX RX

Fiber

1

RXC

RXF

PWR TX RX

23456

8Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

SRS2F26xx-100

Cable Specifications

RS-485/422 Copper Cable

Maximum Data Rate: 1.25 Mb/s

Gauge: 24 to 22 AWG

Maximum Cable Distance: 1200m (4000 ft) @ <90 kb/s

decreasing logarithmically to:

92m (300 ft) @ 500 kb/s

Not

Used

5

4

3

2

1

9

8

7

6

Signal Ground

Receive (-) (B) RS-485 4-wire, (-) RS-422

Receive (+) (A) RS-485 4-wire, (+) RS-422

Transmit/Receive (+) (A) RS-485 2 or 4-wire, (+) RS-422

Transmit/Receive (-) (B) RS-485 2 or 4-wire, (-) RS-422

DB-9 Port:

1

2

3

4

5

6

Signal Ground

Receive (-) (B) RS-485 4-wire, (-) RS-422

Receive (+) (A) RS-485 4-wire, (+) RS-422

Transmit/Receive (+) (A) RS-485 2 or 4-wire, (+) RS-422

Transmit/Receive (-) (B) RS-485 2 or 4-wire, (-) RS-422

6-Position Terminal Block:

Signal Ground

Fiber Cable

Bit Error Rate: <10-9

Single mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

SRS4F3111-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

SRS4F3113-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

[email protected] -- Click the “Transition Now” link for a live Web chat. 9

Cable Specifications -- Continued

Fiber Cable -- Continued

SRS4F3114-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

SRS4F3115-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

SRS4F3116-100(XL) 1310 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

SRS4F3117-100(HL) 1550 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

SRS4F3211-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

SRS4F3213-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

SRS4F3214-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

SRS4F3215-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

10 Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

SRS2F26xx-100

Cable Specifications -- Continued

SRS4F3129-100 1310TX/1550TR nm single mode

SRS4F3129-101 1550TX/1310TR nm single mode

Fiber Optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

SRS4F3129-102 1310TX/1550TR nm single mode

SRS4F3129-103 1550TX/1310TR nm single mode

Fiber Optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber Optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 25.0 dB

SRS4F3229-100 1310TX/1550TR nm single mode

SRS4F3229-101 1550TX/1310TR nm single mode

Fiber Optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

SRS4F3229-102 1310TX/1550TR nm single mode

SRS4F3229-103 1550TX/1310TR nm single mode

Fiber Optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber Optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 25.0 dB

[email protected] -- Click the “Transition Now” link for a live Web chat. 11

Technical Specifications

For use with Transition Networks Model SRS4Fxxxx-100 or equivalent

Data Rate 0 to 1.25 Mb/s

Dimensions 3.25" x 4.7" x 1.0" (83 mm x 119 mm x 25 mm)

Shipping Weight 10 oz. (283 g) approximately

Power Consumption 5 Watts

MTBF 51,000 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

127,000 hours (Bellcore7 V5.0)

Power Supply 12VDC, 0.8 Amp (North. Am., EU, Japan, South Am.)

12VDC, 1.25 Amp (UK, Australia, N.Z., South Africa)

Environment Tmra*: 0 to 50°C (32° to 122° F )

Storage Temp: -40° to 85°C (-40° to 185°F)

Humidity: 5 to 95%, non condensing

Altitude: 0 to 10,000 feet

Warranty Lifetime

*Manufacturer’s rated ambient temperature.

The information in this user’s guide is subject to change. For the most up-to-date

information on the SRS4Fxxxx-100 media converter, view the user’s guide on-line at:

www.transition.com

Note: The chassis version of the media converter is SRS4Fxxxx-100. For more

information, see the SRS4Fxxxx-100 user guide on-line at: www.transition.com.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into the

beam or view directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other

than those specified herein may result in hazardous radiation exposure.

Optional Accessories (sold separately).

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone

Output: 12.6VDC, 1.0 A

SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-back;

Output: 12.6VDC, 1.0 A

E-MSR-04 12-Slot media converter Rack (includes universal internal power

supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)

WMBL Length: 4.0 in. (102 mm), Fits converter length: 4.7in (119mm)

WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)

WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

WMBD-F Optional DIN Rail Mount Bracket (flat); 3.3in. (84 mm)

12 Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

SRS4Fxxxx-100

Troubleshooting

If the media converter fails, isolate and correct the failure by determining the answers

to the following questions and then taking the indicated action:

1. Is the PWR (Power) LED on the media converter illuminated?

NO

• Is the power adapter the proper type of voltage and cycle frequency for

the AC outlet? (See “Power Supply DC Output” on page 9.)

• Is the power adapter properly installed in the media converter and in the

grounded AC outlet?

• Does the grounded AC outlet provide power?

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the RXC LED illuminated when data is sent across the RS-

485/422 copper link?

NO

• Check the RS-485/422 copper cable for proper connection.

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the RXF (fiber link) LED illuminated?

NO

• Disconnect and reconnect the fiber cables to restart the initialization

process.

• Verify that the TX and RX cables on the media converter are connected

to the RX and TX ports, respectively, on the other media converter.

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

YES

• Proceed to step 4.

4. Does the data fail to move across the link, even though both RXC

and RXF LEDs are illuminated?

YES

• Check switches 5 and 6 (page 3) for proper configuration and check the

the RS-485/422 cables for proper connection.

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

NO

• Contact Technical Support: US/Canada: 1-800-260-1312, International:

00-1-952-941-7600.

[email protected] -- Click the “Transition Now” link for a live Web chat. 13

Declaration of Conformity

Name of Mfg: Transition Networks

10900 Red Circle Drive, MinneatonkaMN 55343 U.S.A.

Model: SRS4Fxxxx-10x Series Media Converter

Part Number: SRS4F3111-100, SRS4F3113-100, SRS4F3114-100,

SRS4F3115-100, SRS4F3211-100, SRS4F3213-100,

SRS4F3214-100, SRS4F3215-100, SRS4F3129-100,

SRS4F3129-101, SRS4F3129-102, SRS4F3129-103,

SRS4F3229-100, SRS4F3229-101, SRS4F3229-102,

SRS4F3229-103

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the SRS4Fxxxx-10x to which this declaration refers is in

conformity with the following standards.

CISPR 22:1993; EN 55022:1998+A1:2000 Class A; EN 55024:1998; FCC Part 15 Subpart

B; 21 CFR subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to

the above Directive(s) and Standard(s).

August 2008

Stephen Anderson, Vice-President of Engineering Date

Declaration of Conformity

14 Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

SRS4Fxxxx-100

Contact Us

Technical Support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

10900 Red Circle Drive

Minneatonka MN 55343, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

[email protected] -- Click the “Transition Now” link for a live Web chat. 15

Compliance Information

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set

out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage

radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses

Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen

verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des

interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques

appropriées.

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

Copyright Restrictions

© 2004-2005 Transition Networks.

All rights reserved. No part of this work may be reproduced or used in any form or by any means

- graphic, electronic, or mechanical - without written permission from Transition Networks.

Printed in the U.S.A.

33281.D

16

SRS2F26xx-100
