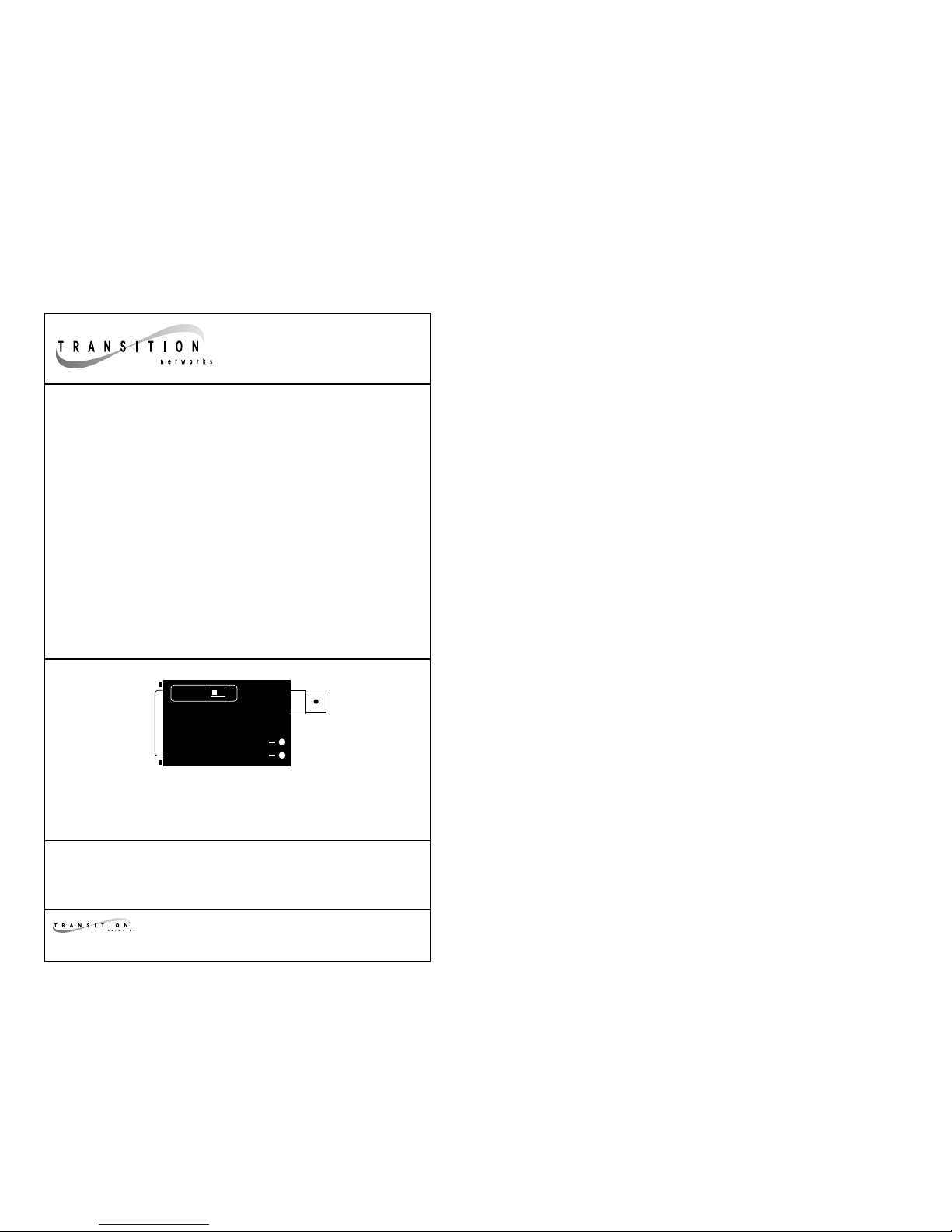

Transition Networks E-CX-MC01B Manuale utente

Universal Coax

10Base2

Micro-ceiver

The Ethernet10Base2 Micro-ceiver (transceiver) provides a simple and inexpensive means for

connecting to your Ethernet network. The Universal Micro-ceiver, part number E-CX-MC01(B), is

a 10Base2 thin coaxial transceiver (AUI to BNC)

INSTALLATION INSTRUCTIONS

Connecting the Coax Micro-ceiver to the Network:

First connect the Micro-ceiver to the AUI port on the Ethernet card or repeater (Note: The Micro-

ceiver can be attached to an AUI cable which is connected to a card or repeater, maximum AUI

cable distance is 50 meters or 165 feet). In a thin coax installation the next step is to insert a coax

BNC "T" connector, (not provided) onto the female end of the Micro-ceiver. DO NOT use a coax

segment directly from the Micro-ceiver either to another card or to the BNC "T", this can cause

excessive faults on your network and is not recommended. Using the BNC "T" you can now

connect directly to the thin coax network either at the end of the segment or in the middle.

The following installation criteria must be met:

- For a thin coax segment the cable must not exceed 185 meters or 606 feet

- Be sure the SQE switch is in the correct position for the application

- Not more than 30 Micro-ceivers can be placed on a segment

- The Micro-ceivers must be placed at least 0.5 meters apart

- The coax segment must be terminated at each end with a 50 ohm terminator

- Make sure that all of the connections are properly latched before starting up the device(s)

When connecting the Micro-ceiver to a hub or repeater, the SQE switch must be in the OFF

position. When connecting the Micro-ceiver to an Ethernet card or workstation, the SQE switch

must be in the ON position.

SQE

Heartbeat On Off

TRANSITIO

ENGINEERING,

INC.

Ethernet™

10Base 2/5

Transceiver

#E-CX-MC01

Mpls., Mn 55344

SQE Enabled

Power

BNC (female)

AUI (DB-15)

SQE Heartbeat: Enable - The SQE switch should be enabled (ON) when the Universal

Micro-ceiver is connected to a DTE or workstation.

Disable - The SQE switch should be disabled (OFF) when connected to

the AUI port of an Ethernetrepeater such as the model 1003 10BaseT hub.

FCC APPROVAL: This equipment has been tested and found to comply with the limits for a class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. this equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference, in which case, the user will be required to correct the interference at his own expense.

Minneapolis, MN 55344 USA

phone 612-941-7600 toll free 800-LAN-WANS (800-526-9267)

fax 612-941-2322 bulletin board 612-941-9304

[email protected] [email protected]

toll free tech support USA 800-260-1312 7312.B
