Project Quantity Item #
Model Specified: CSI Section 11400
SECTION
6-2
TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE 1 (800) 825-8220 FAX-MKTG. 1 (817) 624-4302
Website: www.traulsen.com
Listed by Underwriters Laboratories Inc.
and CSA certified by Underwriters
Laboratories Inc. and classified by
Underwriters Laboratories in accor-
dance with ANSI/NSF7.
Options & Accessories
•Correctional Facility Package for Blast Chill
•BCACC-60387: SmartChill®PC Communications Software
Package
•BCACC-NDPG1: Communications Gateway (required for use
within a NAFEM Data Protocol compliant network)
•BCACC-BMCE: 208V Bottom Mounted Electric Condensate
Evaporator
•Set Of Four (4) 6"High Locking Casters
•One or Two Day On-Site Blast Chill Training
•Optional Right Hand Hinging
•Modification For Use With Hobart CE6 & CE10 Combi Oven
Racks (for use with other brands please contact factory)
•Two Year Service/Labor Warranty Available
100 lb. Capacity Reach-in Blast
Chiller Model/Self-Contained
Model RBC100
(shown with optional casters)
Approval: __________________________________
R
RBC
SERIES
Model RBC100
Exclusive Standard Features
•Easy-to-Use SmartChill®Control System
•One Button EZ-STARTTM Feature
•Three (3) SmartProbesTM Automatically Register Product
Temperatures
•On-Board Label Printer (prints adhesive labels which can be
placed directly on to product containers)
•By Product Chill Mode (allows the operator to pre-program
into memory the individual chilling requirements of a variety
of different food products)
Other High Quality Standard Features
•Stainless Steel Exterior & Interior Construction
•Communications Capable & NAFEM Data Protocol Compliant
•On-Board Batch Data Printer
•Three (3) Chilling Functions
1) Blast Chill (135°to below 41°F in approx. 90-minutes)
2) Soft Chill (for use with delicate products such as
fresh seafood and produce)
3) Freeze (target temp can be set for as low as -22°F)
•Three (3) Chilling Modes For Each Chilling Functions
1) By Temperature
2) By Product
3) By Time
•Automatic Refrigerated Hold Mode After Each Cycle
•Two-Stage Self-Contained Refrigeration System (promotes
energy efficient operation and maximizes compressor life)
•Magnetic Door Gasket
•Self-Closing and Stay Open Door Features
•Rehingeable Stainless Steel Door (Standard Hinged Left)
With Cylinder Lock
•Five (5) Pairs of Tray Slides To Accommodate Either Ten (10)
12"x 20"Steam Table or Five 18"x 26"Sheet Pans
•Horizontal Work Flow Door Handles - Guaranteed for Life
•Set Of Four (4) 6"High Adjustable Stainless Steel Legs
•Automatic Defrost With On-Demand Feature
•Adjustable Product Chill Target Temperatures
•Adjustable Product Holding Temperature
•One Year Parts/Labor Warranty
•Five Year Compressor Warranty
Like all blast chillers, Traulsen's model RBC100 is designed to quickly
cool its respective capacity of hot product through the HACCP danger
zone as fast, or faster, than any other equivalent brand on the market
(approximately 90-minutes). However, in addition to the outstanding
cabinet construction synonomous with Traulsen, what differentiates
these models from competition is the operational flexibility and labor
savings inherent in their easy-to-use controls, automatic HACCP
documentation, and a variety of operator friendly features, such as our
exclusive "By-Product"chill mode.
Project Quantity Item #
Model Specified: CSI Section 11400
TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE 1 (800) 825-8220 FAX-MKTG. 1 (817) 624-4302
Website: www.traulsen.com
SECTION
6-2
Hardware, Insulation and Construction
Exterior sides, front, door, top, rear and interior are constructed of stainless steel.
Exterior bottom is constructed of heavy gauge aluminized steel. Door is equipped
with a cylinder lock and guaranteed for life cam-lift, self-closing hinges with stay
open feature at 120°. Guaranteed for life work-flow, door handle is mounted
horizontally over recess in door which limits protrusion from door face into aisle ways.
Easily removable for cleaning, vinyl magnetic gasket assures tight door seal. Anti-
condensate heater is located behind door opening. Door is hinged left as standard.
Both cabinet and door are insulated with high density, non-CFC foamed in place
polyurethane.
Refrigeration System
Dual refrigeration systems are utilized in order to prevent short cycling, providing for
energy efficient operation and maximizing compressor life. These combine their
efforts through a unique air circulation system within the food zone. During Blast
Chill cycles both systems are in full operation. At the completion of any chill or freeze
cycle, one refrigeration system remains in use to maintain proper refrigerated
storage temperatures. Each unit requires provision of a floor drain or optional
condensate evaporator for condensate removal.
Interior
Five pairs of tray slides to accommodate two each 12"x 20"x 21⁄2"pans for a total
capacity of ten pans is provided standard. These tray slides also have the ability to
hold one each 18"x 26"pans, for a total of five pans in place of the 12"x 20"x 21⁄2"
pans.
NOTE: When ordering please specify: Voltage, Hinging, Options and any additional
warranties.
Continued product development may necessitate specification changes without notice.
Part No. TR35798 (revised 1/07)
BTU/HR 11⁄4HP Blast Chill Compressor 5460
BTU/HR 1⁄2HP Holding Compressor 2280
Heat Load (chill compressor) BTU/HR 12000
Heat Load (holding compressor) BTU/HR 5800
Figures in parentheses reflect metric equivalents
NOTE: Unit requires condensate removal via either a
floor drain or optional electric condensate evaporator
kit. See spec sheet 6-4 for more information.

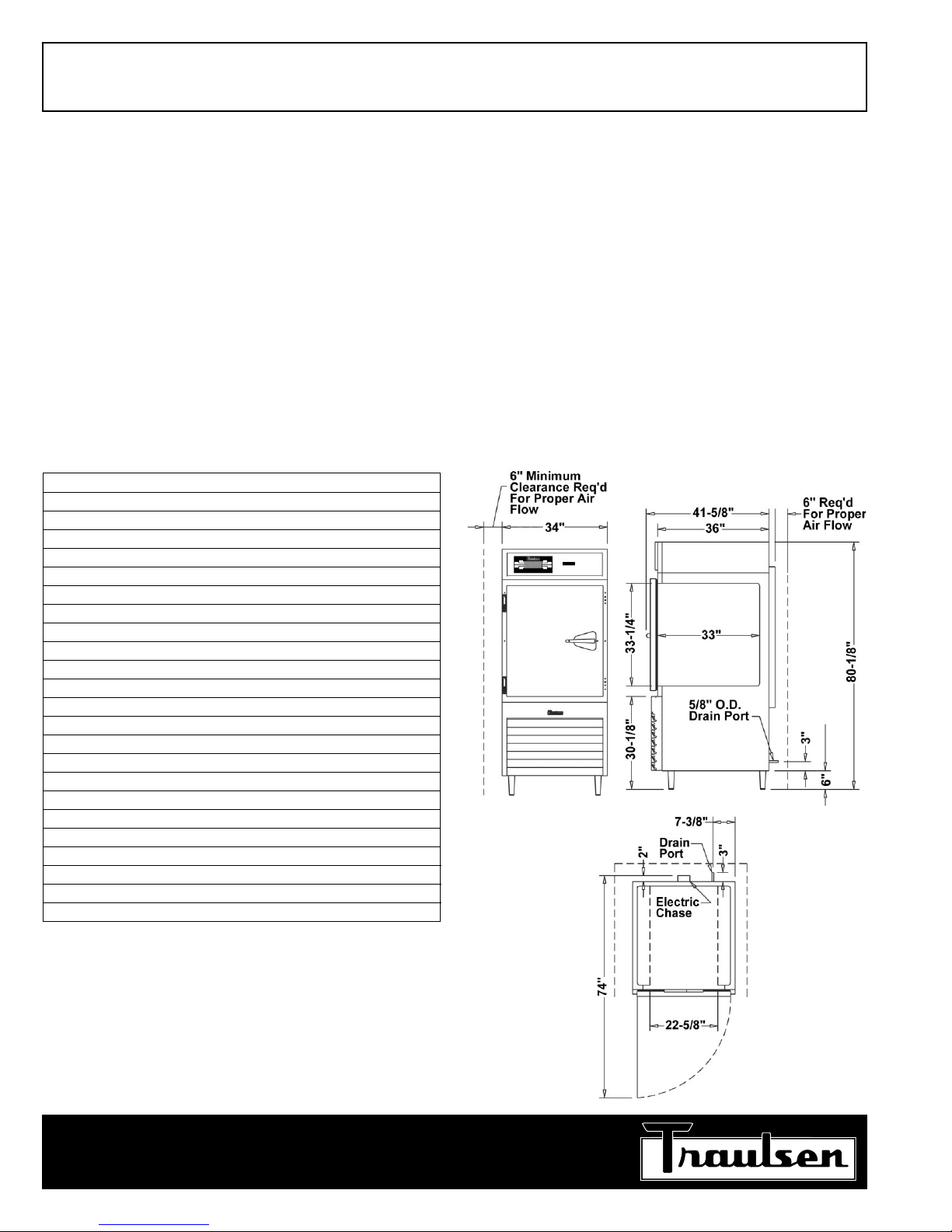

DIMENSIONAL DATA RBC100
Net Capacity cu. ft. 19.72 (557.5 l)
Number of Pans 12"x 20"x 21⁄2"10
Max. Product Capacity lbs. 100 (45.4 kg)
Length - Overall in. 34 (86.4 cm)
Depth - Overall in. 415⁄8(105.7 cm)
Depth - Cabinet only in. Over Body in. 36 (91.4 cm)
Depth - with Door Open 90°in. 74 (188.0 cm)
Clear Door Width in. 225⁄8(57.5 cm)
Clear Door Height in. 331⁄4(84.5 cm)
Height - Overall on 6"Legs 801⁄8(203.5 cm)
ELECTRICAL DATA
Voltage 208-230/115/60/1
Feed Wires with ground - without Plug 4
Full Load Amperes 15.1
Circuit Ampacity 20 amp
Wattage 11⁄4HP Blast Chill Compressor 1690
Wattage 1⁄2HP Holding Compressor 1165
REFRIGERATION DATA
Refrigerant R404A
Specifications
Blast Chill Operation
In Blast Chill mode both refrigeration systems, as well as two blowers are in
operation. Cabinet air temperature can be as low as 0°F. The control closely
monitors both the air and product temperatures to assure rapid chilling without
freezing. The operator is notified upon completion of each chill cycle, and the unit
automatically begins to maintain proper refrigerated storage temperatures. All chill
cycle data is then stored in memory and can either be printed or downloaded to a PC
on demand.
Controller
The SmartChill®microprocessor system operates using a familiar "ATM"type
interface, providing for ease of training and use. The control allows the chiller to be
operated in any one of three different chilling functions, and in any one of three
modes. HACCP documentation is facilitated by two on-board printers which record
all required product chill cycle information. This same data can also be downloaded
to a PC using optional SmartChill®communications software (available from Traulsen)
or via optional NAFEM Data Protocol Compliant hardware and software (by others).
An instructional DVD is included.
Warranties
The unit is standard with a one year parts & labor warranty on all components and
the cabinet, and an additional four year parts only warranty on the 11⁄4HP Chill Com-
pressor and 1⁄2HP Maintenance Compressor. Additional warranties are available at
extra cost.
