Olympic 1 Piece Surround Panel

See SKUs Below



Page 1 of 2 17601905 - Printed 10/6/15 © Travis Industries, Inc.

SKUs

Height Width

Custom Panel 96100591 Custom Custom

Small Panel 96100464 30.5” 42”

Medium Panel 9600465 34” 44”

Packing List

Panel

(2) Panel Mounting Brackets

Upper “L” Bracket

(4) 10-24 x ½” Thread-Cutting Screws

(2) 10-24 Nuts

(2) 10-24 x ½” Machine Screws (Truss Head)

Drill Bit

Installation

1. The insert should be in position, but pulled out slightly to allow access to the sides and top of the insert.

2. Attach the side bracket to the side of the insert using the thread-cutting screws as shown below (both

sides) – make sure to use the correct holes (cooktop or standard).

NOTE: The brackets have slotted holes. Align the brackets flush with the front of the convection chamber

before tightening the screws.

Make sure to use the correct mounting holes. If using the top air chamber extension,

use the forward holes, if not (cooktop version) use the rear holes.

Button Plugs

(pry out with a screwdriver) 5/16" Nutdriver

Attach the brackets with the

included screws.

Hint: pre-thread the holes

prior to installing the brackets.

Olympic 1 Piece Surround Panel

See SKUs Below



Page 2 of 2 17601905 - Printed 10/6/15 © Travis Industries, Inc.

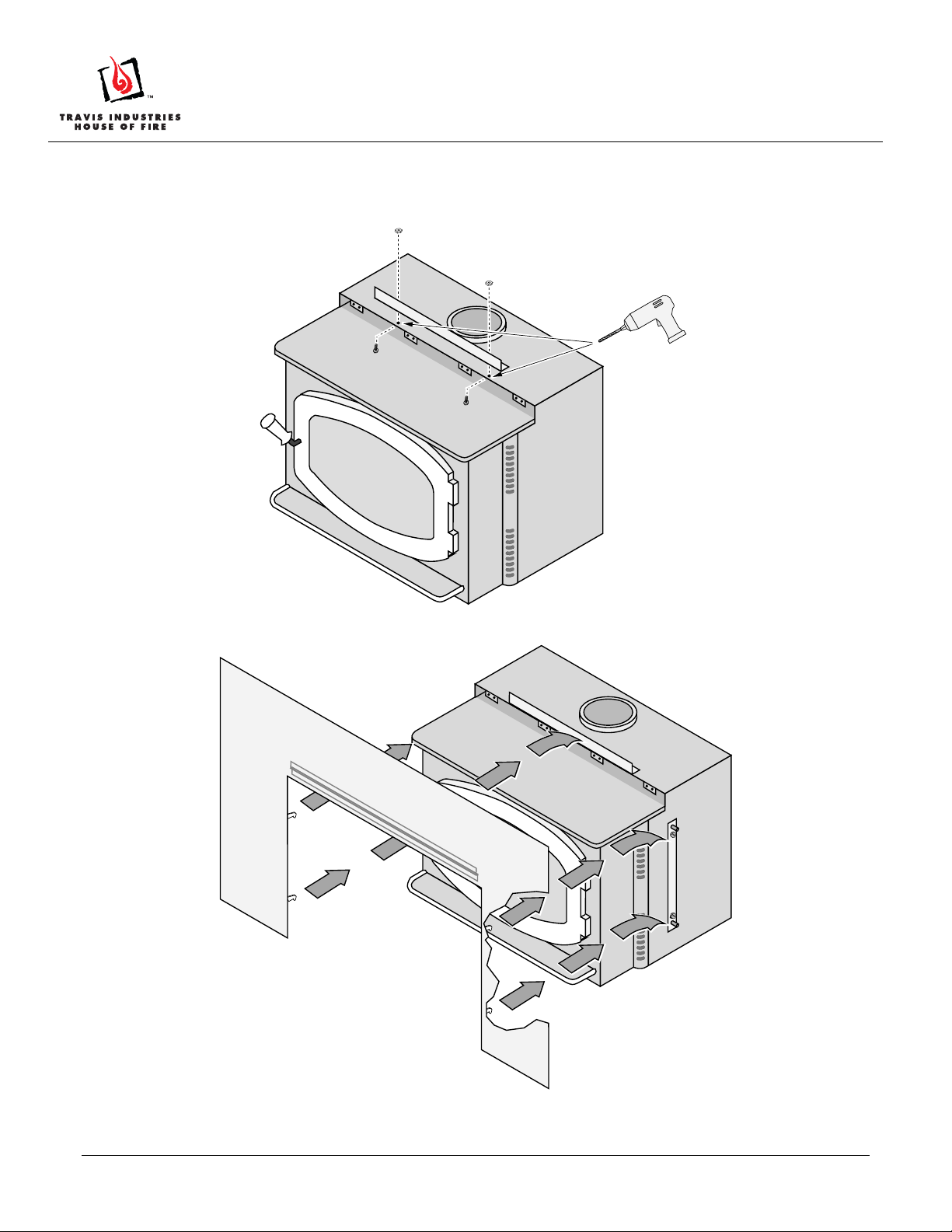

3. If using the top air chamber extension, disregard this step and go to step 4. When using the cooktop

version (no air chamber extension), position the “L” bracket so that is flush with the front edge of the stove

top. Use the bracket as a template to drill two mounting holes through the stove top (use included drill bit.

Secure the bracket with the included machine screws and nuts (remove the grill to install).

4. Place the insert into position (flue attached). Attach the surround panel as shown below.
