TravlFi JourneyXTR Router User Manual
1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the equipment
JourneyXTR
2
RF Exposure Statement
To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20cm from all persons
(indoor), and at least 48cm from all persons (outdoor). It must not be co-located or operating in
conjunction with any other antenna or transmitter.
Safety Warnings
RF Exposure Statement
Do not use any other power adaptor except the one that accompanies this unit or a power
adaptor identified in the list below.
The use of another adapter could result in damage to the unit.
The following power adaptor is qualified for use with this JourneyXTR.
The unit must be powered by a model DCT18W120150US-A0 AC/DC adaptor.
Caution
Connect the power cord of the power adapter to a socket outlet with a grounding connection.
3
JourneyXTR
Chapter 1
Introduction
provides customers with the most capable 4G LTE product we've ever offered.
With it's 6external antennas, the JourneyXTR allows customers to connect to the internet using
2.4GHz /5GHz WiFi and Ethernet/LAN. Up to 32 devices may be connected at any time.
1.1. Unboxing Information
Inside the product package for the , you should find the following items:
• x 1
• Ethernet Cord x 1
• 2.4GHz WiFi antenna x 2
• 5.0GHz WiFi antenna x 2
• LTE Antenna x 2
• Power Adaptor x 1
4
JourneyXTR
JourneyXTR
JourneyXTR
JourneyXTR

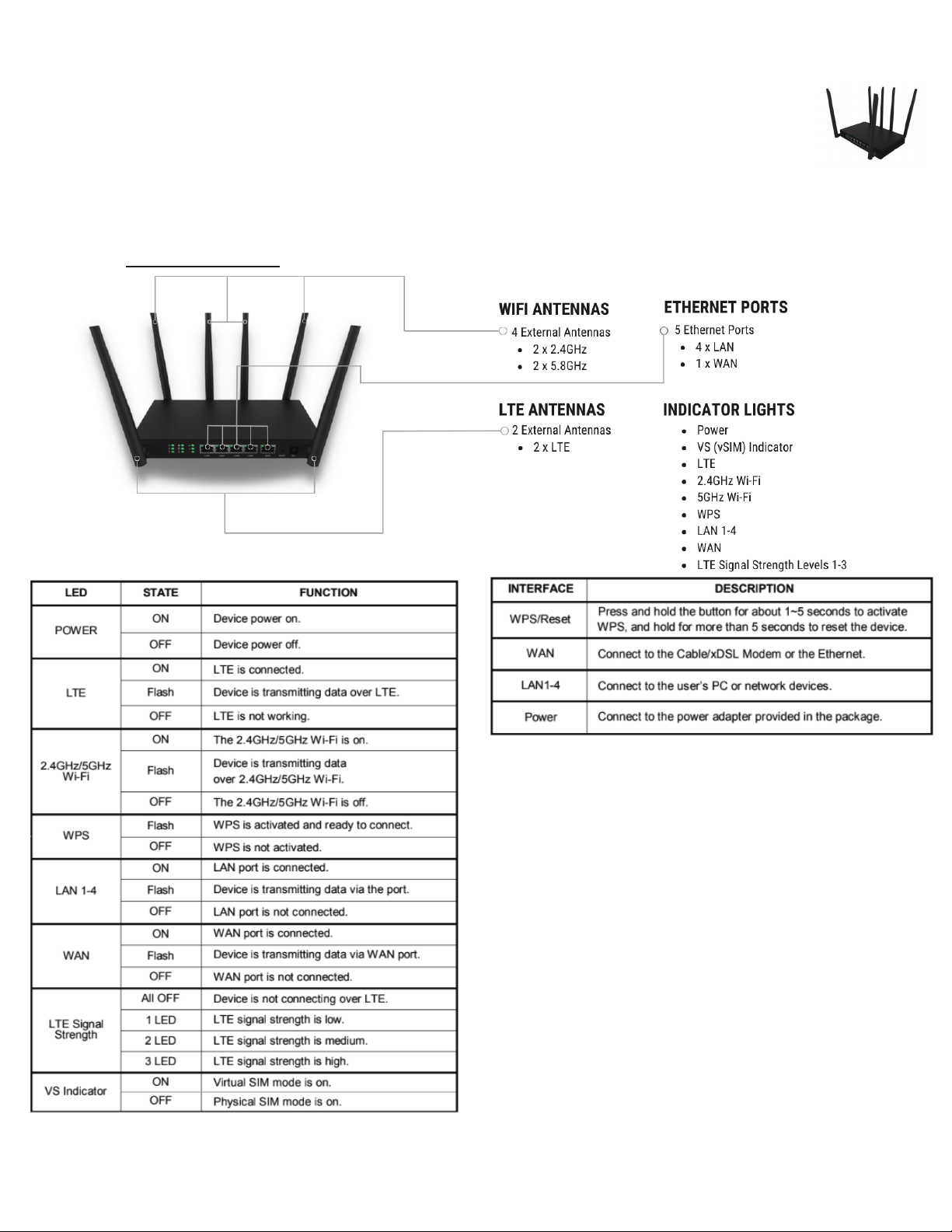

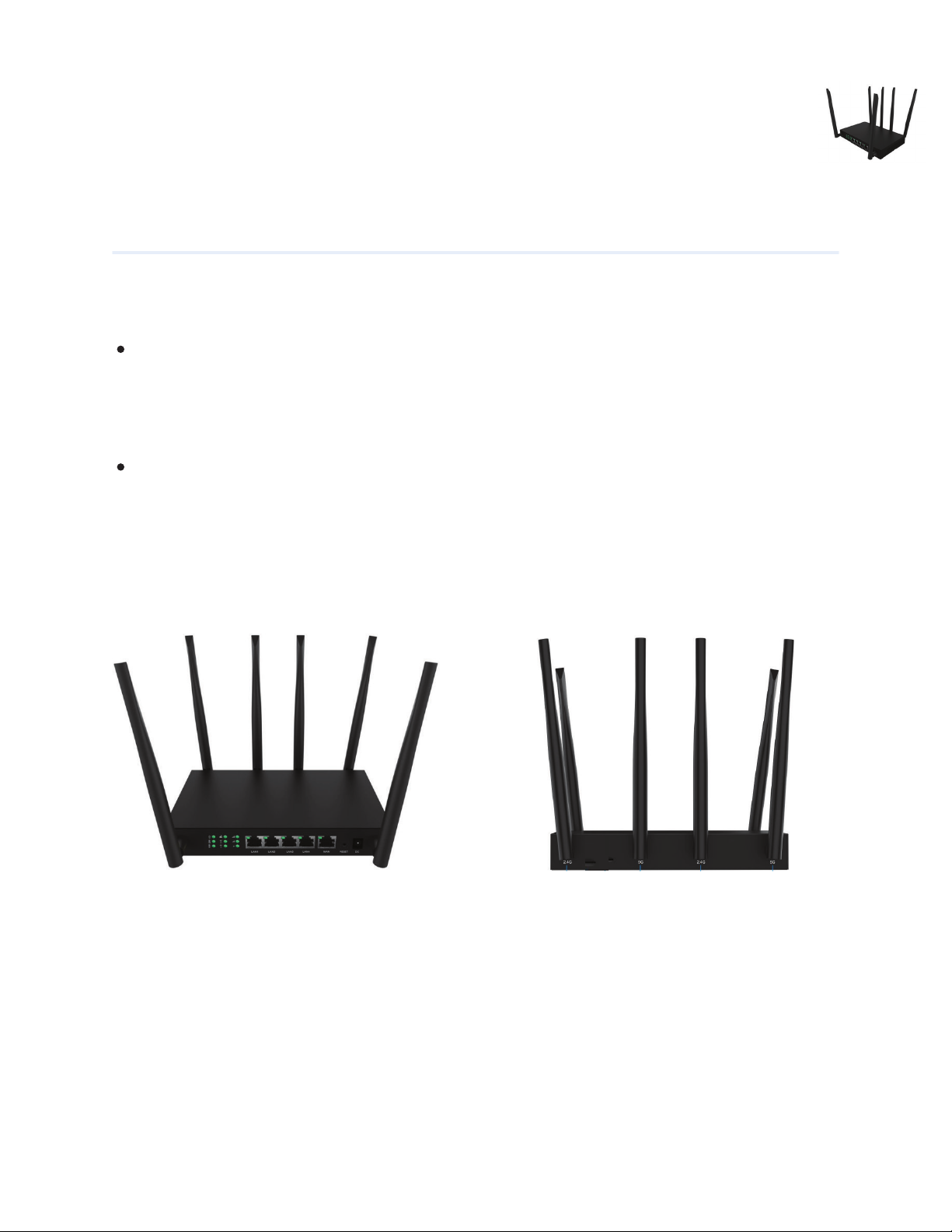

1.2. Front and Rear Features
Front & Rear Panel
5
JourneyXTR
Chapter 2
Self-Setup and Activation
Front Side Back Side
Cellular-LTEAntennas WiFi Antennas
2.1. Pre-Activation Checks
Before activating with TravlFi, please review these 3 steps. If your RV came equipped with
the JourneyXTR from the factory, locate the device first and then proceed with steps 1-3.
1.Device Check: Check that all antennas are secure and the JourneyXTR is powered on.
2. Status Check: Power, vSIMand WiFi indicators should be illuminated. The LTE and signal
strength indicators will turn on after activation of the JourneyXTR.
3. ReviewChapter 3: Continue to Chapter 3, connect your devices and call TravlFi.
66666
6
6
66
JourneyXTR
Ensure that the device is in a suitable location within the RV to receive cellular signal. Attach all sup-
plied antennas to their respective ports on the JourneyXTR and connect the JourneyXTR to power.
The JourneyXTR can be setup next to a window or windshield with adequate airflow. Cabinets may
also be suitable, but can degrade cellular reception. Do not block side vents or set other devices
on top of the JourneyXTR.
If the JourneyXTR was pre-installed by your RV manufacturer, some configurations may be
equipped with a rooftop mounted antenna.
JourneyXTR
Chapter 3
Accessing the Web User Interface: Log In and Set Up: Setup Wizard

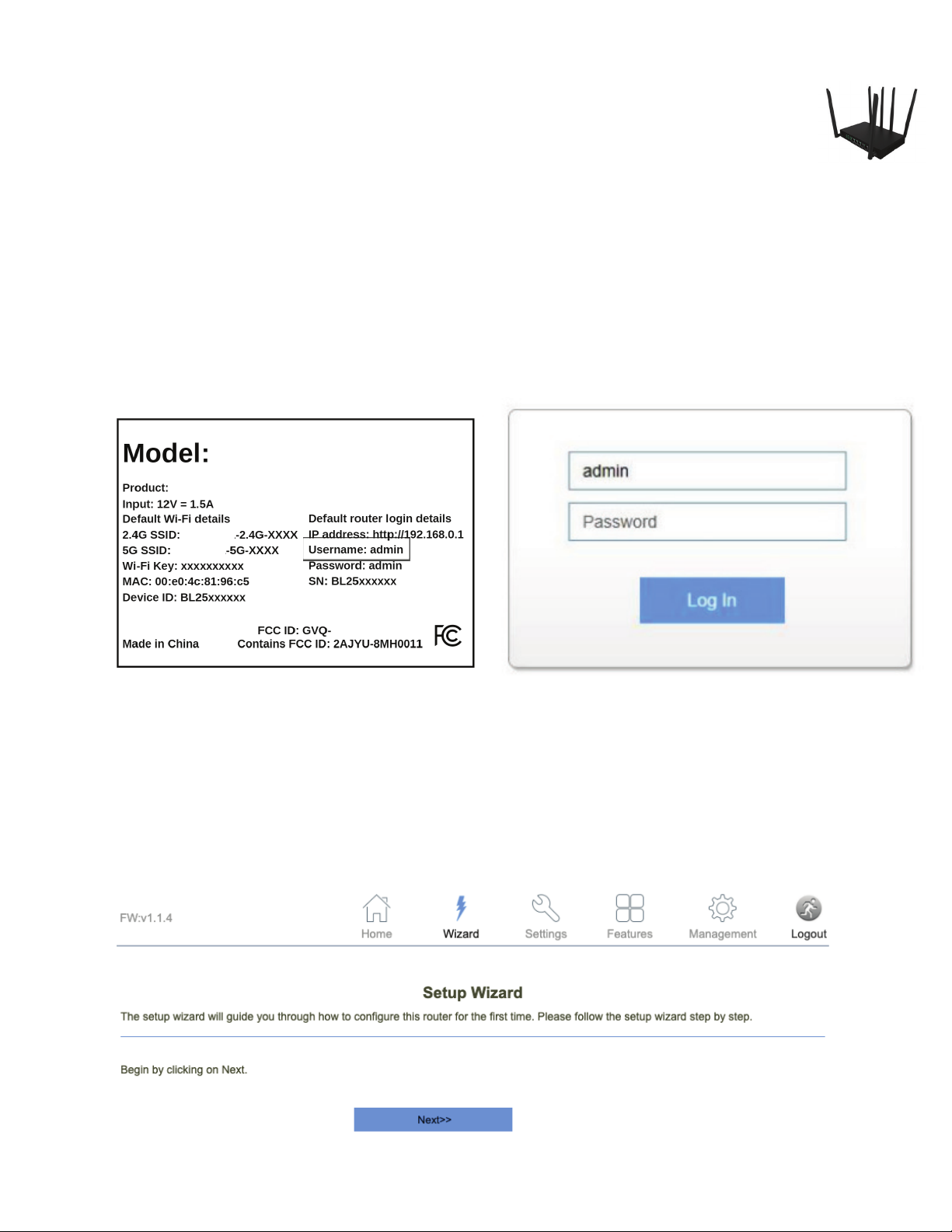

3.1. Login
After turning on the connect to it via Wi-Fi by following these steps:
1. Locate the default SSID (network name) and the default Wi-Fi key (password) on
the sticker located on the bottom of the router.
2. On your mobile device, access the Wi-Fi settings menu. Select the SSID
(network name) and enter the default Wi-Fi key (password) from Step 1.
a. Either 2.4G SSID or 5G SSID is fine to connect to.
After connecting to Wi-Fi, access the Web User Interface by following this step:
1. On your mobile device, navigate to an internet search browser, and input the IP
address of 192.168.0.1, then click enter.
JourneyXTR
7
JourneyXTR
JourneyXTR
CPE-0001
CPE-0001
JourneyXTR
JourneyXTR
After navigating to the Web User Interface, log in by following this step:
1. On your mobile device, login to the Web User Interface’s Home Page using the
default user name of admin and the default password which will be a series of
letters and numbers. Both of these can be found on the sticker located on the
bottom of the router.
3.2 Setup Wizard
After logging into the , the Setup Wizard will appear. The Setup Wizard will guide
users along the configuration steps, it is imperative they follow the guide step by
step.
8
JourneyXTR
JourneyXTR
CPE-0001
CPE-0001
JourneyXTR
JourneyXTR
JourneyXTR

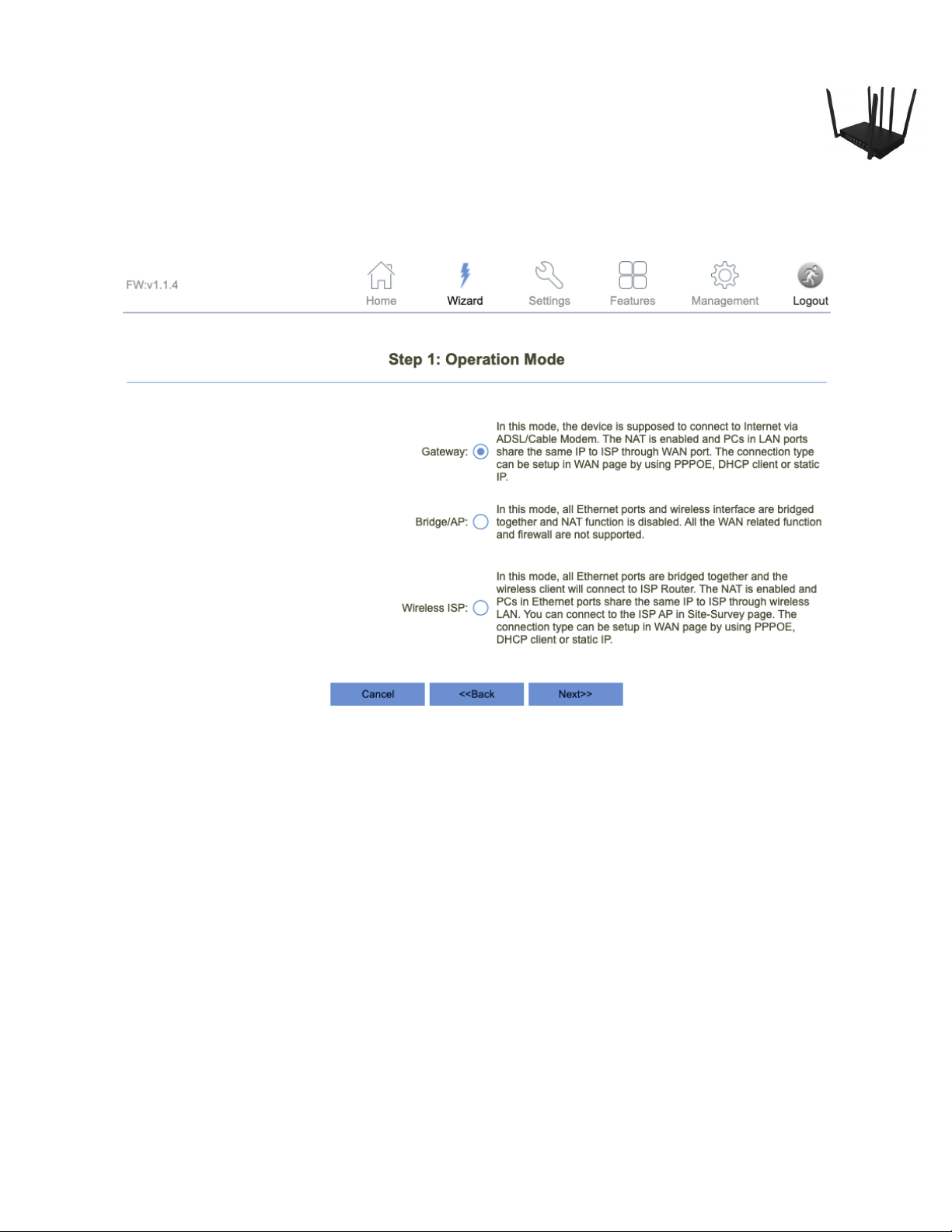

Step 1: Operation Mode
The Operation Mode page is used to toggle the between different operational
modes; Gateway, Bridge/AP mode, and Wireless ISP.
To ensure your device works on your pre-selected data plan, you must start by selecting
Gateway, you can always go back and change this selection at a later time if you wish.
9
JourneyXTR
JourneyXTR

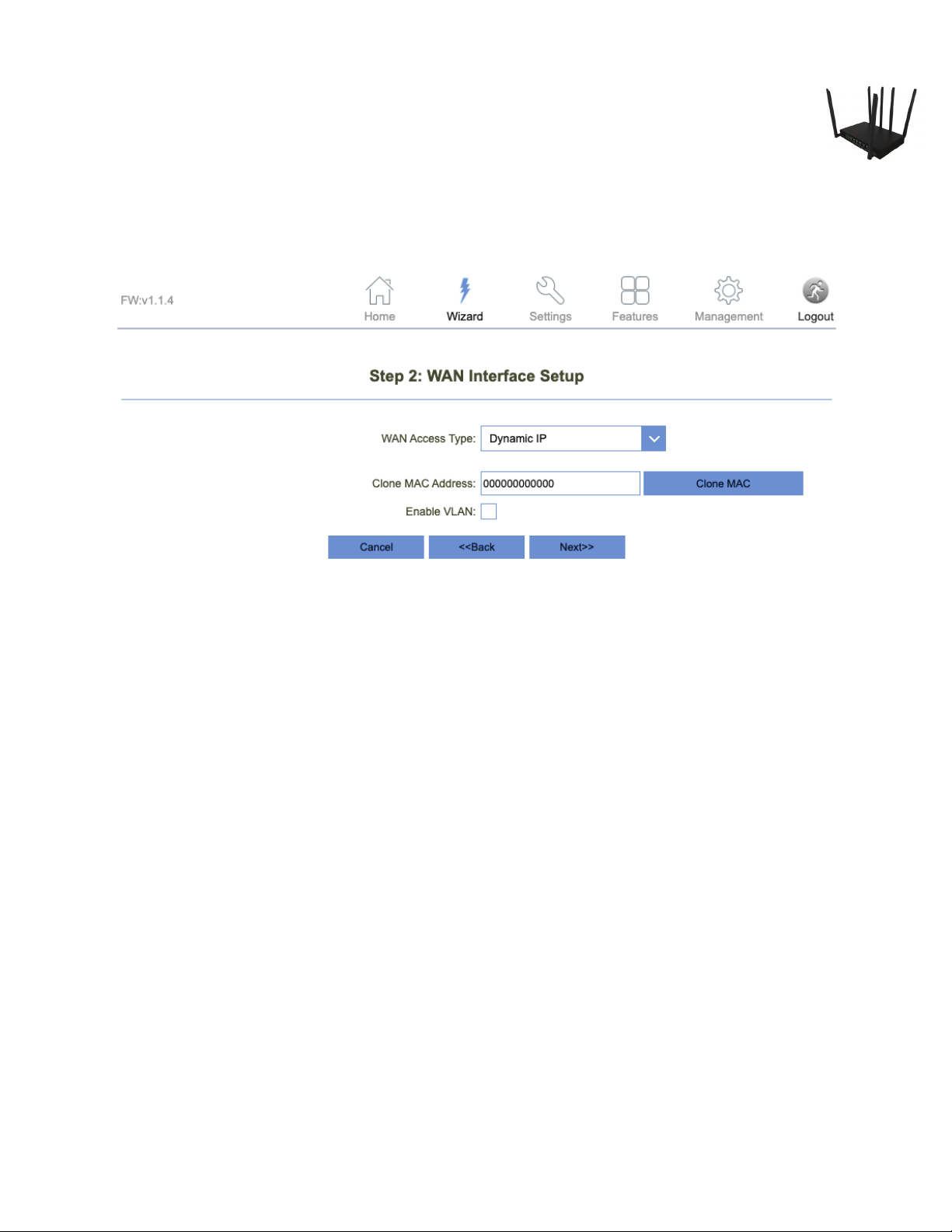

Step 2: WAN Interface Setup
The WAN Interface Setup page is used to set the WAN Access Type.
You do not need to set up the WAN Interface at this moment, you can always go back and set it
up at a later time.
Skip this step and click Next.
10
JourneyXTR
