e:cue SYMPL Core Sp

Information for Use

Edition:

07.03.23 [EN_SYMPL_CoreSp_Setup_v2p0]

Published by:

Traxon Technologies Europe GmbH

Karl-Schurz-Strasse 38

33100 Paderborn, Germany

Read the Information for Use and the Safety Instructions

carefully. Subject to modication without prior notice.

Typographical and other errors do not justify any claim for

damages. Modication of the product is prohibited.

This document is designed for electricians, system

administrators, and product users.

All product names and trademarks mentioned in this manual are

trademarks of their respective owners.

Except for internal use, relinquishment of the instructions to a

third party, duplication in any type or form - also extracts - as

well as exploitation and / or communication of the contents is not

permitted.

Traxon Technologies Europe GmbH

Sales Operations

Karl-Schurz-Str. 38

33100 Paderborn, Germany

+49 5251 54648-0

[email protected]

Downloads and more information at:

www.ecue.com

Table of Contents

1. Safety instructions 03

1.1 Symbols 03

1.2 General safety instructions 03

2. General device description 03

2.1 System overview 04

2.2 Delivery content 04

2.3 Product specications 05

2.4 Connectors and interfaces 05

2.5 User interface: LEDs 06

2.6 Identify button: Identication & Reset & Update 06

3. General remarks 06

3.1 Transport 06

3.2 Unpacking 07

3.3 Warranty regulations 07

3.4 Maintenance and Repair 07

3.5 Disposal 07

3.6 Support 07

4. Installation 07

4.1 Installation conditions 08

4.2 Mounting process 08

4.3 Ethernet connection 08

4.4 Power supply 08

5. Networkconguration 09

5.1 Default network properties 09

5.2 Network conguration with SYMPHOLIGHT 09

5.3 Network conguration with the web interface 10

6. Restart 10

7. Firmware Update 11

7.1 Update via web interface (from v5.2 or newer) 11

7.2 Update with a USB ash drive (from v5.2 or newer) 12

7.3 Update with a USB ash drive (from older version than v5.2) 13

7.4 Update via microSD card (from any version) 16

8. Dismounting 18

9. Certications 19

10. Dimensions 20

SYMPL Core Sp — Information for Use | Table of Contents

1. Safety instructions

Please read the safety instructions, provided in a separate manual, carefully. Make sure that the

environmental, mounting, and installation prerequisites are met. This manual should be kept at a safe place

and in reach of the device.

1.1 Symbols

The exclamation mark warns about possible

damage of the device itself, to connected devices,

and to the user.

The information symbol gives general hints and

informs about handling and procedures for use of

the device.

1.2 General safety instructions

2. General device description

e:cue SYMPL Nodes are a system of interfaces for e:cue SYMPHOLIGHT only. They provide various

connection types like DMX512, DALI, digital inputs and outputs etc. SYMPL Nodes always operate in online

mode, as a device interface for SYMPHOLIGHT. All interactions are initiated and controlled by

SYMPHOLIGHT. Connections between servers, Cores and Nodes are always made with e:net via Ethernet.

e:cue SYMPL Core Sp is a stand-alone engine for e:cue SYMPHOLIGHT with SYMPL Nodes as interfaces. It

executes SYMPHOLIGHT proejects in small to medium-sized projects and controls all available SYMPL

Nodes. As a user interface it utilizes the Action Pad of SYMPHOLIGHT with all usual web browsers. The

connection between SYMPL Core Sp, external systems and the Nodes is a standard Ethernet network.

Projects can be transferred to the SYMPL Core Sp from a SYMPHOLIGHT server or via its web interface.

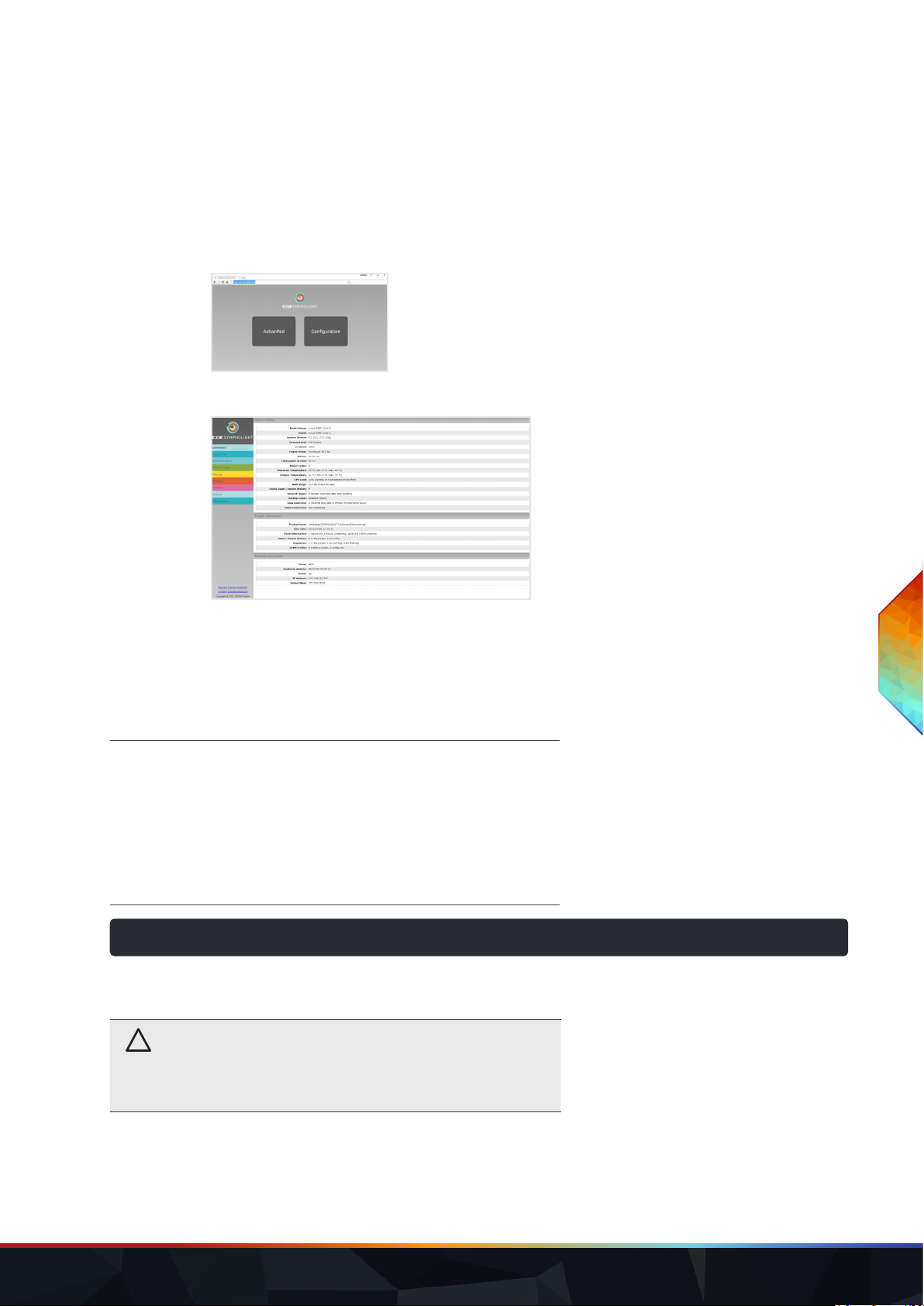

Numerous settings and actions can be accessed via the web interface. The SYMPL Core Sp can be powered

by an external power supply or via Power-over-Ethernet.

— The device must be supplied by a separate certied SELV

Class 2 power supply.

— The maximum length of each connected cable is 30 m.

— The Ethernet port of the SYMPL Node is not designed for

inter-building connections with power and lighting

transients. Use only intra-building networks to connect

the SYMPL Nodes and Cores.

If safety instructions are missing, please contact Traxon

e:cue to receive a new copy.

— To operate SYMPL Nodes a SYMPHOLIGHT version 2.0

or higher is mandatory. Earlier versions do not support

the SYMPL Nodes. SYMPL Nodes are not supported by

the e:cue Lighting Application Suite.

— e:cue SYMPL Core Sp is not hot-pluggable.

SYMPL Core Sp — Information for Use | Safety instructions



content

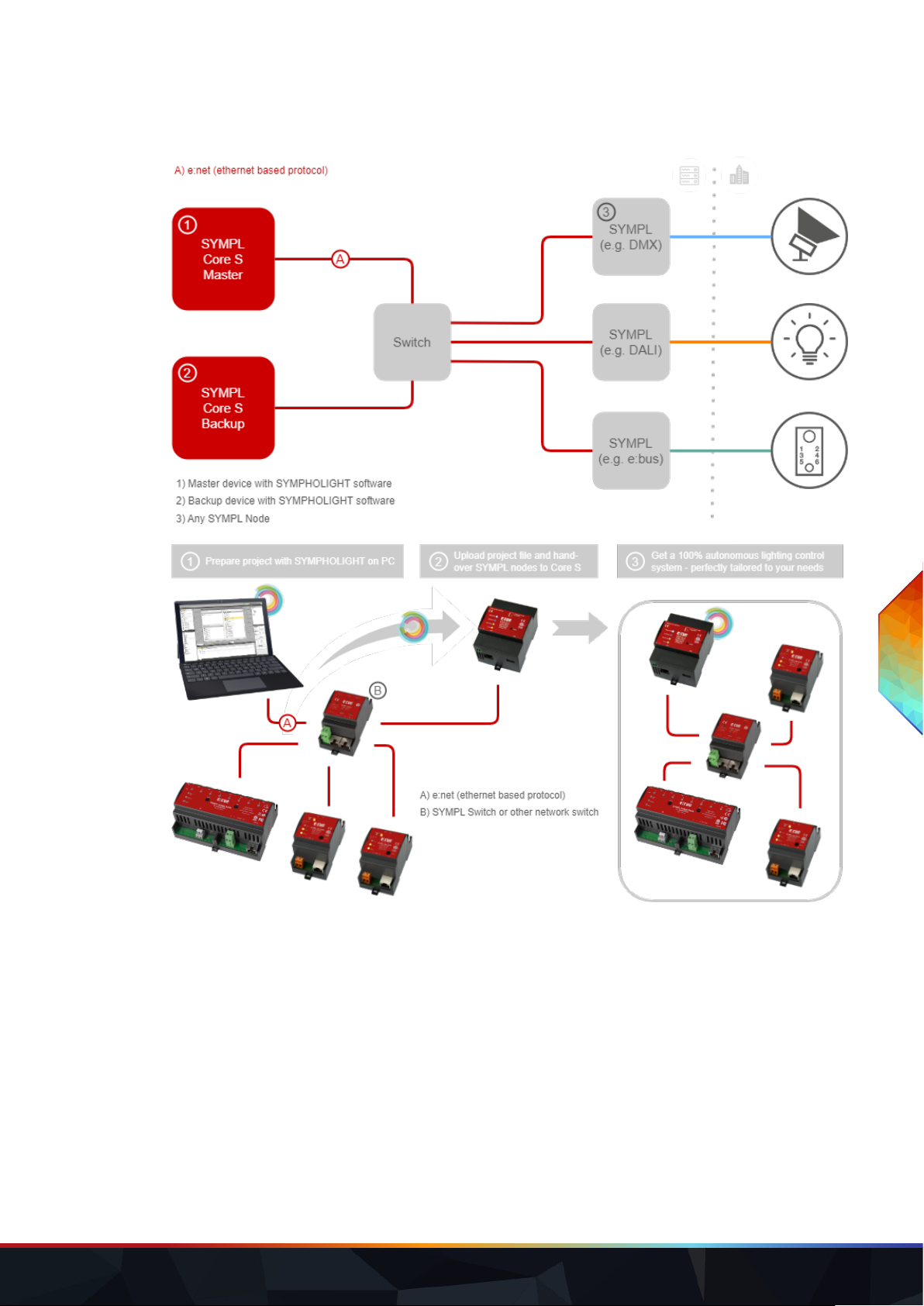

2.1 System overview

2.2 Delivery content

Delivery content for the e:cue SYMPL Core Sp (AM430280035):

1. e:cue SYMPL Core Sp

2. Safety instructions

3. Welcome note

SYMPL Core Sp — Information for Use | General device description



content

2.3 Productspecications

Product number AM430280035

Dimensions

(W x H x D)

71.5 x 90.5 x 62 mm /

2.81 x 3.56 x 2.44 in (excl. fastening

clip)

Weight 170 g / 0.37 lb

Power supply input 24 ... 48 V DC on terminal plug

wire gauge: 0.25 ... 1.5 sqmm, (0.5

sqmm for  exible wires with

ferrules)

or PoE IEEE 802.3af on RJ45

Power consumption max. 12 W incl. external USB load

Operating temperature -20 ... 40 °C / -4 ... 104 °F

Storage temperature -20 ... 70 °C / -4 ... 158 °F

Operating / storage

humidity

0 … 80% RH, non-condensing

Protection class IP20

Installation Indoor installation only,

intra building connections only

Housing Self extinguishing blend PC/ABS,

UL E140692

Mounting on 35 mm DIN rail (EN 60715),

or with key hole on any stable

vertical surface

Certi cates CE, RoHS, FCC, UKCA, ETL

Interfacespecications

User interfaces 4 LEDs (Master/Slave, Error/Status,

Ethernet, Power)

Identify button

Web interface

System interfaces 1 x ethernet 10/100 Mbit/s, RJ45

CAT shielded, for e:net and PoE

(galvanically not isolated)

USB 2.0 Type A

Mass Memory microSD card

2.4 Connectors and interfaces

View from top

1Master / Slave LED

2Error / Status LED

3Ethernet link LED (e:net, LAN activity)

4Power LED

5Identify button

6micro SD card slot

7Power supply

(V–, V+ left to right)

8e:net / Ethernet

9DIN rail handle

10 USB 2.0 socket

789 10

SYMPL Core Sp — Information for Use | General device description



content

2.5 User interface: LEDs

The SYMPL Core Sp has four LEDs. The four LEDs show the basic states of the SYMPL Core Sp.

LEDs

Master/

Slave

Blue: This SYMPL Core Sp is master in a

master/slave group.

Yellow: This SYMPL Core Sp is a slave in a

master/slave group.

Error/

Status

Green: Signals system activity.

Orange: System load reaches 100%.

Red: A system error occurred. Restart the

system by disconnecting the power supply. If

the error persists, contact Traxon e:cue

Service.

Ethernet

link

O: No network connection available.

On: If constantly alight, network connection

available.

Flashing: Data trac over network.

Power On: Device is in operation.

2.6 Identifybutton:Identication&Reset&Update

The Identify button has three functions: to send an Identify message (A), to reset the SYMPL Core Sp (B), and

to update the rmware of the SYMPL Core Sp (C).

(A) A short press during operation in online mode sends an Identify message to the server. This helps to

assign the SYMPL Core Sp in the Layout in SYMPHOLIGHT.

(B) The Identify button can also be used to reset the device to factory state or to stay in bootloader mode:

yKeep the Identify button pressed while powering up, Master / Slave and Error / Status LEDs light up

at rst. Bootloader mode is signaled by a fast blinking Error / Status LED. Release the button now. The

device stays in bootloader mode to download a new rmware.

To exit the bootloader mode, short press the Identify button again.

yPress the Identify button until Master / Slave and Error / Status LEDs blink alternating, then blink

together. Releasing the button now resets the device to its factory settings. The password and other

settings are reset to their default values.

yKeeping the button pressed further on, the device proceeds to normal operation. No changes apply.

When Master/Slave LED of SYMPL Core Sp lights in blue or yellow, the device has booted and is

operational.

Update with a USB ash drive (from v5.2 or newer)“ on page 12 or „7.3 Update with a USB ash drive

(from older version than v5.2)“ on page 13 for further information.

3. General remarks

3.1 Transport

Only transport the device in its original packaging. This protects the device from damage.

SYMPL Core Sp — Information for Use | General remarks



content

3.2 Unpacking

Only unpack the e:cue SYMPL Core Sp at its installation location. To protect the device against condensation

water, unpack it and wait until all moisture remaining in the device has evaporated. Condensation can occur

when the device is moved from a cold to a warm location. Keep the packaging for use in case of further

transport. Inspect all parts for completeness regarding chapter „“ on page 04. If there is apparent damage

to the device or parts are missing from the delivery scope, please contact the Traxon e:cue Support service.

3.3 Warranty regulations

Depending on the product, warranty regulations are of dierent duration. The warranty time is usually noted

in the quote and in the order conrmation. See www.traxon-ecue.com/terms-and-conditions for details. Legal

warranty regulations apply in any case.

3.4 Maintenance and Repair

This device requires no maintenance.

3.5 Disposal

The proper disposal of packing materials and of the device is the responsibility of the respective user and for

his account; in all other matters, the retrieval obligation for packing materials and the device is subject to the

statutory regulations.

3.6 Support

In case of technical problems or questions regarding installation and repair please contact:

Traxon Technologies Europe GmbH

Customer Service

Karl-Schurz-Str. 38

33100 Paderborn, Germany

+49 (5251) 54648-0

[email protected]

4. Installation

The installation of the SYMPL Core Sp consists of mounting the device, connections to e:net, and to power

— Before dismounting, appropriate measures must be taken

to protect the respective components against damage

caused by electrostatic discharge (ESD protection).

— Do not try to repair the device. Return it to your Traxon

e:cue distributor for replacement or repair.

Batteries and technical appliances must not be disposed of

with domestic waste, but should be handed in at the

appropriate collection and disposal points.

— Connect cables and data only when the device is powered

down.

— Each cable should not exceed a length of 30 m.

— If safety instructions are missing, please contact Traxon

e:cue to receive a new copy.

SYMPL Core Sp — Information for Use | Installation



content

supply.

The sequence of cabling is not dened. Supply the SYMPL Core Sp with power after all cabling is completed; it

starts booting.

4.1 Installation conditions

Installation position Terminals on top and bottom

Horizontal spacing No spacing necessary

Minimum vertical rail grid spacing 115 mm (90 + 25 mm) (excluding conduit)

Recommended vertical rail grid spacing 160 mm (with 40 mm conduit)

Installation location Indoor

4.2 Mounting process

The e:cue SYMPL Core Sp is designed to mount onto a 35 mm DIN rail (EN 60715) in a vertical position.

1. Clip the device to the rail from top.

2. Gentle pressure is then applied to the top front to snap it in place. The

SYMPL Core Sp has been mounted successfully.

You can also mount the e:cue SYMPL Core Sp on any at vertical surface. Use a 3 to 3.5 mm screw for the

hanger hole.

4.3 Ethernet connection

The pin-assignment of the Ethernet port corresponds to RJ45 standards. You can use every common

Ethernet component, like cable, splitters, and switches. Connect the SYMPL Core Sp at the designated

Ethernet interface with a patch cable (RJ45, CAT5).

4.4 Power supply

The e:cue SYMPL Core Sp can be powered by an external power supply or via Power-over-Ethernet.

For mechanical stability, mounting on a rail is recommended.

— The Ethernet port of the SYMPL Node is not designed for

inter-building connections with power and lighting

transients. Use only intra-building networks to connect

the SYMPL Nodes and Cores.

— Never connect more than one SYMPL Node in factory

state to a network. The identical IP addresses will conict

and disturb proper communication.

It is not recommended to have PoE and external power supply

connected at the same time. Only use one option.

SYMPL Core Sp — Information for Use | Installation



content

PoE:

For PoE, simply connect an Ethernet connection from a power sourcing device.

External power supply:

Connect the SYMPL Core Sp to a certied NEC Class 2 24 ... 48 V DC power supply unit. Present power

supply equates to the status “On” or running of the SYMPL Node.

To connect the device to a power supply unit, use the provided 2-pole terminal and lay the wires as stated on

the front label. The voltage assignment is left V- and right V+.

Turn the power on when all cables are connected to the SYMPL Core Sp. The device starts booting. The

device has nished booting and is in operation when the LED Error / Status is ashing.

5. Network conguration

The network properties of the SYMPL Core Sp are precongured. The successful installation of the power

supply is required for changing the network conguration. You can either adjust the network settings with

SYMPHOLIGHT or using the web interface of the SYMPL Core Sp. Via the web interface numerous settings

and actions can be accessed as well.

5.1 Default network properties

The SYMPL Core Sp default IP address is 192.168.123.100/24, if available. An active external DHCP server

has precedence. The fallback to a random IP in the 192.168.123.0/24 subnet is used as a last resort.

5.2 NetworkcongurationwithSYMPHOLIGHT

1. Open the context menu of the SYMPL Core Sp in the Setup tab of SYMPHOLIGHT by a right-click on

the device.

2. Select “Congure Network”:

3. Dene the Network Mode (DHCP settings), the IP address, and the subnet mask to your needs:

4. Enter the password for the SYMPL Core Sp and click “Apply” to submit the changes.

Use unshielded cables when several SYMPL Core Sp are

operated via the same PoE switch.

Use a separate certied SELV Class 2 power supply unit in

the control cabinet for supplying 24 ... 48 V DC to the

SYMPL Core Sp.

SYMPL Core Sp — Information for Use | Network conguration



content

The network conguration of the SYMPL Core Sp is completed.

5.3 Networkcongurationwiththewebinterface

1. Open a common web browser on a connected PC. Enter the SYMPL Core Sp's IP address into the

address bar:

e.g. http://192.168.123.1

The remote console of the SYMPL Core Sp is displayed:

2. Select “Conguration” and the dashboard of the SYMPL Core Sp is displayed:

On rst access, dene your login credentials for the web interface of the SYMPL Core Sp under “Settings”.

3. Dene the network settings at “Network” to your needs.

4. Click “Apply” to apply the settings.

The network conguration of the SYMPL Core Sp is completed.

6. Restart

To restart the SYMPL Core Sp, use the Restart button in the web interface of the SYMPL Core Sp. It is

located at the “Maintenance” page.

— Note down all employed and, if applicable, reserved IP

addresses. Keep the information for future network

congurations.

— You can change the login password to the

SYMPL Core Sp's conguration page and the device name

of the SYMPL Core Sp at “Settings” page. Do not forget

the new password.

Restart via power disconnection should be the exception. The

device is designed for continuous operation. Frequent

disconnection may cause the internal clock to become

misaligned and the SD card to become damaged.

SYMPL Core Sp — Information for Use | Restart



content

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Traxon Technologies Attrezzatura di illuminazione

Traxon Technologies

Traxon Technologies e:cue LIGHTDRIVE+ WiFi Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente

Traxon Technologies e:cue SYMPL Core Sp Scheda tecnica

Manuali Attrezzatura di illuminazione popolari di altre marche
