Pro Scale®LED Light Kit Installation Instructions
TRAXXAS.com
Traxxas, 6250 Traxxas Way, McKinney, TX 75070,
HKC22071-R00 Rev 220909
Kit Contents:
• LED headlights/tail lights harness assembly
• 1.6x5mm button-head cap screws (BCS) (4)
• Zip ties (2)
Visitez Traxxas.com/manuals pour télécharger
les instructions dans votre langue.
Visite la página Traxxas.com/manuals para
descargar el instrucciones en su idioma.
Auf Traxxas.com/manuals, können Sie
anleitung in Ihrer Sprache downloaden.
Tools required:
• 1.5mm hex wrench
• Side cutters (to trim zip ties)

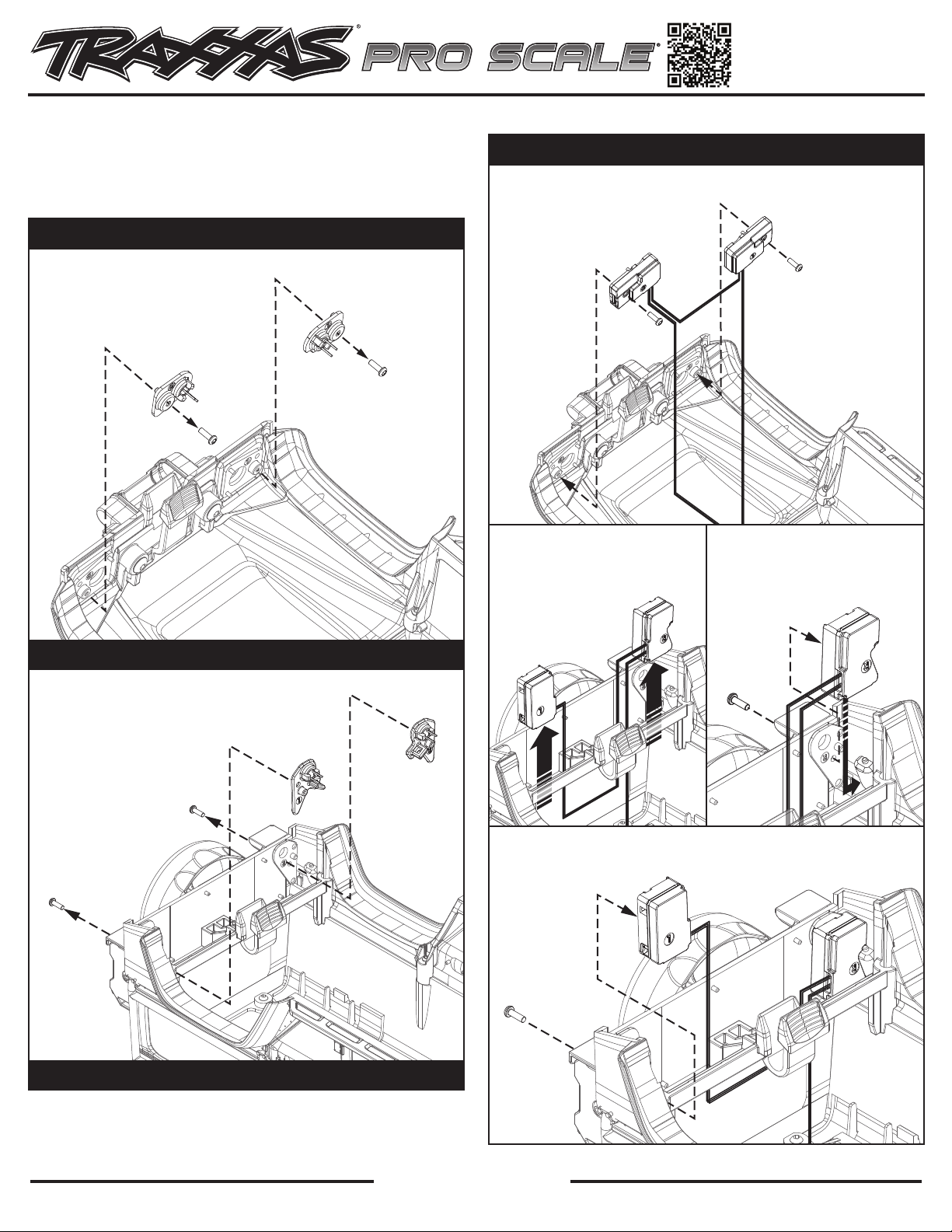

BODY DISASSEMBLY
LED LIGHT INSTALLATION
Note: Discard these parts and hardware or save for future use.
Note: Discard these parts and hardware or save for future use.
1. Remove front LED headlight retainers.
2. Remove front the tail light retainers.
Do not remove the tail light lenses.
LED Headlight
Retainer
LED Headlight
Retainer
1.6x5mm
BCS
1.6x5mm
BCS
1.6x5mm
BCS
1.6x5mm
BCS
1.6x5mm
BCS
Tail Light
Retainer
Tail Light
Retainer
Right LED Headlight
Assembly
Left LED Headlight
Assembly
1.6x5mm
BCS
1.6x5mm
BCS
1. Install the left and then right LED headlight assemblies.
2. Route both LED tail light
assemblies under the
rear cross brace.
3. Install the right LED tail light
assembly into position behind
the pocket in the body.
4. Install the left LED tail light assembly over the tail light lens.
Left LED Tail
Light Assembly
Left LED Tail
Light Assembly
Right LED Tail
Light Assembly
Right LED Tail
Light Assembly
If you have questions or need technical assistance, call Traxxas at
1-888-TRAXXAS
(1-888-872-9927) (U.S. residents only)
1.6x5mm
BCS
2
1
3
4
OPERATION
Mode Selection
The LED lights will turn on when the electronic control module (ECM) is powered on by plugging in the battery. Press and release the EZ-Set button on
the ECM to toggle through the different lighting modes. The chart below indicates how the lights will function in each mode:

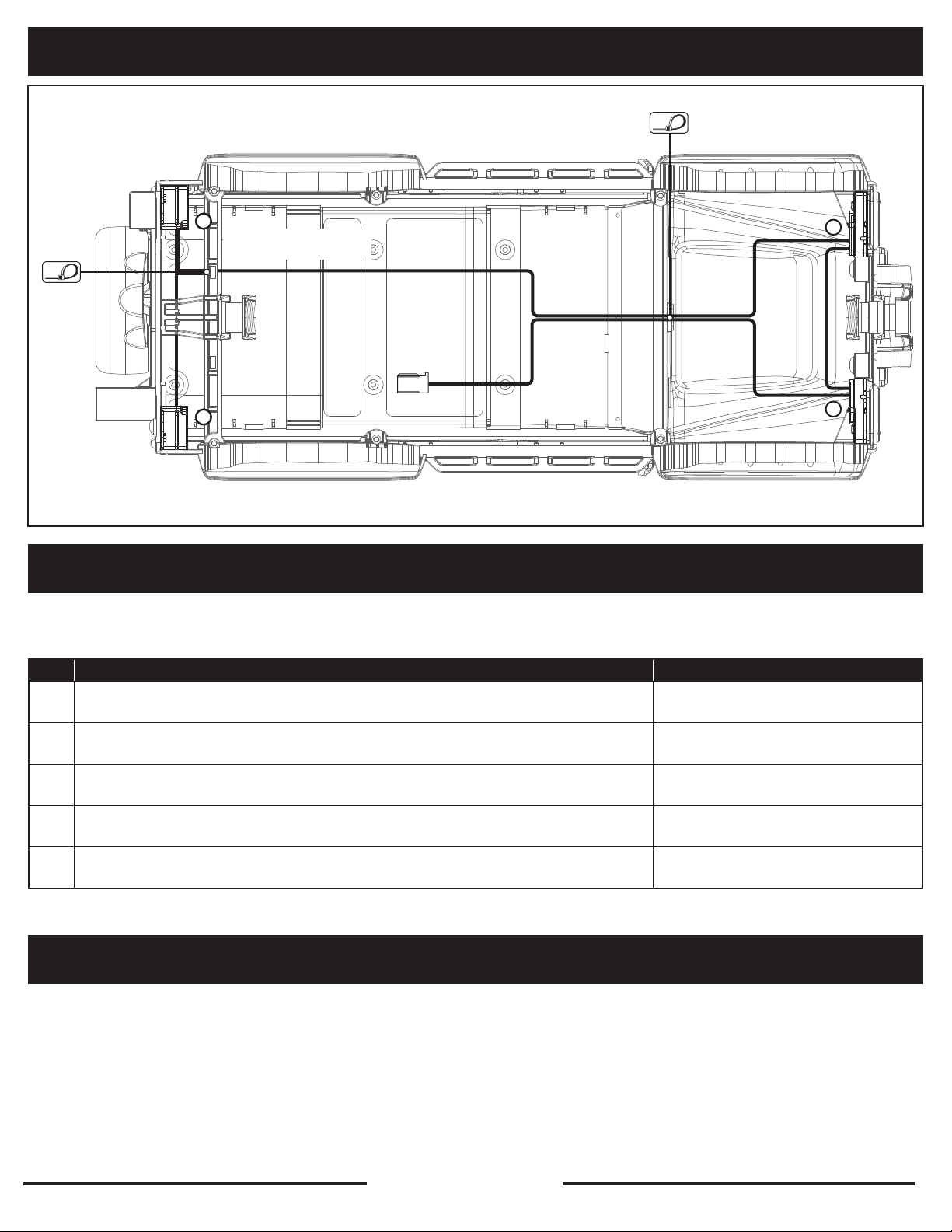

WIRING DIAGRAM
BODY UNDERSIDE VIEW
Warranty Information
Traxxas electronic components are warranted to be free from defects in materials
and workmanship for a period of 30 days from the date of purchase.
Limitations: Any and all warranty coverage does not cover replacement of
parts and components damaged by abuse, neglect, improper or unreasonable
use, crash damage, water or excessive moisture, chemical damage, improper or
infrequent maintenance, accident, unauthorized alteration or modification or items
that are considered consumable. Traxxas will not pay for the cost of shipping or
transportation of a defective component to us.
Land Rover® and Defender® are trademarks of Jaguar Land Rover Limited.
All copyrights and trademarks are used by Traxxas under license.
Traxxas Lifetime Electronics Warranty
After the expiration date of the warranty period, Traxxas will repair electronic
components for a flat rate. The covered repairs are limited to non-mechanical
components that have NOT been subjected to abuse, misuse, or neglect. Products
damaged by intentional abuse, misuse, or neglect may be subject to additional
charges. Traxxas liability, in no case, shall be greater than the actual purchase price
of this product. For replacement, product must be returned in brand new condition,
with packaging and itemized sales receipt.
TRAXXAS.com
Traxxas, 6250 Traxxas Way, McKinney, TX 75070,
Route tail light harness
under rear cross brace
Use zip ties to secure all wiring to the body in the locations shown.
WARRANTY
Mode Selection Action
1Headlights, daytime running lights, and tail lights on; brake lights on when braking; reverse lights on
when reversing Default
2Headlights o; daytime running lights and tail lights on; brake lights on when braking; reverse lights on
when reversing Press and release EZ-Set button on ECM once
3Headlights, daytime running lights, and tail lights o; brake lights on when braking; reverse lights on
when reversing Press and release EZ-Set button on ECM 2x
4Hazard lights on; headlights, daytime running lights, and tail lights o; brake lights on when braking;
reverse lights on when reversing Press and release EZ-Set button on ECM 3x
5 LED lights display (demo mode, sequence of all lighting) (truck will not drive in this mode) Press and release EZ-Set button on ECM 4x
To reset back to the default mode and settings, unplug the battery from the ECM and start over.
