Trebs CC-130 Manuale utente
2.4 GHz Wireless color camera
and wireless receiver with record function
Model No.:CC-130
Operation Guide
Version No.: 1.0
Please read this user Manual carefully before using this product!
COMFORT PRODUCTS
CONTENTS
1. Features
3. Connection Diagram
2. Packing List
4. Structure
5. Installation
6. Receiver Operation
7. Specifications
8. FCC & EU
1
2
3
4
5
9
12
Back Cover
Features
-1-
Wireless transmission to enhance monitoring security;
Ease to install and use. With high integration, complete
auxiliary products;
Motion detection. Adopting highly inteligent technology,
the recorder can automatically detects image change
and start recording, which prevents invalid recording;
Recording with SD card. Supporting both AVI
recording and JPEG shooting to different working
environments application;
4 channels optional to avoid short-distance;
The receiver has a video input for wired camera.
-2-

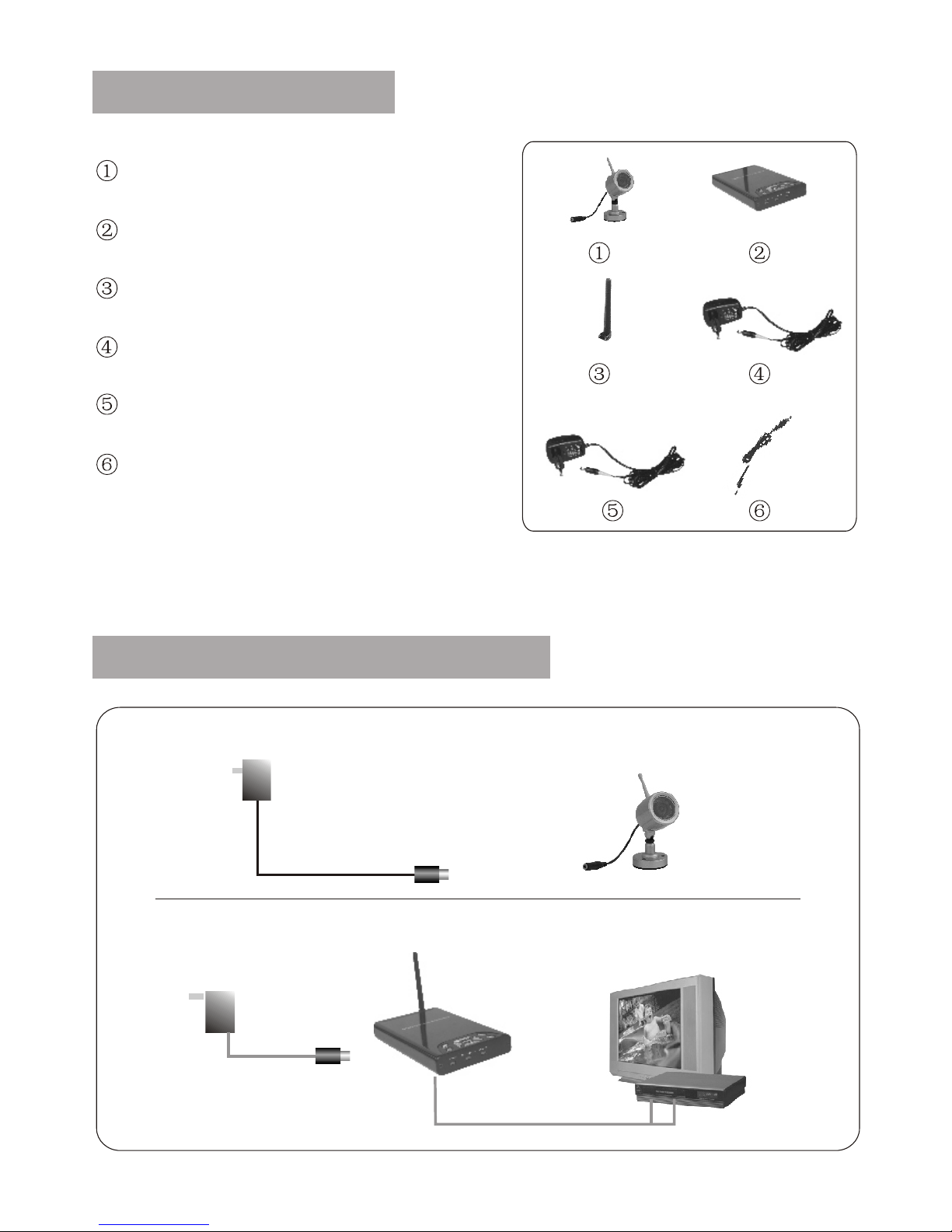

Packing List
Connection Diagram
2.4GHz Wireless Camera x 1
2.4GHz Wireless Receiver x 1
Antenna for Receiver x 1
Adapter for Receiver x 1
Adapter for Camera x 1
Video Cable x 2
Camera adapter Camera
Receiver adapter Receiver Monitor/TV
AV Output DVDR
-3-

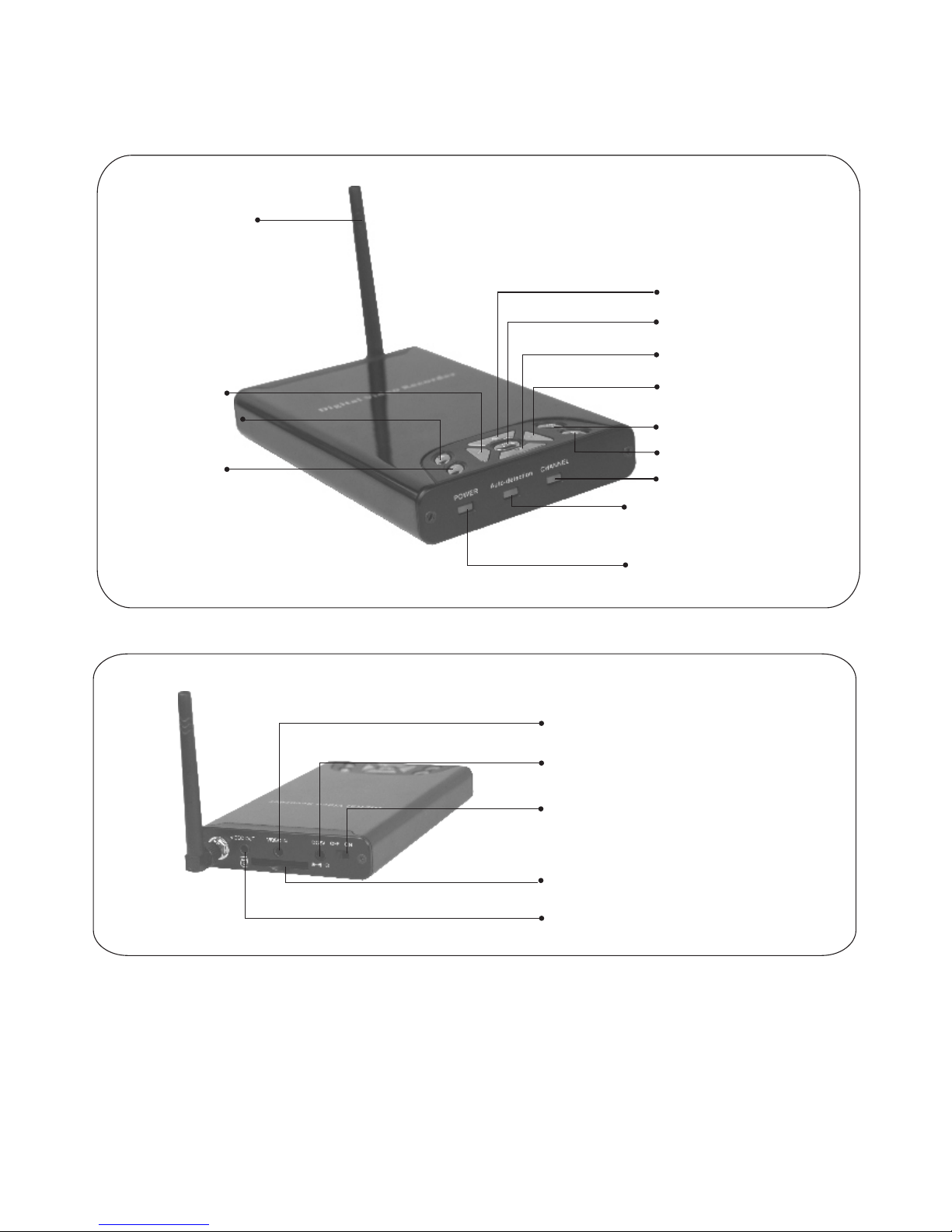

Structure
Camera
Power Jack
Antenna
Infrared Lights
Lens
Universal
Bracket
Antenna
Left Button
Up Button
OK Button
Down Button
Right Button
Channel Switch
Record Button
Channel Indicator
Power Indicator
Automatic Detection
/Recording Indicator
Menu Button
Play Button
Receiver
-4-
Video Out
Power ON/Off
SD Card Slot
Power Socket
Video In
-5-
Installation
2. Locate the camera to a specific position and then adjust it to a
suitable angle.
3. Connect the adapter to the camera.
1. If the picture are affected by the interference and could not
display, just rotate widdershins and screw out the anti-water
shell of camera; and pull-out the channel cap besides the
lens; install it to a suitable channel as following:
channel
switch
Channel 1 Channel 2
Channel 3 Channel 4
O
F
F
O
N
1
2
O
F
F
O
N
1
2
O
F
F
O
N
1
2
O
F
F
O
N
1
2
-6-

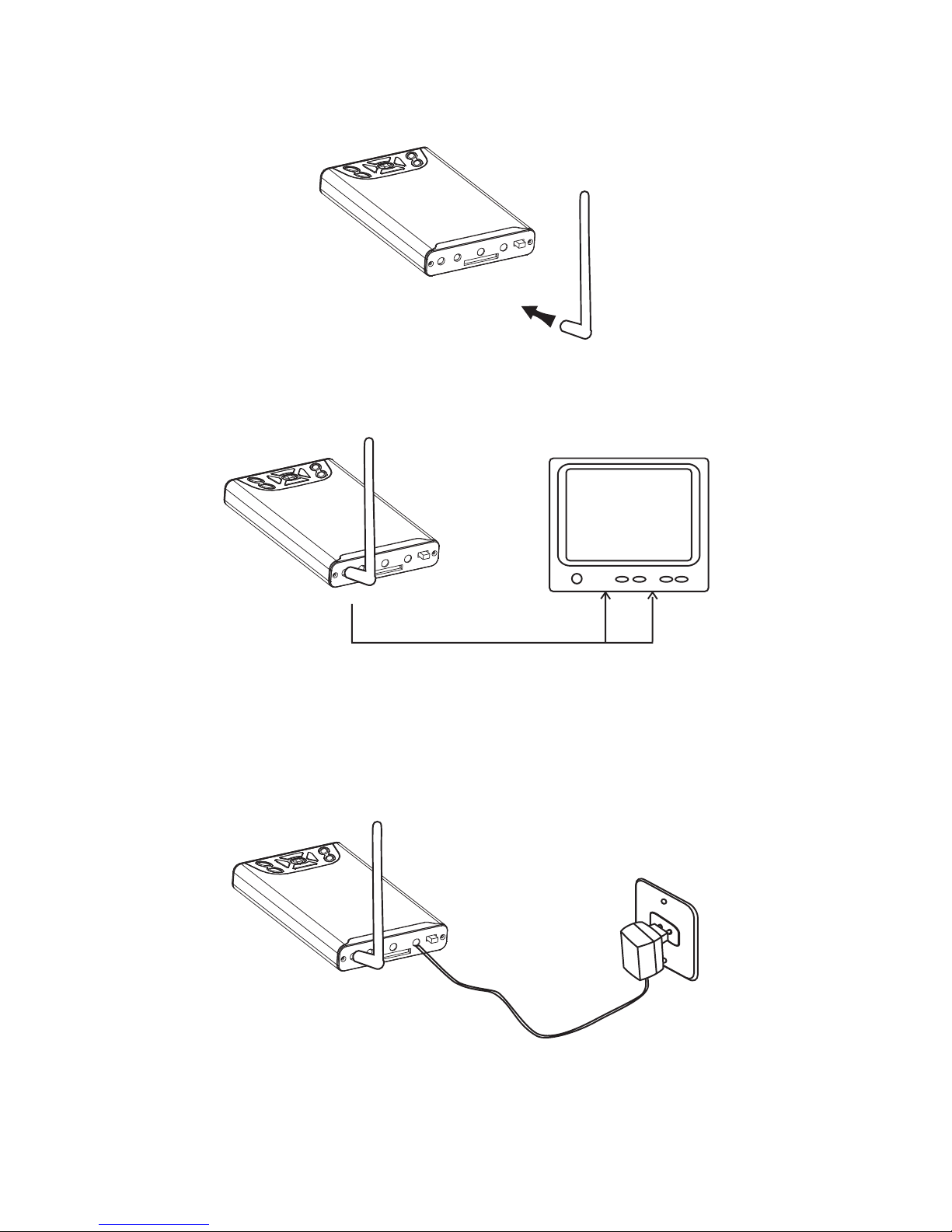

AV Cable
6. Connect the adapter for receiver to the receiver.
5. Connect the receiver to a monitor/TV with AV cable.
4. Connect the antenna to the receiver.
-7-
8. Push the power switch to ON position
lights up.
and the power indicator
If the SD Card is inserted incorrectly or is not inserted, the
monitor/TV will display SD Card not plug in , and only real-time
monitoring is available at this time.
＂ ＂
Notes :
* Make sure the protection switch on SD Card is turned on.
* Never touch the metal part of the SD Card with bare hands for
static electricity of human body may cause permanent damage
to the SD Card.
* Insert or pull out the SD Card only when the equipment is
turned off.
9. Power on the monitor/TV and select AV mode.

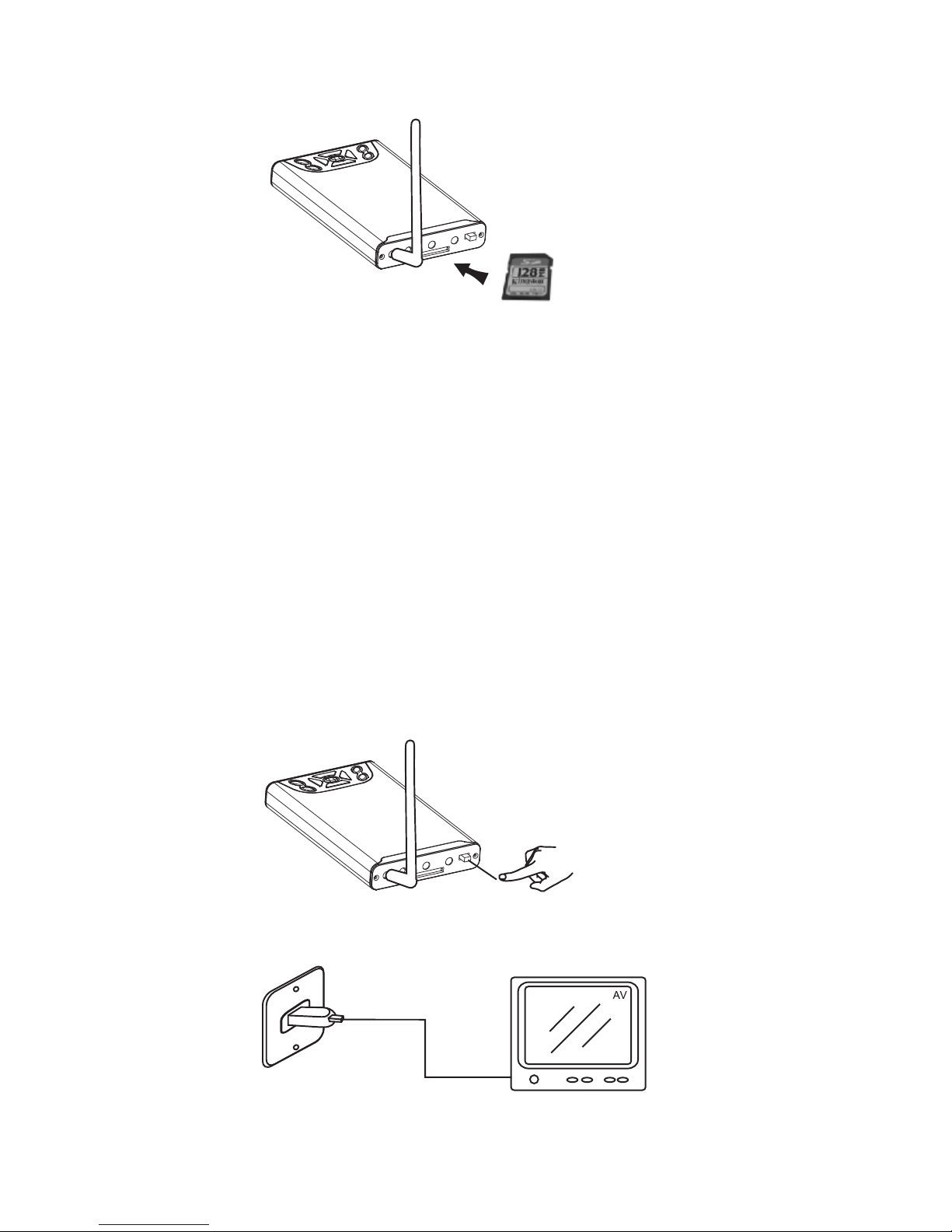

7. Please insert SD Card to SD Card Slot of receiver.
Usable capacity:32MB-2GB
1GB-2GB recommended
-8-
Press Channel Button continuously, the Channel Indicator lights
up.If the Channel Indicator flashes once, the channel is channel 1.
If the Channel Indicator flashes twice continuously, the channel
is channel 2. If the Channel Indicator flashes three times continu-
ously, the channel is channel 3. If the Channel Indicator flashes
four times continuously, the channel is channel 4.
11. Adjust the brightness, contrast and color of the monitor/TV
for the perfect effect.
10. Set the channel of receiver same as that of camera by pressing
the channel button continuously, and image will be displayed
on the monitor/TV.
