EdgeIPS Pro ByPass LAN Module

Quick Setup Guide

Before Installing Module Card1

Review the release notes for your

product for any late-breaking

changes to the installation

instructions.

Read and follow all safety

information listed, and

be certain to power off

the device before

you install the

Bypass LAN

Module.

ESD Requirements1

Damage from Electrostatic Discharge (ESD) can

occur when you handle electronic components

improperly. Improper handling can also result in

total or intermittent system failures. Use proper

ESD protection whenever you handle equipment.

Follow these general grounding guidelines:

Place a removed component board-side-up on an

antistatic surface or in a static-shielding container

that is also grounded to the same point as the

device. If you plan to return the component to the

factory, immediately place it in a static-shielding

container.

Review the release notes for your product for

any late-breaking changes to the installation

instructions.

Avoid touching the circuit boards or connectors

on all cards and modules.

Avoid contact between printed circuit boards

and clothing. The wrist strap only protects

components from ESD voltage on the body.

ESD voltage on clothing can still cause damage.

1-2 3-4 5-6 7-8 9-10 11-12BP

PORT 5

10 11

13-14 15-16 17-18 19-20 21-22 23-24

14 15

16 17

18 19

20 21

22 23

IPS Pro-Module-24C-GE-BP-TM

-2 -

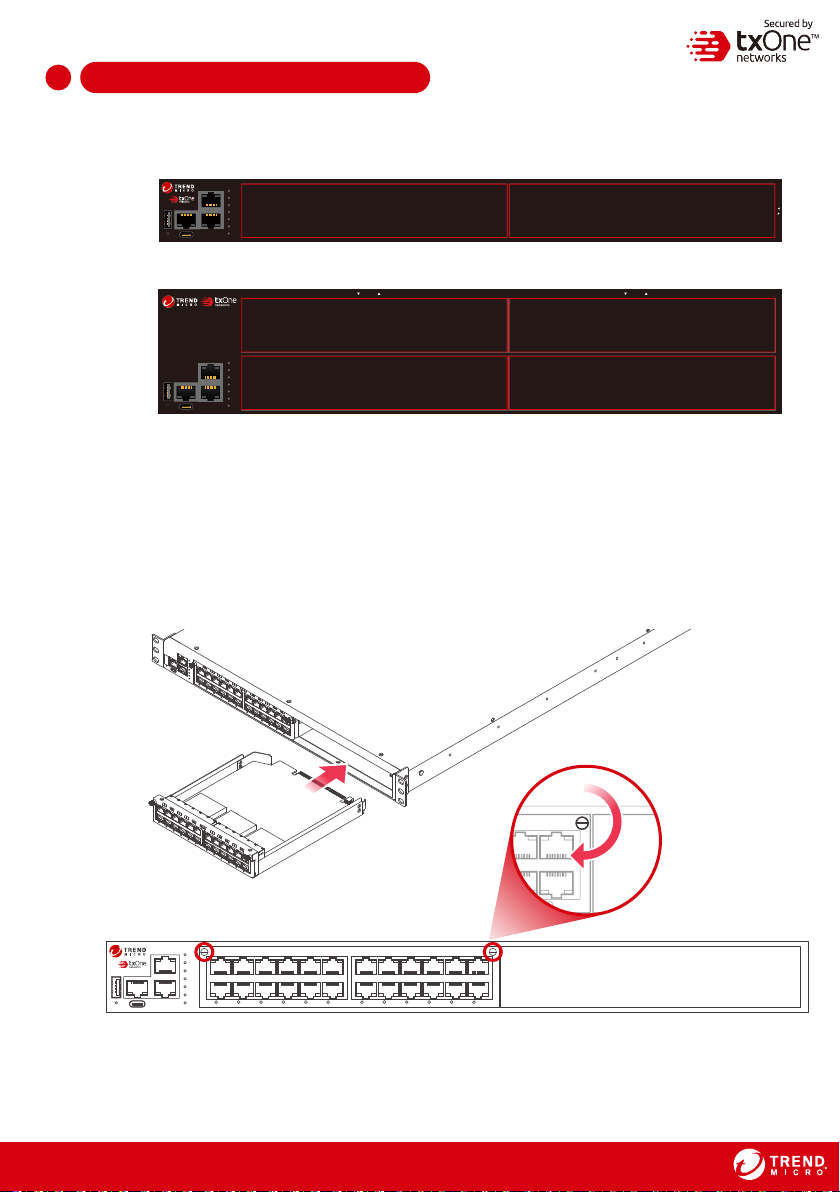

Adding ByPass Module1

EdgeIPS Pro installation slot priority

1-1. EdgeIPS Pro-1048: Slot 1, Slot 2

1-2. EdgeIPS Pro-2096: Slot 1, Slot 2, Slot 3, Slot 4

SLOT1 SLOT2

1-2 3-4 5-6 7-8 9-10 11-12BP

PORT 5

10 11

13-14 15-16 17-18 19-20 21-22 23-24

14 15

16 17

18 19

20 21

22 23

1-2 3-4 5-6 7-8 9-10 11-12BP

PORT 5

10 11

13-14 15-16 17-18 19-20 21-22 23-24

14 15

16 17

18 19

20 21

22 23

SECUREDBY

SECURED BY

EdgeIPS Pro-2096

SLOT1 SLOT3 SLOT2 SLOT4

1-2 3-4 5-6 7-8 9-10 11-12BP

PORT 5

10 11

13-14 15-16 17-18 19-20 21-22 23-24

14 15

16 17

18 19

20 21

22 23

1-2 3-4 5-6 7-8 9-10 11-12BP

PORT 5

10 11

13-14 15-16 17-18 19-20 21-22 23-24

14 15

16 17

18 19

20 21

22 23

1-2 3-4 5-6 7-8 9-10 11-12BP

PORT 5

10 11

13-14 15-16 17-18 19-20 21-22 23-24

14 15

16 17

18 19

20 21

22 23

1-2 3-4 5-6 7-8 9-10 11-12BP

PORT 5

10 11

13-14 15-16 17-18 19-20 21-22 23-24

14 15

16 17

18 19

20 21

22 23

Slot1 Slot2

Slot3 Slot4

Step1.

Remove the protective damper covering the empty slot on

EdgeIPS Pro-1048 or 2096.

Step2.

Insert the LAN module into slot 1, slot 2, slot 3, or slot 4.

Please slide the module into the empty module slot and fix the slide lock.

Step3.

Power on the device.

Step4.

SECURED BY

EdgeIPS Pro- 1048

of Trend Micro Incorporated. All other company and/or product names may be trademarks or registered trademarks of their

owners. Information contained in this document is subject to change without notice.

Contact Information1

Website

https://www.trendmicro.com

List of worldwide offices and phone numbers

https://www.trendmicro.com/us/about-us/contact/index.html

Technical support page

https://success.trendmicro.com/

EULA

https://www.trendmicro.com/en_us/about/legal.html

EdgeIPS Pro Datasheet/Application Note Landing Page
