TRENDnet TBW-104UB Manuale utente
1
Table Contents
Introduction........................................................................................................................3
Key Features............................................................................................................................. 3
Getting Started...................................................................................................................4
Packing Contents...................................................................................................................... 4
Minimum System Requirements ............................................................................................... 4
Driver Installation ...................................................................................................................... 4
Appliactions Installed ................................................................................................................ 7
BlueSoleil Introduction......................................................................................................8
Main Windows........................................................................................................................... 8
Bluetooth Connection Management.........................................................................................11
Security Configurations............................................................................................................11
Appendix ..........................................................................................................................13
Specification............................................................................................................................ 13
2
Introduction
The TBW-104UB is a class 1 Bluetooth v2.0 compliant USB adapter. This Bluetooth device utilizes
Enhanced Data Rate (EDR) technology to support data rates up to 3Mbps. The TBW-104UB can
communicate with other Bluetooth devices to form a "Piconet". The TBW-104UB provides a fully
compliant Bluetooth system for data and audio applications.
The TBW-104UB features advanced wireless technology allowing it to coexist with 802.11b/g
devices. The TBW-104UB utilizes EDR technology to communicate with other Bluetooth v2.0
standard compliant devices at high speed to provide various applications, such as Bluetooth ready
DSC (digital camera), PDA data sync, mobile phone, Access Point, printer, keyboard, mouse, etc.
The Bluetooth adapter can easily connect to your Bluetooth-enabled devices up to 100 meters away
(depending on application environment and condition)
Key Features
ySupport full-speed Bluetooth operation with full Piconet support
yBluetooth v2.0 complaint with EDR (Enhanced Data Rate)
yBackward compatible with Bluetooth v1.1 & v1.2
yCoexist with IEEE 802.11b/g devices
ySupport AFH (Adaptive Frequency Hopping) and fast connection
yUp to 100 meters radio coverage distance (depending on application environment and condition)
yUp to 3 Mbps access data rate
yLow power consumption
yBundle with the IVT BlueSoleil Software.
3
Getting Started
Packing Contents
yTBW-104UB Advanced High Power Bluetooth USB Adapter
yQuick Installation Guide
yUtility & Driver CD-ROM
yUSB2.0Cable
Minimum System Requirements
yPC running Windows 2000, Windows XP, Windows Vista
yUSB 1.1 or 2.0 Port
yPentium 600 MHz processor or above
y128 MB RAM or above
y50MB free disk space on your hard drive
yCD-ROM drive
Driver Installation
If you have any Bluetooth driver (software) previously installed on your computer or built-in
Bluetooth device, please remove the driver and disable Bluetooth device first!
1. Please insert the Utility & Driver CD into CD-ROM drive, and then follow the instruction below to
install Utility and drivers.
Note: DO NOT connect the TBW-104UB USB adapter until instructed to do so.
Note: If the setup menu does not launch automatically, go to start Ærun Ætype in
D:\setup, where “D” in “D:\setup” is the letter assigned to your CD-ROM Drive, and
then press the ENTER key on your keyboard.
4
1. Please click Install
Utility to begin Bluetooth
adapter installation.
4. Please select I accept
the terms in the license
agreement. Click Next
3. Please Click Next
2. Please select Language
from the drop down
menu and then click OK.
5
7. Disregard all popup
Windows except for the
installation Window
shown to the right and
click Finish
6. Click Install
5. Please Click Next
8. Click Yes to restart the
computer.
6

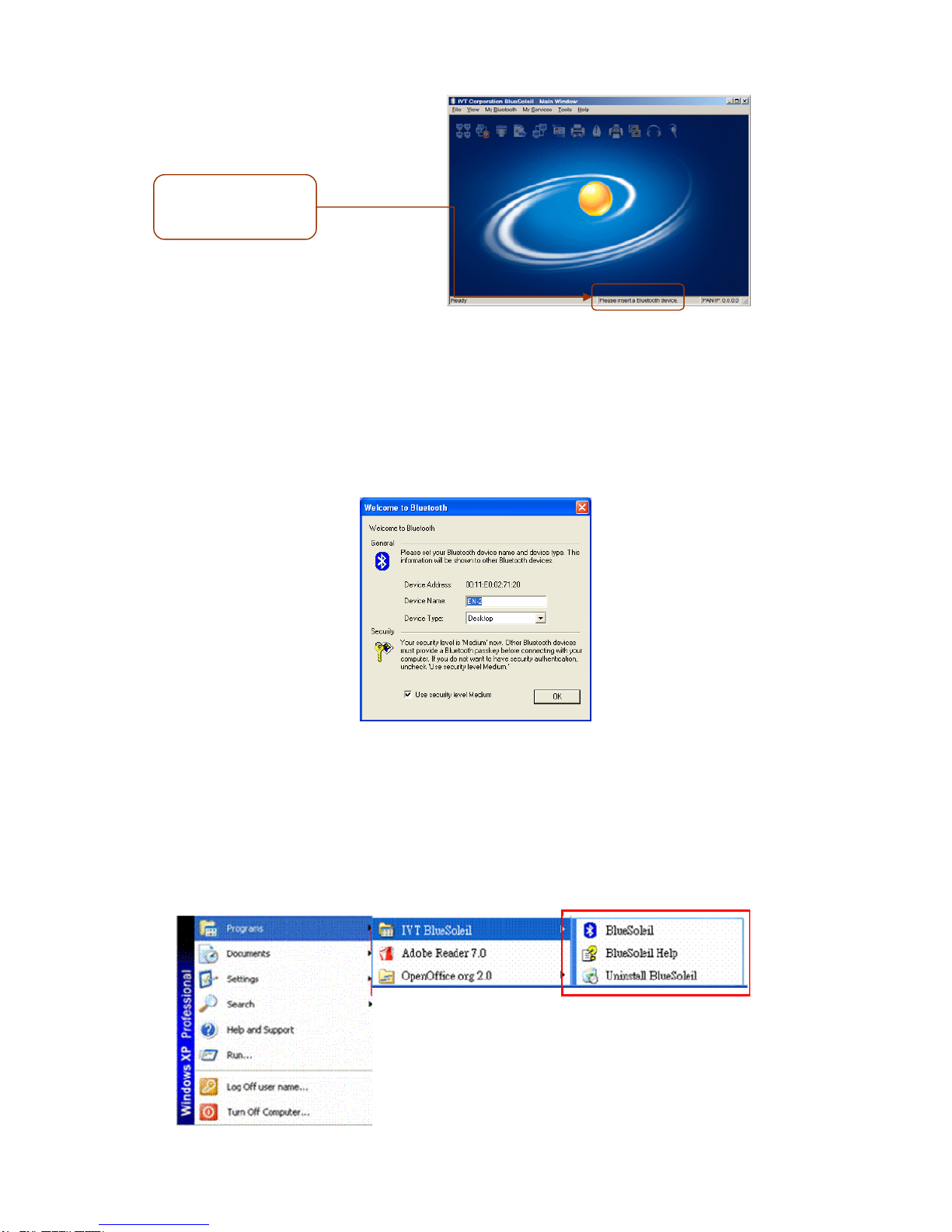

9. A message appears in the
BlueSoleil toolbar
notifying the user to plug
in the Bluetooth adapter
2. Please plug in TBW-104UB. The drivers will install automatically.
3. After the completion of the driver installation, the Welcome to Bluetooth screen will appear.
Assign your Windows system a device name and device type. In most cases, you should leave
the security setting checked. Click OK.
Appliactions Installed
After the completion of the driver and utility installation, the “IVT BlueSoleil” item will be added
to Windows Start Menu Programs group.
7
BlueSoleil Introduction
BlueSoleil is a Windows-based software from IVT that allows your Bluetooth® enabled desktop or
notebook computer to wirelessly connect to other Bluetooth enabled devices. BlueSoleil allows MS
Windows users to wirelessly access a wide variety of Bluetooth enabled digital devices, such as
cameras, mobile phones, headsets, printers, and GPS receivers. You can also form networks and
exchange data with other Bluetooth enabled computers or PDAs.
In order to connect and share services via Bluetooth wireless technology, two devices must support
the same Bluetooth Profile(s) as well as opposite device roles (i.e., one must be the server, and the
other must be the client). Bluetooth enabled devices often support multiple profiles, and if involved
in multiple connections, can perform different device roles simultaneously.
BlueSoleil supports the following Bluetooth functions (Profiles) in the following device roles:
Bluetooth Functions (Profiles) Client Server
99
Advanced Audio*
99
Basic Image Profile
9
Dial-Up Networking
9
Fax
99
File Transfer
99
Headset*
9
Human Interface Device
99
LAN access
99
Object Push
99
Personal Area Networking
9
Printer
99
Serial Port
99
Synchronization
Main Windows
Local Bluetooth Device
The Local Bluetooth enabled device, known as "My Device", represents the user's computer that is
running BlueSoleil.
8
Icon:
Operations:
•Hover mouse to display the local Bluetooth device's name or address (if without name).
•Click on the red ball to start or stop searching for Bluetooth devices in range.
•Right-click on the red ball to display a pop-up menu of related operations (e.g., General
Inquiry, My Services, Security, etc.).
Remote Bluetooth Devices
Remote devices are other Bluetooth enabled devices that are in the Bluetooth radio range of your
local device. BlueSoleil uses different icons to indicated different types of remtoe devices.
Icons
Icon Meanings
Remote devices can be in any of three states, which BlueSoleil indicates with different colors.
•White- Idle. The normal state of the device.
9
•Orange- Selected. You have selected the device.
•Green- Connected. The device is connected to your computer.
Operations
•Single-click on the icon to select.
•Double-click on the icon to search for the services supports by the remote Bluetooth
device .
•Right-click on the icon to display a pop-up menu of related operations (e.g. Refresh Services,
Pair Devices, Connect, etc.).

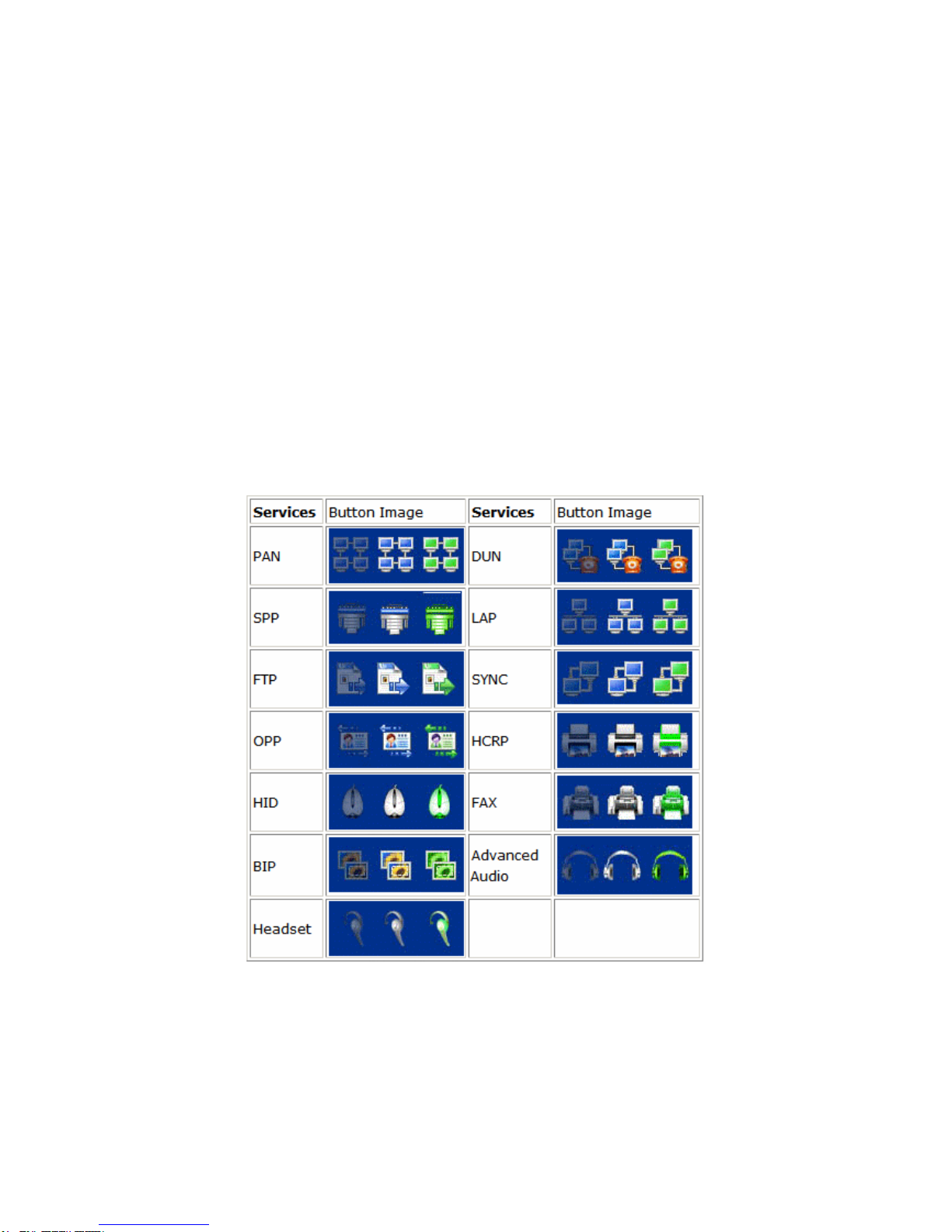

Bluetooth Service Buttons of Remote Device
Service buttons at the top of the Main Window represent a range of Bluetooth services potentially
supported by Remote Devices.
Icons
Icon Meanings
There are 3 states for the service icons, indicated by different forms.
•Idle. The normal state.
•Available - Highlighted. The Bluetooth service is available on the selected remote device.
•Connected - Green. The Bluetooth service is active in a connection with the remote device.
10
