TRENDnet N300 Manuale utente
TEW-736RE
rev: 12.07.2011
N300 Easy-N-Range Extender
TEW-736RE (V1.0R)
TRENDnet’s N300 Easy-N-Range Extender, model TEW-736RE, extends
the coverage of your existing wireless n network. Setup is simple, with no
drivers to install. Simply press the Wi-Fi Protected Setup (WPS) button on
your router or access point, then on the TEW-736RE and you’re done—
the 300Mbps Easy-N Range Extender is now extending your high perfor-
mance wireless N network over a large area.
Multiple Input Multiple Output (MIMO) antenna technology dramatically in-
creases wireless coverage with a high speed 300Mbps wireless network.
Advanced encryption protects your data and Wireless Multimedia (WMM)
Quality of Service technology prioritizes audio and video traffi c. LED dis-
plays convey device and port status for easy troubleshooting.
FEATURES
• 1x 10/100Mbps Ethernet port
• 1x Wi-Fi Protected Setup (WPS) button
• 2x 2dBi detachable antennas
• Compliant with IEEE 802.11n, IEEE 802.11g, and 802.11b standards
• Compact high performance wireless n range extender
• High-speed data rates of up to 300Mbps with IEEE 802.11n*
• Up to 50% energy savings with GREENnet technology
• Supports up to WPA2-PSK wireless encryption
• One-touch wireless security setup using the Wi-Fi Protected Setup (WPS) button
• Low interference and high susceptibility deliver reliable performance
• Indoor coverage up to 100 meters (328 ft.)*
• Outdoor coverage up to 300 meters (984 ft.)*
• 3-year limited warranty
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifi cations. Actual data throughput and coverage will
vary depending on interference, network traffi c, building materials and other conditions.
N300 Easy-N-Range Extender
TEW-736RE (V1.0R)
SPECIFICATIONS
HARDWARE
Standards • IEEE 802.11n , IEEE 802.11b, IEEE 802.11g, IEEE 802.3u, and IEEE 802.3
Interface • 1 x 10/100Mbps Auto-MDIX LAN port
LED Indicators • Power, LAN, WPS, and Wireless
Buttons • Reset button – restores factory default settings
• WPS button- enables WPS function
Power Supply • Input: 100 ~ 240V 0.5A AC, 50~60Hz
• Output: 12V DC, 0.5A external power adapter
Dimensions (LxWxH) • 120 x 26 x 88 mm (4.7 x 1.0 x 3.4 in.)
Weight • 145 g (5.1 oz.)
Temperature • Operating: 0° ~ 40°C (32° ~ 104°F)
• Storage: -20°C ~ 60°C (-4° ~ 140°F)
Humidity • Max. 90% non-condensing
WIRELESS
Modulation • OFDM and CCK
Antenna • 2 x 2dBi detachable antennas
Frequency • 2.412 - 2.462GHz FCC
• 2.412 – 2.472GHz ETSI
Data Rate (Auto Fallback) • 802.11b: up to 11Mbps
• 802.11g: up to 54Mbps
• 802.11n: up to 300Mbps
Output Power • 802.11b: 18dBm (typical) @ 11Mbps
• 802.11g: 15dBm (typical) @ 54Mbps
• 802.11n: 15dBm (typical) @ 300Mbps
Receiving Sensitivity • 802.11b: -84dBm (typical) @ 11Mbps
• 802.11g: -72dBm (typical) @ 54Mbps
• 802.11n: -68dBm (typical) @ 300Mbps
Encryption • 64/128-bit WEP, WPA/WPA2-PSK (32/64-Bit)
Channels • 1-11 (FCC), 1-13 (ETSI)
Certifi cations • CE, FCC
TEW-736RE
rev: 12.07.2011
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time,
without notice. For the most recent product information please visit http://www.trendnet.com Copyright ©TRENDnet.All Rights Reserved.
N300 Easy-N-Range Extender
TEW-736RE (V1.0R)
NETWORKING SOLUTIONS
CONTACT INFORMATION
China Office Contact Info
Tel: 010-5128 6606
Fax: 010-8011 5555 ext
Web: www.trendnet.com.cn
Email: lin@trendware.cc
.
PACKAGE CONTENTS
TEW-736RE
Multi-Language Quick Installation Guide
CD-ROM (User’s Guide)
Network cable (1.5 m / 5 ft.)
Power adapter (12V DC, 0.5A)
RELATED PRODUCTS
TEW-AI77OB Duo 7dBi Indoor Omni-Directional Antenna
TEW-639GR 300Mbps Wireless N Gigabit Router
TEW-731BR 300Mbps Wireless N Home Router
Altri manuali per N300
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali TRENDnet Estensione
TRENDnet
TRENDnet TU2-HDMI Manuale utente
TRENDnet
TRENDnet TK-EX3 Manuale utente
TRENDnet
TRENDnet TEW-737HRE Manuale utente
TRENDnet

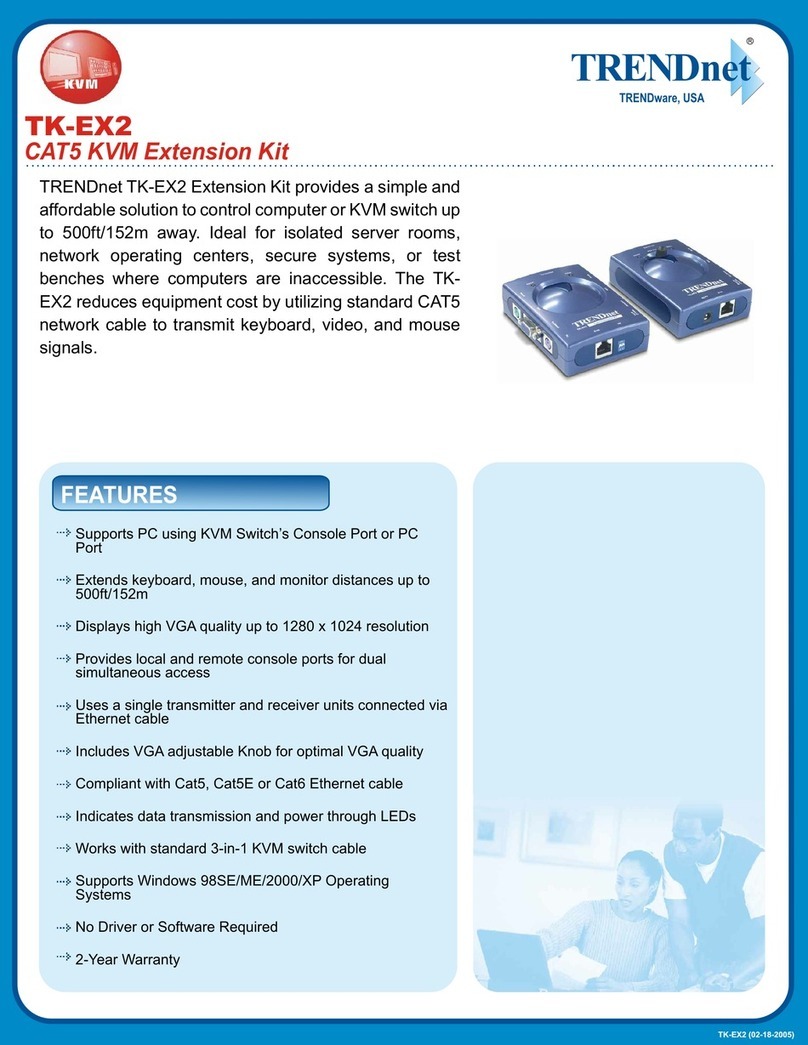

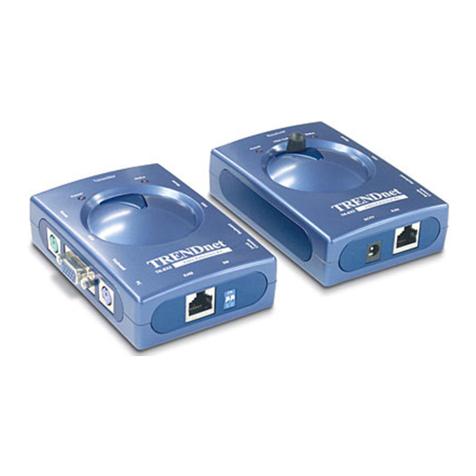

TRENDnet TK-EX2 Manuale utente
