TRENDnet TFC-110S100 Manuale utente
100Base-FX
Fiber Converters
Quick Installation Guide
Table of Contents
English ......................................................................................................
Spefications ..............................................................................................
Ordering Information...................................................................................
Troubleshooting ........................................................................................
1
1
2
4
5
1. Before You Start
2. .........................................................................
.................................................................................
Hardware Installation
Table of Contents
Version 07.18.2006
6

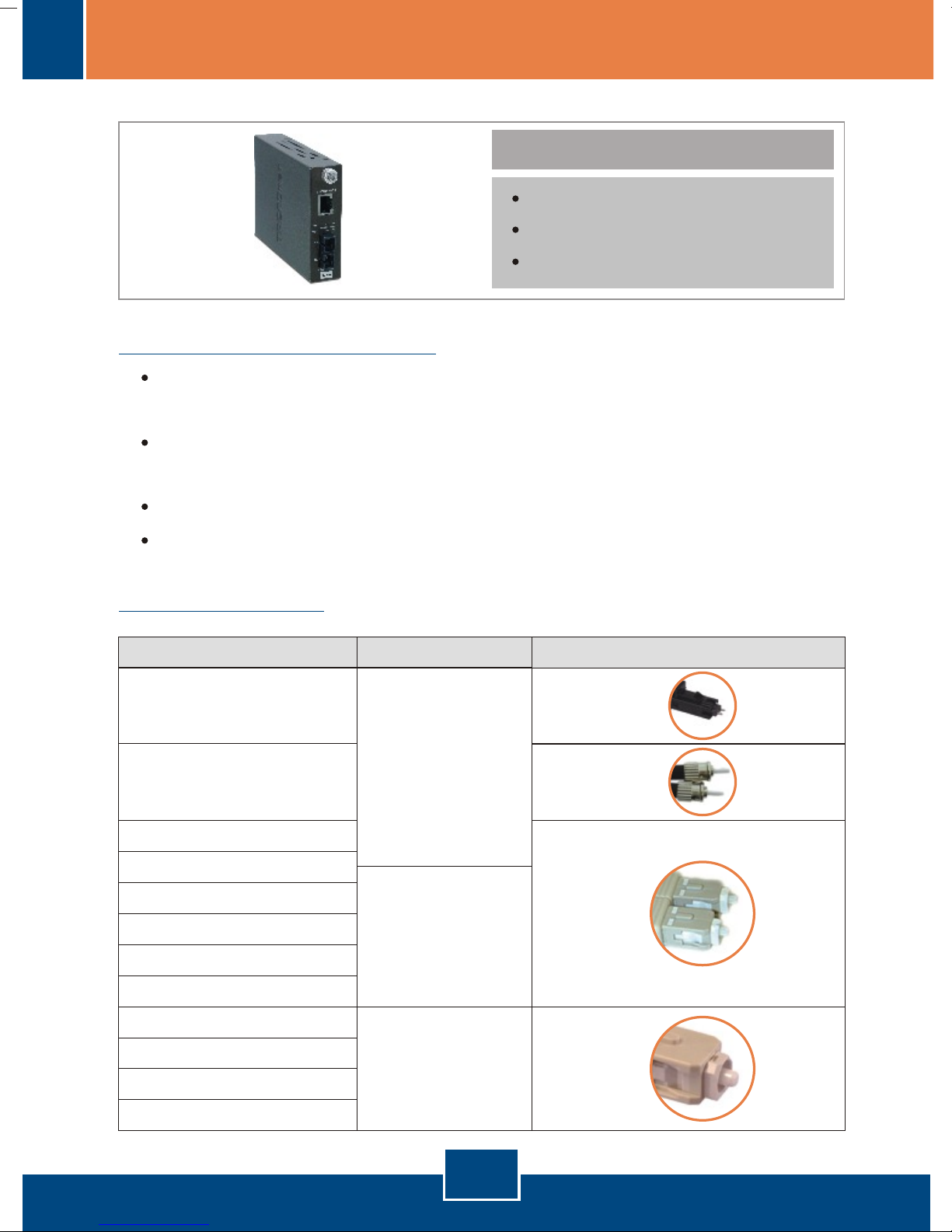

System Requirements
Product Detail
Fiber Converter
Quick Installation Guide
AC Power Supply (7.5 DC, 1.5A)
Package Contents
1. Before You Start
English
1
An environment that is free from strong electromagnetic field generators
(such as motors), vibration, dust and direct exposure to sunlight
10/100Mbps Ethernet Switch
Multi-mode or Single-mode Fiber cables/ CAT-5 RJ-45 Ethernet Cable
TFC-1600 chassis (optional) or sturdy, level surface that can support the
weight of the Fiber Converter
Model Name Multi/Single-Mode Fiber Connector
TFC-110MM
TFC-110MST
TFC-110MSC
TFC-15MS100
TFC-110S15
TFC-110S30
TFC-110S60
TFC-110S100
TFC-110S20D3
TFC-110S20D5
TFC-110S40D3
TFC-110S40D5
MT-RJ
ST
SC
SC
Multi-Mode
(Duplex)
Single-Mode
(Duplex)
Single-Mode
Bidirectional
(Simplex)
2. Hardware Installation
English
2

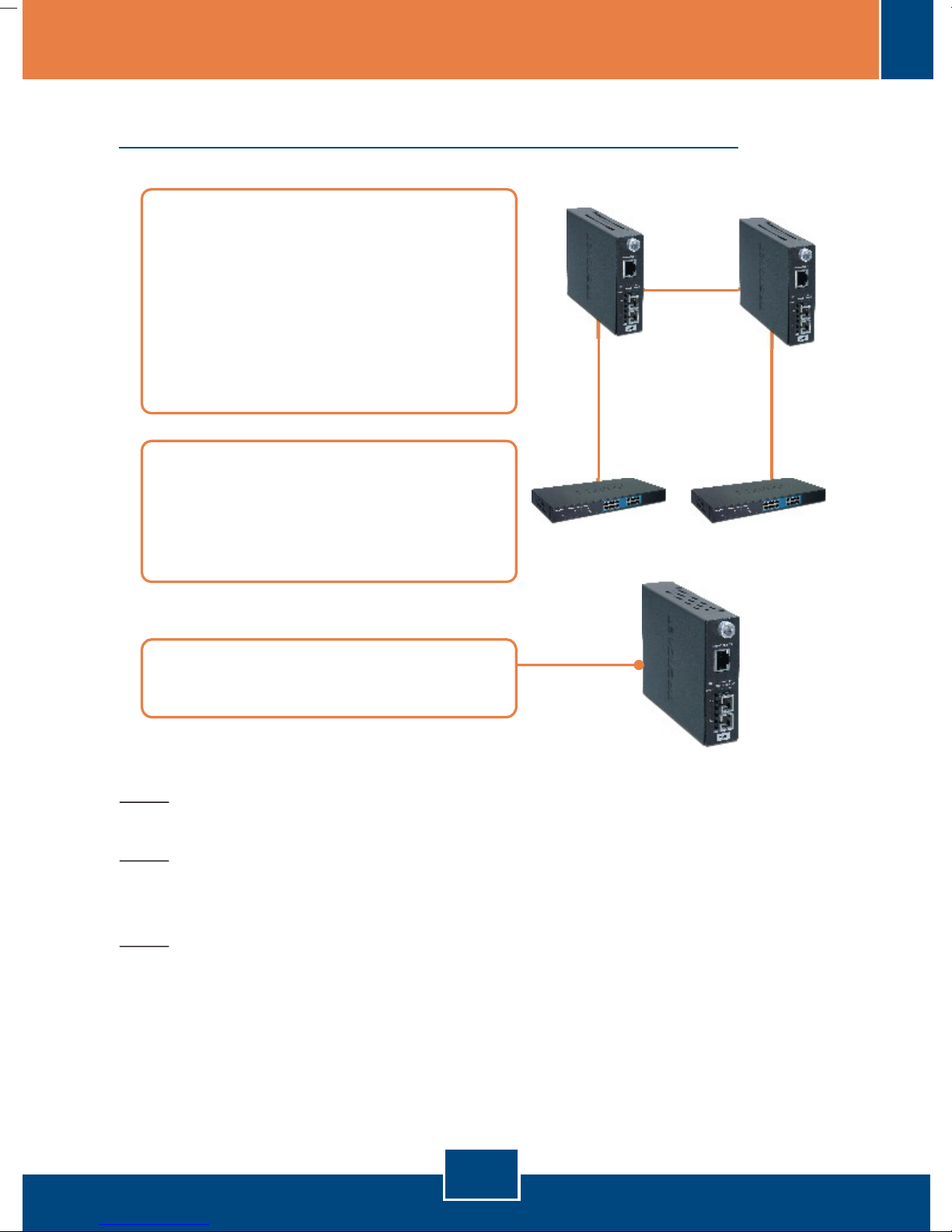

Installing two stand alone Fiber Converters
1. Connect the fiber cable to the fiber
converters. This cable must be
multi-mode for the TFC-110MM/
MST/MSC. This cable must be
single-mode for the
TFC-110S15/S30/S60/S100/
S20D3/S20D5/S40D3/S40D5.
2. Connect an RJ-45 Ethernet cable
from the Ethernet port on the fiber
converters to an Ethernet port on
your switch (e.g TEG-224WSplus).
Note: The TX and RX cables must be reverse on the opposite fiber connection.
Note: The TFC-110S20D3 must be paired with the TFC-110S20D5. The
TFC-110S40D3 must be paired with the TFC-110S40D5.
Note: TFC-15MS100 converts Multi-Mode to Single-Mode fiber, it can be
connected to a switch with Multi-Mode SC-type fiber connection
(e.g TEG-S2400i / TEG-S2600i / TEG-S3000i with fiber modules) to extend the
distance up to 15km with Single-Mode fiber.
3. Connect the power adapter to the
back of the fiber converter.
5. Unfasten the thumbscrew and
remove the fiber converter from the
metal casing.
Your installation is now complete.
English
3
4. Unscrew the bay cover from the
desired bay on the chassis.
6. Slide the media converter into an
available slot and fasten the
thumbscrew.

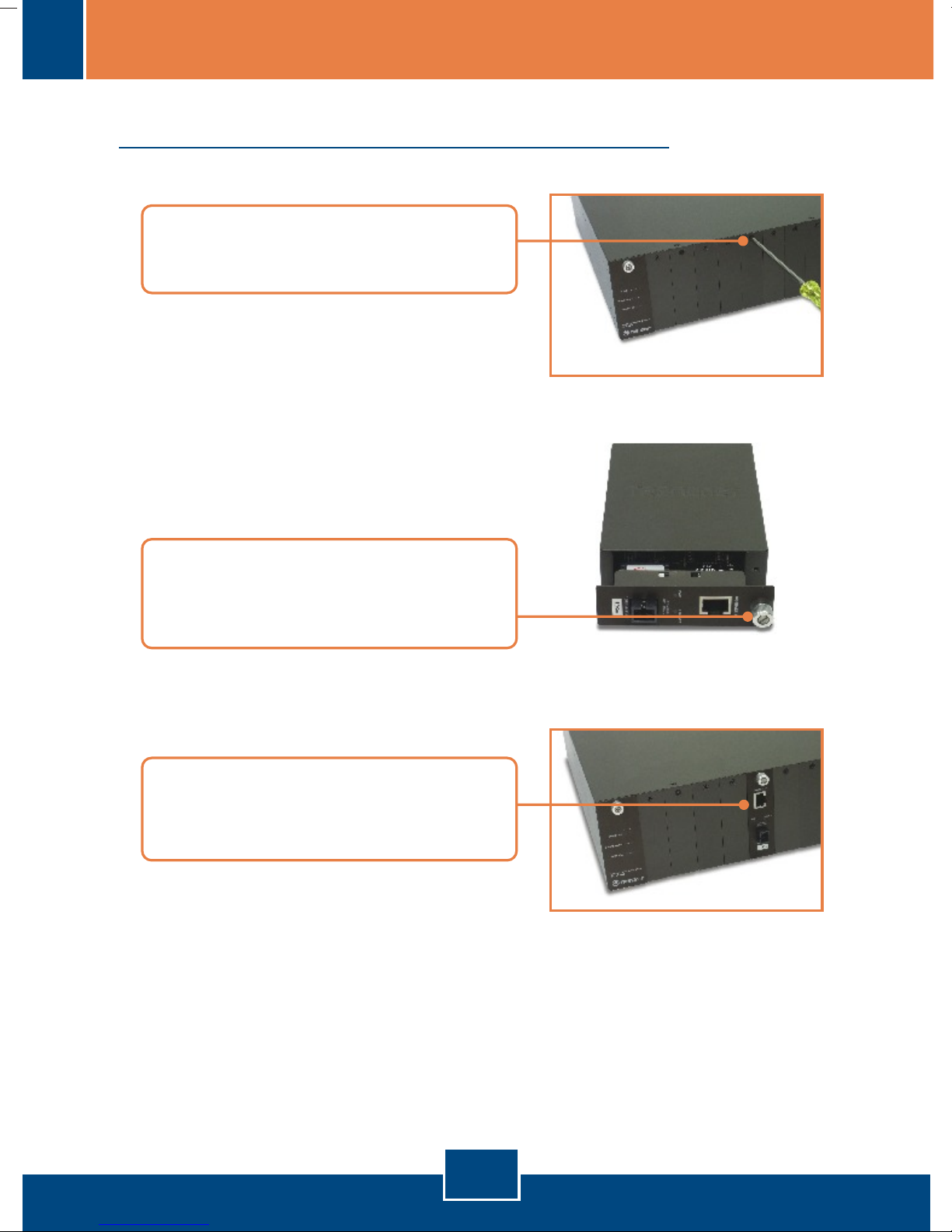

Installing Fiber Converter in a Chassis
4
DIP Switches: TFC-110 series: Duplex (On/half-duplex, Off/full-duplex)
TFC-15MS100: None
Cable :
10BASE-T: 2-pair UTP Cat. 3,4,5
100BASE-TX: 2-pair UTP Cat. 5
100BASE-SX:
62.5/125um or 50/125um multi-mode fiber optic cable
100BASE-LX:
9/125um or 10/125um single-mode fiber optic cable
Applicable Standards: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX & 100BASE-FX
Fixed Ports: 1 TX port, 1 FX port
Speed: 10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
148,800pps
Forwarding rate:
LED Indicators:
TFC-110 series
Per Unit: Power; Speed (100)
Per Port: FDX/COL, LINK/ACT
TFC-15MS100
Per Unit: Power
Per Port: Link/ACT
Weight: 305 g
Power: External power adaptor 7.5V 1.5A
7.2W Max.
10 ~ 90%, non-condensing
Power Consumption:
Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -25°C ~ 70°C (-13°F ~ 158°F)
Temperature:
Humidity:
FCC part 15 Class B, CISPR ClassB, VCCI Class B,
CE Mark
Certifications:
Dimensions: L120 × W88 × H25 mm
Specifications
TFC-110MSC
TFC-110MST
TFC-110MM
TFC-110S15
TFC-110S30
TFC-110S60
TFC-110S100
TFC-110S20D3
TFC-110S20D5
TFC-110S40D3
TFC-110S40D5
TFC-15MS100
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
Cat. 3, 4, 5,
EIA/TIA-568
100-ohm STP
MMF 1300nm
(50 or 62.5 )
SC
µm µm
MMF
(50 or 62.5 )
SC
µm µm
MMF
(50 or 62.5 )
ST
µm µm
MMF
(50 or 62.5 )
MT-RJ
µm µm
SMF
(9 or 10 )
SC
µm µm
SMF
(9 or 10 )
SC
µm µm
SMF
(9 or 10 )
SC
µm µm
SMF
(9 or 10 )
SC
µm µm
SMF
(9 or 10 )
SC
µm µm
Bi-directional SMF
(9 or 10 )
SC
µm µm
Bi-directional SMF
(9 or 10 )
SC
µm µm
Bi-directional SMF
(9 or 10 )
SC
µm µm
Bi-directional SMF
(9 or 10 )
SC
µm µm
Media Converters
Model Number Speed
(Mbps)
Speed
(Mbps)
Cable/Connector Max.
Distance
Max.
Distance
Wavelength Cable(/125 µm )
/Connector
Port 1 Port 2
10/100
10/100
10/100
10/100
10/100
10/100
10/100
10/100
10/100
10/100
10/100
100
100
100
100
100
100
100
100
100
100
100
100
100
100M
100M
100M
100M
100M
100M
100M
100M
100M
100M
100M
2KM
1300nm
1300nm
1300nm
1300nm
1300nm
1300nm
1300nm
1300nm
TX: 1310nm
RX: 1550nm
TX: 1310nm
RX: 1550nm
TX: 1310nm
RX: 1550nm
TX: 1310nm
RX: 1550nm
5
2 km
2 km
2km
15 km
30 km
60 km
100 km
20 km
20 km
40 km
40 km
15
km
Ordering Information
Note: MMF (multi-mode fiber); SMR (single-mode fiber)
6
Troubleshooting
Q1:
A1:
Q2:
A2:
Q3:
A3:
After connecting the Fiber converter, the LEDs do not turn on. What should I
do?
First, check that the power outlet is receiving power. Second, make sure the
power adapter is firmly connected to the Fiber converter and the power outlet.
Third, make sure the Ethernet and the Fiber cables are connected.
All the LEDs are on, but I can't make a connection. What should I do?
First, verify that you are using the proper fiber cable (e.g. multi-mode fiber
cable for multi-mode converter; single-mode fiber cables for single-mode
converters). Second, verify that the TX and RX cables have been reverse on the
opposite Fiber connection. Third, power down the fiber converters and the
switches. Wait 15 seconds, then plug the switches and the fiber converters back
in.
What is the maximum distance that is supported by the fiber converter?
Please reference section 4 for distance information.
If you still encounter problems or have any questions regarding the Fiber Converters
please contact TRENDnet's Technical Support Department.
Limited Warranty
- 5 Year Warranty
TRENDnet warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
Fiber Converters
If a product does not operate as warranted above during the applicable warranty period,
TRENDnet shall, at its option and expense, repair the defective product or deliver to
customer an equivalent product to replace the defective item. All products that are
replaced will become the property of TRENDnet. Replacement products may be new or
reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product through any unauthorized service center. This warranty is voided if
(i) the product has been modified or repaired by any unauthorized service center, (ii) the
product was subject to accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable
warranty period for a Return Material Authorization (RMA) number, accompanied by a
copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-
authorized by TRENDnet with RMA number marked on the outside of the package, and
sent prepaid, insured and packaged appropriately for safe shipment.
7
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE
AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT
TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES
NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S
MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED
ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE
RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER
HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET
ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER
BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,
OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH
DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF
LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED
HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry 1-Year
Warranty
8
Altri manuali per TFC-110S100
1
Questo manuale è adatto per i seguenti modelli
11
Indice
Altri manuali TRENDnet Convertitore multimediale
TRENDnet
TRENDnet TFC-110MSC - DATA SHEETS Manuale utente
TRENDnet
TRENDnet TFC-110MM Manuale utente
TRENDnet
TRENDnet TFC-1600MM Manuale utente
TRENDnet
TRENDnet TU-S9 Manuale utente
TRENDnet
TRENDnet TU-S9 Manuale utente
TRENDnet
TRENDnet TFC-110MST Manuale utente
TRENDnet
TRENDnet TFC-110S40D3 Manuale utente
TRENDnet
TRENDnet TFC-110MSTE Manuale utente
TRENDnet
TRENDnet TU-S9 Manuale utente
TRENDnet
TRENDnet TFC-110MM Manuale utente
TRENDnet
TRENDnet TFC-110S20D5i Manuale utente
TRENDnet
TRENDnet TI-F11SFP Manuale utente
TRENDnet
TRENDnet TFC-110S30 Manuale utente
TRENDnet
TRENDnet 1000 Base-SX/LX Manuale utente
TRENDnet
TRENDnet TFC-GSFP Manuale utente
TRENDnet
TRENDnet TU-PS2 Manuale utente
TRENDnet
TRENDnet TFC-2000MSC - 1000Base-T to 1000Base-SX Multi-Mode SC Fiber... Manuale utente
TRENDnet
TRENDnet TU-P1284 Manuale utente
TRENDnet
TRENDnet TFC-1000 Manuale utente
TRENDnet
TRENDnet TFC-110S20D3 Manuale utente
