TRENDnet TS-U200 - NAS Server - USB Manuale utente
- 2 -
TABLE OF CONTENTS
ABOUT THIS GUIDE...................................................................................4
1. INTRODUCTION .....................................................................................5
GENERAL FEATURES .....................................................................................6
PACKAGE CONTENTS.....................................................................................7
PRODUCT VIEW .............................................................................................8
LEDs........................................................................................................10
Buttons.....................................................................................................11
2. INSTALLATION.....................................................................................12
NETWORKING APPLICATION........................................................................12
INSTALLING THE STORAGE SERVER .............................................................13
Connecting to the Network......................................................................13
Connecting to a Client Workstation ........................................................13
Expanding the USB Devices....................................................................13
USING THE STORAGE SERVER......................................................................14
Configuring a Fixed IP Address..............................................................14
Accessing the Storage Server ..................................................................17
EUN UTILITY -RASY SEARCH.......................................................................19
3. WEB CONFIGURATION......................................................................21
WEB CONFIGURATION UTILITY...................................................................21
CONFIGURATION -BASIC.............................................................................23
- 3 -
Basic
J
LAN...........................................................................................24
Basic
J
Samba.......................................................................................24
Basic
J
Time Zone.................................................................................25
CONFIGURATION -ADVANCED....................................................................26
Advanced
J
Account..............................................................................26
Advanced
J
Samba................................................................................28
Advanced
J
LAN....................................................................................29
Advanced
J
CR backup .........................................................................30
Advanced
J
Time Zone..........................................................................31
Advanced
J
FTP Server.........................................................................32
Advanced
J
Status .................................................................................33
CONFIGURATION -MAINTENANCE ..............................................................34
Maintenance
J
Firmware Upload.........................................................34
Maintenance
J
Configuration ...............................................................35
CONFIGURATION -LOGOUT.........................................................................36
4. DOWNLOAD FILES THROUGH STORAGE SERVER ..................37
ENTERING DOWNLOAD PAGE......................................................................37
SCHEDULING DOWNLOAD TASK .................................................................39
SCHEDULE LIST...........................................................................................41
LOGOUT......................................................................................................42
5. PRODUCT SPECIFICATION ..............................................................43
- 4 -
ABOUT THIS GUIDE
This manual provides instructions and illustrations on how to use your
TSU-200 Network Storage Server with All-in 1 Card Reader/Writer,
including:
zChapter 1, Introduction, provides the general information on the
product.
zChapter 2, Installation, describes the hardware installation
procedure for the product, and how to access to the storage
server.
zChapter 3, Web Configuration, completes the configuration
using the web browser.
zChapter 4, Downloading Files, helps you to set up downloading
schedule.
zChapter 5, Product Specification.
Please note that the illustrations or setting values in this manual are
FOR YOUR REFERENCE ONLY. The actual settings and values
depend on your system and network. If you are not sure about the
respective information, please ask your network administrator or MIS
staff for help.
- 5 -
1
INTRODUCTION
Congratulations on purchasing your TS-U200 Network Storage Server
with All-in-1 Card Reader/Writer, the easiest and fastest way to share
data, file, and resource in your network.
This entry-level storage server is the value-added equipment in your
network that allows you to control file-sharing needs within a small
office/home office (SOHO) environment. With expandable function
(through its two USB ports) in a compact form-factor, the storage
server is ideal for sharing data, rich-media files, and for storage in a
small office, remote corporate office or residential gateway
environments.
In addition, its integrated All-in-1 Card Reader, which supports MMC
(Multi-media Card), SD (Secure Digital), SM (Smart Media), MS/MS
Pro (Memory Stick/Memory Stick PRO/Memory Stick PRO DUO),
CF (Compact Flash Card type I/type II) cards, and IBM Micro-Drive,
allowing you to access multiple storage devices without additional
cost of purchasing an external card reader.
- 6 -
General Features
♦Compact-sized design.
♦Compliant with USB1.1 and USB2.0.
♦Provides one 10/100Mbps AutoMDIX Fast Ethernet LAN port.
♦Embedded All-in-1 Card Reader/Writer.
♦Supports USB “Hot-plug” function.
♦Two operating modes support: Open mode and Account mode.
♦Supports Auto-IP function.
♦Supports IP assignment for DHCP and Auto-IP.
♦Supports IP address filtering for Ethernet access with either DENY
or ALLOW setting.
♦Supports external USB storage (Hard-disk, Flash-disk, and CD-
ROM drive).
♦Provides download assistance, making users download files
without PC and schedule-able (support ftp and http).
♦Supports NTP (network time protocol).
♦Web-based administrative program is stored in flash ROM of the
file server.
♦No setup necessary in Open mode.
♦Firmware upgrade-able by Web-based administrative program.
♦Supports Windows 98/ME/NT/2000/XP and Linux SMB.
♦Provides FTP Server service.
♦Supports UPnP for Windows XP.
♦Provides an Easy-Search program for different IP domain setting.
- 7 -
Package Contents
Unpack the package and check all the items carefully, and be certain
that you have:
♦One TS-U200 Network Storage Server with Card Reader/Writer
♦One AC Power Adapter suitable for your country’s electric power
service.
♦One Multi-Language Quick Installation Guide.
♦One Installation CD-ROM containing the User’s Guide (PDF).
If any item contained is damaged or missing, please contact your local
dealer immediately. Also, keep the box and packing materials in
case you need to ship the unit in the future.
- 8 -
Product View
This section describes the externally visible features of the file server.

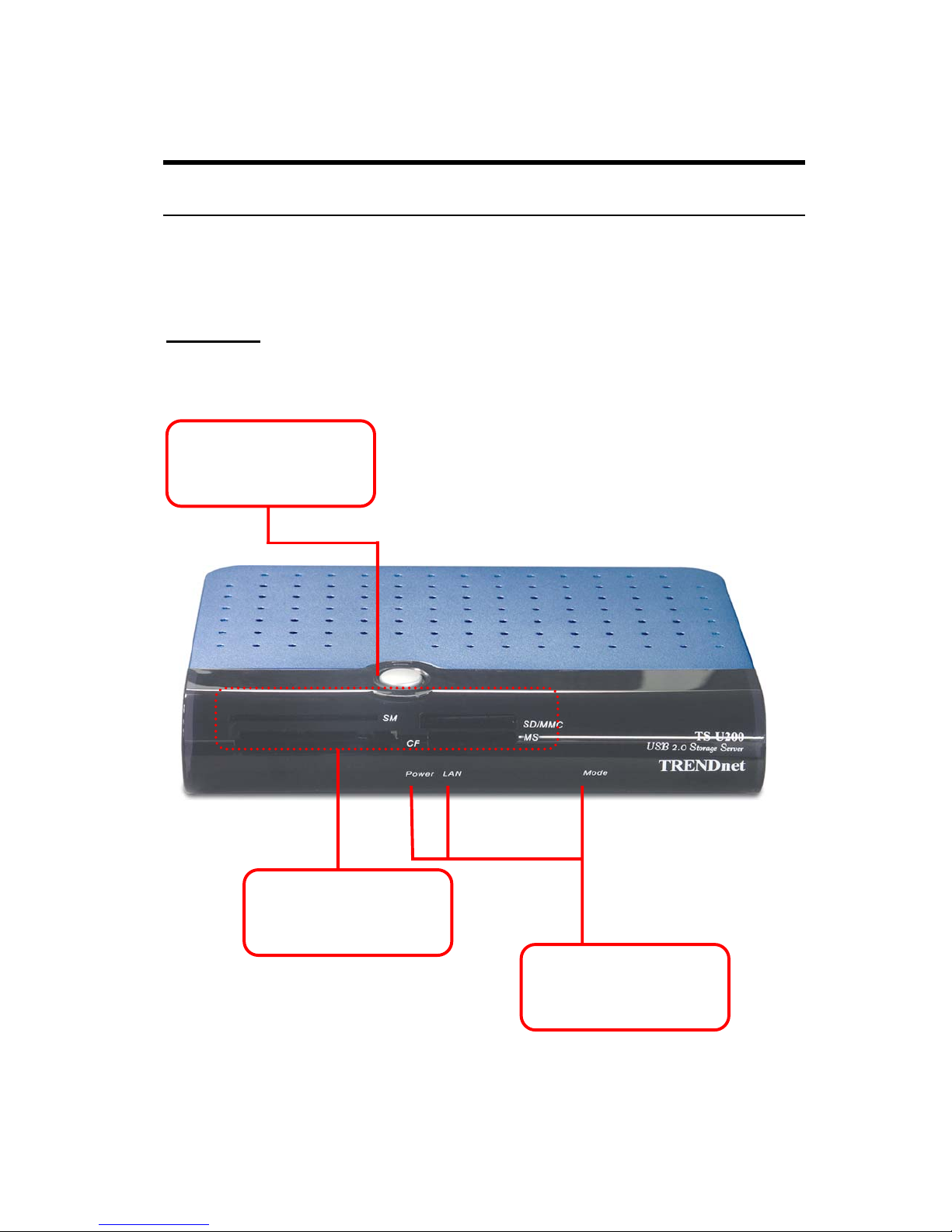

Front View
Backup Button
LEDs
see instructions in
page 10.
All-in-1
Card Reader/Writer
- 9 -

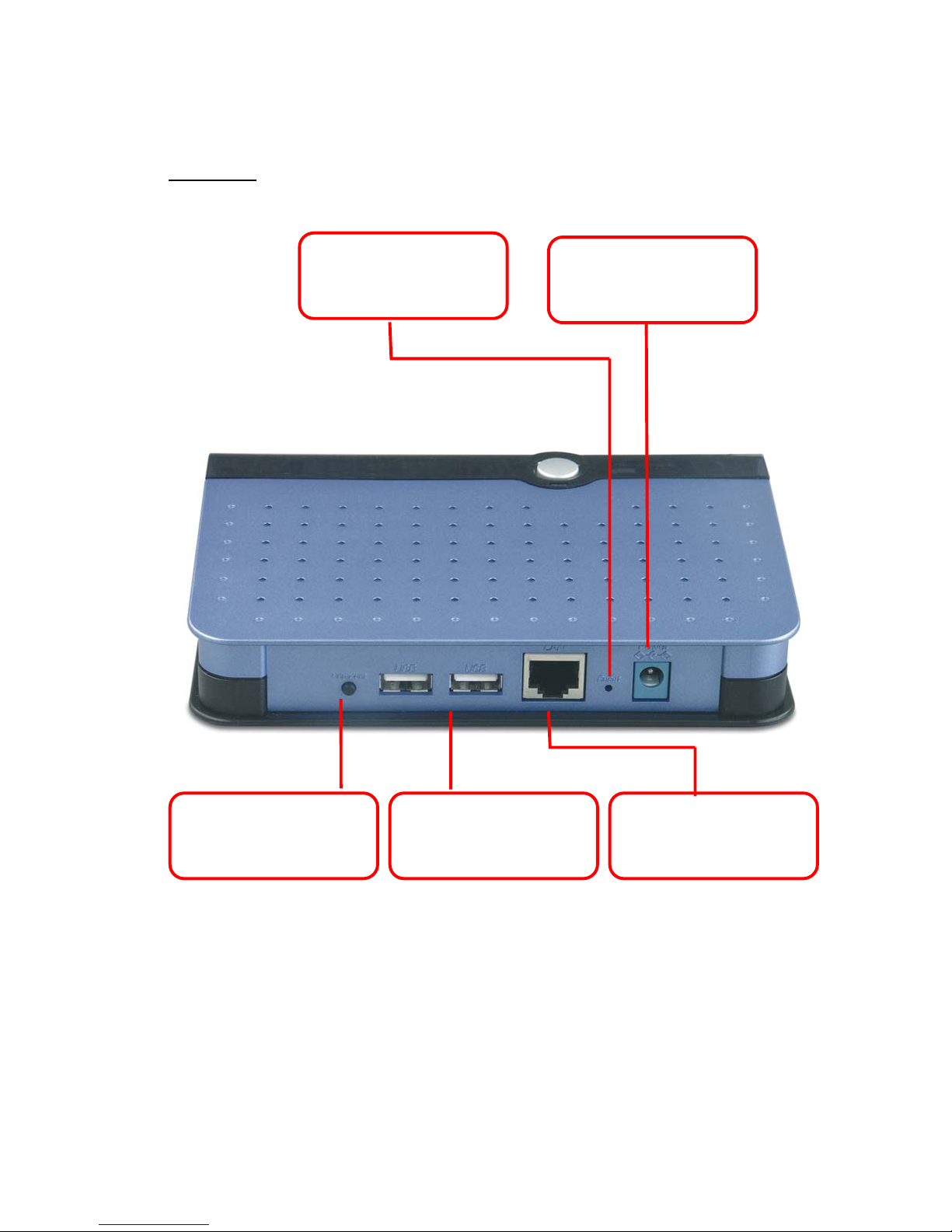

Rear View
USB Port
connect the USB
devices.
Unmount
LAN Connector
plug LAN cable
to this
connector.
Reset Button
DC Power Input
plug the AC power
adapter to this jack.
- 10 -
LEDs
There are four/five LEDs on the front panel:
LEDs Description
Power A steady Green light confirms that the storage server is
powered on.
LAN
A steady Green light confirms that the storage server
has a good connection to your network.
When it blinks, the storage server is receiving/
transmitting data from/to the network.
Mode
Off: No devices attached to the storage server.
When you are connecting a USB device to the storage
server, the LED starts blinking Green first, and then
lights a steady Green light to indicate the installation is
OK; the Red light indicates that the installation failed.
Backup
Off: No cards in the Card Reader.
Green: When you insert a memory card into one of the
slots, it lights Green steadily. When the system reads
the data from the card, it starts blinking Green.
Orange: When you backup files from Card Reader to
the system. When backup is finished, it turns off.
