TRENDnet TE100-P2U1P Manuale di istruzioni
Q: Why doesn't PS Admin detect my print server?
A:
Q: How do I change the IP address of my print server?
A:
If you are using Windows XP you will have to disable the built in firewall. But for all operating
systems you have to disable any other form of firewall software such as Norton Internet Security,
Black Ice, and Zone Alarm.
Step 1. Open up the PS Admin utility. Highlight your Print server and click on Properties.
Step 2. Click on TCP/IP tab.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.
Q: How do I install my printer on Windows 95/98/ME?
A:In Windows 98/Me you will need to install the LPR client.
For Windows 98/ME you will also need to know the port name that you are printing to (For the
TEW-P1P/U the port name is lp1. For the P2U1P the port names are lp1 for the parallel, lp2 for the
top usb and lp3 for the bottom usb.
Installing LPR:
Step 1. Once the file is downloaded and extracted, Go to Start > Settings > Control Panel >
double-click on Networks. Click on Add.
Step 2. Highlight Client and click on Add.
Step 3. Click on Have Disk > Browse. Browse to the location of the extracted LPR Client.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.
Step 4. Click OK 3 times.
Step 5. From the list highlight LPR For TCP/IP and click on Properties.
Step 6. Click on Add Port.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.
In the top field type in the IP address of your print server. In the bottom field type in the port name
of your print server, For the TEW-P1P/U the port name is lp1. For the P2U1P the port names are
lp1 for the parallel, lp2 for the top USB and lp3 for the bottom USB. Click on “OK”.
Step 7. Click on OK. Windows will ask you to restart. Click Yes.
LPR is now properly installed on your computer.
Printer Installation
Step 1. Open your printers folder. Go to Start > Settings > Printers.
Step 2. Double-click on the Add Printer icon which will launch the Add Printer Wizard.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.
Select Network Printer and click on Next.

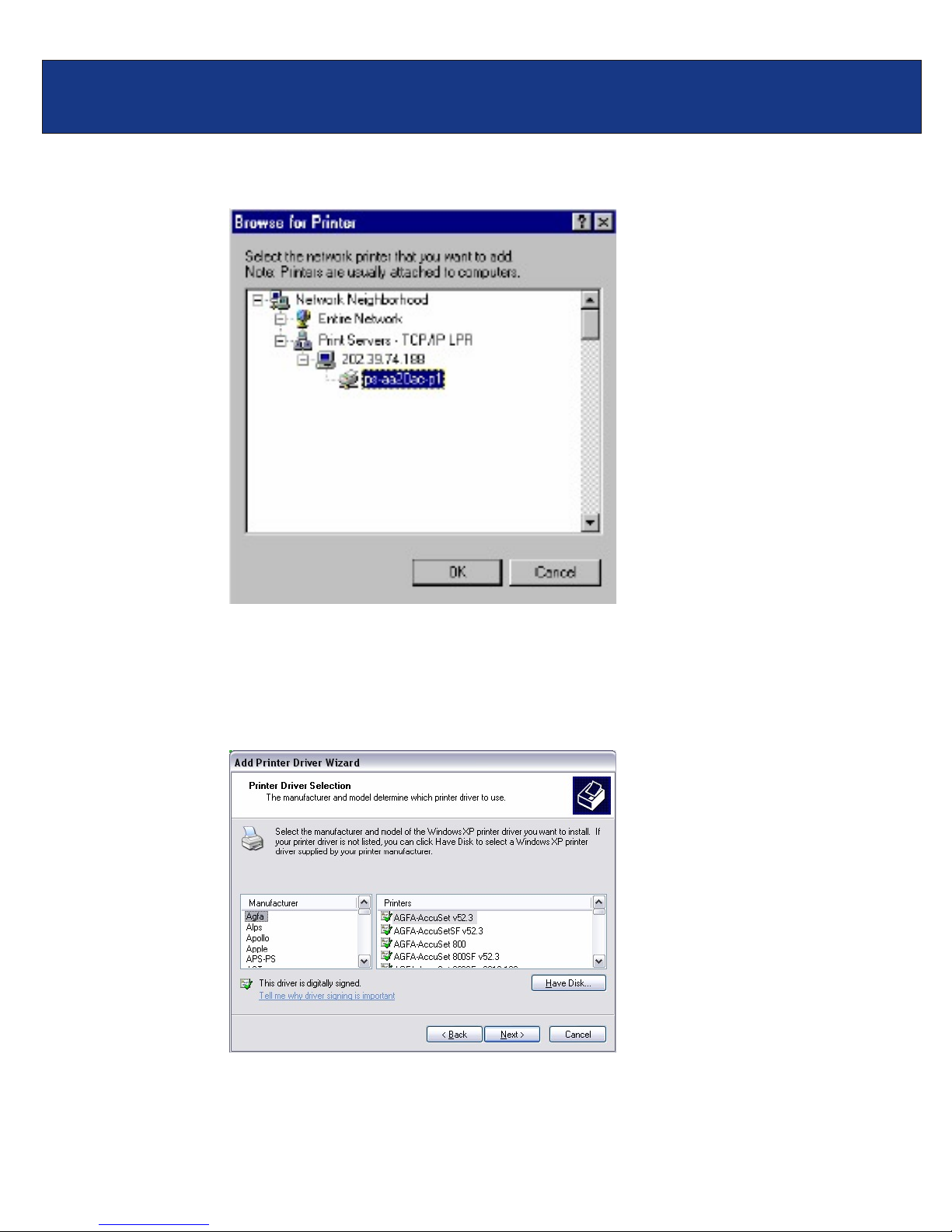

Step 3. Click on the Browse button and browse to the print server.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.
Highlight the Print Server and click on OK to return to the Add Printer Wizard.
Click on Next. If you are unable to do this you can manually enter the Print Server by using two
backlashes, the IP address, one backlash and the port name of you printer.
Step 4. You will now be asked to select a printer to install.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.
If you can not find your printer from the list, click on the Have Disk button and browse to the
printer drivers for your printer (floppy, CD, or downloaded).
Step 5. If you find your printer in the list, click on it and then click on OK. Windows will install the
drivers.
Step 6. Once the drivers been installed, click Finish to complete the installation. You may be
prompted for your Windows CD. If you are prompted for the CD, browse to the Win98 f
older on the Windows CD and click on OK
Step 7. After the drivers have been installed for your printer, you will be prompted to print a test
page. Select Yes and click on Finish.
Step 1. Go to Start>Settings>Printers>Add New Printer (Win XP - Start>Printers and
Faxes>Add a Printer).

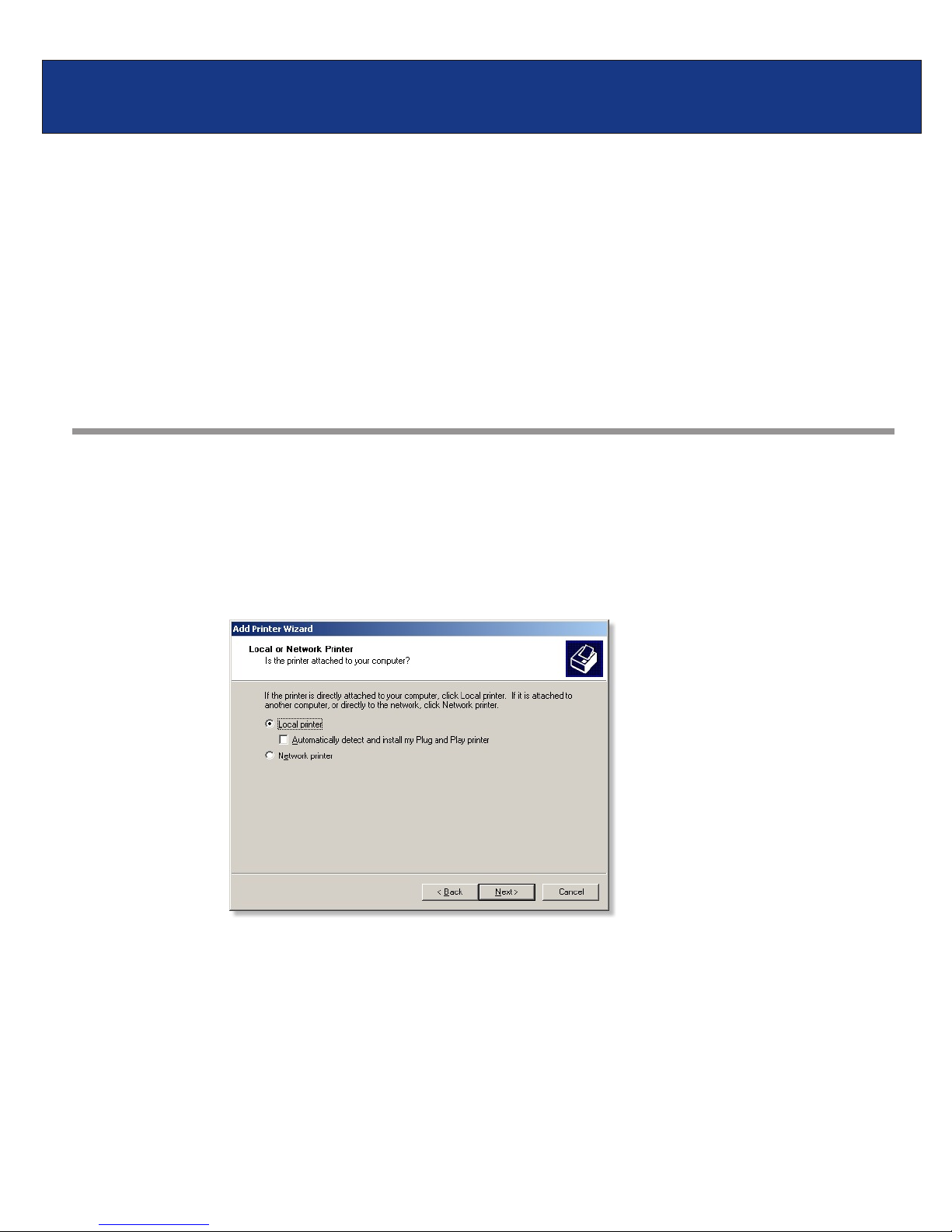

Step 2. Select Local Printer. Make sure to uncheck Automatically detect and install my plug
and play printer. Click Next.
Q: How do I install my printer on Windows 2000/XP?
A:
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.

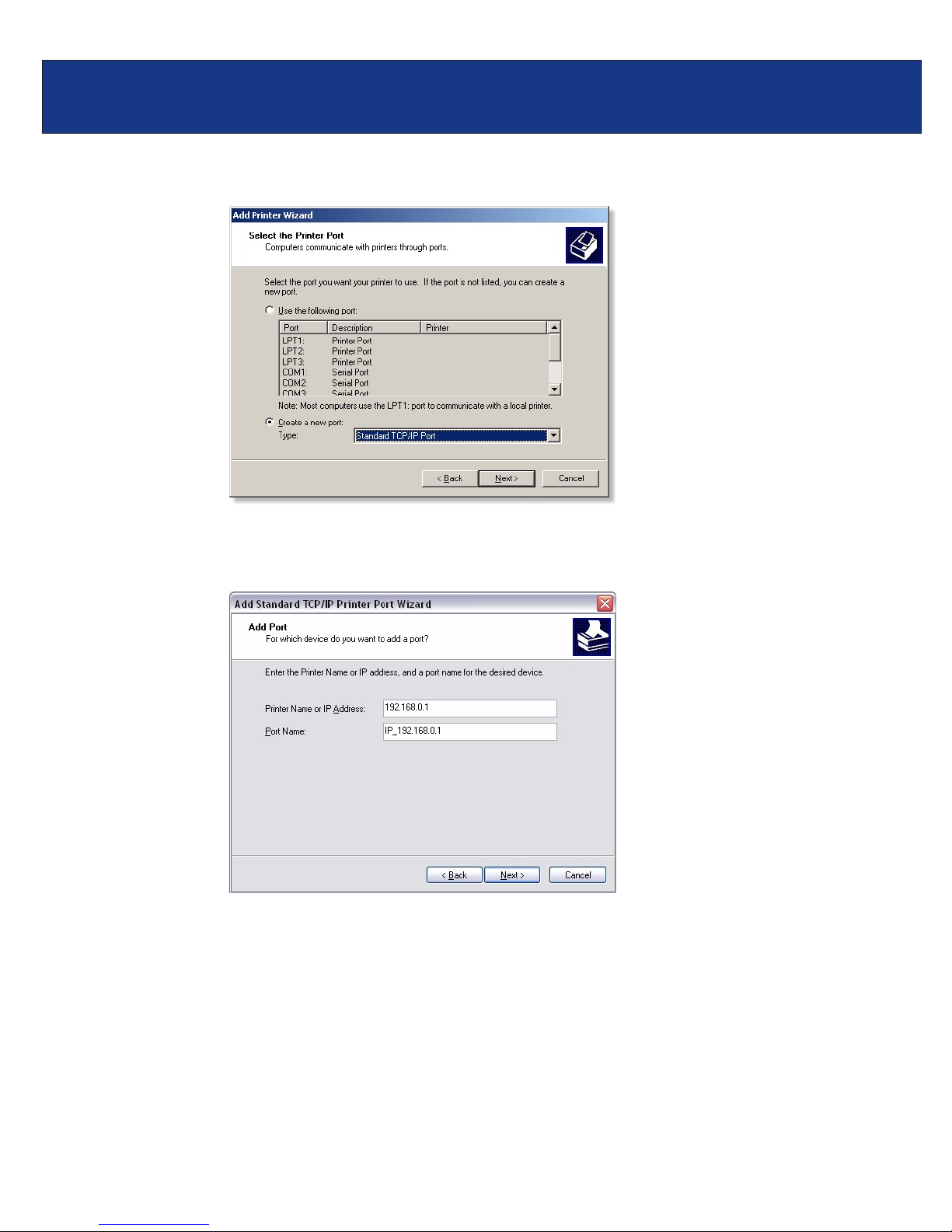

Step 3. Select Create a New Port and select Standard TCP/IP port. Click Next.
Step 4. Enter the IP address of the router (192.168.0.1). Leave the port name with the default
name. Click Next.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.

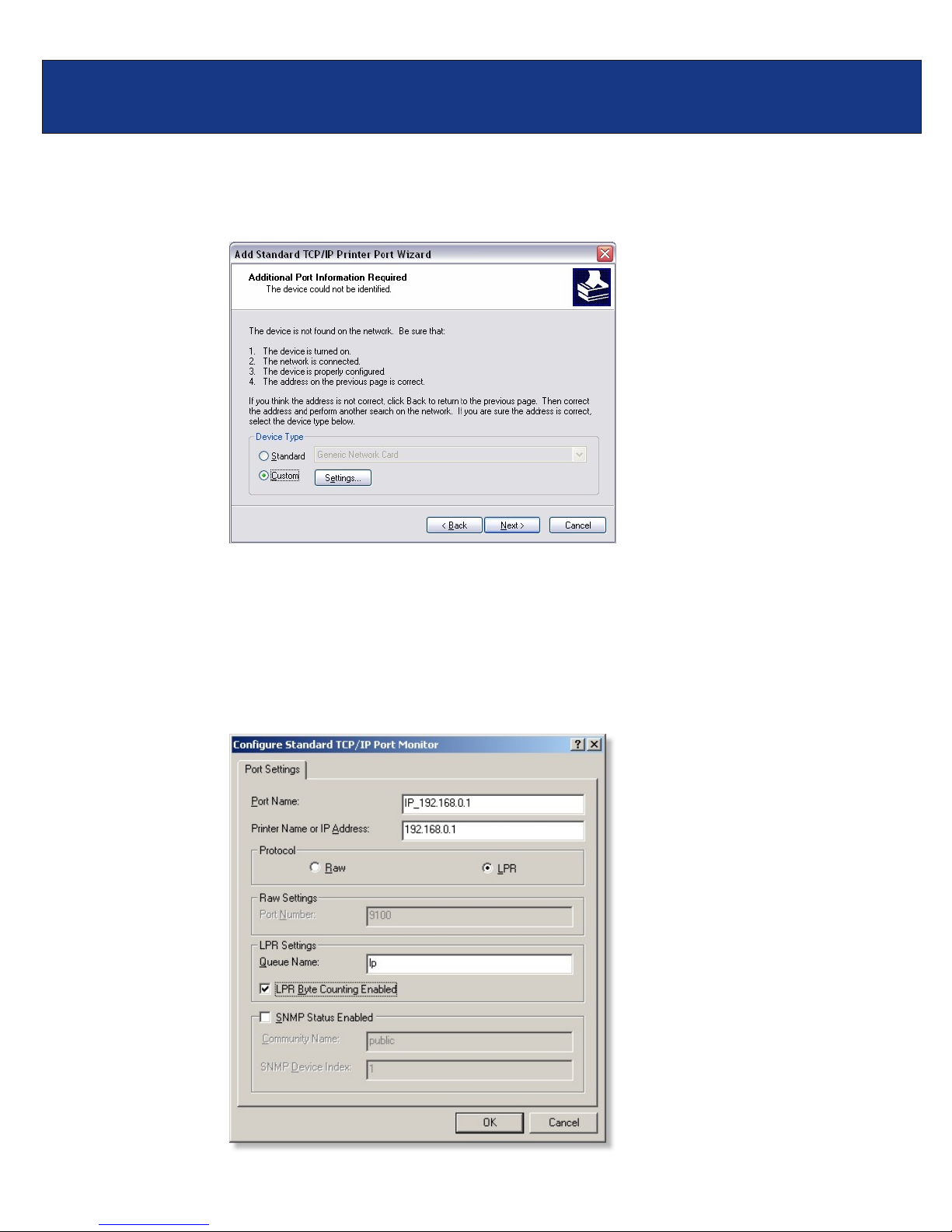

Step 5. You will get a message saying that additional port information required.
Step 6. Select Custom and then click Settings.
Step 7. Set Protocol to LPR.
Step 8. For the LPR Settings the Te100-P1P/U the port name is L1 It is case sensitive! (LP
lower-case). In most cases, check LPR Byte Counting Enabled. If you cannot print,
then try un-checking this.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.
Step 9. Select OK > Finish.

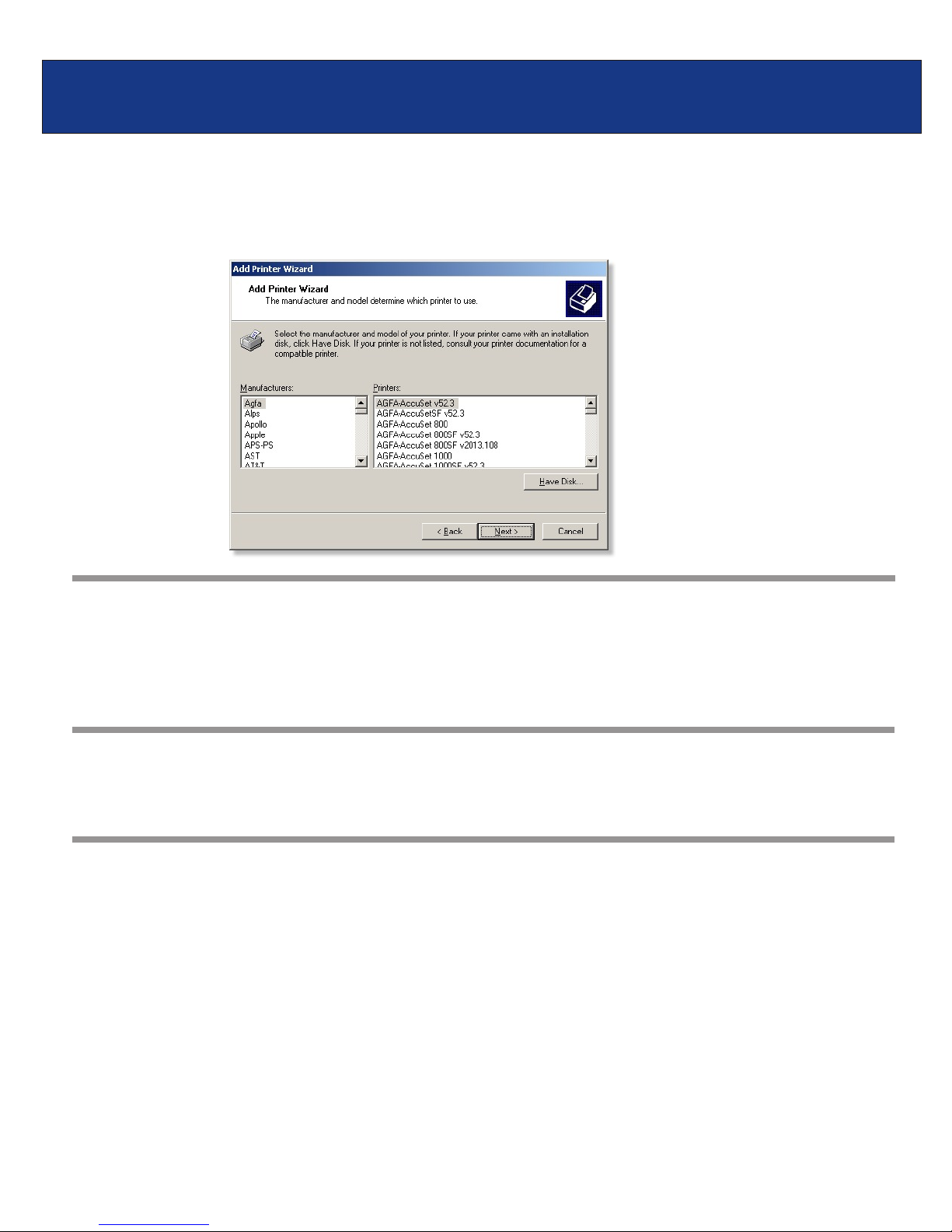

Step 10. Continue with the Add Printer Wizard. Choose your printer from the list or click Have
Disk and point to your printer driver disk.
Q: Does theTE100-P2U1P, TEW-P1U/P support Macintosh operating systems?
A:
Q: What are the queue names of the TE100-P2U1P, TEW-P1U/P?
A:
Q: Why can’t I see my printer status information?
A:
Yes, but you must assign the print server an IP address from a Windows based operating system
first. Once that is done you can use LPR or LPD printing for the Macs and you can manage the
print server by entering its IP address into a web browser. Also the printer must be a postscript
printer.
For the TEW-P1P/U the port name is lp1. For the P2U1P the port names are lp1 for the parallel,
lp2 for the top USB and lp3 for the bottom USB. They are case sensitive.
Print servers are IEEE1284 bi-directional compatible. This means that data can be sent and
received in both directions between the printer and the print server.
Toner status, paper level, etc., will not be communicated back to the PC. In order to get printer
status information, the proprietary printer driver has embedded code that needs to be passed on to
the print server, decoded, then interpreted by the print server. Trendware print servers do not
support embedded driver codes. Trendware print servers, whether in Gateways or Stand Alone,
are plain TCP/IP print servers.
TE100-P2U1P/TEW-P1P/TEW-P1U F.A.Q.
