TRENDnet TEW-411BRPplus Manuale utente

User’s Guide 0

ser’s Guide 0

User’s Guide 1

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical,

photocopying, recording, or otherwise without the prior writing of the publisher.

MAY. 2004

User’s Guide 2

Contents

1. Introduction ............................................................................................................... 3

2. Safety Notification .................................................................................................... 4

3. Hardware Installation................................................................................................ 5

4. Web Management Settings ...................................................................................... 6

4.1. Primary Setup…..……………………………………………………………………………………….7

4.2. Security…………………………………………………………………………………………………..12

4.3. System……………………………………………………………………………………………………14

4.4. DHCP Server…….……………………………………………………………………………………..17

4.5. SNMP Info……………………………………………………………………………………………….19

4.6. Status…………………………………………………………………………………………………….20

4.7. Advanced Wireless…………………………………………………………………………………...21

4.8. Access Filters…………………………………………………………………………………………..24

4.9. Virtual Server…………..……………………………………………………………………………….26

4.10. Routing Table…………………………………………………………………………………………28

4.11. Dynamic DNS……………….………………………………………………………………………..30

5. Troubleshooting ..................................................................................................... 31

User’s Guide 3

1. Introduction

Thank you for purchasing your AP Router Wireless 802.11g AP Router.

This user guide will assist you with the installation procedure.

The package you have received should contain the following items:

AP Router Wireless 802.11g AP Router

Quick Installation Guide

User’s Guide CD-ROM

Power Adapter (5V DC, 2A)

Ethernet Cable

Note: if anything is missing, please contact your vendor

User’s Guide 4

2. Safety Notification

Your Wireless AP Router should be placed in a safe and secure location. To ensure proper operation,

please keep the unit away from water and other damaging elements. Please read the user manual

thoroughly before you install the device. The device should only be repaired by authorized and

qualified personnel.

Please do not try to open or repair the device yourself.

Do not place the device in a damp or humid location, i.e. a bathroom.

The device should be placed in a sheltered and non-slip location within a temperature range of

+5 to +40 Celsius degree.

Please do not expose the device to direct sunlight or other heat sources. The housing and

electronic components may be damaged by direct sunlight or heat sources.

User’s Guide 5

3. Hardware Installation

Front Panel

The front panel provides LED’s for device status. Refer to the following table for the meaning of each

feature.

LED STATUS Description

Off No power

Red On 1. Power on 2. Reset to default 3. Firmware upgrade (first 1

minute)

PWR/STAT

Red Blink 1. System up 2. Power on 3. Firmware upgrade

Off no Ethernet link detected

Green On 10/100Mbps Fast Ethernet link detected. No activity.

LAN

Green

Blink Indicates data traffic on the 10/100 Mbps LAN

WAN Orange

Blink Indicates data traffic on the 10/100 Mbps WAN

G Yellow

Blink

Indicates the device is linking or active data through wireless

links

Rear Panel

The rear panel features 4 LAN ports, 1 WAN port and Reset button. Refer to the following table for the

meaning of each feature.

Power (DC 5v)

Used to connect to the power outlet. Only use the power

adapter provided with the device. Use of an unauthorized

power adapter may cause damage to your device and void

your warranty.

Reset Press the Reset Button for approximately ten seconds. All

configurations will set to factory default settings.

LAN The RJ-45 Ethernet ports are used to connect your PC,

hub, switch or Ethernet network to your AP router.

WAN The RJ-45 Ethernet port labeled WAN is used to connect

your AP Router to your xDSL or Cable modem.

AP Router Default Settings

The default settings are shown following.

User Name

Password admin

AP Router IP

Address 192.168.1.1

AP Router Subnet

Mask 255.255.255.0

RF ESSID wlan-g

11g RF Channel 6

Mode 11b+11g

Encryption Disabled

DHCP client Enabled

4 Web Management Settings

TURN ON POWER SUPPLY

Quick power cycle can caused system corruption. When power on, be careful not to shut down under

about 5 seconds, because data is writing to the flash.

START UP & LOGIN

In order to configure the Wireless 11g AP Router, you must use your web browser and manually input

http://192.168.1.1 into the Address box and press Enter. The Main Page will appear.

In order to configure the Wireless 11g AP Router, you must input the password into the Password

field. The default password is “admin”. Leave the User Name field blank.

Once you have logged-in as administrator, it is a good idea to change the administrator password to

ensure a secure protection to the Wireless 11g AP Router. The Security Settings section describes

how to change the password.

Once you have inputted the correct password and logged-in, the screen will go to the Setup page.

User’s Guide 6

User’s Guide 7

4.1. Primary Setup

MAKE CORRECT NETWORK SETTINGS OF YOUR COMPUTER

To change the configuration, use Internet Explorer (IE) or Netscape Communicator to connect the

WEB management 192.168.1.1.

Primary Setup

This screen contains all of the Router's basic setup functions.

Most users will be able to configure the AP Router and get it working properly using the settings on

this screen. Some Internet Service Providers (ISPs) will require that you enter AP Router Wireless

802.11g AP Router specific information, such as User Name, Password, IP Address, Default Gateway

Address, or DNS IP Address. This information can be obtained from your ISP, if required.

Internet:

Host Name: This entry is necessary for some ISPs and can be provided by them.

Domain Name: This entry is necessary for some ISPs and can be provided by them.

Configuration Type: The Router supports four connection types:

Dynamic IP Setting

Static IP Address

PPPoE (Point-to-Point Protocol over Ethernet)

PPTP (Point-to-Point Tunneling Protocol)

User’s Guide 8

These types can be selected from the drop-down menu next to Connection Type. The information

required and available features will differ depending on what kind of connection type you select.

Some descriptions of this information are included here:

• Internet IP Address and Subnet Mask

This is the Router's IP Address and Subnet Mask as seen by external users on the

Internet (including your ISP). If your Internet connection requires a static IP address,

then your ISP will provide you with a Static IP Address and Subnet Mask.

• Default Gateway

Your ISP will provide you with the Gateway IP Address.

• DNS (Domain Name Server) IP Address

Your ISP will provide you with at least one DNS IP Address.

• User Name and Password

Enter the User Name and Password you use when logging onto your ISP through a

PPPoE or PPTP connection.

• Connect on Demand

You can configure the Router to disconnect from your Internet connection after a

specified period of inactivity (Max Idle Time). If your Internet connection has been

terminated due to inactivity, Connect on Demand enables the Router to automatically re-

establish your connection as soon as you attempt to access the Internet again. If you

wish to activate Connect on Demand, click the radio button.

If you want your Internet connection to remain active at all times, enter 0 in the AP

Router 802.11g AP Router max Idle Time field. Otherwise, enter the number of minutes

you want to have elapsed before your Internet connection terminates.

• Keep Alive Option

This option keeps you connected to the Internet indefinitely, even when your connection

sits idle. To use this option, click the radio button next to Keep Alive. The default Redial

Period is 30 seconds (in other words, the Router will check the Internet connection every

30 seconds).

LAN IP Address and Subnet Mask: This is the Router's IP Address and Subnet Mask as seen on

the internal LAN. The default value is 192.168.1.1 for IP Address and 255.255.255.0 for Subnet Mask.

Wireless: This section provide the Wireless Network settings for your WLAN

User’s Guide 9

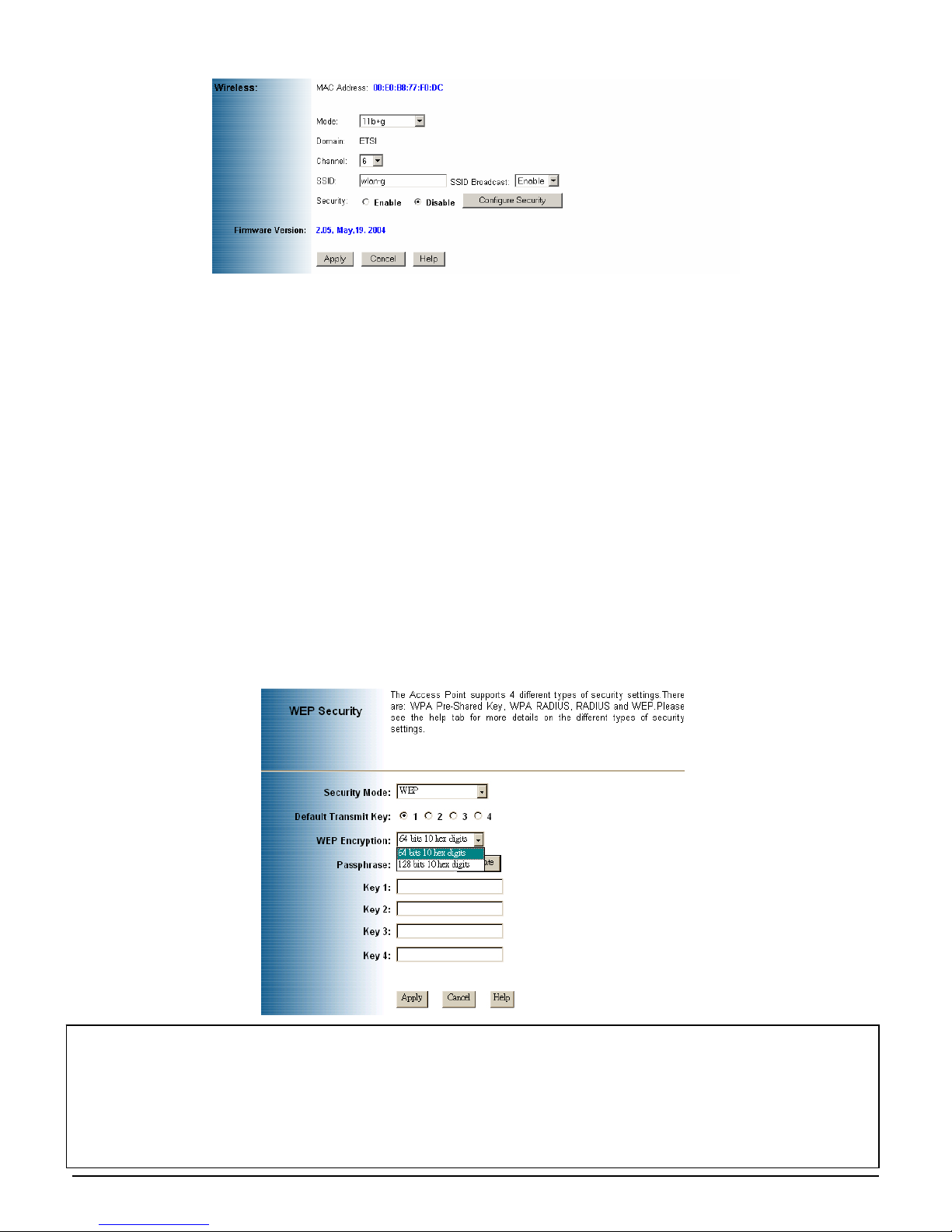

Mode: This unit supports 3 wireless mode – 11b+g , 11g Only and AfterBurner (turbo mode). Select

disable to turn off wireless.

Domain: The displaying information is related with each domain regulation.

Channel: Select the appropriate channel from the list provided to correspond with your network

settings. You shall assign a different channel for each AP to avoid signal interference.

SSID: The service set identifier ( SSID ) or network name. It is case sensitive and must not exceed 32

characters, which may be any keyboard character. You shall have selected the same SSID for all the

APs that will be communicating with mobile wireless stations.

SSID Broadcast: Enabling this option allows all wireless clients to find the AP Router. Disabling this

option allows only those wireless clients with the AP’s SSID to communicate with the AP Router.

Security: There are 3 types of security to be selected. To secure your Wireless Networks, it’s strongly

recommended to enable this feature.

WEP: Make sure that all wireless devices on your network are using the same encryption level and

key. WEP keys must consist of the letters "A" through "F" and the numbers "0" through "9."

Important Notice

In order to use WPA, please ensure that your Wireless Adapter supports WPA. WPA needs 802.1x

authentication (when RADIUS mode is chosen), though the Operating System must also support

802.1x protocol. For Microsoft’s OS family, only Windows XP has incorporated this by default. The

rest of the OS must installed 3er party’s client software such as Funk ODySSey.
