TRENDnet TEW-633GR - Wireless Router Manuale utente

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

TRENDnet declares that TEW-633GR (FCC ID: S9ZTEW633GR) is limited in CH1~CH11 for 2.4

GHz by specified firmware controlled in U.S.A.

This publication, including all photographs, illustrations and software, is protected under interna-

tained herein, may be reproduced without written consent of the author.

Trademark recognition

All product names used in this manual are the properties of their respective owners and are

acknowledged.

Table of Contents

Getting Started with the TEW-633GR 4

PackageContents 5

Minimum System Requirements 5

Wireless LAN Networking 6

Introduction 9

Features 9

Hardware Overview 10

Side Panel 10

LEDs 11

Installation Considerations 12

Getting Started 12

Using the Configuration Menu 13

Basic 14

Advanced 24

Tools 55

Status 69

Glossary 80

Note: Please run the CD and follow the steps in the Quick Installation Guide to setup your

router. If you still have problems after doing so then proceed to the User’s Guide to install

the router with web-based configuration.

Getting Started with the TEW-633GR

Congratulations on purchasing the TEW-633GR! This manual provides information for setting up

and configuring the TEW-633GR. This manual is intended for both home users and professionals.

The following conventions are used in this manual:

THE NOTE SYMBOL INDICATES ADDITIONAL INFORMATION ON THE

TOPIC AT HAND.

THE TIP SYMBOL INDICATES HELPFULL INFORMATION AND TIPS TO

IMPROVE YOUR NETWORK EXPERIENCE.

THE CAUTION SYMBOL ALERTS YOU TO SITUATIONS THAT MAY

DEGRADE YOUR NETWORKING EXPERIENCE OR COMPROMISE

LIKE NOTES AND TIPS, THE IMPORTANT SYMBOL INDICATES

INFORMATION THAT CAN IMPROVE NETWORKING. THIS INFORMATION

SHOULD NOT BE OVERLOOKED.

Package Contents

zTEW-633GR 11n Wireless N Gigabit Router

zCAT-5 Ethernet Cable

zPower Adapter

zUser’s Guide CD-ROM

zMulti-Language Quick Installation Guide

Using a power supply with a different voltage than the one included with your

product will cause damage and void the warranty for this product.

Minimum System Requirements

zEthernet-Based Cable or DSL Modem

zComputers with Windows, Macintosh, or Linux-based operating systems with an installed

Ethernet adapter and CD-ROM Drive

zInternet Explorer Version 6.0 or Netscape Navigator Version 7.0 and Above

Wireless LAN Networking

This section provides background information on wireless LAN networking technology. Consult

the Glossary for definitions of the terminology used in this section.

THE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. CHANGING

NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY

BE DONE BY AN AUTHORIZED ADMINISTRATOR.

Transmission Rate (Transfer Rate)

The TEW-633GR provides various transmission (data) rate options for you to select. In most

networking scenarios, the factory default Best (automatic) setting proves the most efficient. This

setting allows your TEW-633GR to operate at the maximum transmission (data) rate. When the

communication quality drops below a certain level, the TEW-633GR automatically switches to a

lower transmission (data) rate. Transmission at lower data speeds is usually more reliable.

However, when the communication quality improves again, the TEW-633GR gradually increases

the transmission (data) rate again until it reaches the highest available transmission rate.

Types of Wireless Networks

Wireless LAN networking works in either of the two modes: ad-hoc and infrastructure. In infra-

structure mode, wireless devices communicate to a wired LAN via access points. Each access

point and its wireless devices are known as a Basic Service Set (BSS). An Extended Service Set

(ESS) is two or more BSSs in the same subnet. In ad hoc mode (also known as peer-to-peer

mode), wireless devices communicate with each other directly and do not use an access point.

This is an Independent BSS (IBSS).

To connect to a wired network within a coverage area using access points, set the operation mode

to Infrastructure (BSS). To set up an independent wireless workgroup without an access point, use

Ad-hoc (IBSS) mode.

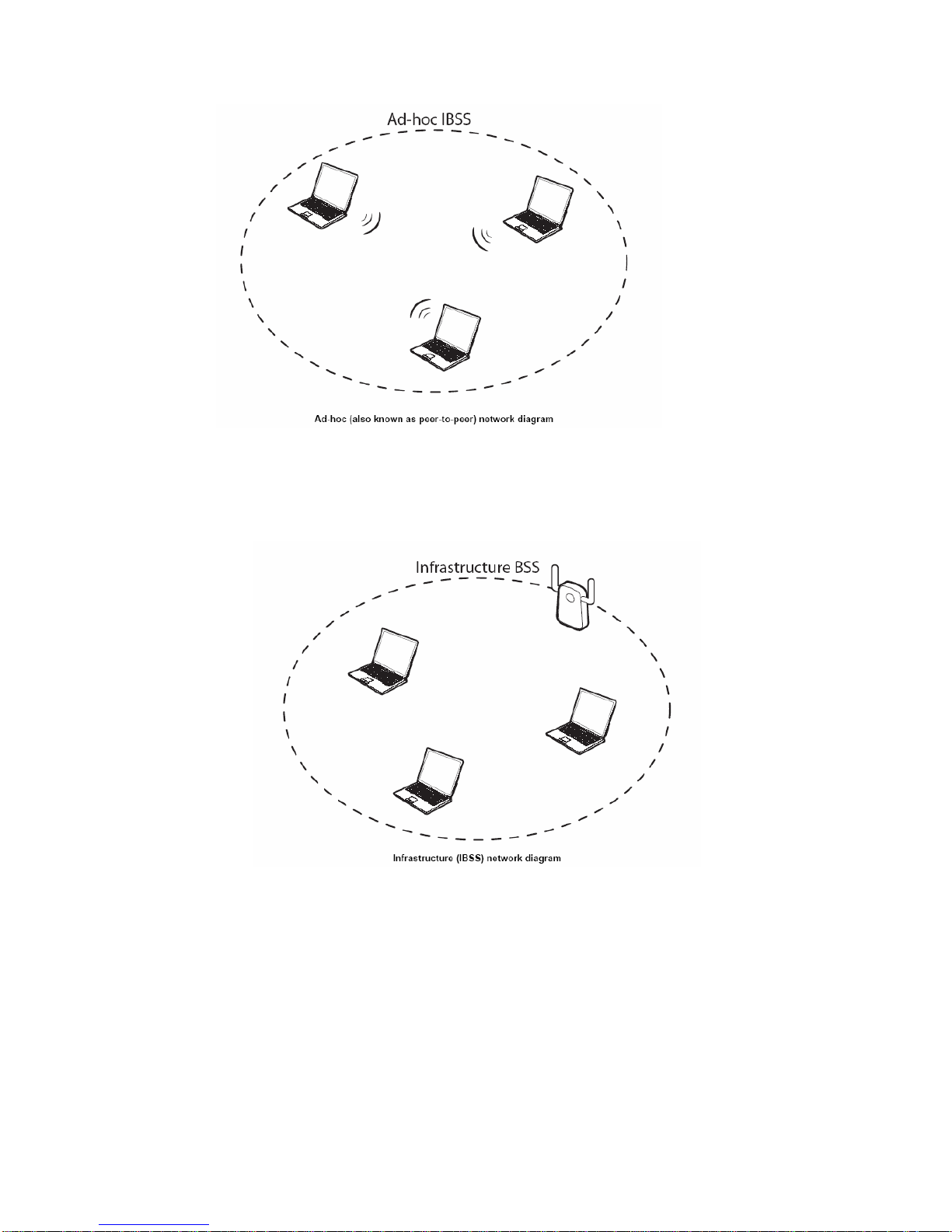

AD-HOC (IBSS) NETWORK

Ad-hoc mode does not require an access point or a wired network. Two or more wireless stations

communicate directly to each other. An ad-hoc network may sometimes be referred to as an

Independent Basic Service Set (IBSS).

To set up an ad-hoc network, configure all the stations in ad-hoc mode. Use the same SSID and

channel for each station.

When a number of wireless stations are connected using a single access point, you have a Basic

Service Set (BSS).

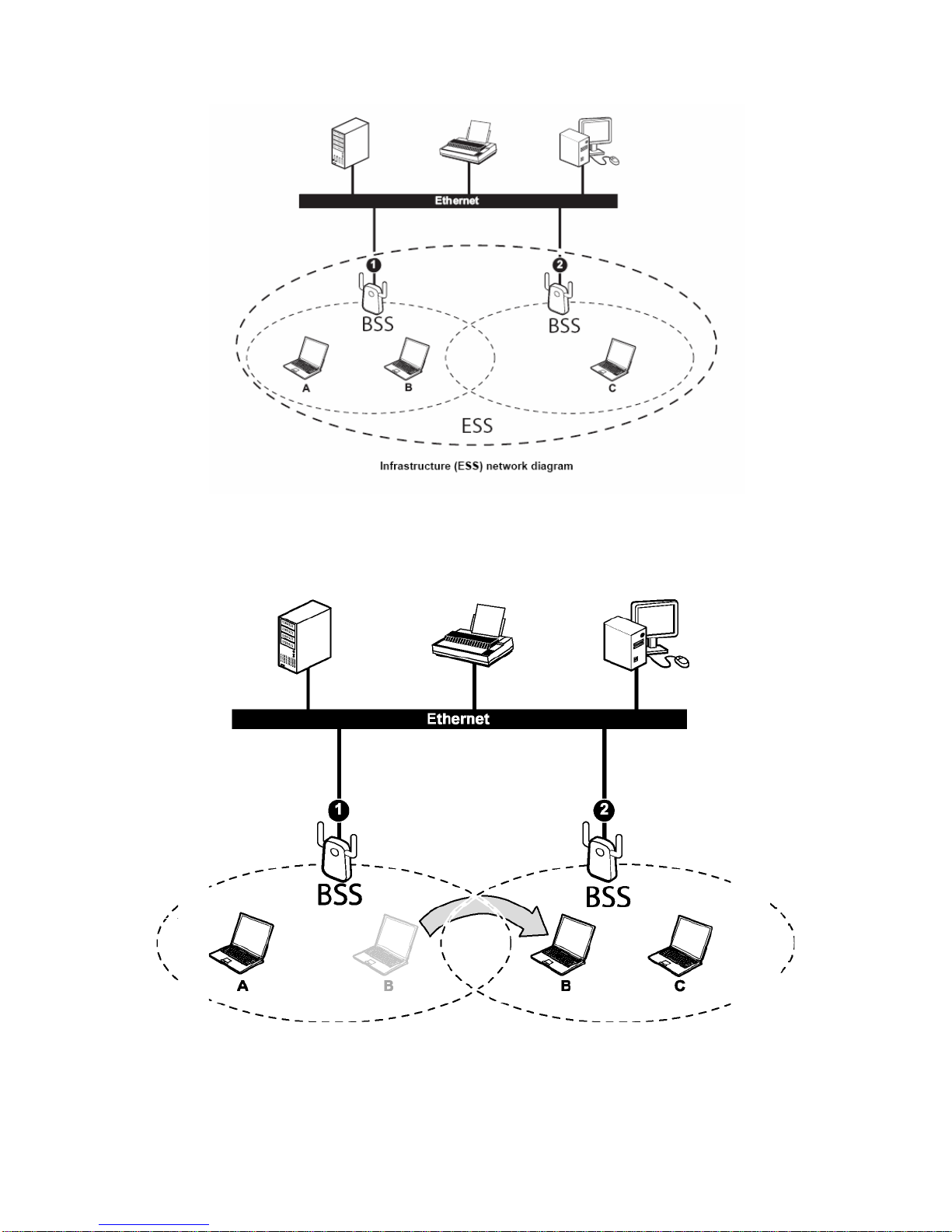

In the ESS diagram below, communication is done through the access points, which relay data

packets to other wireless stations or devices connected to the wired network. Wireless stations

can then access resources, such as a printer, on the wired network.

In an ESS environment, users are able to move from one access point to another without losing the

connection. In the diagram below, when the user moves from BSS (1) to BSS (2) the WLAN client

devices automatically switches to the channel used in BSS (2).

Roaming in an ESS network diagram

Introduction

The TEW-633GR 11n Wireless Gigabit Router is a high-performance, wireless router that supports

high-speed wireless networking at home, at work or in public places.

Unlike most routers, the TEW-633GR provides data transfers at up to 300Mbps when using 11n (Draft

2.0) connection. This router is also back compatible with 802.11g or 11b devices. This means that you

do not need to change your entire network to maintain connectivity. You may sacrifice some of 11n’s

speed when you mix 11n and 11b/g devices, but you will not lose the ability to communicate when you

incorporate the 11n (Draft 2.0) standard into your 11b/g network. You may choose to slowly change

your network by gradually replacing the 11b/g devices with 11n devices.

Features

¾Wi-Fi Compliant with IEEE 802.11n (Draft 2.0) and IEEEE 802.11b/g Standards

¾2.412 to 2.484GHz frequency band operation

¾Compliant with IEEE 802.3 & 3u standards

¾Support 4 10/100/1000Mbps Gigabit LAN ports and 1 10/100/1000Mbps Gigabit WAN port

¾High-Speed up to 300Mbps Data Rate using IEEE 802.11n (Draft 2.0) connection

¾Supports Cable/DSL Modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP or BigPond

Connection Types

¾Firewall features Network Address Translation (NAT), and Stateful Packet Inspection (SPI)

protects against Dos attacks

¾Traffic Control with Virtual Server (max 24 configurable servers) and DMZ

¾UPnP (Universal Plug & Play) and ALGs Support for Internet applications such as Email, FTP,

Gaming, Remote Desktop, Net Meeting, Telnet, and more

¾Provides Additional Security of Enable/Disable SSID, Internet Access Control (Services, URL and

MAC Filtering)

¾Supports Multiple and Concurrent IPSec, L2TP and PPTP VPN Pass-Through Sessions

¾Flash Memory for Firmware Upgrade, Save/Restore Settings

¾Easy Management via Web Browser (HTTP) and Remote Management

¾Supports 64/128-bit WEP(for 11b/g), WPA/WPA2, and WPA-PSK/WPA2-PSK

¾Compliant with Windows 98/NT/2000/XP/2003 Server/Vista, Linux and Mac OS

¾Support 4 x 10/100Mbps Auto-MDIX LAN Port and 1 x 10/100Mbps WAN Port (Internet)

¾3 External Fixed Antennas to support high speed performance and great coverage

¾Easy wireless setup via WiFi Protection Setup (PIN).

¾Hardware Overview

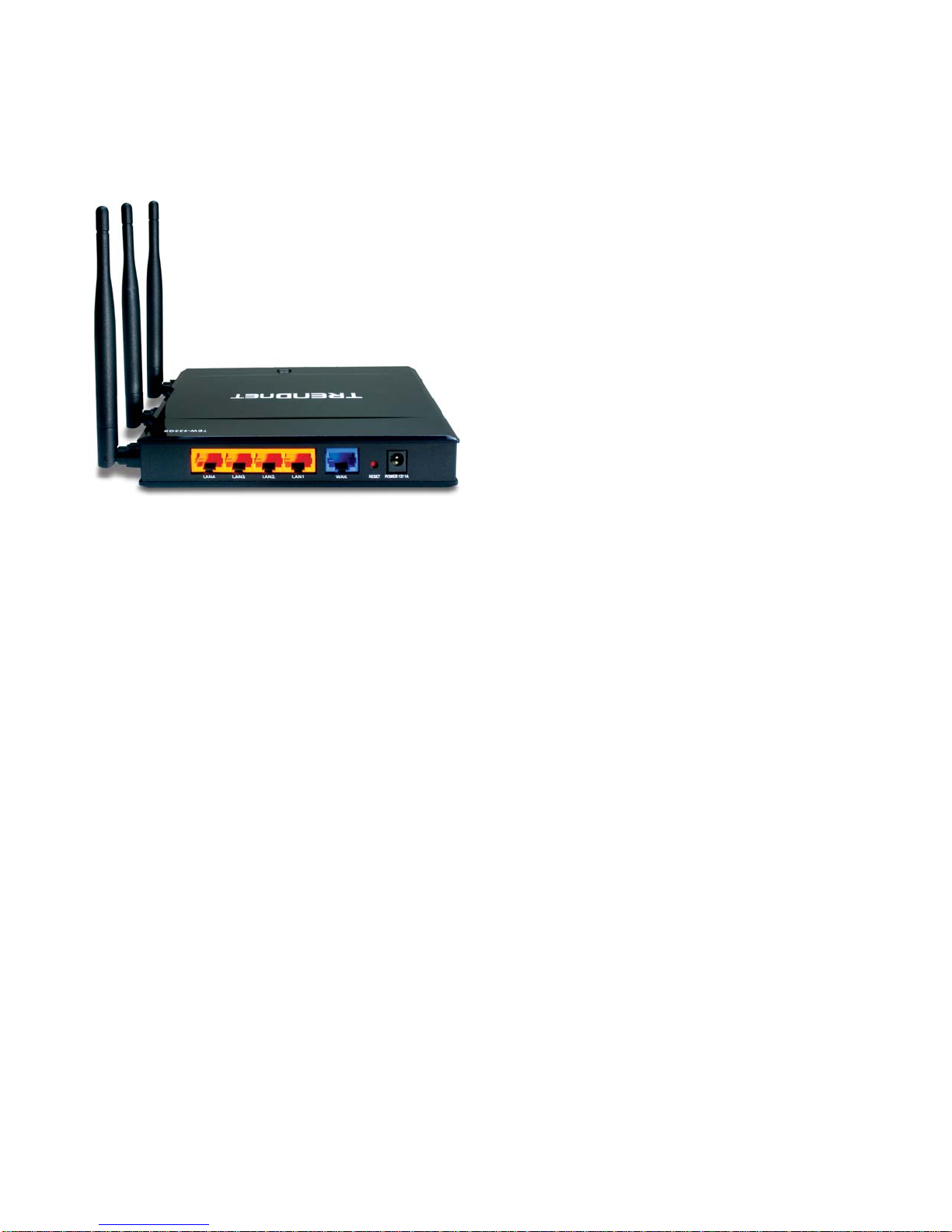

Side Panel

DC-IN

The DC power input connector is a single jack socket to supply power to the TEW-633GR.

Please use the Power Adapter provided on the TEW-633GR package.

Reset Button

Pressing the reset button restores the router to its original factory default settings.

Auto MDI/MDIX Gigabit WAN Port

This is the connection for the Ethernet cable to the Cable or DSL modem

Auto MDI/MDIX Gigabit LAN Ports

These ports automatically sense the cable type when connecting to Ethernet-enabled computers.
