1. Before You Start
2. Hardware Installation .........................................................................
3.
.................................................................................
Configure the Wireless Router ...........................................................
4. Using the USB port ............................................................................ 9
Version 06.19.2009
Installation Requirements

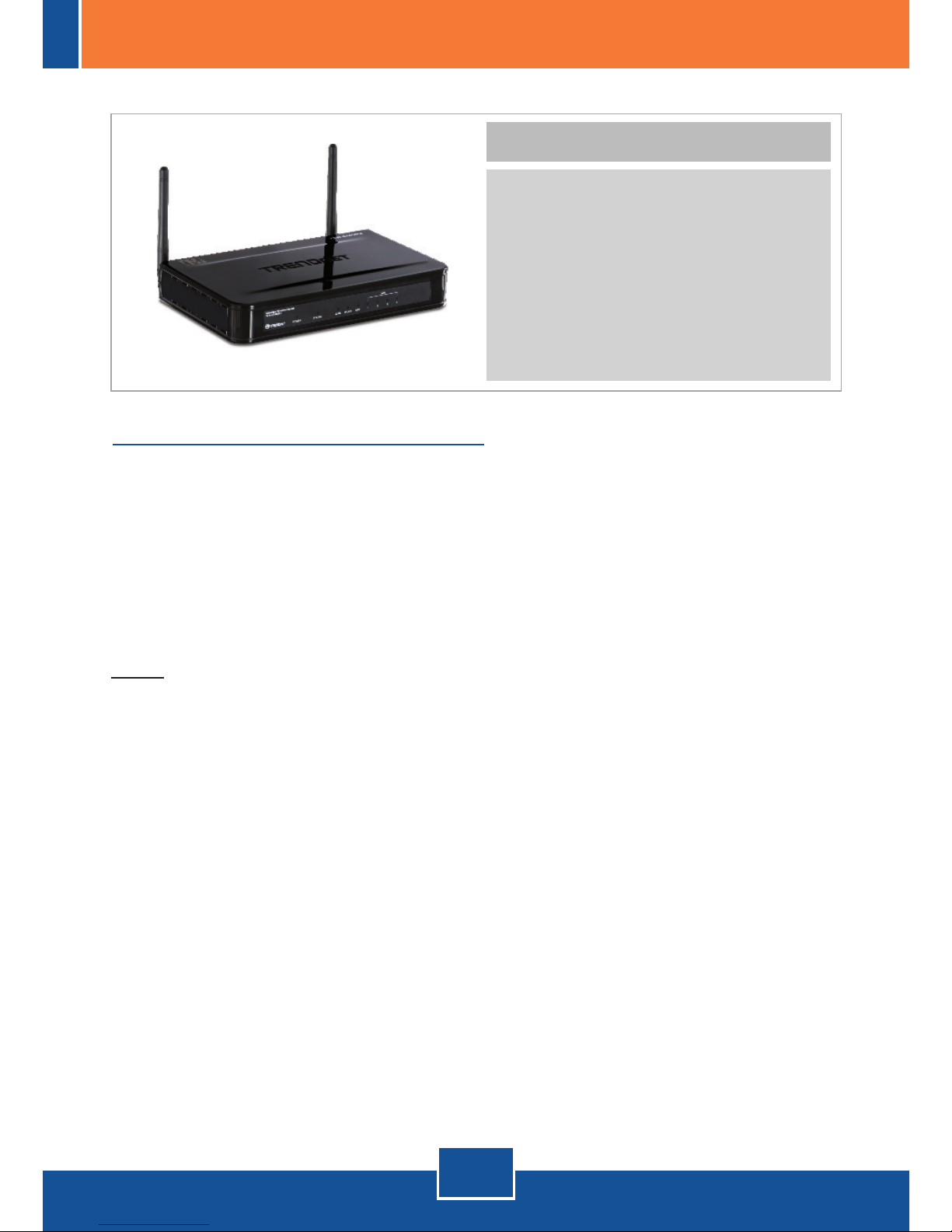

Package Contents
1. Before You Start
English
1
?
?
?
?
?
TEW-634GRU
Utility CD-ROM
Multi-Language Quick Installation
Guide
Cat.5 Ethernet cable (1.5m/5ft)
AC Power Adapter (12V, 2A)
?
?
?
?
A computer with a wired or wireless network adapter properly installed
Web Browser: Internet Explorer (5.0 or higher)
Broadband Internet
Installed Cable or DSL Modem
Note:
1. Do not install the USB Control Center, connect printer to TEW-634GRU and
connect computer to the router until instructed to do so.
2. The USB Control Center must be installed on each computer in order to use
your multi-function printer or USB storage device.
English
2

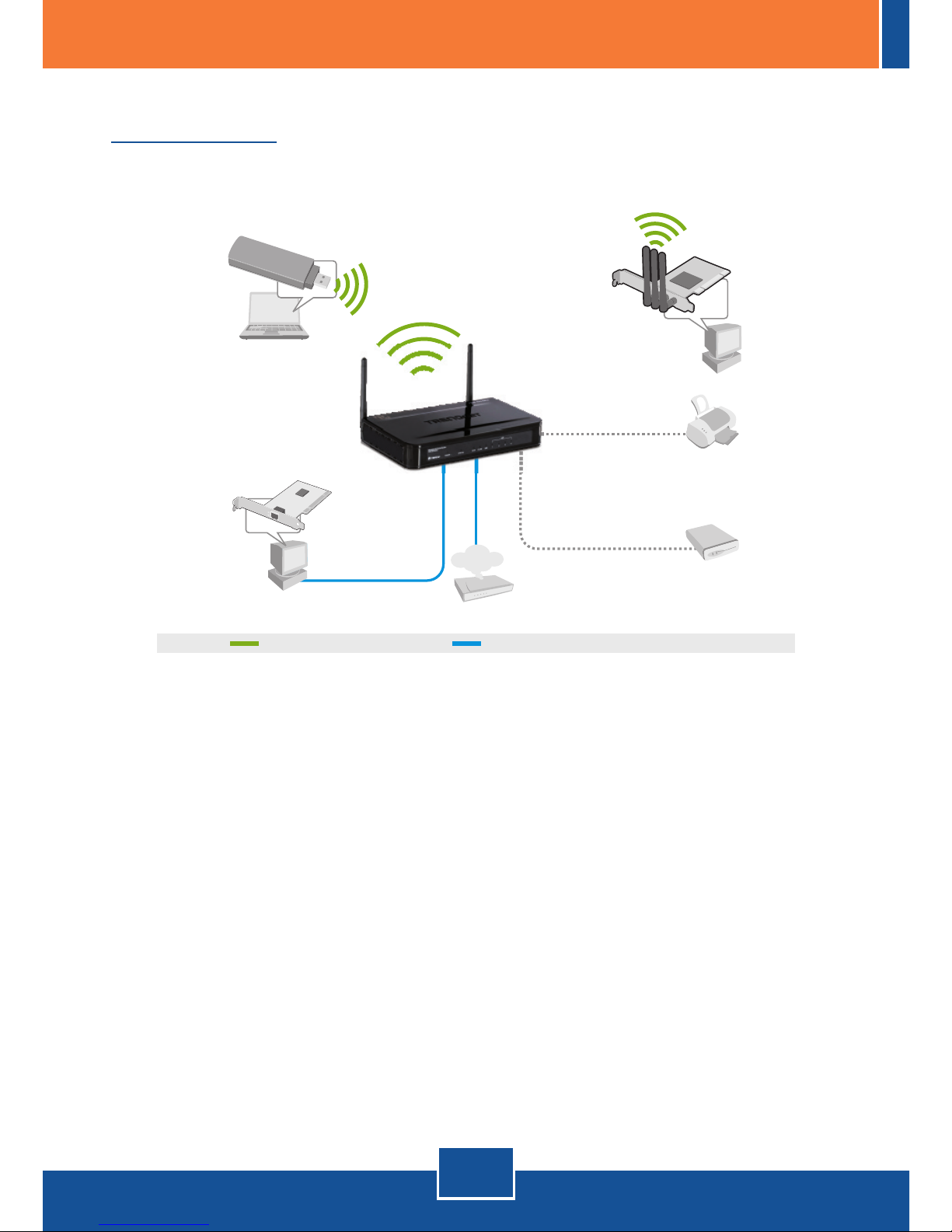

Application
300Mbps wireless multimedia sharing
300Mbps Wireless N
Gigabit Router with USB Port
(TEW-634GRU)
Notebook with 300Mbps
Wireless N USB Adapter
(TEW-624UB)
Cable/DSL
Modem
Workstation with Gigabit PCI Adapter
(TEG-PCITXR)
USB Hard Drive
Internet
USB Printer
OR
Workstation with 300Mbps
Wireless N PCI Adapter
(TEW-623PI)
Gigabit
English
3
2. Hardware Installation
Note: Gather all information related to your Internet Connection before you
start. If necessary, contact your Internet Service Provider (ISP).
2. If you plan on connecting a multi-
function printer to the USB port on
the TEW-634GRU, install the
printer drivers to your computer.
Then shutdown the printer and
disconnect the printer from your
computer.
Note: Please refer to your printer's
manual for printer installation
instructions.
Cable/DSL Modem
Internet

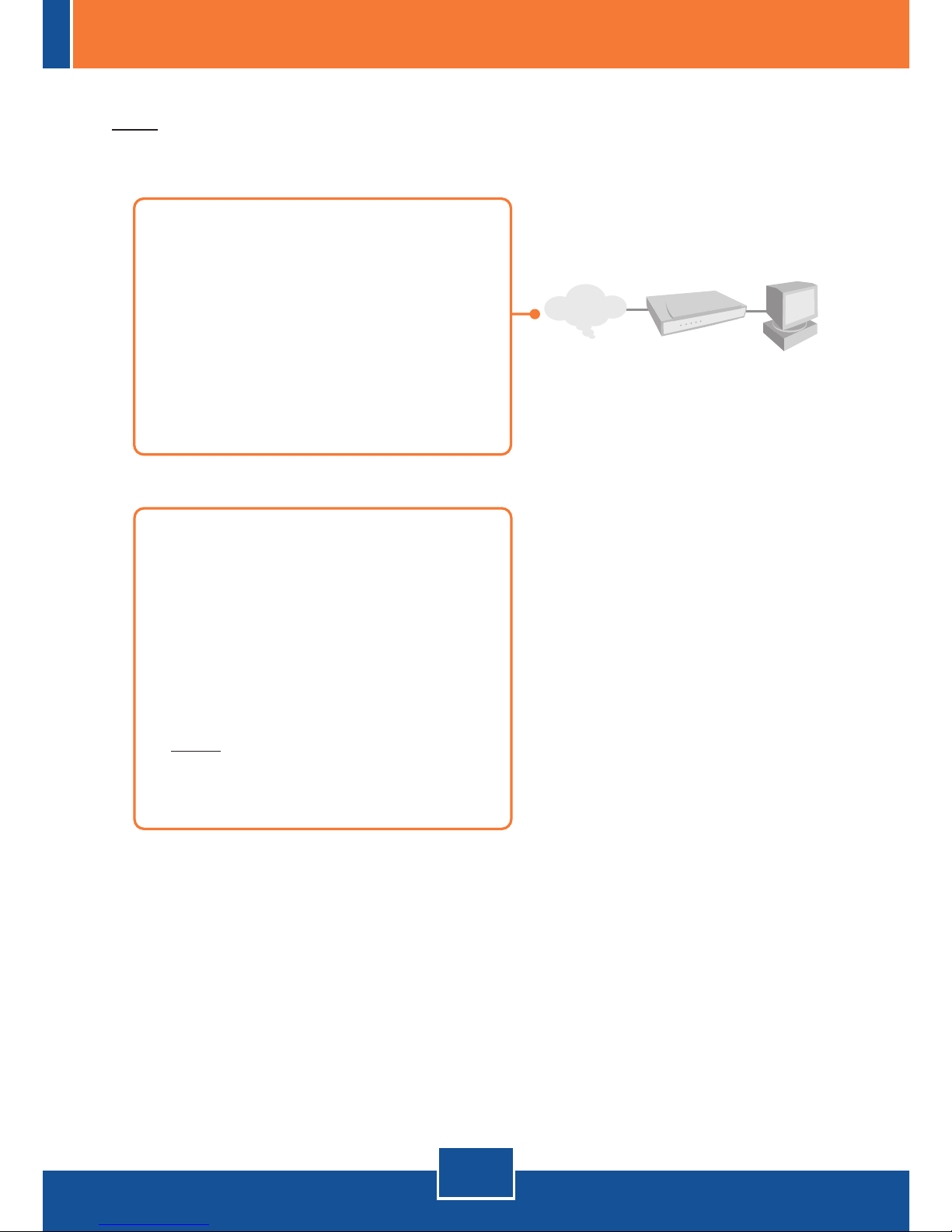

1. Verify that you have an Internet
connection when connecting your
computer directly to the Cable or
DSL modem. Open your browser
(e.g. Internet Explorer) and type in
a URL (e.g.
http://www.trendnet.com) in the
address bar.
English
4
7. Verify that the following panel lights
are on: Power, LAN, WAN, WLAN
and USB.
6. Connect the AC Power Adapter to
the wireless router and then to a
power outlet.
5. Connect the 2dBi detachable
antennas to the TEW-634GRU.

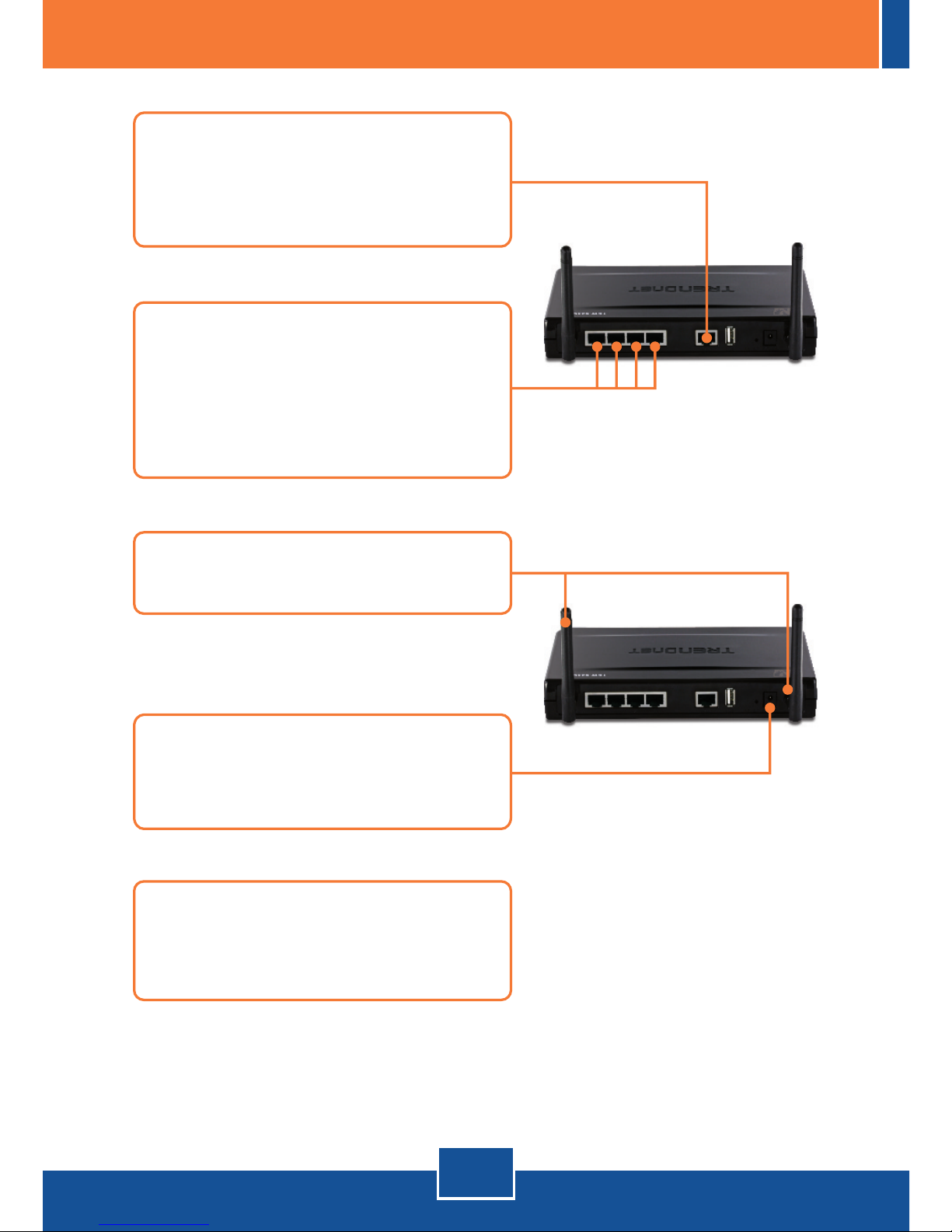

3. Connect one end of a RJ-45 cable
to the TEW-634GRU’s WAN port.
Connect the other end of the cable
to your modem.
4. Connect one end of a RJ-45 cable
to one of the TEW-634GRU's LAN
ports. Connect the other end of the
cable to the computer's Ethernet
port.
English
5
3. Configure the Wireless Router
Note: It is recommended that you configure the Wireless Router from a wired
computer.
2. Enter the User Name and
Password, and then click Log In.
User Name: admin
Password: admin.
3. The Wizard will automatically
appear. Click Wizard if the Wizard
does not automatically appear.
4. Click Next.

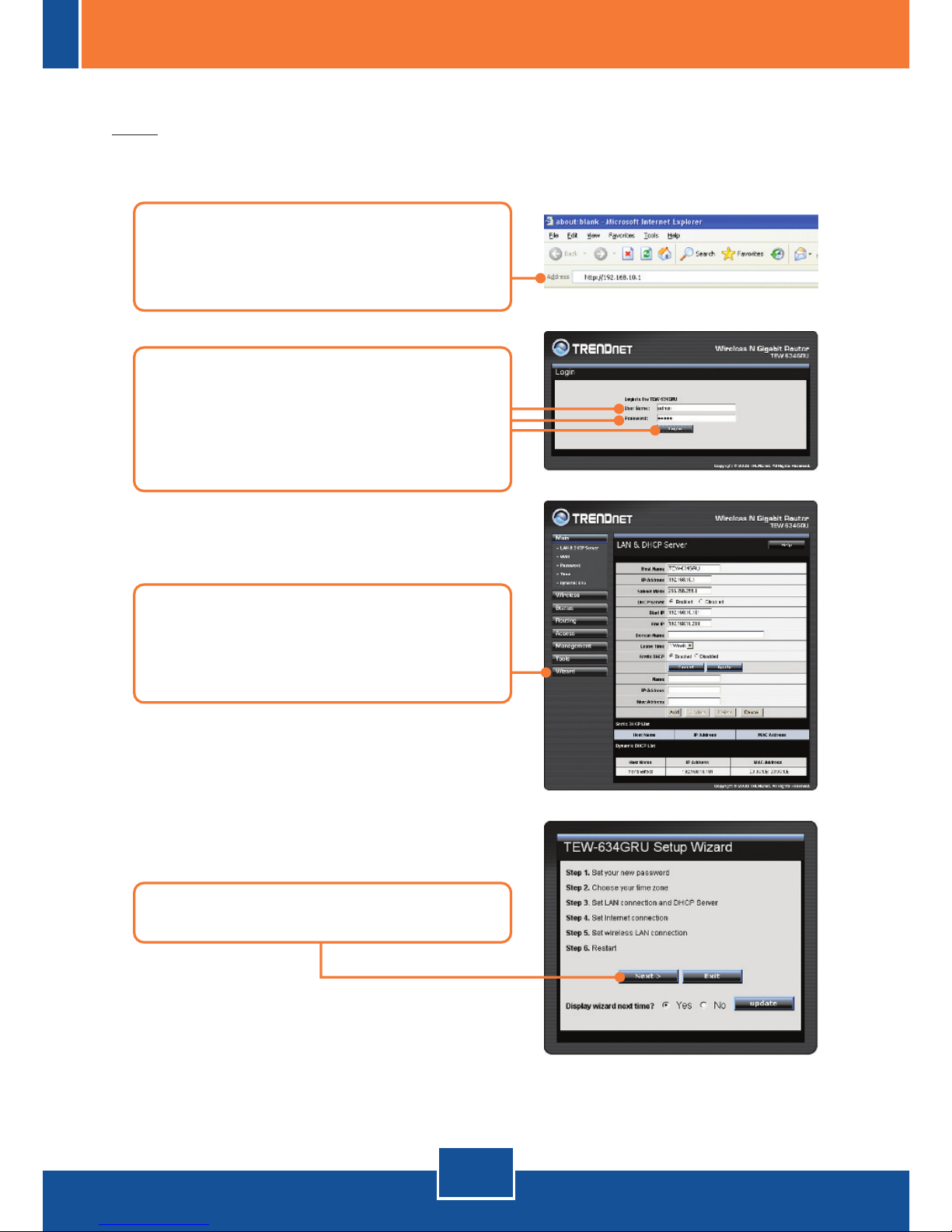

1. Open your web browser, type
http://192.168.10.1 in the
Address bar, and then press Enter.
English
6

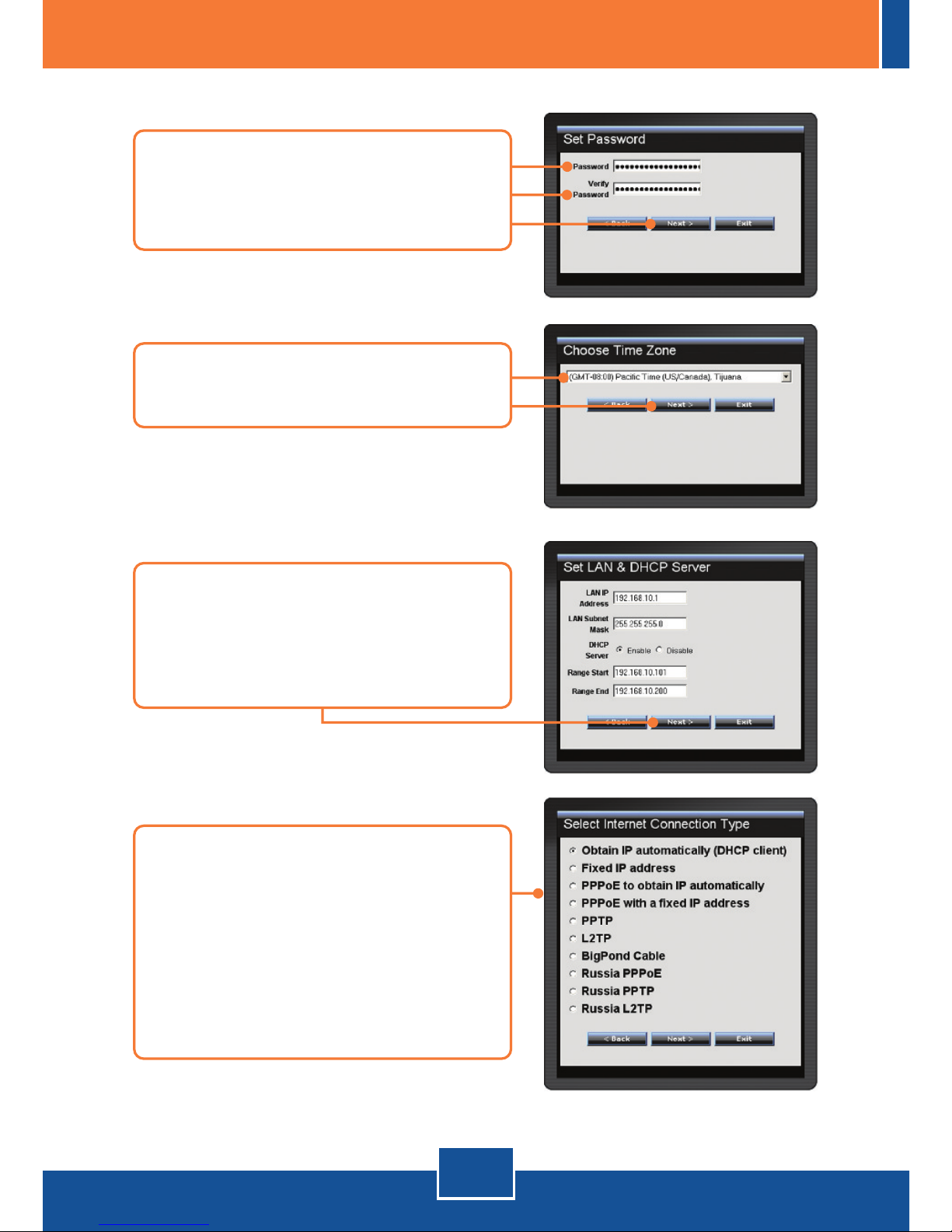

5. Enter a Password, verify the
Password and then click Next.
By default, the Password is admin.
6. Select your Time Zone and then
click Next.
7. Click Next. Note: Do not change
default settings unless it is
conflicting with your existing
hardware.
8. Configure the settings based on
information provided by your ISP.
Follow the wizard instructions to
complete the configuration.
Note: Each Internet Connection
type may have different options.
English
7
Note: It is recommended that you enable encryption on the wireless router.
Please refer to the User Guide on the User's Guide CD-ROM for information on
setting up encryption on the wireless router.
10. Click Restart.

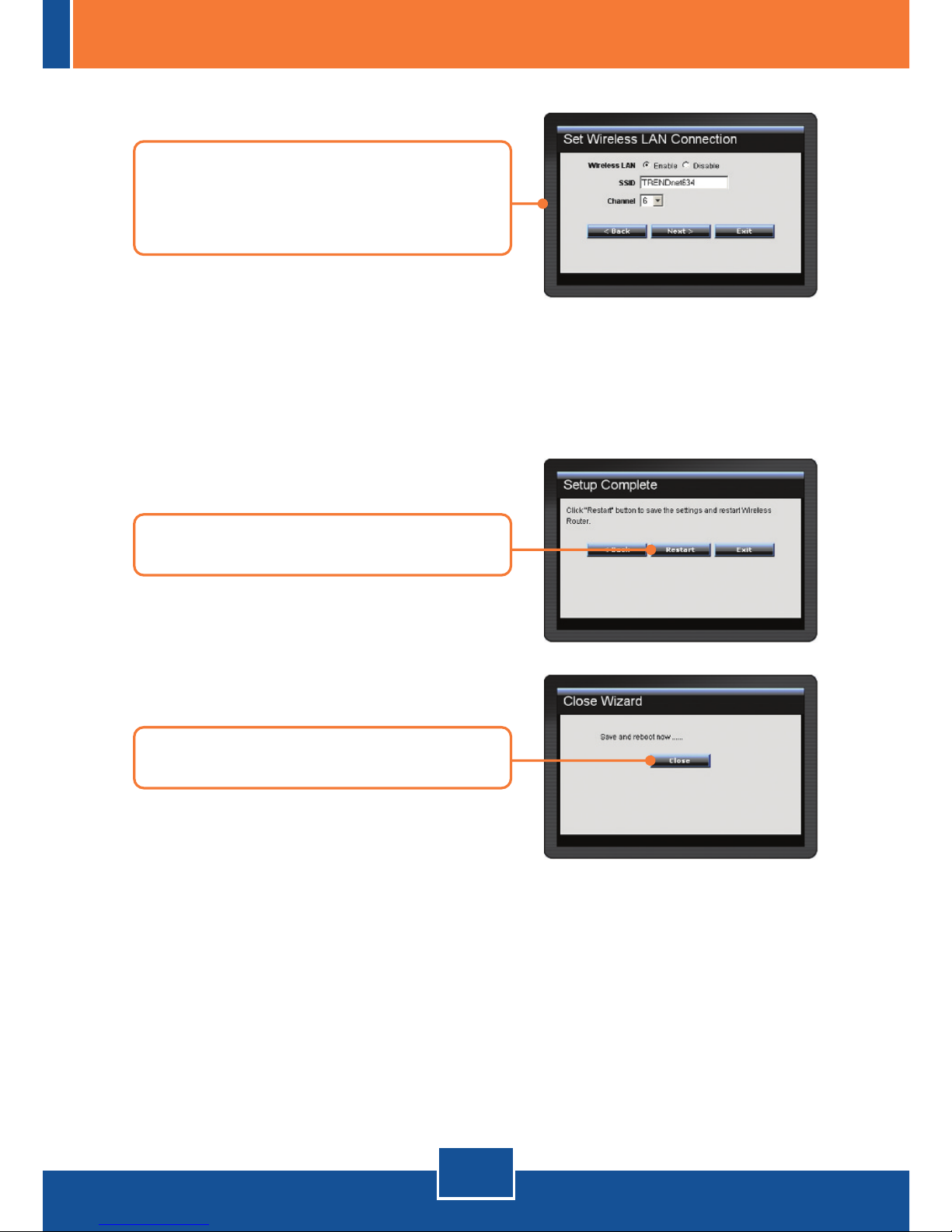

9. Enter the desired SSID. Then click
Next. By default, the SSID is
TRENDnet634.
11. Click Close.
English
8
Your configuration is now complete.
For detailed information regarding the TEW-634GRU's configuration and
advanced settings, please refer to the Troubleshooting section, User's Guide
CD-ROM, or TRENDnet's website at http://www.trendnet.com.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet

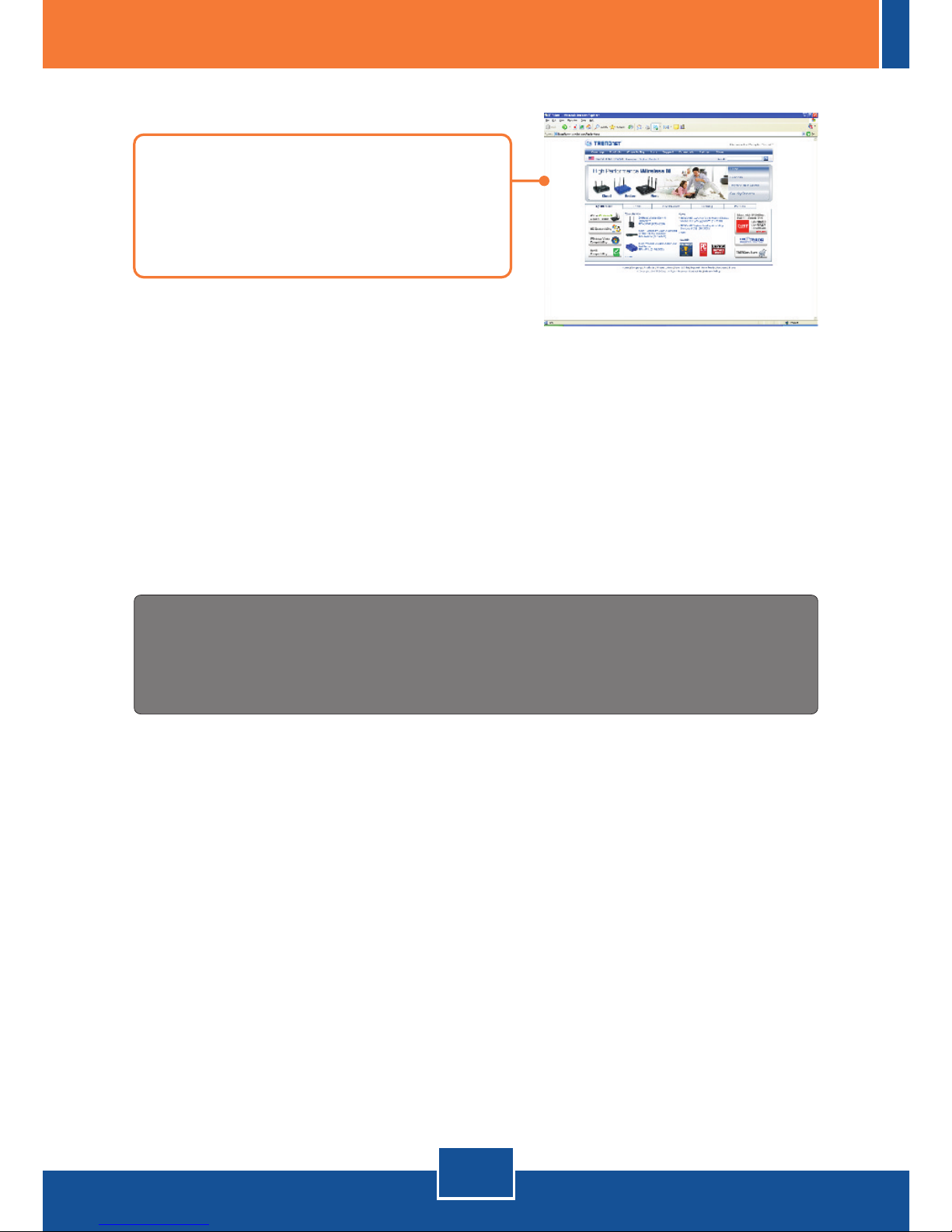

12. Open up your browser and enter
in a URL (e.g. www.trendnet.com)
to verify that you have Internet
connection.
