TRENDnet TW100-S4W1CA Manuale utente

TRENDnet

TRENDware, USA

What's Next in Networking

Version 06.18.05

TW100-S4W1CA

DSL/Cable Broadband Router with 4-Port Switch

Quick Installation Guide

DSL/Cablu Broadband Router cu 4-Port Switch

Ghid rapid de instalare

Table of Contents

English ...........................................................................................

Româna .........................................................................................

Troubleshooting................................................................................

1. Prepare for Installation ............................................................

2. Install Hardware ......................................................................

3. Configure the computer’s TCP/IP Settings .............................

4. Configure the Router ..............................................................

2. Instalarea Hardware ...............................................................

3. Setarea TCP/IP ......................................................................

4. Configurarea Routerului .........................................................

Pregatiti-va pentru instalare ....................................................

1. Prepare for Installation

Thank you for purchasing the TW100-S4W1CA. This router will allow you to

share your Internet connection with multiple users while its firewall protects

your network from hackers.

This guide will help you set up and configure your router. Following the

installation instructions should be quick and easy. If you run into problems,

please refer to the Troubleshooting section or the more detailed installation

procedures on the User's Guide. If you need further technical support, please

visit www.trendnet.com or call by phone.

Verify Equipment

Before installing the router you should have:

1. A Cable/DSL Modem with an Ethernet Port Set-up

2. A working Internet account

3. A Web Browser such as Internet Explorer (5.0 or higher) or Netscape

Navigator (4.7 or higher)

4. An RJ-45 Network Cable for each computer connected to the router.

5. TCP/IP protocol installed on computer(s)

6. Computers with "Client for Microsoft Networks" installed

Verify Package Contents

Please make sure you have everything in the box:

TW100-S4W1CA

Quick Installation Guide User Guide

AC Power Adapter RJ-45 Network Cable

English

English QIG

TRENDnet

TRENDware, USA

What's Next in Networking

TW100-S4W1CA

User's Guide

Cable/DSL

4-Port Broadband Router

TRENDnet

TRENDware, USA

What's Next in Networking

Version 06.18.05

TW100-S4W1CA

DSL/Cable Broadband Router with 4-Port Switch

Quick Installation Guide

DSL/Cablu Broadband Router cu 4-Port Switch

Ghid rapid de instalare

Collect Internet Service Provider (ISP) Information

During the installation of your router the Set-Up Wizard will ask you for specific

Internet Service Provider ISP information you should have been provided from

your ISP to set up your Cable or DSL connection. The information is different

based on your type of Internet Connection. Please verify your Internet

Connection type and ensure you have the following information:

Dynamic IP Cable Connection

Nothing required. IP address will automatically be assigned by the ISP.

Static or Fixed IP Cable Connection

Internet IP Address:____.____.____.____

Subnet Mask: ____. ____. ____. _____

Gateway IP Address:____.____.____._____

Primary DNS:____.____._____.______

Secondary DNS:_____._____._____.____

PPPoE DSL Connection

Password:________________

PPTP DSL Connection

Password:_________________

(eg. 215.24.24.129)

English

2. Install Hardware

TW100-S4W1CA

POWER

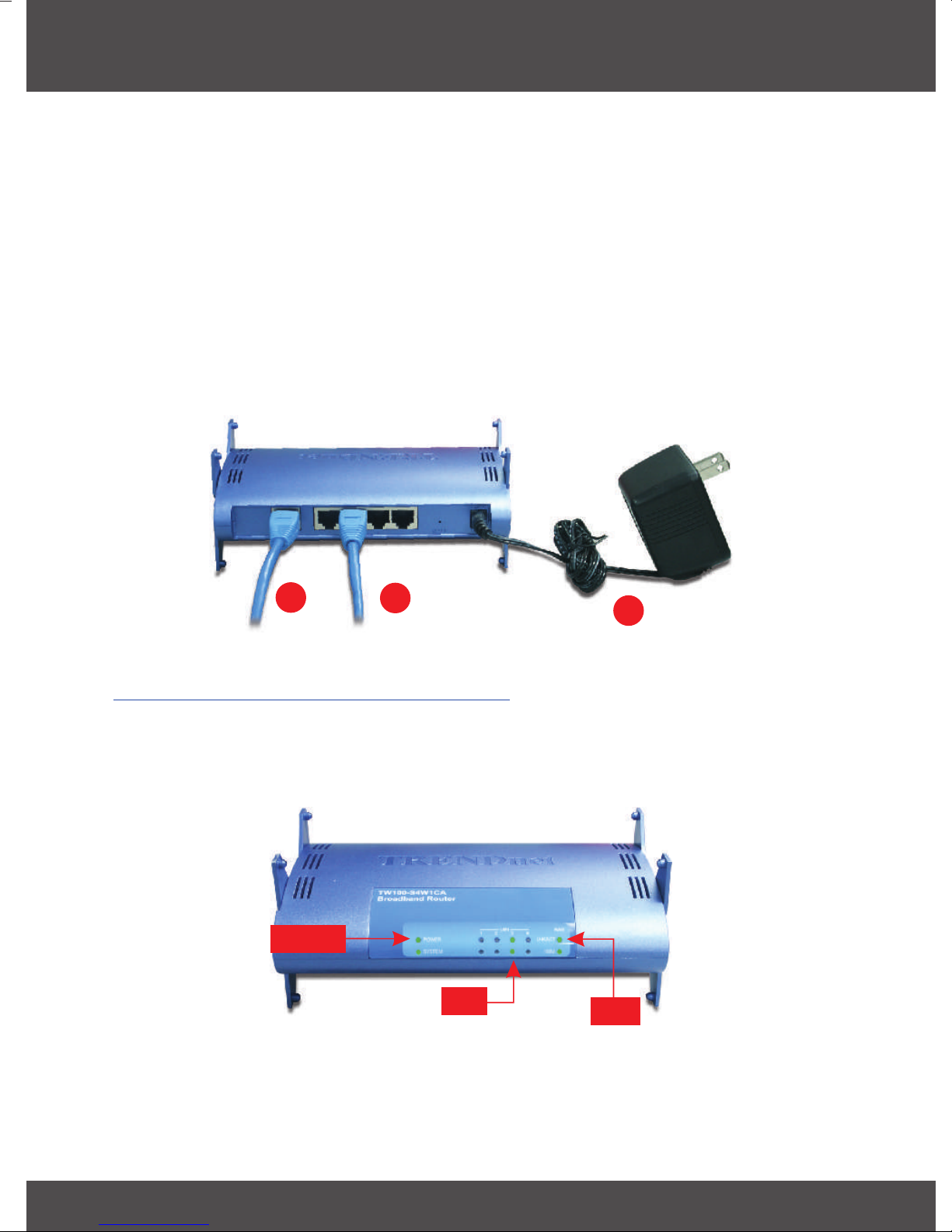

1. Turn off your Cable/DSL Modem, Router, and PC.

2. Connect one RJ-45 network cable from the Modem's Ethernet port to the

Router's WAN port.

3. Connect a different RJ-45 network cable from one of the Router's LAN ports

to your computer's network port.

4. Turn on your Cable/DSL modem.

5. Turn on your router.

6. Turn on your computer.

POWER

WAN

LAN

Verify Hardware Installation

Verify that the following router front panel lights are on: Power, WAN, and one

LAN port. (for each computer connected to your router)

English

3. Configure the computer's TCP/IP Settings

Windows 95/98/98SE/ME

This next section will ensure that your computer can communicate with your

router. To do this, you will need to configure the TCP/IP settings in your

Operating System (OS). Configuration instructions for Windows OS-based

computers are shown below. For computers running other operating systems,

see your system documentation for configuration instructions.

1. Find Start Button located on Desktop.

2. Click Start;Click Settings and then click on Control Panel.

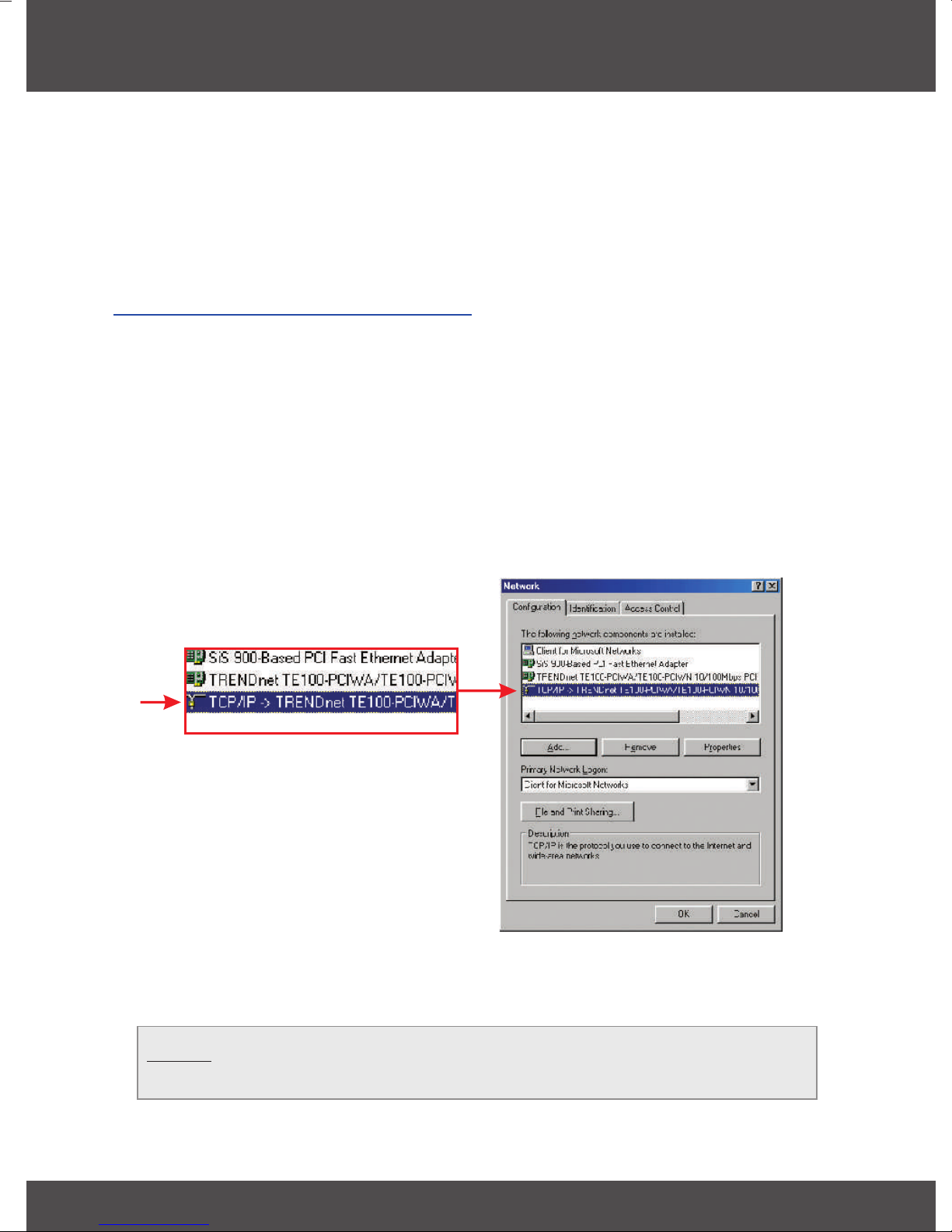

3. Double-Click the Network Icon and the Network Properties box will appear.

4. Under the General Configuration Tab, locate and select TCP/IP with the

corresponding network card (such as TRENDnet TE100-PCIWN

10/100Mbps Network Adapter), and then click on the Properties button and

the TCP/IP window will appear.

NOTE: If you have a Static IP address connection, write down the IP

addresses from the following sections before you change the settings.

English

6. Now go to the Gateway tab and make sure no Gateways are listed in the

Installed Gateway's section. If there is Gateway installed, click Remove to

remove it.

5. Under the IP Address Tab, select Obtain an IP address automatically.

English

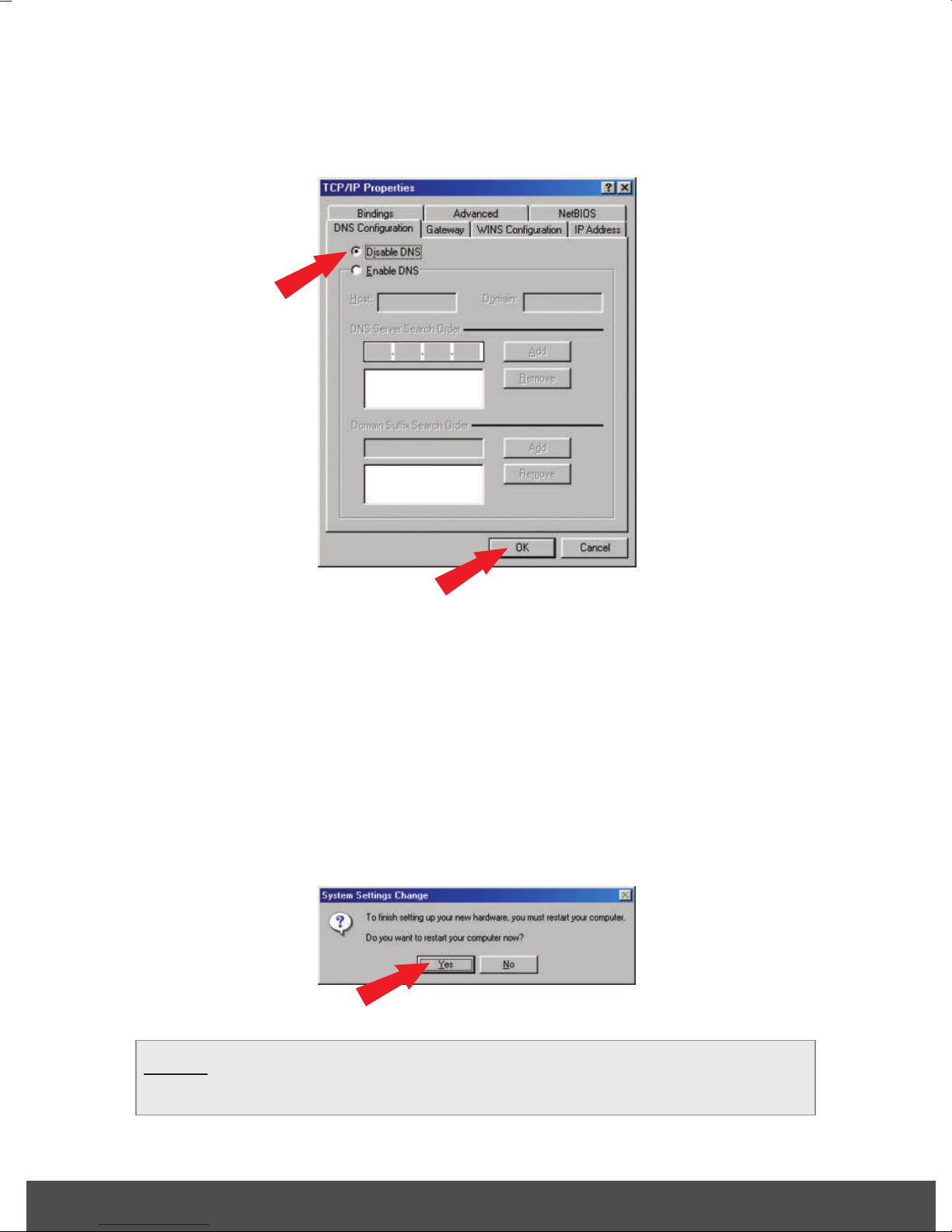

7. Go to the DNS Configuration tab and click Disable DNS. Then click OK.

8. Click OK on the TCP/IP Properties box.

9. Click OK on the Network Box.

10. At this point, the installation may require files from your Windows CD-ROM.

If this happens, insert Windows 98 CD-ROM into your CD-ROM drive and

select CD-ROM drive to load the files.

11. After the files load, the System Settings Change message appears, click

Yes to reboot your system. Your computer will now load your new TCP/IP

settings.

NOTE: If the message does not appear, you will need to manually

restart your computer.

English

13. The IP configuration box will appear. Choose your Network adapter from

the dropdown box (such as TRENDnet TE100-PCIWN 10/100Mbps network

adapter)and the current IP address information of your computer will show

in the box, including the following: IP Address, Subnet Mask and Default

Gateway.

14. If your IP Address shows the following information, your computer is now

successfully connected to the router:

IP Address: 192.168.1.x

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.1.1

NOTE: If the information shown is incorrect, please reboot and retry the

steps above.

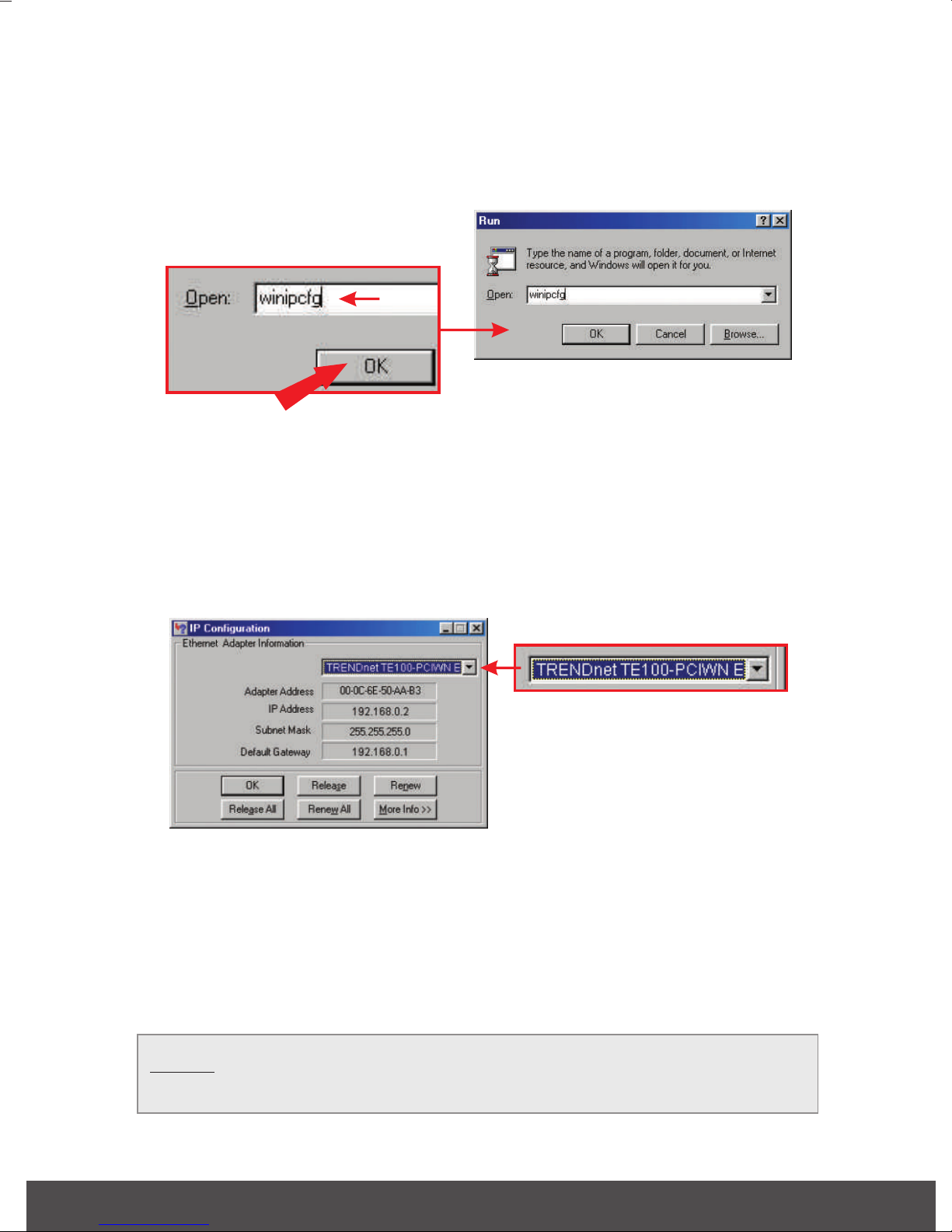

12. After your system reboots, click Start; click on Run. Then type winipcfg in

the field and click OK.

English

1. Click Start; click Settings, and click on Control Panel.

2. Double-click the Network Connections Icon.

3. Right-click on the Local Area Connection Icon, and then click on

Properties. The Local Area Connection Properties box will appear.

4. Under the "General Configuration" Tab, locate and select TCP/IP and then

click Properties. The Internet Protocol (TCP/IP) Properties box will appear.

NOTE: If you have a Static IP address connection, write down the IP

addresses from the following sections before you remove them from the

settings.

Windows 2000/XP

5. Click on Obtain an IP address automatically and Obtain DNS Server

address automatically.

English
