TRENDnet TW100-S4W1CA Manuale utente

Quick Installation Guide

TW100-S4W1CA

2.01

Table of Contents

Version 03.23.2011

English 1

Troubleshooting 7

1. Before You Start 1

2. Hardware Installation 3

3. Configure the Router 5

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

1. Before You Start

Package Contents

System Requirements

TW100-S4W1CA

CD-ROM (User's Guide)

Multi-Language Quick Installation Guide

Network Cable (1.5m/5ft)

Power Adapter (5V DC, 1A) or (7.5 DC, 1A)

A computer with a wired network adapter properly installed

Web Browser: Internet Explorer 6.0 or higher, Firefox 2.0 or higher, Chrome,

Safari, Opera

Broadband Internet

Installed Cable or DSL Modem

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

Collect Internet Service Provider (ISP) Information

Please verify your Internet broadband connection type with your ISP and ensure you have all the

information for one of the following connection types:

1. Dynamic IP (Cable Modem)

Host Name (Optional)

Mac Address (Clone) (Optional)

Alias IP Address (Optional, Advanced Setup)

Primary DNS Address: _____. _____._____._____

Secondary DNS Address: _____. _____._____._____

2. Static IP (Fixed IP xDSL)

IP Address assigned by your ISP: _____. _____._____._____ (e.g. 215.24.24.129)

Subnet Mask: _____. _____._____._____

ISP Gateway IP Address: _____. _____._____._____

Primary DNS Address: _____. _____._____._____

Secondary DNS Address: _____. _____._____._____

3. PPPoE (Dial-Up xDSL)

User Name: _________

Password: ________________

Verify Password: ________________

Service Name (Optional): ________________

IP Address (Optional): ____. _____._____._____ (e.g. 215.24.24.129)

MTU (546-1492): _________ (default setting: 1492)

Maximum Idle Time (1-60 minutes): _________ (default setting: 5)

Connect mode select: Always on (default setting), Manual or Connect-on-demand

Primary DNS Address: _____. _____._____._____

Secondary DNS Address: _____. _____._____._____

4. PPTP

PPTP Account: _________

PPTP Password: _________

Verify Password: ________________

Host Name: _________

Service IP Address: ____. _____._____._____ (e.g. 215.24.24.129)

My IP Address: ____. _____._____._____ (e.g. 215.24.24.129)

My Subnet Mask: ____. _____._____._____

My Gateway (Advanced Setup): ____. _____._____._____

MPPE (Advanced Setup) (Enable / Disable)

Connection ID (Optional): ________________

Maximum Idle Time (1-60 minutes): _________ (default setting: 5)

Connect mode select: Always on (default setting), Manual or Connect-on-demand

Primary DNS Address: _____. _____._____._____

Secondary DNS Address: _____. _____._____._____

5. BigPond Cable (Advanced Setup)

User Name: _________

Password: ________________

Verify Password: ________________

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

2. Hardware Installation

Note: Gather all information related to your Internet Connection before you start. If necessary,

contact your Internet Service Provider (ISP).

Cable/DSL Modem

Internet

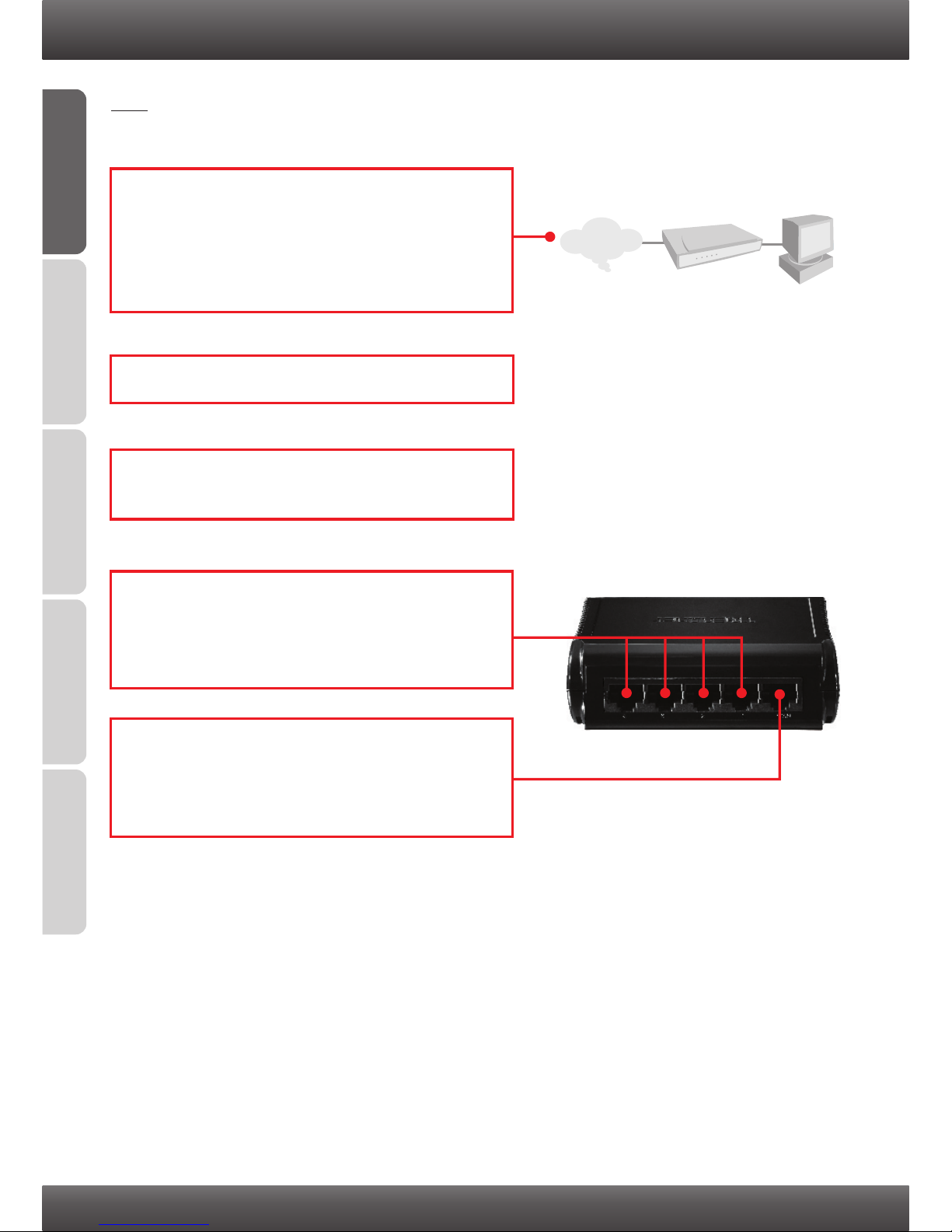

1. Verify that you have an Internet connection

when connecting your computer directly to the

Cable or DSL modem. Open your browser (e.g.

Internet Explorer) and type in a URL (e.g.

http://www.trendnet.com) in the address bar.

2. Power off your cable or DSL modem.

3. Disconnect the network cable from your Cable

or DSL modem and your computer.

4. Connect one end of the provided network cable

to one of the TW100-S4W1CA's LAN (1~4)

ports. Connect the other end of the cable to the

computer's network port.

5. Connect one end of another network cable to

the TW100-S4W1CA's WAN port. Connect the

other end of the cable to your modem's network

port.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

7. Power on your cable or DSL modem. Wait until

the LEDs indicate that the modem is fully

booted up. If necessary consult with the

modem user's guide for more information.

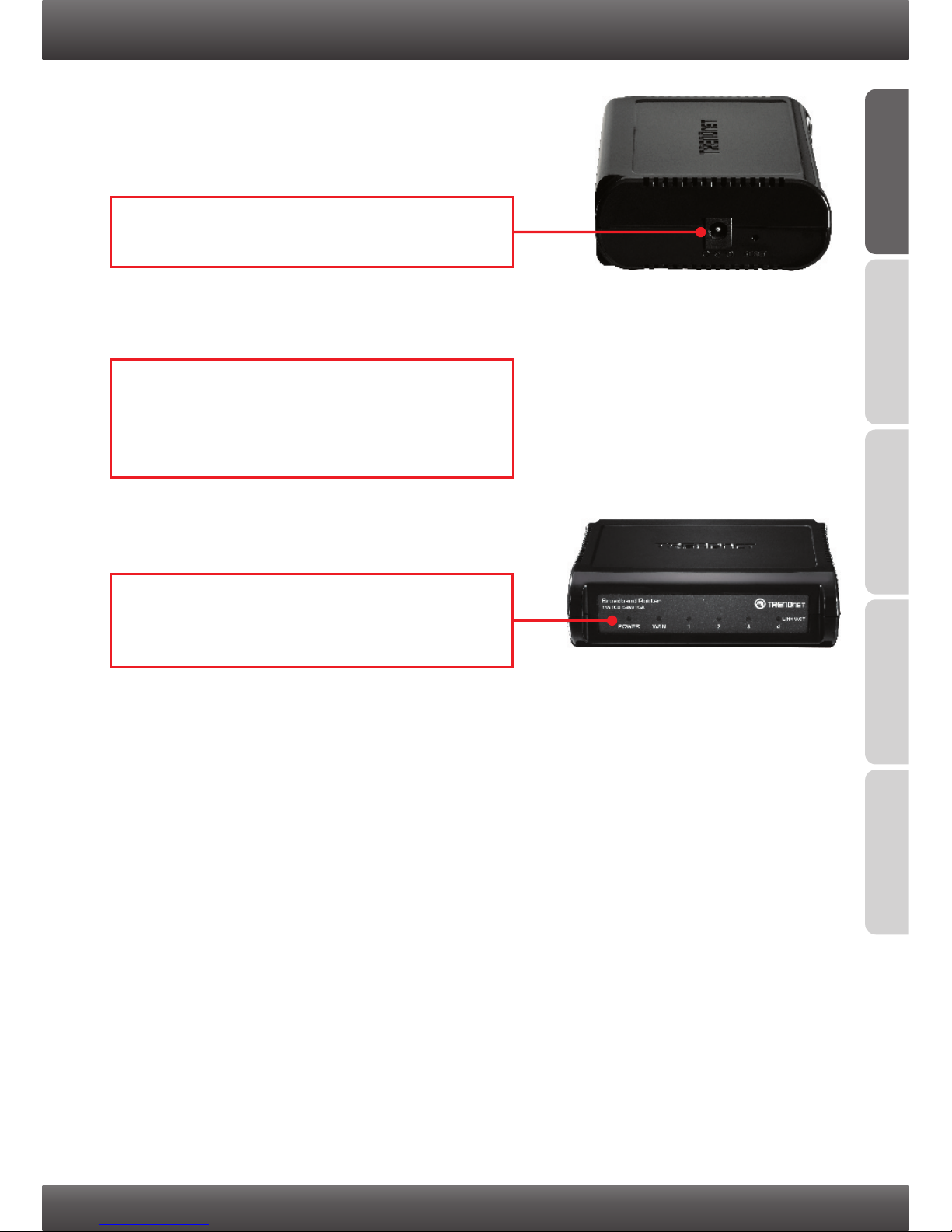

8. Verify that the following panel lights are on:

Power (Green), WAN (Green) and LAN (1 of

the 4)(Blinking Green).

6. Connect the Power Adapter to the router and

then to a power outlet.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

3. Configure the Router

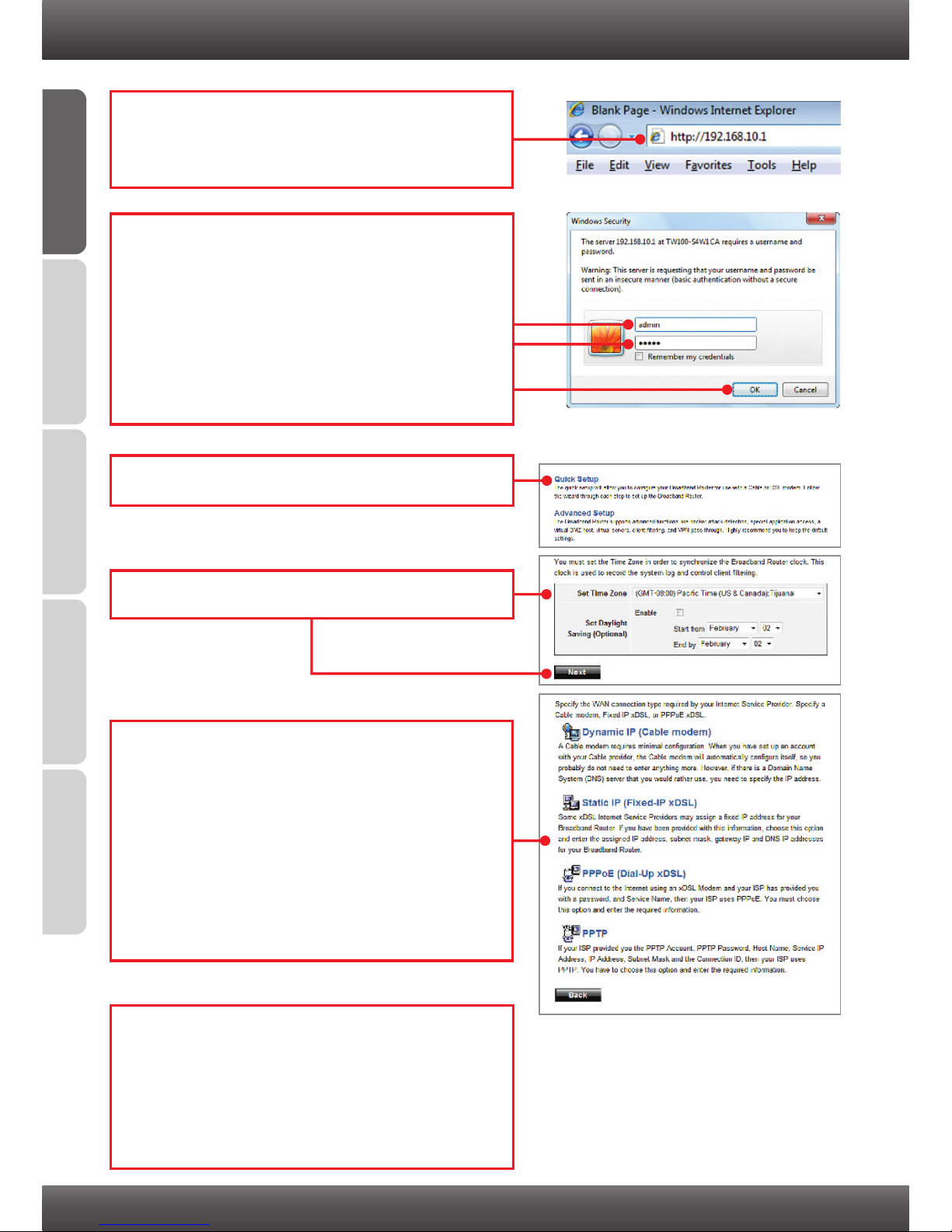

1. Open your web browser, type

http://192.168.10.1 in the Address bar, and

then press Enter.

2. Enter the User Name and Password and then

click OK. By default:

User Name: admin

Password: admin

Note: User name and Password are case

sensitive.

3. Click Quick Setup.

6. Configure the settings based on information

provided by your ISP. Follow the wizard

instructions to complete the configuration.

Note: Each Internet Connection type may have

different options.

4. Select your time zone and then click Next.

5. Click on the proper Internet Connection type.

Note:

1.The most common connection types are

Dynamic IP (Cable Modem) and PPPoE

(Dial-Up xDSL).

2.You may not be able to configure some

Internet Connection types or settings when

you select Quick Setup. In this case, please

click Advanced Setup " WAN.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

РУССКИЙ

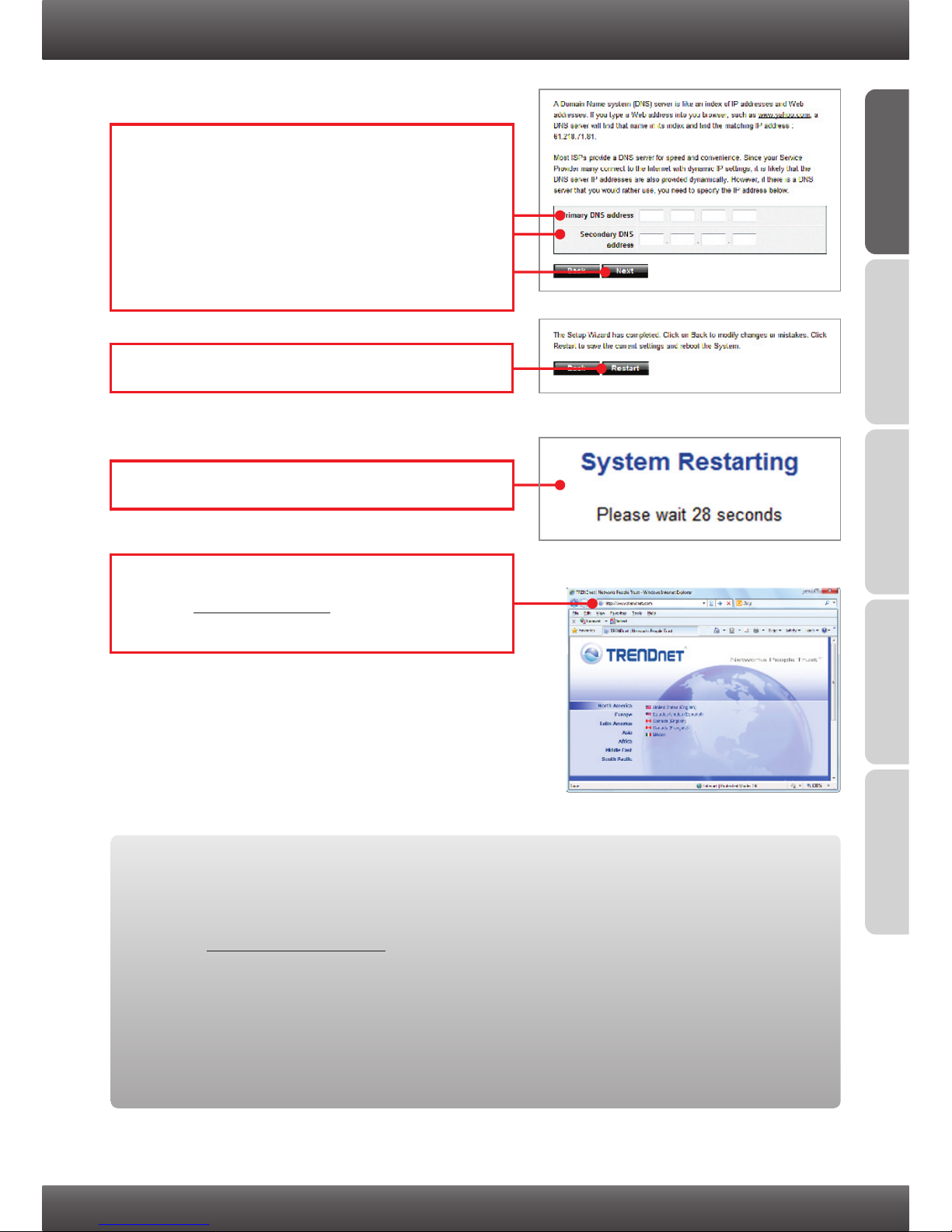

7. Enter the Primary DNS address and Secondary

DNS address (optional). Primary and

Secondary DNS address may be provided by

your Internet Service Provider (ISP). If your ISP

does not provide you with a Primary and

Secondary DNS address, please leave these

fields blank. Then click Next.

Your configuration is now complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TW100-S4W1CA’s configuration and advanced

settings, please refer to User's Guide included on the Utility CD-ROM, or TRENDnet's

website at http://www.trendnet.com.

8. Click Restart.

9. Wait 30 seconds while the router reboots.

10. Open up your browser and enter in a URL

(e.g. www.trendnet.com) to verify that you

have Internet connection.

1. I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message

says “The page cannot be displayed.” How can I get into the TW100-S4W1CA's web

configuration page?

1. Check your hardware settings again by following the instructions in Section 2.

2. Make sure the LAN light is lit.

3. Make sure your Network adapter’s TCP/IP settings are set to Obtain an IP address

automatically (see the steps below).

Troubleshooting

Windows 7

Windows Vista

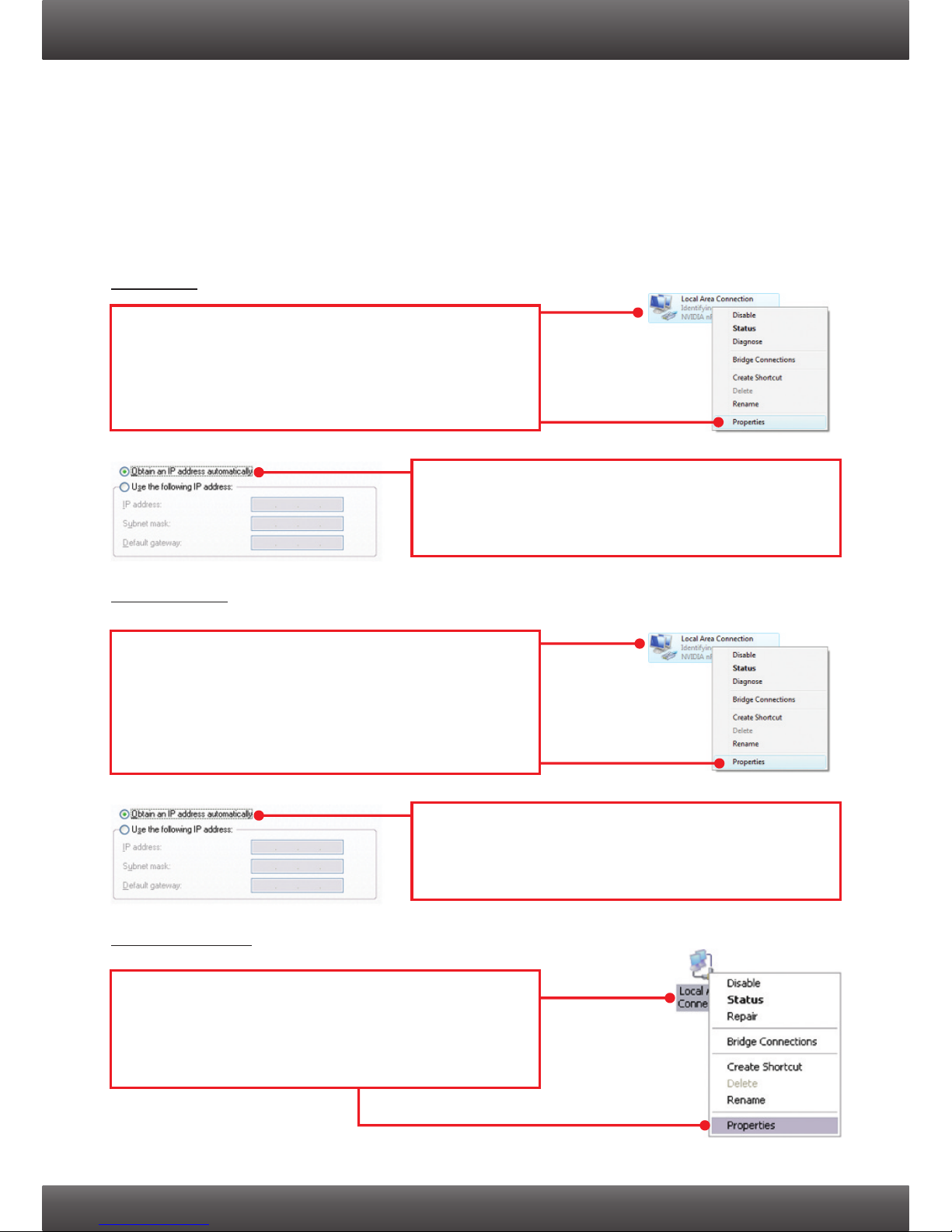

1. Go into the Control Panel, click Network and

Sharing Center, click Change Adapter Settings

and then right-click the Local Area Connection

icon and then click Properties.

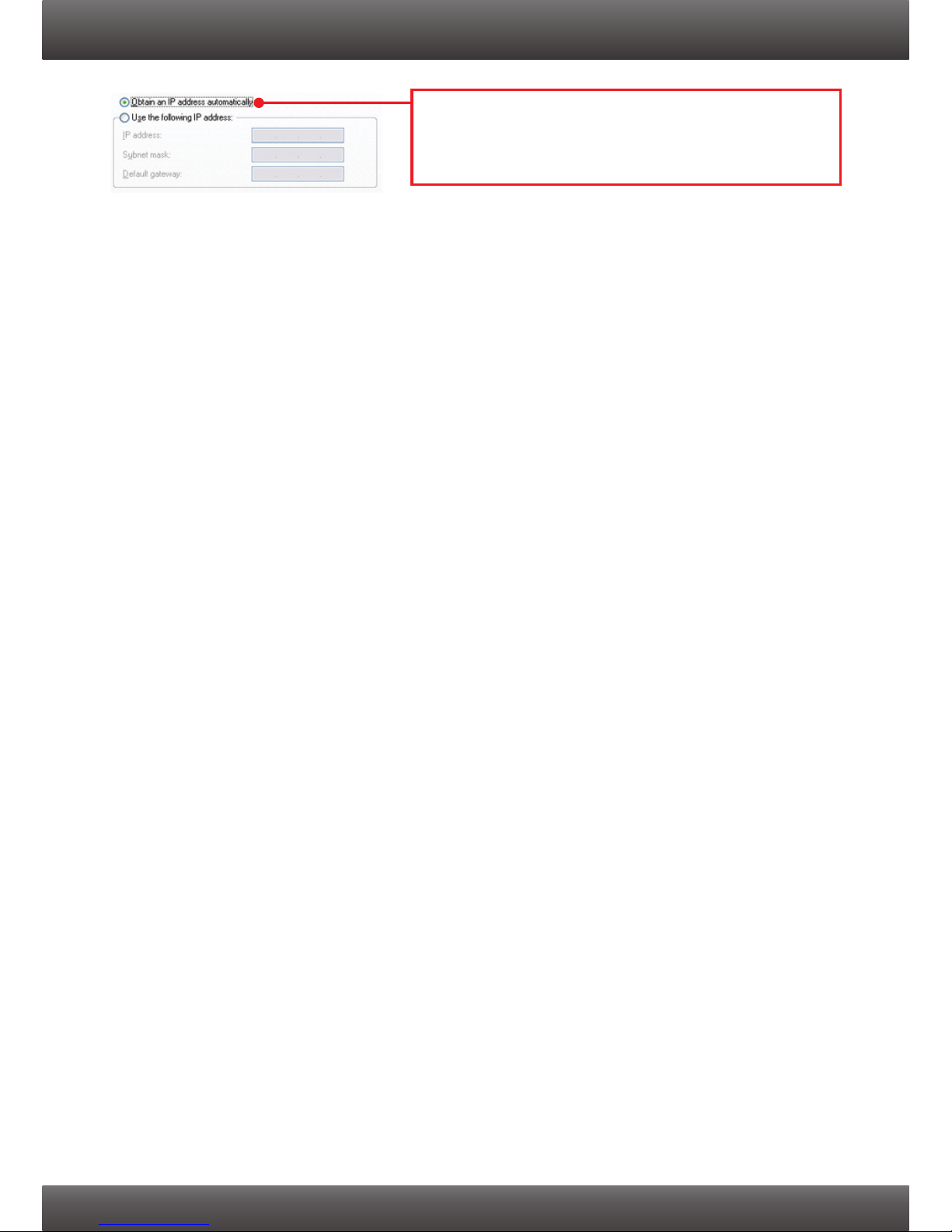

2. Click Internet Protocol Version 4(TCP/IPv4) and

then click Properties. Then click on Obtain an IP

address automatically.

1. Go into the Control Panel, click Network and

Internet, click Network and Sharing Center, click

Manage Network Connections and then right-

click the Local Area Connection icon and then

click Properties.

2. Click Internet Protocol Version 4(TCP/IPv4) and

then click Properties. Then click on Obtain an IP

address automatically.

Windows XP/2000

1. Go into the Control Panel, double-click the

Network Connections icon and then right-click the

Local Area Connection icon and then click

Properties.

2. I am not sure what type of Internet Account Type I have for my Cable/DSL connection.

How do I find out?

Contact your Internet Service Provider's (ISP) support service for the correct information.

3. I went through the Quick Setup, but I can not get onto the Internet. What should I do?

1. Verify that you can get onto the Internet with a direct connection into your modem.

2. Contact your ISP and verify all the information that you have in regards to your Internet

connection settings is correct.

3. Power cycle your modem and router. Unplug the power to the modem and router. Wait

30 seconds, and then reconnect the power to the modem. Wait for the modem to fully

boot up, and then reconnect the power to the router.

4. I forgot my login password. What should I do?

Follow the instructions below:

1. Take a pin or paperclip and press the reset button on the side of the router.

2. Wait 15 seconds then let go.

This will return all settings to factory default. The default IP address of the router is

192.168.10.1. The default user name is “admin. The default password is “admin”.

5. My cable ISP requires me to clone the modem computer’s MAC address. What should I

do?

MAC address is the network device's hardware ID and consist of 12 hexadecimal characters

(e.g. 00:12:34:ab:cd:ef). Some ISPs register the subscriber's computer network adapter or

the modem's MAC address. Follow the instructions below to clone your modem or network

adapter's MAC address:

1. With the computer connected to the TW100-S4W1CA's network port, open the web

browser and enter http://192.168.10.1 into the address bar.

2. Enter the user name and password (default is admin for both user name and password)

3. Click on Advanced Setup.

4. Click on WAN on the left side of the screen.

5. Click on Dynamic IP on the left side of the screen.

6. To clone your computer's MAC address, click on “Clone MAC address”. To clone your

modem's MAC address, find the modem's MAC address and manually enter it here.

7. Click on Apply to save the settings.

If you still encounter problems or have any questions regarding the TW100-S4W1CA, please

contact TRENDnet's Technical Support Department.

2. Click Internet Protocol (TCP/IP) and then click

Properties. Then click on Obtain an IP address

automatically.
