TRENDware TEW-431BRP Manuale utente

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 1 of 1

EMC Test Report: CE03111004-A

CE EMC TEST REPORT

according to

EN 301 489-1 V1.4.1 (2002-08) and

EN 301 489-17 V1.2.1 (2002-08)

Applicant TRENDware International, Inc.

Address 3135 Kashiwa Street, Torrance, CA90505 U.S.A.

Equipment Cable/DSL 802.11g 54Mbps Wireless Router

Model No. TEW-431BRP

Trade Name TRENDware

Power Supply Type AC Adaptor: Model: MW48-1201000U,

I/P: 230Vac/50Hz; O/P: 12Vdc, 800mA

The test result refers exclusively to the test presented test model / sample.

Without written approval of Exclusive Certification Corp. the test report shall not be reproduced

except in full.

This test report is only applicable to European Community.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 2 of 2

EMC Test Report: CE03111004-A

Contents

CERTIFICATE OF COMPLIANCE .......................................................................................................................4

1. Definition......................................................................................................................................................5

2. Test Distance ...............................................................................................................................................6

2.1. Summary of Test Results ...........................................................................................................6

3. Test of Conducted Powerline.......................................................................................................................7

3.1. Test Procedures .........................................................................................................................7

3.2. Typical Test Setup Layout of Conducted Powerline...................................................................8

3.3. Conducted Emission Requirement ............................................................................................8

4. Test of Radiated Emission...........................................................................................................................9

4.1. Test Procedures .........................................................................................................................9

4.2. Typical Test Setup Layout of Radiated Emission.....................................................................10

4.3. Radiated Emission Requirement .............................................................................................10

5. Harmonics Test..........................................................................................................................................11

5.1. STANDARD..............................................................................................................................11

5.2. Test Procedure .........................................................................................................................11

6. Voltage Fluctuations Test...........................................................................................................................12

6.1. STANDARD..............................................................................................................................12

6.2. Test Procedure .........................................................................................................................12

7. Test setup (ESD) .......................................................................................................................................13

7.1. Test Setup for Tests Performed in Laboratory..........................................................................13

7.2. Test Procedure .........................................................................................................................14

8. Test Procedure (RS) ..................................................................................................................................15

9. Test on Power Line (EFT)..........................................................................................................................16

9.1. Test on Communication Lines..................................................................................................16

9.2. Test Procedure .........................................................................................................................16

10. Test Procedure (Surge).....................................................................................................................17

11. Test Procedure (CS) .........................................................................................................................18

12. Testing Requirement and Procedure (DIP).......................................................................................19

12.1. Test Conditions.........................................................................................................................19

12.2. Operating Condition .................................................................................................................19

13. Notice for Class A Product ................................................................................................................20

14. Declaration of Conformity and the CE Mark.....................................................................................20

15. Feature of Equipment under Test .....................................................................................................21

15.1. History of this test report ..........................................................................................................21

16. Test Configuration of Equipment under Test.....................................................................................22

16.1. Test Mode.................................................................................................................................22

16.2. Description of Test System.......................................................................................................22

17. Test Software ....................................................................................................................................23

18. General Information of Test ..............................................................................................................24

18.1. Description of Major Test Instruments......................................................................................25

19. Test Result of AC Powerline Conducted Emission ...........................................................................26

19.1. Test Mode 1 (CH 01b @ 11Mbps Bit-Rate)..............................................................................26

19.2. Photographs of Conducted Powerline Test Configuration .......................................................44

20. Test Result of Radiated Emission.....................................................................................................45

20.1. Test Mode 1 (TX / RX @ 11Mbps Bit – Rate) ..........................................................................45

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 3 of 3

EMC Test Report: CE03111004-A

20.2. Photographs of Radiated Emission Test Configuration ...........................................................47

21. Harmonics Test .................................................................................................................................48

22. Voltage Fluctuations Test..................................................................................................................49

22.1. TEST EQUIPMENT SETTINGS...............................................................................................49

22.2. Photographs of Harmonics test, Voltage Fluctuation and Flicker test .....................................50

23. Electrostatic Discharge Immunity Test (ESD) ...................................................................................51

23.1. Test Severity Levels .................................................................................................................51

23.2. Test Result of Air Discharge/ Contact Discharge .....................................................................52

23.3. Photographs of Electrostatic Discharge Immunity Test ...........................................................53

24. Radio Frequency Electromagnetic Field Immunity Test (RS)...........................................................55

24.1. Test Severity Levels .................................................................................................................55

24.2. Photographs of Radio Frequency Electromagnetic Field Immunity Test .................................56

25. Electrical Fast Transient/Burst Immunity Test (EFT/BURST) ...........................................................57

25.1. Test Severity Levels .................................................................................................................57

25.2. Photographs of Electrical Fast Transient/BURST Immunity Test.............................................58

26. Surge Immunity Test .........................................................................................................................59

26.1. TEST LEVEL............................................................................................................................59

26.2. Photographs of Surge Immunity Test.......................................................................................60

27. Conducted Disturbances Induced by Radio-Frequency Field Immunity Test (CS) ................61

27.1. TEST LEVEL............................................................................................................................61

27.2. OPERATING CONDITION .......................................................................................................61

27.3. Photographs of CS Tests .........................................................................................................62

28. Voltage Dips and Voltage Interruptions Immunity Tests....................................................................63

28.1. TEST LEVEL............................................................................................................................63

28.2. Photographs of Voltage Dips and Voltage Interruptions Immunity Tests .................................64

29. List of Measuring Equipment Used...................................................................................................65

Appendix A. Photographs of EUT……………………………………..…..………… ……….….……..A1 ~ A4

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 4 of 4

EMC Test Report: CE03111004-A

CERTIFICATE OF COMPLIANCE

according to

EN 301 489-1 V1.4.1 (2002-08) and

EN 301 489-17 V1.2.1 (2002-08)

Applicant TRENDware International, Inc.

Address 3135 Kashiwa Street, Torrance, CA90505 U.S.A.

Equipment Cable/DSL 802.11g 54Mbps Wireless Router

Model No. TEW-431BRP

I HEREBY CERTIFY THAT :

The measurements shown in this test report were made in accordance with the procedures

given in EUROPEAN COUNCIL DIRECTIVE 99/5/EC. The equipment was passed the

test performed according to EN 301 489-1 V1.4.1 (2002-08) and EN 301 489-17 V1.2.1

(2002-08). The test was carried out on Nov. 28, 2003 at Electronics Testing Center, Taiwan.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 5 of 5

EMC Test Report: CE03111004-A

1. Definition

Unintentional radiator:

A device that intentionally generates and radio frequency energy for use within the device, or that sends

radio frequency signals by conduction to associated equipment via connecting wiring, but which is not

intended to emit RF energy by radiation or induction.

Class A Digital Device:

A digital device Which is marketed for use in commercial or business environment; exclusive of a device

which is market for use by the general public, or which is intended to be used in the home.

Class B Digital Device:

A digital device which is marketed for use in a residential environment notwithstanding use in a

commercial, business of industrial environment. Example of such devices that are marketed for the

general public.

Note:

A manufacturer may also qualify a device intended to be marketed in a commercial, business, or

industrial environment as a Class B digital device, and in fact is encouraged to do so, In the event that a

particular type of device has been found to repeatedly cause harmful interference to radio

communications, the Commission may classify such a digital device as a Class B Digital Device,

Regardless of its intended use.

Intentional radiator:

A device that intentionally generates and emits radio frequency energy by radiation or induction.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 6 of 6

EMC Test Report: CE03111004-A

2. Test Distance

a. The test distance of radiated emission test from antenna to EUT is 10 M.

b. The test distance of radio frequency electromagnetic field immunity test from antenna to EUT is 3 M.

2.1. Summary of Test Results

19.1.1Emission Tests

Measurement Reference Clause(s) Test Reference standard

Radiated emission 8.2 PASSED EN 55022/A1:2000 class B

Conducted emission 8.3/8.4 PASSED EN 55022/A1:2000 class B

Harmonic current

emissions 8.5 N/A EN 61000-3-2:2000

Voltage fluctuations

and flicker 8.6 PASSED EN 61000-3-3:1995

19.1.2Immunity Tests

Measurement Reference Clause(s) Test Reference standard

Electrostatic

discharge 9.3 PASSED EN 61000-4-2:1995/A1:1998

RF electro-magnetic

Field (80-1000 MHz,

1400-2000 MHz.)

9.2 PASSED EN 61000-4-3:1996/A1:1998

Fast transients

common mode 9.4 PASSED EN 61000-4-4:1995

Surge 9.8

PASSED EN 61000-4-5:1995

Radio frequency,

common mode 9.5 PASSED EN 61000-4-6:1996

Voltage dips and

interrupts 9.7 PASSED EN 61000-4-11:1994

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 7 of 7

EMC Test Report: CE03111004-A

3. Test of Conducted Powerline

Conducted Emissions were measured from 150 kHz to 30 MHz with a bandwidth of 9 kHz and return leads

of the EUT according to the methods defined in European Standard EN 301 489-17. The EUT was placed

on a nonmetallic stand in a shielded room 0.8 meters above the ground plane as shown in section 2.2.

The interface cables and equipment positioning were varied within limits of reasonable applications to

determine the position producing maximum conducted emissions.

3.1. Test Procedures

a. The EUT was placed on a desk 0.8 meters height from the metal ground plane and 0.4 meter from

the conducting wall of the shielding room and it was kept at least 0.8 meters from any other

grounded conducting surface.

b. Connect EUT to the power mains through a line impedance stabilization network (LISN).

c. All the support units are connect to the other LISN.

d. The LISN provides 50 ohm coupling impedance for the measuring instrument.

e. The CISPR states that a 50 ohm , 50 microhenry LISN should be used.

f. Both sides of AC line were checked for maximum conducted interference.

g. The frequency range from 150 kHz to 30 MHz was searched

h. Set the test-receiver system to Peak Detect Function and Specified Bandwidth with Maximum Hold

Mode.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 8 of 8

EMC Test Report: CE03111004-A

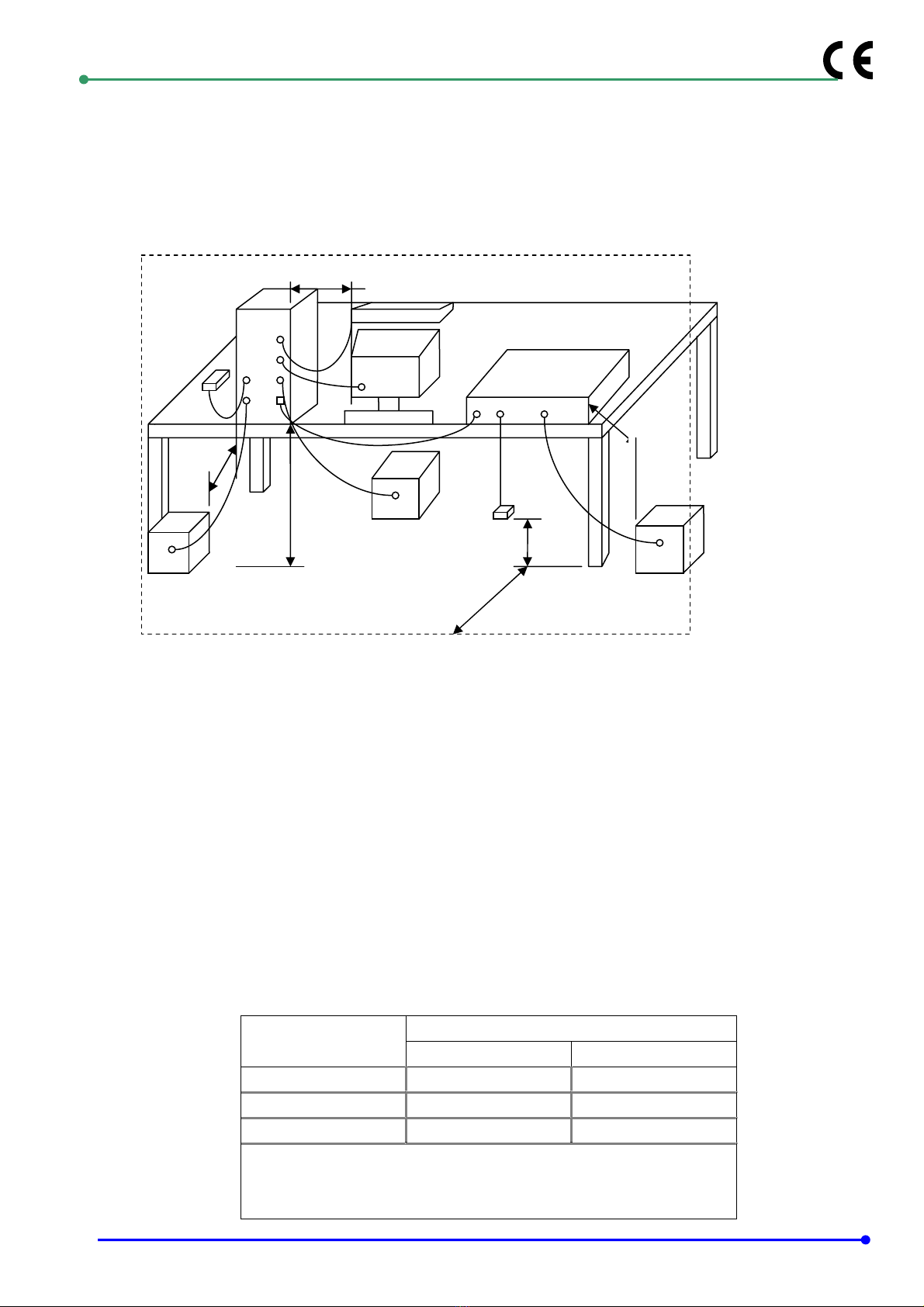

3.2. Typical Test Setup Layout of Conducted Powerline

3.3. Conducted Emission Requirement

The equipment under test EUT）shall meet the limits in table 1and 3 or 2 and 4,as applicable,

including the average limit and the quasi-peak limit when using,repectively, an average detector

receiver and quasi-peak detector receiver and measured in accordance with the methods

described in clause 9. Either the voltage limits or the current limits in table 3 or 4, as applicable,

shall be met except for the measurement method of C.1.3 where both limits shall be met. If the

average limit is met when using a qusai-peak decetor reciver, the EUT shall be deemeed to meet

both limits and measurement with the average detector receiver is unnecessary.

If the reading of the measuring receiver shows fluctuations close to the limit, the reading shall be

observed for at least 15 s at each measurement frequency, the higher reading shall be recorded

with the exception of any brief isolated hith reading which shall be ignored.

Limits (dB µ V)Frequency range

(MHz) Quasi Peak Average

0.15 to0.50 66 to 56* 56 to 46*

0.50 to5 56 46

5. to 30. 60 50

NOTE 1-The lower limits shall apply at the transition frequencies.

NOTE 2-The limit decreases linearly with the logarithm of the

frequency in the range 0.15 MHZ to 0.50MHZ.

10cm

80cm

EUT

80cm

40cm

LISN

80cm

40cm

LISN

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 9 of 9

EMC Test Report: CE03111004-A

4. Test of Radiated Emission

Radiated emissions from 30 MHz to 1000 MHz were measured with a bandwidth of 120 kHz according to

the methods defines in European Standard EN 301 489-17. The EUT was placed on a nonmetallic

stand in the open-field site, 0.8 meter above the ground plane, as shown in section 3.2. The interface

cables and equipment positions were varied within limits of reasonable applications to determine the

positions producing maximum radiated emissions.

4.1. Test Procedures

a. The EUT was placed on a rotatable table top 0.8 meter above ground.

b. The EUT was set 10 meters from the interference receiving antenna which was mounted on

the top of a variable height antenna tower.

c. The table was rotated 360 degrees to determine the position of the highest radiation.

d. The antenna is a half wave dipole and its height is varied between one meter and four meters

above ground to find the maximum value of the field strength both horizontal polarization and

vertical polarization of the antenna are set to make the measurement.

e. For each suspected emission the EUT was arranged to its worst case and then tune the

antenna tower (from 1 M to 4 M) and turn table (from 0 degree to 360 degrees) to find the

maximum reading.

f. Set the test-receiver system to Peak Detect Function and specified bandwidth with Maximum

Hold Mode.

g. If the emission level of the EUT in peak mode was 3 dB lower than the limit specified, then

testing will be stopped and peak values of EUT will be reported, otherwise, the emissions

which do not have 3 dB margin will be repeated one by one using the quasi-peak method and

reported.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 16, 2003 10 of 10

EMC Test Report: CE03111004-A

4.2. Typical Test Setup Layout of Radiated Emission

4.3. Radiated Emission Requirement

The EUT shall meet limits of tables as below when measured at the measuring distance R in

accordance with the methods described in clause 10. If the reading on the measuring receiver

shows fluctuations close to the limit, the reading shall be observed for at least 15 s at each isolated

high reading, which shall be ignored.

Limit for radiated disturbance of class B ITE at a measuring distance of 10 m

Frequency

(MHz)

Quasi-peak limits

dB (uV/m)

30 to 230 30

230 to 1000 37

Note 1- The lower limit shall apply at the transition frequency.

2- Additional provisions may be required for cases where interference

occurs.

Turn Table 0.8M

Equipment under Test

Ground Plane

Receiver

* Test distance

Antenna

Indice

Altri manuali TRENDware Router wireless

TRENDware

TRENDware TW100-S4W1CA Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente
