ToneBug
User manual
Phaser
CONGRATULATIONS
on your purchase of Phaser, part of our ToneBug series of eect ped-
als that combine great-sounding T-Rex tone, premium retro design,
and aordable pricing.

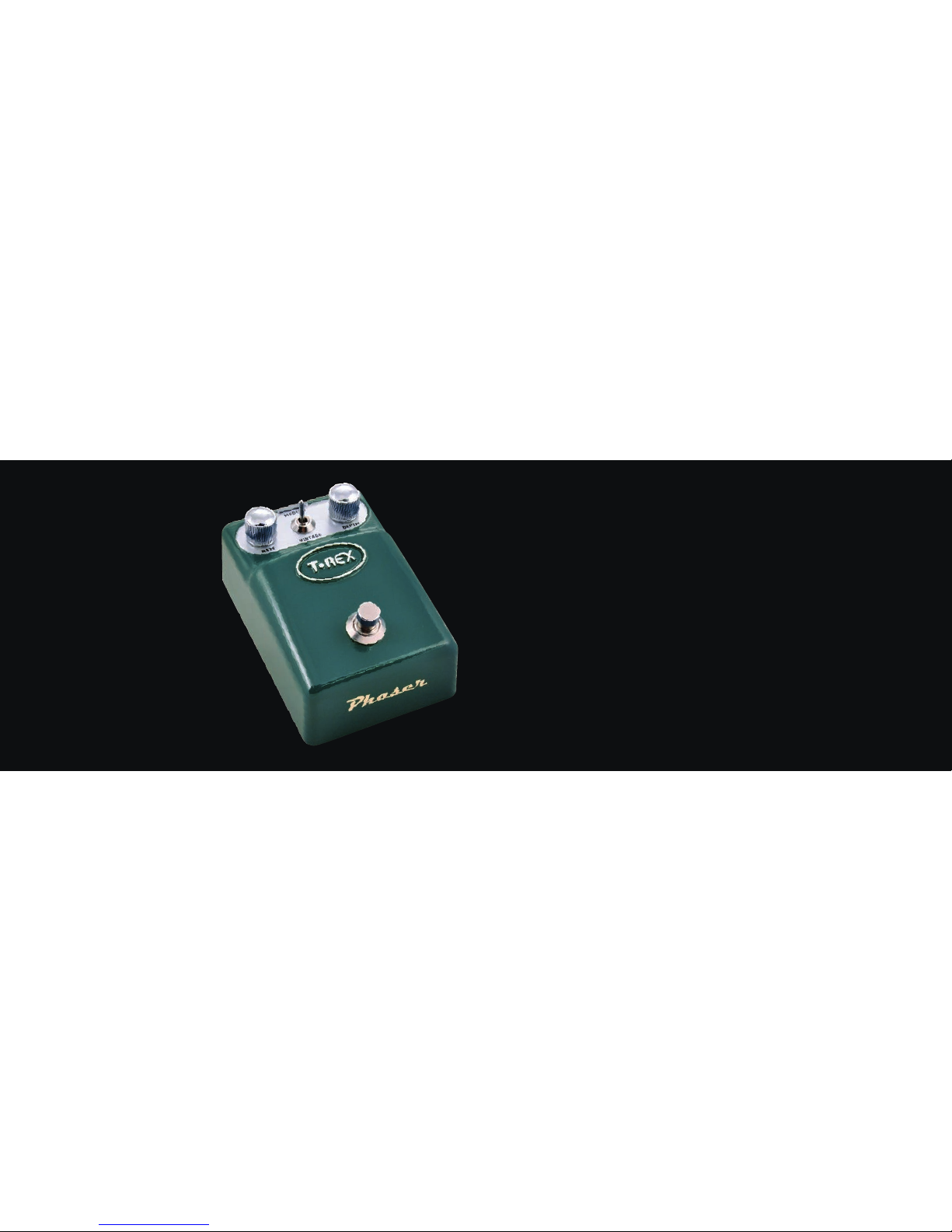

Phaser is a classic phase shifter that will bring your sound to life by
adding dynamic, undulating colour to rhythm and lead parts. It’s got
all the controls you need and nothing you don’t – and it delivers the
incredible tubey vintage tone you expect from a T-Rex pedal.
Using Phaser couldn’t be easier. Just turn the page to get started.
READY, SET, PHASE!
Using your ToneBug Phaser
Insert a 9V alkaline battery or connect to a T-Rex Fuel Tank power
supply (not included).
Plug your guitar into the INPUT jack, and run a lead from the OUT-
PUT jack into your amp.
Use the RATE knob to set the speed of your modulation, and the
DEPTH knob to choose how “heavy” you want the eect to be.
Try switching between Modern and Vintage modes to get the tone
you’re looking for, and then set your overall output volume with the
LEVEL knob.
TECHNICAL SPECIFICATIONS:
Input Impedance @ 1KHz Higher than 1 M Ohm
Output Impedance @ 1KHz Lower than 1 K Ohm
Power supply 9V DC
Minimum Power supply Voltage 8V DC
Maximum Power supply Voltage 12,5V DC
Current Draw @ 9V DC 75 mA
Maximum input signal Vp/p 2,5 Vp/p
Battery Type 9V battery 6F22 Alkaline
Battery Life 0,5 to 1 Hours
External connectors Input Jack. Output Jack, 9V DC Jack (center
pin negative)
Controls On/O, Rate, Modern, Vintage, Depth
Depth 120 mm
Width 78 mm
Height 60 mm
Weight (excl. battery) 0,404 Kg
SIMPLE SETTINGS:
FUNKY PHASE
RATE: 12 o’clock
DEPTH: 3 o’clock
MODE: Vintage
SLOW SWEEP
RATE: 8 o’clock
DEPTH: 5 o’clock
MODE: Vintage
LIGHT SHIMMER
RATE: 5 o’clock
DEPTH: 9 o’clock
MODE: Modern
MEDIUM MODERN
RATE: 11 o’clock
DEPTH: 1 o’clock
MODE: Modern
T-REX WARRANTY CONDITIONS
T-Rex offers a 2-year warranty on all our products. In the unlikely event of a malfunction,
for repair. When the product has been sent to us at sender’s cost, we will repair or replace
your product and send it back to you - free of charge and usually within 3 weeks (shipping
not included). The product needs to be accompanied by a copy of your receipt, serial num-
ber, return address, phone number, e-mail address and a brief explanation of the problem.
Please note that we cannot replace a product until we have received it here in Denmark.
The warranty is lost if the product has been damaged by alteration, misuse, accident, or
neglect; or if the product has been repaired or serviced by persons not authorized by T-Rex.
Read more about warranty conditions at www.t-rex-effects.com.
ABOUT T-REX
Based in Vejle, Denmark, T-Rex Engineering makes classic and signature effects pedals for the
world’s best musicians. Our approach blends hi-tech innovation with old-world craftsman-
ship – always in the service of killer tone.
EU REGULATIONS • ENVIRONMENT PROTECTION
T-Rex accepts and follows the regulations and directives issued by the EU. We find these
environment protecting regulations very good, and we are happy to follow them.
Steen Meldgaard Laursen
Managing Director
ISSUED IN VEJLE 2010
Lars Dahl-Jørgensen
Development Director
Sebastian Jensen
Production Director
T-Rex Engineering ApS
www.t-rex-eects.com
