TriangleTube Prestige PARKIT101 Manuale utente
Prestige
Display Module Replacement
1
WARNING
!
Indicates a potentially hazardous situation which,
if ignored, can result in serious injury or substan-
tial property damage.
NOTICE
Indicates special instructions on installation, operation
or maintenance, which are important to equipment
but not related to personal injury hazards.
WARNING
!
For your safety, turn off electrical power supply
at service panel and allow unit to cool before pro-
ceeding to avoid possible electrical shock and
scald hazard. Failure to do so can cause severe
personal injury or death.
WARNING
!
Failure to follow instructions below can result in
severe personal injury or damage if ignored.
• Instructions are for a qualified installer/ ser-
vice technician only.
• Read all instructions before proceeding.
• Follow instructions in proper order.
Each Kit Includes:
• Display Module
• (6) Screws
Recommended Tools:
• Flathead Screwdriver
• Phillips Head Screwdriver
Kit Part Number Description Model
PARKIT101 Display Module Replacement All Models
2020-20 Prestige Display Module Replacement
Revised 1/22/2020
Prestige
Display Module Replacement
2
1. Preliminary Instructions:
1. Verify that the Display Module replacement kit is
correct for the model of boiler. See table on page 1.
2. Carefully open and unpack the PARTS BOX from its
shipping carton.
3. Carefully remove and check for any damage.
NOTICE
Do not proceed with installation and contact Triangle Tube
right away if the Display Module is damaged in any way.
4. Turn o the electrical power supply to the boiler.
5. Close the manual gas shut o valve to the unit.
2. Save Settings
NOTICE
Prior to replacing the control module and/or display module,
it is important to access and document the boiler’s settings.
This will ensure any settings revised from factory defaults are
transferred to the new module(s). Use Table 1 to record the
existing settings. Do not revise any settings when recording
settings.

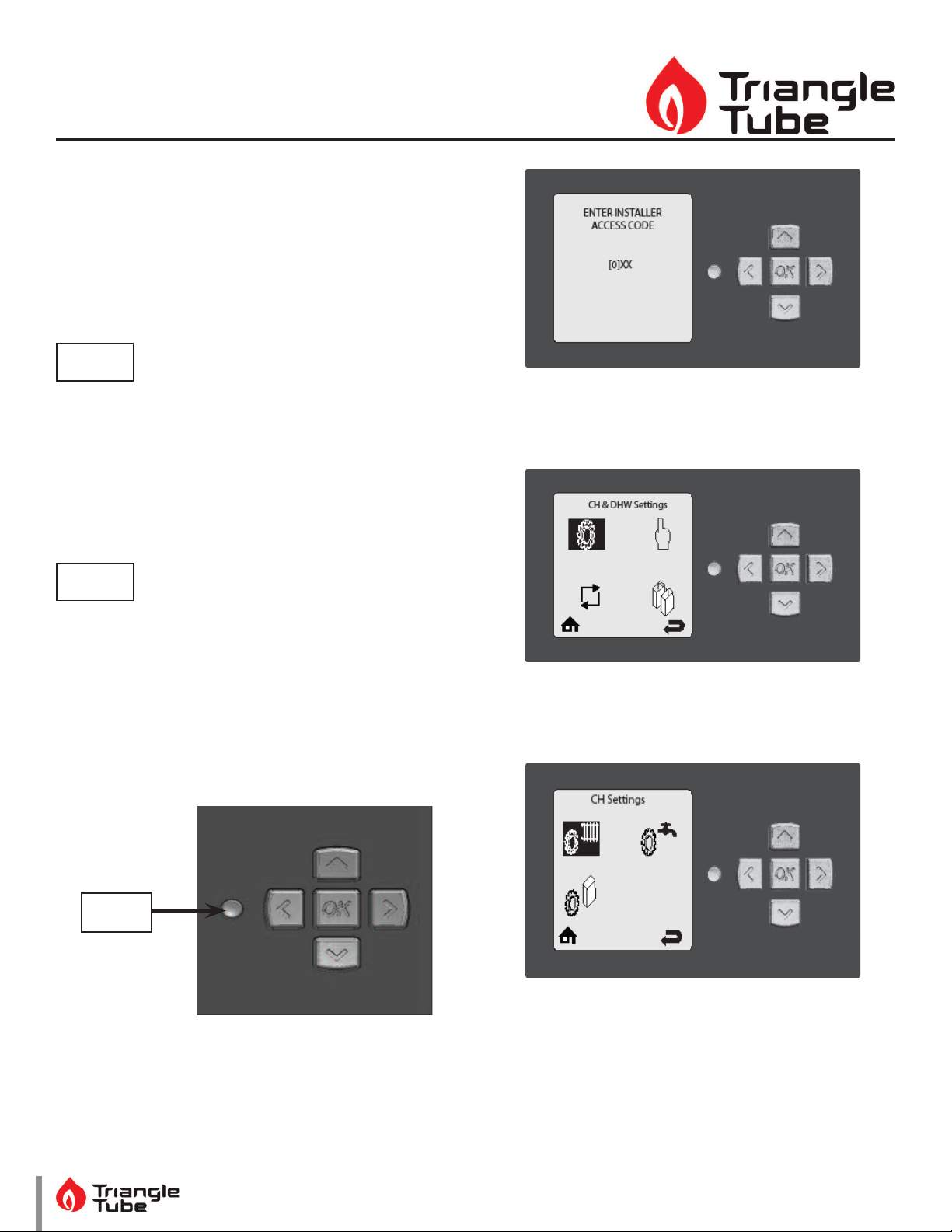

1. To access the parameter screen, press the round in-
staller button as shown in Fig. 1.
Fig. 1: Installer Button
2. Enter the installer access code “054” by using the
LEFT and RIGHT buttons to select a digit and the
UP and DOWN buttons to change the digit. Press
the OK button to enter the access code.
Fig. 2: Installer Access Code
3. Press the OK button while the CH & DHW Settings
icon is highlighted.
Fig. 3: CH & DHW Settings
4. Press the OK button while the CH Settings icon is
highlighted.
Fig. 4: CH Settings
5. Press the UP and DOWN buttons to scroll thru the
various settings.
Installer
Button
Prestige
Display Module Replacement
3

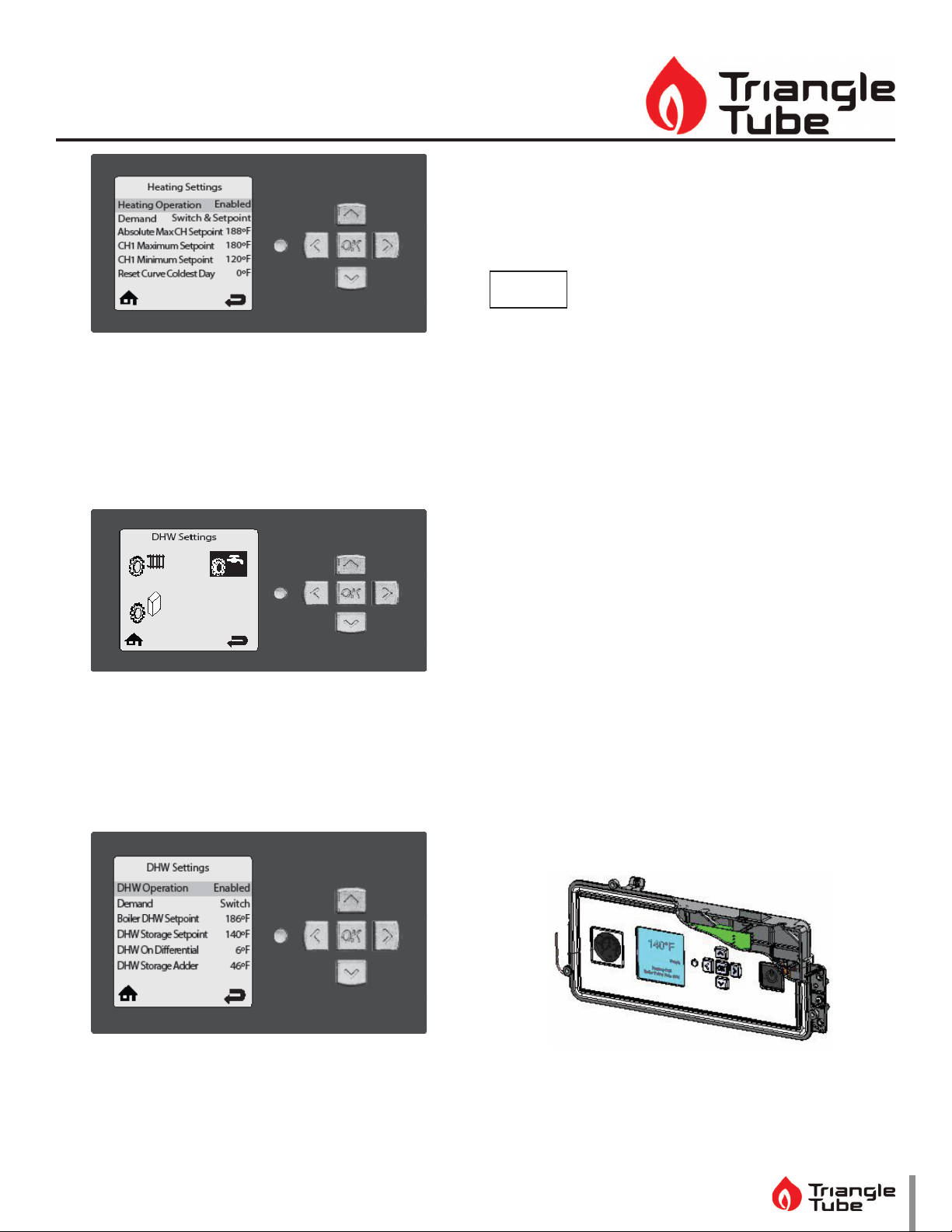

Fig. 5: Heating Settings
6. Record all CH Settings in Table 1. Once completed,
press the RIGHT button to highlight the Previous
Screen icon, then press the OK button.
7. Press the RIGHT button to highlight the DHW Set-
tings icon then press the OK button.
Fig. 6: DHW Settings
8. Press the UP and DOWN buttons to scroll thru the
various settings and record all DHW Settings in Ta-
ble 1. Once completed, press the RIGHT button to
highlight the Previous Screen icon, then press the
OK button.
Fig. 7: DHW Settings
9. Press the DOWN button to highlight the Boiler Set-
tings icon if present icon, then press the OK button.
10. Press the UP and DOWN buttons to scroll through
the various settings and record all Boiler Settings
in Table 1. Once completed, press the RIGHT but-
ton to highlight the Previous Screen icon, then
press the OK button.
NOTICE
Perform the following steps if the Instinct is part of a Cascade
System or the System Temperature Sensor is being used on a
single Instinct.
11. Press the RIGHT then DOWN buttons to highlight
the Previous Screen icon, then press the OK button.
12. Press the RIGHT then DOWN buttons to highlight
the Cascade icon, then press the OK button.
13. Press the RIGHT button to highlight the Cascade
Settings icon, then press the OK button.
14. Press the UP and DOWN buttons to scroll thru the
various settings, and record all Cascade Settings in
Table 1.
3. Remove Display Module
1. Turn the electrical power “OFF”.
2. Remove the front jacket panel by removing the
screws on the bottom of the panel. Pull the pan-
el out and up to remove the panel. Do not discard
these screws as they will be reused.
3. Pull the two retaining tabs on top of the display
module case to remove the cover. The cover will
open up.
Fig. 8: Display Module
4. Remove the yellow molex connection from the
back of the display module.
Prestige
Display Module Replacement
4
5. Remove all 6 screws hold the old display module
in place.
6. Leave the rubber insert installed in the cover.
7. Remove the display module from the boiler.
4. Installation of Display Module
1. Place the new display module with the screen
aligned in the cutout in the front cover, ensuring
all of the tabs of the rubber insert t in the appro-
priate cutout.
2. Screw all six screws to hold the display module in
place.
NOTICE
Do not overtighten the screws as it may damage the display
module.
3. Plug in the yellow molex connection into the back
of the diaplay module.
4. Place the cover in place and lock both retaining
tabs.
5. Remount the front jacket panel to the boiler.
6. Turn power to the unit “ON” and return the boiler
to service.
5. Programming new Control Board
1. Follow the instructions in step 2 to gain access to
the installer menu.
2. Go to boiler settings and click appliance setting, as
seen in Fig. 9 and Fig. 10.
Fig. 9: Installer Menu
Fig. 10: Appliance setting
3. The required code is written on the data plate lo-
cated at the side of the boiler. Use the code for the
gas type, either Natural Gas or Propane.
4. Increase/decrease the value (from 0 to 9, then A to
Z) using the UP or DOWN keys to, then change po-
sition with the LEFT or RIGHT keys.
5. Follow the instructions on the screen to enter the
appliance code for your boiler.
6. The boiler will now be factory set for that particular
model. Return to step 2 and enter settings record-
ed in Table 1 back into the controls to return the
boiler to the customized settings of the old control.
Prestige
Display Module Replacement
5
Table 1: Controls Settings
HEATINGSETTING FACTORYDEFAULT MINIMUMSETTING MAXIMUMSETTING EXISTINGSETTING
Heating Operation Enabled
Demand Type Thermostat & Outd.
Curve
Absolute Max CH Setpoint 185°F [85°C] 68°F [20°C] 188°F [87°C]
CH1 Maximum Setpoint 180°F [82°C] 68°F [20°C] 188°F [87°C]
CH1 Minimum Setpoint 80°F [27°C] 60°F [15°C] 188°F [87°C]
Outdoor Curve Coldest Day 10°F [-12°C] -30°F [-34°C] 50°F [10°C]
Outdoor Curve Warmest Day 64°F [18°C] 60°F [15°C] 78°F [25°C]
CH2 Circuit Enabled
CH2 Maximum Setpoint 140°F [60°C] 68°F [20°C] 194°F [90°C]
CH2 Minimum Setpoint 80°F [27°C] 60°F [15°C] 190°F [88°C]
Warm Weather Shutdown O O 78°F [25°C]
Circulation Pump
Permanent
Disabled
CH Post Pump Time 5 Minutes O 20 Minutes
Freeze Protection Enabled
Frost Protection Setpoint -22°F [-30°C] -22°F [-30°C] 50°F [10°C]
Parallel Shift Value 0°F [0°C] 0°F [0°C] 144°F [80°C]
CH Call Blocking 2 Minutes 0 Minutes 30 Minutes
DOMESTICSETTING FACTORYDEFAULT MINIMUMSETTING MAXIMUMSETTING EXISTINGSETTING
DHW Operation Enabled
Demand Type Thermostat
DHW Boiler Setpoint 168°F [76°C] 96°F [35°C] 188°F [87°C]
DHW Setpoint 140°F [60°C] 68°F [20°C] 186°F [86°C]
DHW On Dierential 6°F [3°C] 4°F [2°C] 18°F [10°C]
DHW Storage Adder 28°F [15°C] 10°F [5°C] 54°F [30°C]
DHW Post Pump Time 2 Minutes O 30 Minutes
DHW Priority Timeout O O 120 Minutes
DHW Priority Enabled
DHW Call Blocking 0 Minute 0 Minute 30 Minutes
DHW to CH Call Blocking 1 Minute 0 Minute 30 Minutes
Antilegionella Function Disabled
Prestige
Display Module Replacement
6
Table 1 Cont:
BOILERSETTING FACTORYDEFAULT MINIMUMSETTING MAXIMUMSETTING EXISTINGSETTING
Lockout Temp. 210°F [99°C]
Modbus Address 0=BCST 0=BCST 247
Flex. Relay 1(CH) CH1
Flex. Relay 2(DHW) DHW
Flex. Relay 3(P3) CH1/CH2/DHW
Flex. Relay 4(ERR) ERROR
Flex. Relay 5(Flame) FLAME
Flex. Relay 6(P4) CH2
Error Relay On Lockout, Blocking
andWarning
Pump PWM Minimum 30% 1% 100%
Ignition Level Varies by model
Mix Zone High Limit 114°F [45°C] 68°F [20°C] 176°F [80°C]
Appliance Setting Varies by model
CASCADESETTING FACTORYDEFAULT MINIMUMSETTING MAXIMUMSETTING EXISTINGSETTING
Stage Delay 60 Seconds 0 Seconds 255 Seconds
Minimum Firing Rate 18% 0% 100%
Max. Firing Rate Varies by model 0 MBH [0kW] 869 MBH [255kW]
CH/DHW Boilers 0 0 6
Auto. Rotation Enabled
CH Prop. Gain 7 1 255
CH Integral Gain 245 1 255
DHW Prop. Gain 7 1 255
DHW Integral Gain 245 1 255
