INSTRUCTION BOOKLET

ELECTRIC COOKER

CSIE 223W

Please read this instruction booklet before using the appliance

Important Safety Information

You MUST read these warnings carefully before installing or using the

appliance. If you need assistance, contact our Customer Care Department

on 08705 950950

Installation

●This cooker must be installed by qualified

personnel, according to the manufacturer’s

instructions and to the relevant British Standards.

• This cooker is heavy. Take care when moving it.

●Remove all packaging before using the cooker.

●Ensure that the electrical supply complies with the

type stated on the rating plate.

●Do not attempt to modify the cooker in any way.

Child Safety

●This cooker is designed to be operated by adults.

Do not allow children to play near or with the

cooker.

●The cooker gets hot when it is in use. Children

should be kept away until it has cooled.

●Children can also injure themselves by pulling

pans or pots off the cooker.

During Use

●This cooker is intended for domestic cooking only.

It is not designed for commercial or industrial

purposes.

●Do not use this cooker if it is in contact with

water. Do not operate the cooker with wet hands.

●Ensure the control knobs are in the ‘OFF’ position

when not in use.

●When using other electrical appliances, ensure the

cable does not come into contact with the hot

surfaces of the cooker.

●Unstable or misshapen pans should not be used on

the hob hotplates as unstable pans can cause an

accident by tipping or spillage.

●Never leave the cooker unattended when cooking

with oil and fats.

●This cooker should be kept clean at all times. A

build-up of fats or foodstuffs could result in a

fire.

●Do not store flammable materials in the storage

drawer.

●Never use plastic dishes in the oven or on the hob

hotplates.

Never line any part of the oven with

aluminium foil.

●Always ensure that the oven vent which is located

at the centre back of the hob is left unobstructed to

ensure ventilation of the oven cavity.

●Perishable food, plastic items and areosols may be

affected by heat and should not be stored above

the cooker.

Service

●This cooker should only be repaired or serviced by

an authorised Service Engineer and only genuine

approved spare parts should be used.

Environmental Information

●After installation, please dispose of the packaging

with due regard to safety and the environment.

●When disposing of an old appliance, make it

unusable, by cutting off the cable.

Keep this instruction book for future

reference and ensure it is passed on

to any new owner.

This appliance is manufactured according

to the following EEC directives:

73/23 EEC - 90/683 EEC - 93/68 EEC -

89/336 EEC current edition.

Contents

Guide to Use the instructions

The following symbols will be found in the text to

guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an

operation

Hints and Tips

☞

Oven Door Protection Device

All our appliances comply with the

European safety standards. Nevertheless,

in order to ensure the highest safety

level, and avoid small children to be

exposed to the heat when the appliance

is operated, it is possible to fit a special

protection device to the oven door. This

device can be purchased in our Service

Force Centres, specifying the relevant

code (35791) and the Product No. shown

on the rating plate.

Important Safety Information.............. 2

Description of the Cooker.................... 4

Control Panel ...................................... 5

The Oven Cavity........................................ 5

Accessories ............................................... 5

Operation ............................................ 6

Electric Hotplates ..................................... 6

Electric Oven ............................................ 8

Before the First Use of the Oven.......... 8

Using the Oven .................................... 9

Using the Conventional Oven .............. 9

Grilling.............................................. 12

Maintenance and Cleaning................. 13

Cleaning the Oven ............................. 14

Something Not Working ..................... 16

Service and Spare Parts ..................... 17

Guarantee Conditions........................ 17

For the User For the Installer

Instructions for the Installer ............. 20

Important Safety Requirements......... 20

Electrical connections....................... 21

MAINS

THERMOSTAT

RAPID NORMAL NORMAL RAPID OVEN & GRILL

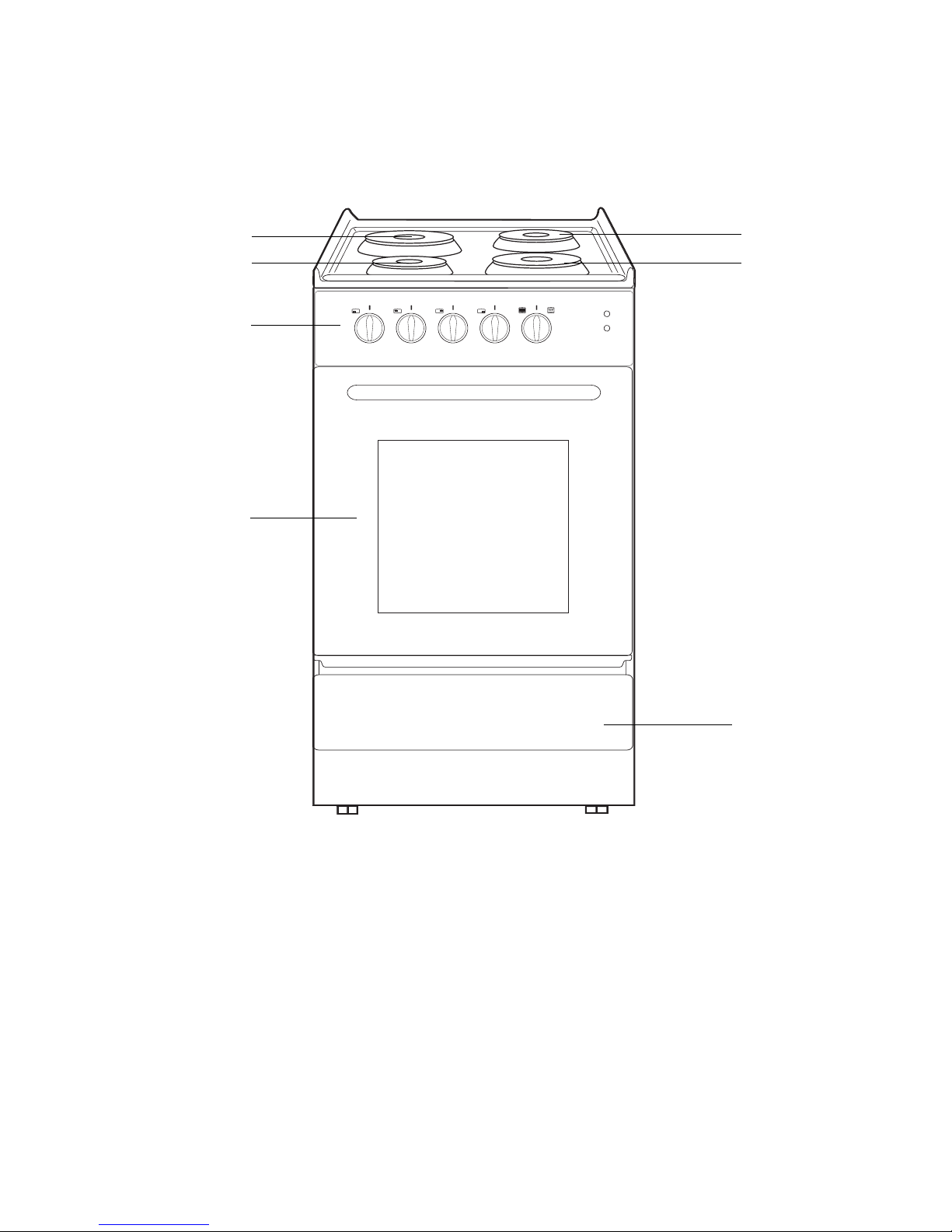

Description of the Cooker

Back left normal

hotplate

Front left rapid

hotplate

Control panel

Oven door

Front right rapid

hotplate

Back right normal

hotplate

Storage drawer

MAINS

THERMOSTAT

RAPID NORMAL NORMAL

RAPID OVEN & GRILL

1. Oven Thermostat Pilot Light

2. Cooker Operation Pilot Light

3. Front left hotplate control knob

4. Back left hotplate control knob

5. Back right hotplate control knob

6. Front right hotplate control knob

7. Oven function control knob

7654

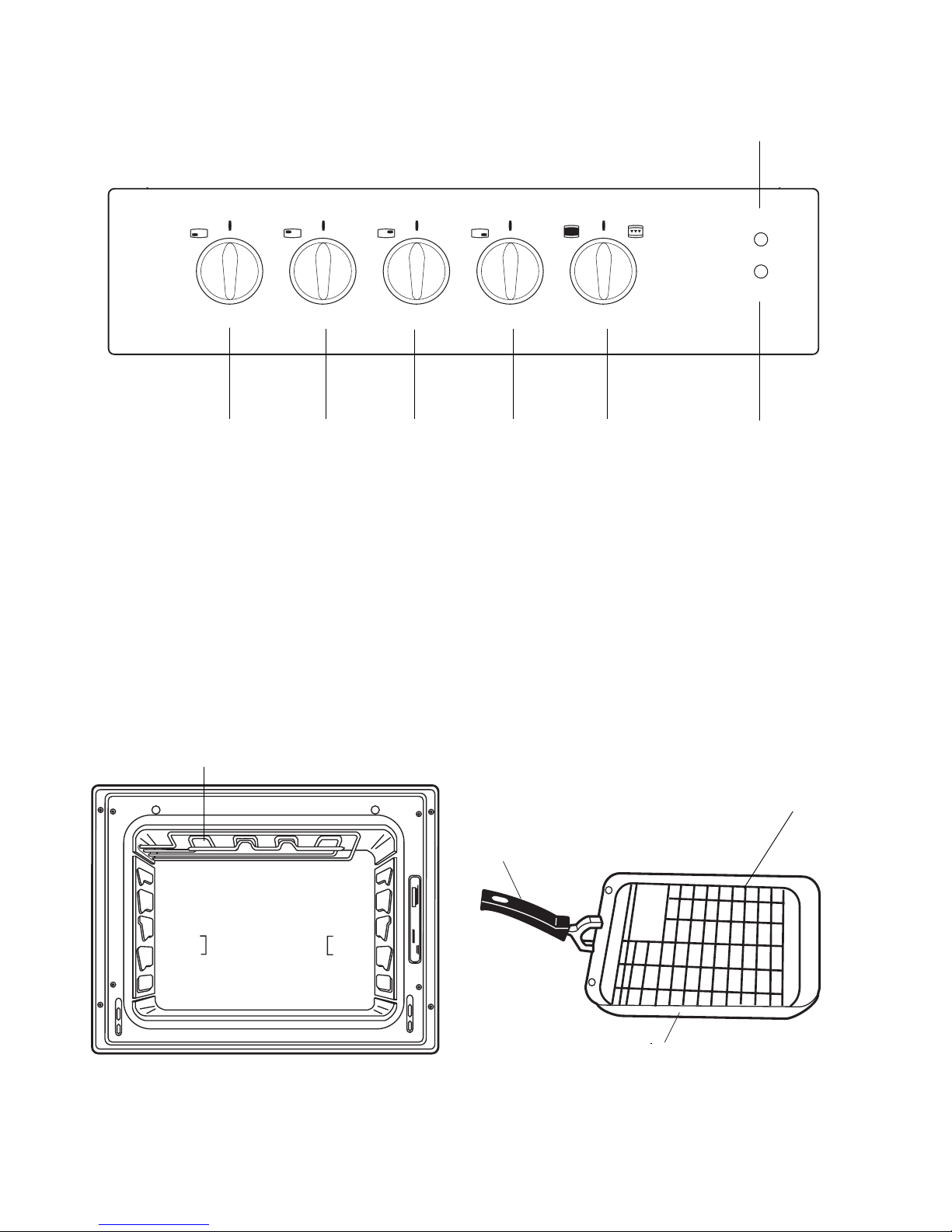

Control Panel

The Oven Cavity

Grill element

Accessories

Grill trivet

Grill/roasting pan

Removable

handle

Electric Hotplates

To switch on a hotplate, turn the relevant control

knob to the required heat setting.

The control knob is numbered 0 - 6

0 - OFF

1 - Minimum

6 - Maximum.

The hob has two types of hotplates:

Normal Hotplates (Back right and left)

We recommend the plates are switched to maximum

(6) for a short while to boost the plate, and then

adjusted to the required setting.

Rapid Hotplates (Front right and left)

The rapid hotplates indicated by a red spot, will heat

up more quickly than a normal plate.

Over a period of time the red spot may

disappear, this will not affect the performance

of the hotplate.

It is important to note that the plate may smoke

a little and produce a slightly unpleasant odour

when used for the first time. This is quite

normal and will disappear after a few minutes.

Suggestions for the correct setting of the plates are

given in the following table.

Operation

OFF 0

Very Gentle 1To keep food warm

To melt butter and chocolate

Gentle 2To prepare cream-sauces,

stews and milk puddings

or to fry eggs

Slow 3Dried vegetables, frozen

food, fruit, boiling water

or milk

Medium 4Boiled potatoes, fresh

vegetables, pâtés, soups,

broths, pancakes or fish

High 5Larger stews, meat roll, fish,

omelettes, steaks

Fast 6Steaks, escalopes and frying.

Hints andTips

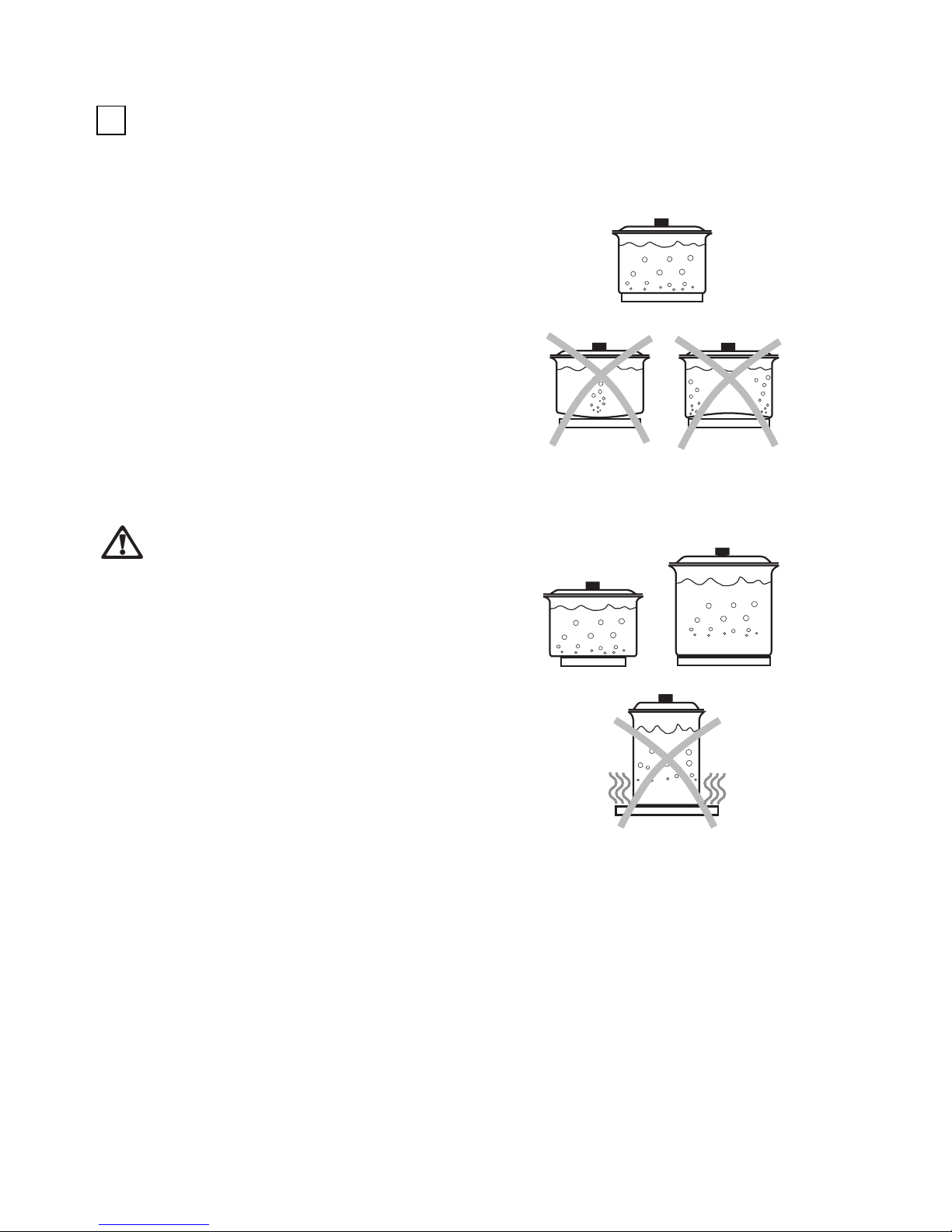

Saucepans for use on solid plates should have several

characteristics:

●They should be fairly heavy duty

●They should fit the heat area exactly, or be slightly

larger for efficient use, NEVER smaller.

●They should have a flat base to ensure good

contact with the plate.

This is particularly important when using pans for

high temperature frying or pressure cooking.

As soon as liquid starts boiling, turn down the plate

control knob so that it will barely keep the liquid

simmering.

You can switch off the plate a short while before you

finish cooking, and the final stage will be completed

on the accumulated heat. Similarly, stews etc. cooked

in well covered saucepans cook at lower temperature

which is more economical.

Ensure pans are large enough to avoid

liquids being split onto the plates.

Never leave the plates on without a pan on

them or with an empty pan on them.

Take care never to lean or reach over a hot

electric plate. Always point pan handles

inward or over the work surface next to the

hob to avoid accidentally knocking over a

pan as you pass by.

Take care when frying food in hot oil or fat,

as the overheated splashes could easily

ignite.

If the control knobs become difficult to turn,

please contact your local Tricity Bendix

Service Centre.

Before the First Use of the Oven

Remove all packaging, both inside and

outside the oven, before using the oven.

Before first use, the oven should be heated without

food. During this time, an unpleasant odour may be

emitted. This is quite normal.

☞1. Set the oven function control knob to

MAX.

2. Open a window for ventilation.

3. Allow the oven to run empty for

approximately 45 minutes.

This procedure should be repeated with the grill

function for approximately 5-10 minutes.

Electric Oven

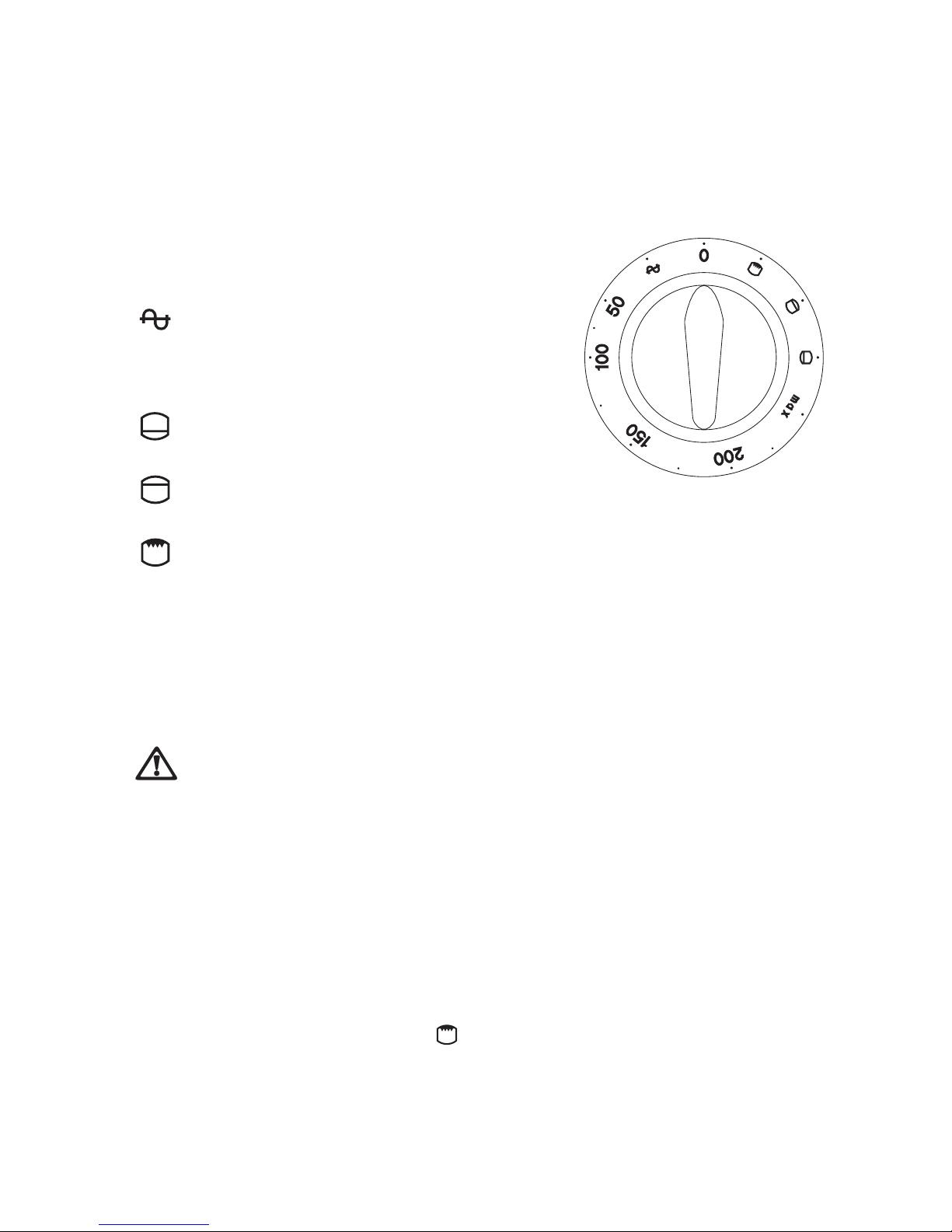

Oven Function Control Knob

0Oven switched off

Heating elements switched on

0-max Range of temperature regulation for

conventional cooking

Bottom heating element - The heat

comes from the bottom of the oven only

Top heating element - The heat comes

from the top of the oven only

Grill - The heat comes only from the top

element

Using the Oven

• Always cook with the oven door closed.

• Stand clear when opening the drop

down oven door. Do not allow it to fall

open - support the door using the door

handle, until it is fully open.

• The oven has four shelf levels, and is

supplied with two shelves.

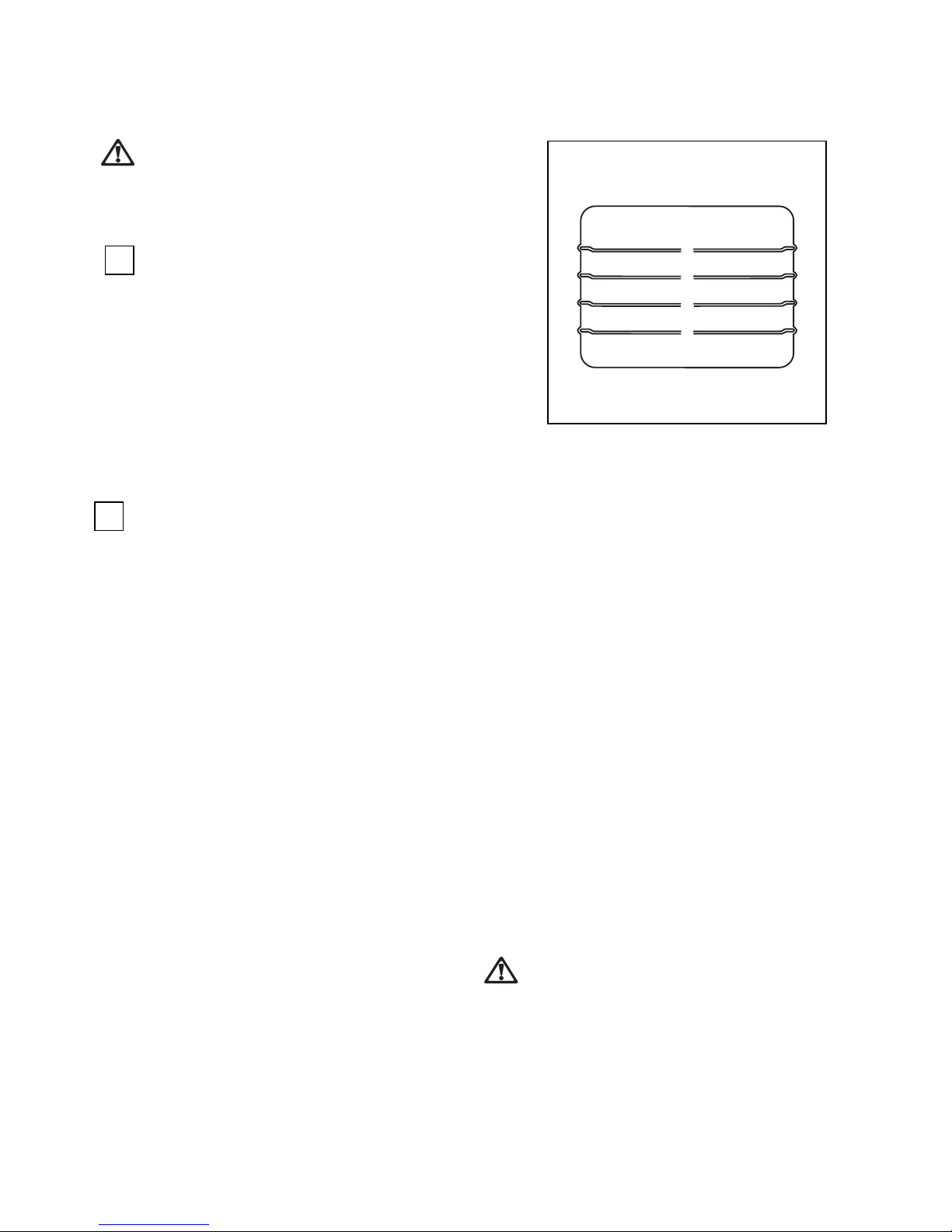

The shelf positions are counted from the

bottom of the oven as shown in the

diagram.

It is important that these shelves are

correctly positioned as shown in the

diagram.

• Do not place cookware directly on the

oven base.

Cookware

• Use any oven proof cookware which will

withstand temperatures of 250°C.

• Baking trays, oven dishes, etc. should not be

placed directly against the grid covering the fan at

the back of the oven, or placed on the oven base.

• Do not use baking trays larger than 30 cm x 35 cm

(12 in x 14 in) as they will restrict the circulation

of heat and may affect performance.

Condensation and steam

When food is heated it produces steam in the same

way as a boiling kettle. The oven vents allow some of

this steam to escape. However, always stand back

from the oven when opening the oven door to

allow any build up of steam or heat to release.

If the steam comes into contact with a cool surface on

the outside of the oven, e.g. a trim, it will condense

and produce water droplets. This is quite normal and

is not a fault with the oven.

To prevent discoloration, regularly wipe away

condensation and also soilage from surfaces.

Hints andTips

The effects of dishes

on cooking results

Dishes and tins vary in their thickness, conductivity,

colour, etc. which affects the way they transmit heat

to the food inside them.

AAluminium, earthenware, oven glassware and

bright shiny utensils reduce cooking and

underneath browning.

BEnamelled cast iron, anodized aluminium,

aluminium with non-stick interior and coloured

exterior and dark, heavy utensils increase cooking

and underneath browning.

Storage Drawer

The storage drawer is located underneath the oven

cavity.

During cooking the storage drawer may

become hot if the oven is on high for a long

period of time, therefore flammable materials

such as oven gloves, tea towels, plastic aprons

etc. should not be stored in the drawer.

Oven accessories such as baking sheets, will

also become hot, therefore care should be

taken when removing these items from the

drawer whilst the oven is in use or still hot.

Using the Conventional Oven

☞

How to Use the

Conventional Oven

Turn the oven function control knob to the

required temperature.

THINGS TO NOTE

●

The thermostat control light will remain on until

the correct temperature is reached. It will then

cycle on and off to show that temperature is being

maintained.

Top oven element only

This function is suitable for finishing cooked dishes,

eg; lasagne, shepherds pie, cauliflower cheese etc.

Bottom oven element only

This function is particularly useful when blind-baking

pastry or cooking pizza. It may also be used to finish

off quiches or flans to ensure the base pastry is

cooked through.

Hints andTips

The middle shelf position allows for the best heat

distribution. To increase base browning simply lower

the shelf position. To increase top browning, raise the

shelf position.

The material and finish of the baking trays and

dishes used will affect base browning. Enamelware,

dark, heavy or non-stick utensils increase base

browning, while oven glassware, shiny aluminium or

polished steel trays reflect the heat away and give less

base browning.

Always place dishes centrally on the shelf to ensure

even browning.

Stand dishes on suitably sized baking trays to prevent

spillage onto the base of the oven and make cleaning

easier.

Do not place dishes, tins or baking trays directly on

the oven base as it becomes very hot and damage will

occur.

For faster preheating use the fan oven function to

preheat the oven until the oven indicator neon goes

out, then swich the selector to the conventional oven

setting.

Single level cooking gives best results. If you require

more than one level cooking use the fan oven

function.

Indice

Altri manuali Tricity Bendix Fornello

Tricity Bendix

Tricity Bendix SIE 459 Istruzioni per il montaggio

Tricity Bendix

Tricity Bendix SB 410 Manuale utente

Tricity Bendix

Tricity Bendix CSIE452 Guida del prodotto

Tricity Bendix

Tricity Bendix SE454 Guida del prodotto

Tricity Bendix

Tricity Bendix SE310 Guida del prodotto

Tricity Bendix

Tricity Bendix SIE514 Guida del prodotto

Tricity Bendix

Tricity Bendix SE402W Guida del prodotto

Tricity Bendix

Tricity Bendix SE323 Guida del prodotto

Tricity Bendix

Tricity Bendix SI 520 Manuale utente

Tricity Bendix

Tricity Bendix SIE501 Manuale utente

Tricity Bendix

Tricity Bendix SB230 Manuale utente

Tricity Bendix

Tricity Bendix SE558 Manuale utente

Tricity Bendix

Tricity Bendix SE424V Guida del prodotto

Tricity Bendix

Tricity Bendix CSB4431 Manuale utente

Tricity Bendix

Tricity Bendix SIE 505 SSE/BZ Manuale utente

Tricity Bendix

Tricity Bendix SIE531 Guida del prodotto

Tricity Bendix

Tricity Bendix 2000S Manuale utente

Tricity Bendix

Tricity Bendix SE501 Guida del prodotto

Tricity Bendix

Tricity Bendix SI 321/2 Manuale utente

Tricity Bendix

Tricity Bendix Prince 1009 Manuale utente

Tricity Bendix

Tricity Bendix SB432C Guida del prodotto

Tricity Bendix

Tricity Bendix SB 200 Manuale utente

Tricity Bendix

Tricity Bendix Prince 1009 Manuale utente

Tricity Bendix

Tricity Bendix RE50GCW Guida del prodotto

Manuali Fornello popolari di altre marche

Modena

Modena FC 7645 SGM Manuale del proprietario

Electrolux

Electrolux Insight EKG6049 Manuale utente

Stanley

Stanley Donard 60 Manuale utente

Bartscher

Bartscher 201TC Manuale utente

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuale utente

Siemens

Siemens HK9P00020U Manuale utente

Creda

Creda S150E Guida

Creda

Creda HB48309 Manuale utente

Bosch

Bosch HCE743220F Manuale utente

NEFF

NEFF E1461A2/01 Manuale utente

Zanussi

Zanussi ZCM 700 X Manuale utente

Smeg

Smeg SNL61MA9 Manuale utente

RiverGrille

RiverGrille TF2002501-RG Manuale utente

Vollrath

Vollrath 69504F Manuale utente

AEG

AEG Competence 5731 V Manuale utente

Euromaid

Euromaid ES60 Manuale utente

Hotpoint

Hotpoint HUI 62 TP Manuale utente

Bosch

Bosch HGX5G7W50 Series Manuale utente
