Tricity Bendix CSIE316 Manuale utente

MODEL NO.

CSIE316

OPERATING AND INSTALLATION INSTRUCTIONS

MODEL NO. CSIE316

Voltage: 230/240 Volts AC 50Hz

Wattage: 9.8/10.7kW

Height: 900mm

Width: 500mm

Depth: 600mm

This appliance complies with: European Council Directive 73/23/EEC.

EMC Directive 89/336/EEC.

CE Marking Directive 93/68/EEC.

TECHNICAL DETAILS

Technical Details ................................................................................. 2

Contents ......................................................................................... 3

Preface ........................................................................................... 5

Safety ............................................................................................. 6

Before Installation ........................................................................... 6

During Operation ........................................................................... 6

After Use ................................................................................... 7

General .................................................................................... 7

Introduction ...................................................................................... 8

Rating Plate ................................................................................ 8

Installation .................................................................................. 8

General Notes on Using Your Cooker ........................................................ 9

Control Panel Indicator Neon ................................................................ 9

About Condensation and Steam ............................................................. 9

Grill and Oven Furniture ..................................................................... 9

Getting to know your Cooker .................................................................... 10

The Control Panel ......................................................................... 10

The Sealed Hotplates ............................................................................ 11

Recommended Saucepans ................................................................. 11

Hints and Tips ............................................................................. 11

Deep Fat Frying ........................................................................... 12

Preserving ................................................................................. 12

The Grill ........................................................................................ 13

Uses of the Grill ........................................................................... 13

Selecting the Grill .......................................................................... 13

Things To Note ............................................................................ 13

The Grill Pan and Handle ................................................................... 13

Hints and Tips ............................................................................. 14

Grilling Chart .............................................................................. 14

The Fan Oven ................................................................................... 15

Uses of the Fan Oven ...................................................................... 15

Selecting the Fan Oven .................................................................... 15

Things To Note ............................................................................ 15

To Fit the Oven Shelves ................................................................... 16

Hints and Tips ............................................................................. 16

Oven Cooking Chart ............................................................................. 17

Roasting Chart .................................................................................. 18

CONTENTS

Defrosting ....................................................................................... 19

Uses of Defrost Feature ................................................................... 19

Selecting Defrost .......................................................................... 19

Things to Note ............................................................................ 19

Hints and Tips ............................................................................ 19

Care and Cleaning ............................................................................... 20

Cleaning Materials ........................................................................ 20

Cleaning the Sealed Hotplates and Hotplate trims .......................................... 20

Cleaning the Vitreous Enamel .............................................................. 20

Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves .................................... 20

Cleaning Inside the Oven and Grill Compartments .......................................... 21

Care of Stayclean Surfaces ................................................................ 21

Hints and Tips ............................................................................ 21

Cleaning the Door Glass .................................................................. 21

Something not Working? ........................................................................ 23

Service and Spare Parts ......................................................................... 24

Customer Service Centres ....................................................................... 25

Guarantee Conditions ........................................................................... 27

CONTENTS

Dear Customer,

Thank you for buying a Tricity Bendix cooker. With our experience in

developing and manufacturing the very best in U.K. cookers, you can be

assured that you have purchased a hard working, reliable, quality product.

Tricity Bendix cookers comply with British Standard safety and performance

requirements. They have been approved by BEAB (British Electrotechnical

Approvals Board) and are covered by a 12 month parts and labour guarantee.

To get the best from your new Tricity Bendix cooker, we ask that you PLEASE

READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be

made to cooking times and temperatures which may differ from your previous

cooker.

It is most important that this instruction book is retained with the appliance for

future reference. Should the appliance be sold, or if you move house and

leave the appliance, always ensure that the book remains with the appliance.

This will enable the new owner to be acquainted with the functioning of the

appliance and the relevant warnings.

Please read the whole instruction book before attempting to use the appliance

ensuring you follow the recommendations given.

PREFACE

THESE WARNINGS ARE PROVIDED IN

THE INTERESTS OF YOUR SAFETY.

ENSURE THAT YOU UNDERSTAND

THEM ALL BEFORE INSTALLING OR

USING THE COOKER.

PLEASE

READ

CAREFULLY

BEFORE INSTALLATION

This cooker is heavy and care must

be taken when moving it.

Ensure that all packaging, both

inside and outside the cooker has

been removed before the appliance

is used.

If the cooker is to be placed on a

base, measures must be taken to

prevent the cooker slipping from the

base.

Do not try to move the cooker by

pulling the door handles.

The electrical installation work must

be undertaken by a qualified

electrician/ competent person.

It is dangerous to alter or modify

the specifications of the cooker in

any way.

After installation, please dispose of

the packaging with due regard to

safety and the environment.

DURING OPERATION

Do not use this cooker if it is in

contact with water. Never operate it

with wet hands.

This cooker is designed to be

operated by adults. Young children

must not be allowed to tamper with

the cooker or play with the controls.

During use the cooker becomes Hot.

Care should be taken to avoid

touching heating elements inside the

oven.

Accessible parts especially around

the grill area may become hot when

the cooker is in use. Children should

be kept away until it has cooled.

Take great care when heating fats

and oils as they will ignite if they

become too hot.

This cooker has been designed for

cooking edible foodstuffs only, and

must not be used for any other

purposes.

Never place plastic or any other

material which may melt in the oven

or on the hob.

Ensure cooking utensils are large

enough to contain foods to prevent

spillages and boil overs.

The handles of saucepans which are

smaller than the heated area on the

hob will become hot. Ensure your

hand is protected before handling the

pan.

Take care to follow the

recommendations given for tending

the food when grilling.

SAFETY

Do not leave the grill pan handle in

position when grilling as it will

become hot.

Always use oven gloves to remove

and replace the grill pan handle when

grilling. Recommendations given on

page 13.

Ensure that you support the grill pan

when it is in the withdrawn or partially

withdrawn position.

Ensure that all vents are left

unobstructed to ensure ventilation of

the oven.

Ensure that the anti-tilt shelves are

put in place correctly. Refer to

instructions on page 16.

Never line any part of the cooker

with aluminium foil.

Always stand back from the cooker

when opening the oven door to allow

any build up of steam or heat to

release.

Do not place sealed cans or

aerosols inside the oven. They may

explode if they are heated.

Do not leave the hotplates switched

ON for long periods when not

covered by a saucepan. The controls

and cabinets may overheat.

AFTER USE

Ensure that all control knobs are in

the OFF position when not in use.

For hygiene and safety reasons this

cooker should be kept clean at all

times. A build-up of fats or other

foodstuffs could result in a fire,

especially in the grill pan.

Do not leave utensils containing

foodstuffs, e.g. fat or oil in or on the

cooker in case it is inadvertently

switched ON.

Cookers and hobs become very hot,

and retain their heat for a long period

of time after use. Children should be

kept well away from the cooker until it

has cooled.

GENERAL Under no circumstances should

repairs be carried out by

inexperienced persons as this may

cause injury or serious malfunction.

This cooker should be serviced by an

authorised Service Engineer and only

genuine approved spare parts should

be used.

Do not stand on the cooker or on

the open oven door.

Do not hang towels, dishcloths or

clothes from the cooker or its handle.

They are a safety hazard.

Only clean this cooker in accordance

with the instructions given in this

book.

Your safety is of paramount importance.

Therefore, if you are unsure about any of the

meanings of these WARNINGS contact the:

Customer Care Department

Telephone 0870 5 950950

RATING PLATE

Record the model, product and serial numbers on the

back cover from the rating plate. This is situated on

the lower front frame of the cooker and can be seen

upon opening the grill door.

The cooker must be protected by a suitably rated

fuse or circuit breaker. The rating of the cooker is

given on the rating plate.

Do not remove the rating plate from the cooker

as this may invalidate the guarantee.

INSTALLATION

If your cooker has been damaged in transit, contact

your supplier immediately. DO NOT attempt to install

it.

Your cooker left the factory fully packaged to protect

it from damage. If it is delivered without packaging

and damage has occurred, the manufacturer cannot

accept responsibility. Contact your supplier for

advice.

Once the packaging has been removed the cooker

should only be moved by hand. DO NOT use a sack

barrow or any other aid to lift the cooker as damage

may occur.

Connection to the electricity supply must be carried

out by a qualified electrician/competent person.

The electrical connection should be made using a

double pole isolating switch (cooker socket) with at

least 3mm contact separation. The cable must have

conductors of sufficiently high cross-sectional area to

prevent overheating and deterioration.

The cable should be routed away from potentially hot

areas marked by X in the diagram below.

To move the cooker, open the fan oven door, and lift

the cooker by holding inside the top of the

compartment.

This is a type X appliance which means it is

free-standing and can be fitted with cabinets on one

or both sides. It may also be fitted in a corner setting.

Ensure that the cooker is standing level.

Side walls which are above hob level should be

protected by heat resistant non-combustible material

and MUST NOT be nearer than 40mm to the hob

side.

A nominal air gap of 2mm all around the cooker is

required to enable the cooker to be moved into

position. It is recommended that proprietary trims are

fitted to protect the worktops of either side of the

appliance. These are available from most DIY stores.

Always ensure an air gap is maintained at hotplate

level. Tiles or other forms of deep wall covering

should not obscure this gap.

WARNING: THIS COOKER MUST BE EARTHED

INTRODUCTION

Six square millimetres (6.00mm²) is the recommended

cross-section area.

Air gap

Note: Vapours from the oven vent may in time cause

discolouration of wallcoverings behind the cooker.

For ease of cleaning it may be preferable to tile

behind the cooker.

Overhanging surfaces or a cooker hood should be a

minimum of 685mm above the hob.

It is important to ensure that the appliance is level

after installation. Levelling feet are fitted to the

appliance to accommodate uneven floors.

GENERAL NOTES ON USING YOUR

COOKER

We suggest that you run the oven elements for 10 -

15 minutes at 220°C to burn off any residue from

their surfaces.

The procedure should be repeated with the grill for

approximately 5 - 10 minutes.

During this period an odour may be emitted, it is

therefore advisable to open a window for ventilation.

OVEN INDICATOR NEON

The light will indicate whether the oven is switched

on, the neon also indicates when the set temperature

has been reached. The neon will turn on and off

during use to show that the temperature is being

maintained.

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a

boiling kettle. The ovens are vented to allow some of

this steam to escape. However, always stand back

from the cooker when opening the oven door to allow

any build up of steam or heat to release.

If the steam comes into contact with a cool surface

on the outside of the cooker, e.g. a trim, it will

condense and produce water droplets. This is quite

normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away

condensation and also soilage from surfaces.

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have

been supplied with the cooker.

1 grill pan

1 grill pan handle

1 grill pan grid

1 straight shelf

for grilling

2 straight shelves

for main oven cooking

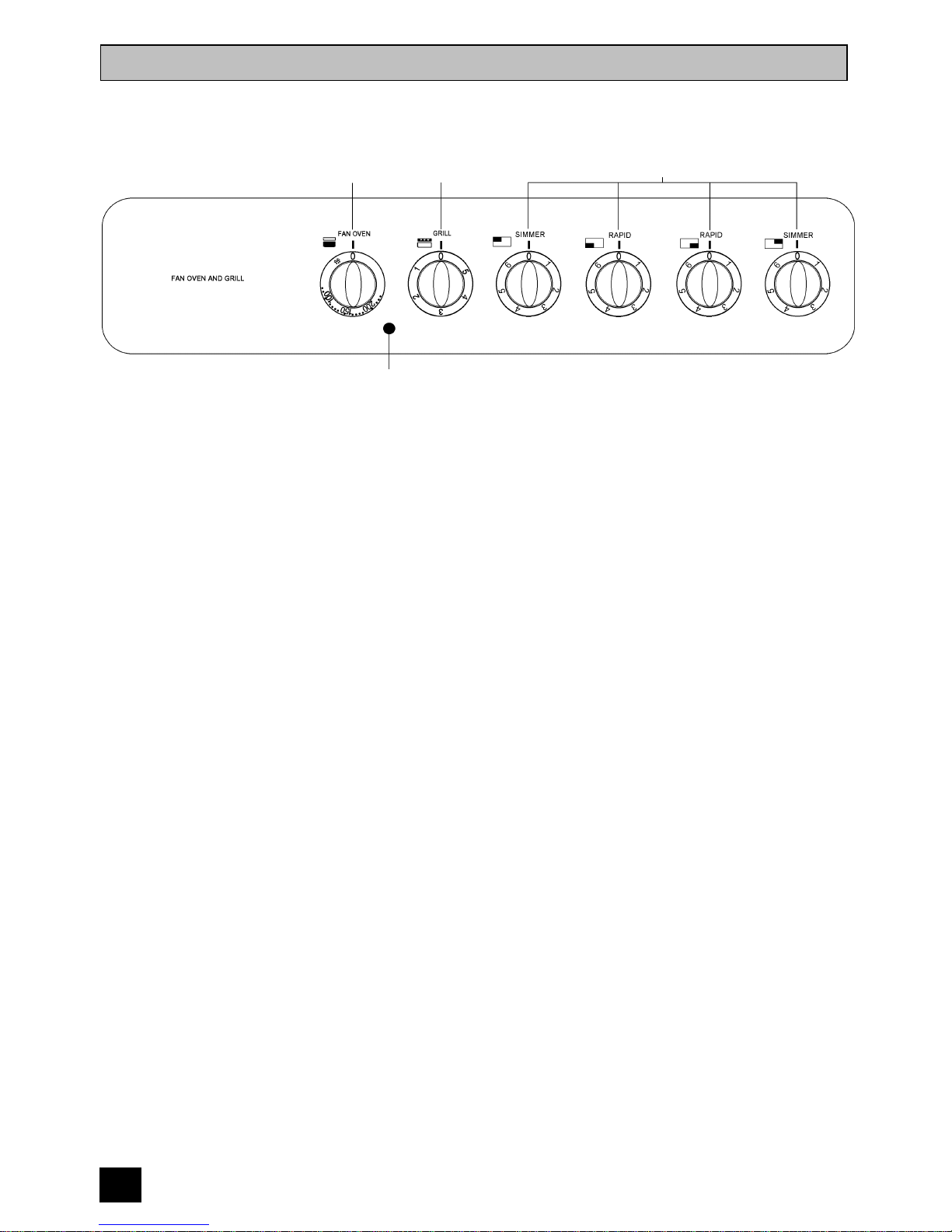

THE CONTROL PANEL

FEATURES

A - Fan Oven Control

B - Fan Oven Indicator Neon

C - Grill Control

D - Hotplate Controls

GETTING TO KNOW YOUR COOKER

A C D

Indice

Altri manuali Tricity Bendix Forno

Tricity Bendix

Tricity Bendix SI 055 Manuale utente

Tricity Bendix

Tricity Bendix BS 690 GR Guida del prodotto

Tricity Bendix

Tricity Bendix B5650 Manuale utente

Tricity Bendix

Tricity Bendix BS 611/BS 621 Manuale utente

Tricity Bendix

Tricity Bendix SURREY Manuale utente

Tricity Bendix

Tricity Bendix DURHAM Manuale utente

Tricity Bendix

Tricity Bendix BD 931 Manuale utente

Tricity Bendix

Tricity Bendix BUILT IN OVEN TBS 749 Guida del prodotto

Tricity Bendix

Tricity Bendix GD 290 Manuale utente

Tricity Bendix

Tricity Bendix BS670 Manuale utente

Tricity Bendix

Tricity Bendix BS 641 Manuale utente

Tricity Bendix

Tricity Bendix TBS 603 Manuale utente

Tricity Bendix

Tricity Bendix BS 612 Guida del prodotto

Tricity Bendix

Tricity Bendix DEVON Manuale utente

Tricity Bendix

Tricity Bendix CSB4411 Manuale utente

Tricity Bendix

Tricity Bendix SB 423 Manuale utente

Tricity Bendix

Tricity Bendix BS 612/2 Manuale utente

Tricity Bendix

Tricity Bendix TBS 734 Guida del prodotto

Tricity Bendix

Tricity Bendix U02135 Manuale utente

Tricity Bendix

Tricity Bendix TBS 605 Manuale utente

Tricity Bendix

Tricity Bendix TRICITY 800 Manuale utente

Tricity Bendix

Tricity Bendix BD 912/2 Manuale utente

Tricity Bendix

Tricity Bendix TBU750 Manuale utente

Tricity Bendix

Tricity Bendix TBS 613 Manuale utente

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente
