Trinahome N6052T Manuale utente

–T Series (N6052T)

Solar Battery Hybrid System

Installation Manual

Version 1.1

N6052T Solar Battery Hybrid System Installation Manual

Content

1. Safety.................................................................................................................... 1

1.1 How to Use This Manual.................................................................................................. 1

1.2 Safety Rules ..................................................................................................................... 1

1.3 Warning Notices Affixed to the Device ........................................................................... 2

1.4 Important Safety Information ......................................................................................... 3

1.5 Disposal ........................................................................................................................... 4

1.6 Exclusion of Liability ........................................................................................................ 4

2. Description............................................................................................................ 5

2.1 General System Description ............................................................................................ 5

2.2 System Connection.......................................................................................................... 6

3. System Installation ................................................................................................ 8

3.1 Unpacking the Device...................................................................................................... 8

3.1.1 Before Unpacking ..................................................................................................... 8

3.1.2 Mounting .................................................................................................................. 8

3.1.3 Packing List ............................................................................................................. 11

3.2 Mounting ....................................................................................................................... 15

3.2.1 Mounting TB5200TH Inverter................................................................................. 15

3.2.2 Mounting Battery Packs ......................................................................................... 16

3.2.3 Mounting Smart Meter .......................................................................................... 18

3.3 System Connection........................................................................................................ 20

3.3.1 Battery Packs Connection....................................................................................... 20

3.3.2 Install DC fuse on battery side................................................................................ 21

3.3.3 Install the decoration board on the battery packs................................................. 21

3.3.4 System cable connection........................................................................................ 22

3.4 Connecting system with higher capacity (over 6kWh).................................................. 23

3.5 Technical Service ........................................................................................................... 24

N6052T Solar Battery Hybrid System Installation Manual

Preface

Published by

Legal Disclaimer

Trina Energy Storage Solutions (Jiangsu) Co., Ltd. (Trinabess)

NO. 2 Tianhe Road, Trina PV Park, New District, Changzhou, Jiangsu,

P.R.China.

Tel: +86 519 8517 6686

T[email protected]

All information in this documentation has been compiled and checked

with most care. Despite of this, faults or deviations cannot be

completely excluded. We assume no liability therefore.

The relevant up-to-date version can be obtained from

http://www.trinaenergystorage.com/

The details of this documentation are the property of Trinabess.

Using and publicizing this documentation, even if only in parts require

the written consent of Trinabess.

N6052T Solar Battery Hybrid System Installation Manual

Read this user manual before you start

Thank you for purchasing our highly reliable and efficient hybrid solution . This TB5200TH hybrid

system is rated IP65 inverter and IP21 battery packs, which is rated for dusty or humid environments

and is only suitable for indoor installation.

If you are reading the electronic version of the manual, please note that you can click the content to

find information you want quickly. All underlined characters are clickable. A phrase named ‘Back to

Top’at the bottom of each chapter can help you go back to the first page quickly.

Before using this device, please ensure that you have read this manual including installation and safety

operation carefully.

If you have any difficulity during installation or operation, please refer to this manual or send email to

T[email protected], we will help to solve your problems as soon as possible.

N6052T Solar Battery Hybrid System Installation Manual

1. Safety

1.1 How to Use This Manual

Please read the safety instructions in this manual first. Throughout the manual it is assumed that the

reader is familiar with AC and DC installations and knows the rules and regulations for electrical

equipment, as well as for connecting it to the utility grid. It is especially important to be familiar with

the general safety rules for working with electrical equipment.

This manual is intended for qualified electricians only.

1.2 Safety Rules

General introduction

The following warning notices are adopted in safety related guidelines to describe the various risk

grade:

Death or severe personal injury will occur.

DANGER

Death or severe personal injury may occur.

WARNING

Personal injury or material damage may occur.

CAUTION

Explanations

Electric Shock!

Do not open the device! Dangerous voltage may still be applied inside the

device even after it has been switched off.

ELECTRIC SHOCK!

N6052T Solar Battery Hybrid System Installation Manual

High leakage current!

Make absolutely sure you have established earthing system before

connecting the device to the supply circuit!

WARNING

Health risk!

Health risk for persons with cardiac pacemakers, metallic implants and

hearing aids in the immediate vicinity of electrical equipment!

WARNING

Risk of improper handling!

Personal injury mechanically by crushing, shearing, cutting or striking.

CAUTION

Cancellation of the operating license!

If the inverter is operated with the wrong country code, the power supply

company may cancel the operating license.

CAUTION

Hot surface!

Surfaces of the housing can be hot! Risk of injury! Risk of burns.

The housing top and the heat sinks may have a surface temperature up to

70°C .

HOT SURFACE!

1.3 Warning Notices Affixed to the Device

N6052T Solar Battery Hybrid System Installation Manual

1.4 Important Safety Information

The following operating and maintenance instructions must be read before installing, operating or

maintaining the inverter.

Before installation:

Check for damage on the device and package. If you are in doubt, please contact us or the distributor

before installing the device.

Before connecting the solar modules or battery packs with the product, please check the voltages and

make sure they are within the limits of the Trina inverter specifications. Failure to observe these

specifications could void your warranty.

Installation:

Only trained and qualified personnel familiar with local electrical codes may work with the electrical

installations. For optimum safety, please follow the steps described in this manual.

Disconnecting the product:

Please refer to “Disconnecting for maintenance”. Note that, after disconnecting the hybrid inverter

from power grid, PV panels and battery packs, wait at least 15 minutes before the next proceeding.

Operating the product:

Do not commission the device until the whole system complies with the application-specific national

rules and safety regulations.

The ambient conditions given in the product documentation (data sheet) must be observed.

The device manufacturer or installer is responsible for compliance with the limit values as prescribed

in the national regulations.

Only persons who are trained and qualified for the use and operation of this device are allowed to

work on the device.

Maintenance and modification:

Only authorised personnel are allowed to repair or modify the inverter. To ensure optimum safety for

user and environment, only the original spare parts available from your supplier should be used.

Functional safety parameters:

Unauthorised changes of functional safety parameters may cause injury or accidents to people or

N6052T Solar Battery Hybrid System Installation Manual

inverter. Additionally it will lead to the cancellation of all inverter operating approval certificates.

1.5 Disposal

Please dispose the package and replaced parts according to the rules applicable

in the country where the device is installed. Do not dispose the inverter with

normal domestic waste.

1.6 Exclusion of Liability

Trina will not be liable for any direct, indirect or consequential damages, losses, costs or losses

including without restriction any economic losses of any kind, any loss or damage to property, any

personal injury, any damage or injury arising from or as a result of misuse or abuse, or the incorrect

installation, integration or operation of the product. We disclaim any liability for direct or indirect

damages due to:

1. Improper installation or commissioning,

2. Modifications, alterations or repair attempts,

3. Inappropriate use or operation,

4. Insufficient ventilation of the device,

5. Non-compliance with relevant safety standards or regulations,

6. Flood, lightning, overvoltage, storm, fire (acts of nature).

We do not assume any liability for an incorrect country code setting.

We reserve the right to make alterations that will improve device function.

N6052T Solar Battery Hybrid System Installation Manual

2. Description

2.1 General System Description

TB5200TH system is a solar battery hybrid system designed for the initial PV installation.

Figure 1 TB5200TH hybrid system

The system includes three main parts: hybrid inverter (with integrated EMS), Li-ion battery packs and

smart meter.

Figure 2 TB5200TH system main parts

N6052T Solar Battery Hybrid System Installation Manual

A) TB5200TH hybrid inverter

The TB5200TH hybrid inverter converts the DC power generated by PV modules to AC power. During

the daytime, the PV power will be first used by the household load, then the surplus be charged into

battery packs for later use. Any further surplus PV power will be fed into public grid.

During the nighttime, the TB5200TH hybrid inverter will discharge the battery to supply the load.

B) Battery Packs

Battery packs store the energy generated from the hybrid inverter. Each battery module capacity is 3

kWh, the system capacity is extendable by adding more battery modules; one standard system

consists of two such battery modules.

C) Smart meter

The bi-directional smart meter is used for data collection and communication. With the meter data,

the hybrid inverter decides when to charge/discharge the battery packs.

2.2 System Connection

The three main parts are connected as displayed in Figure3~5, which can optimise solar energy

self-use and realise peak shaving. The user can select the connection mode based on the actual PV

system.

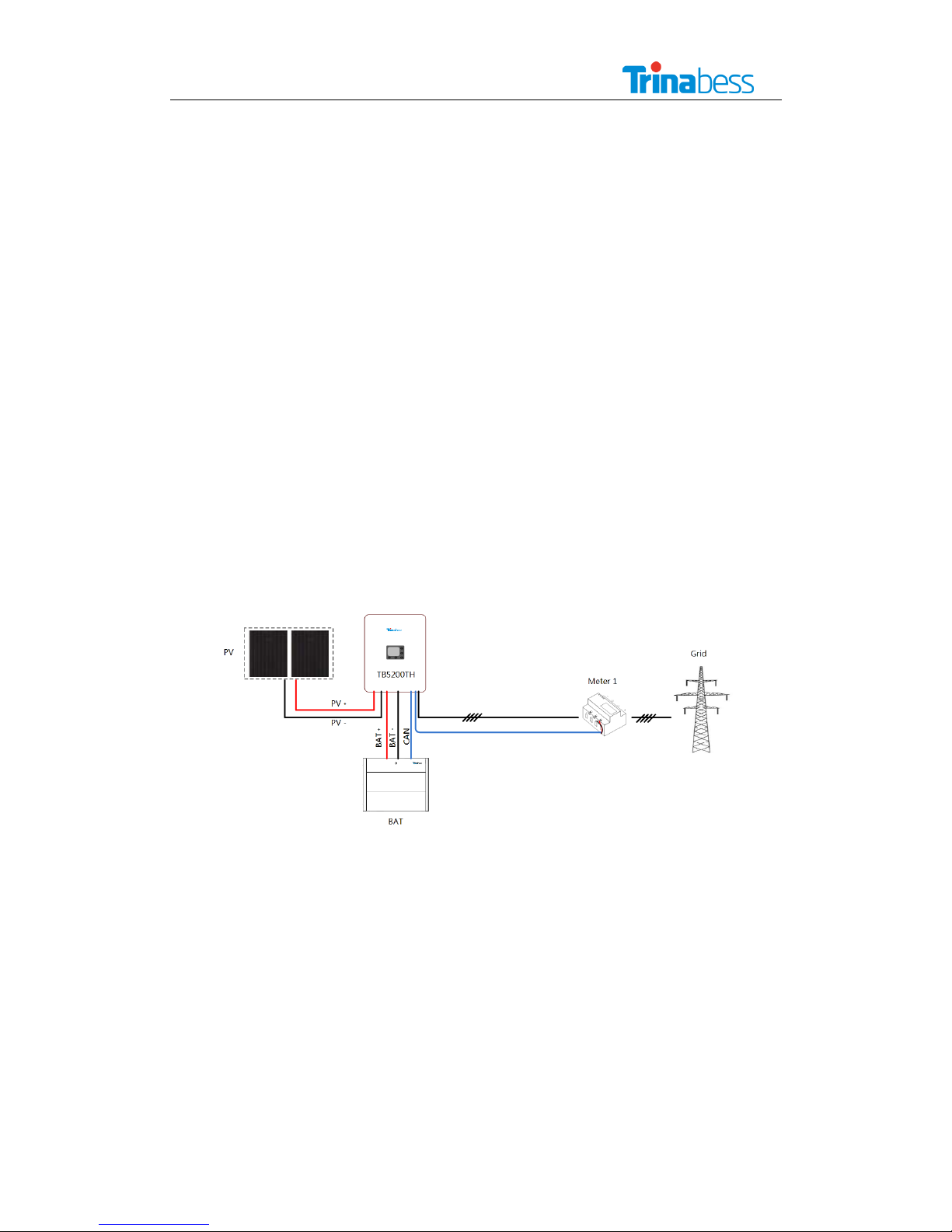

Figure 3 DC Coupling System
