OWNER’S MANUAL
TRINITY DOUBLE-SIDED MOBILE BIN RACK
Model # TXK-1701
Everything in its place.®
© 2016 TRINITY - 800.985.5506
1
Your TRINITY Double-Sided Mobile Bin Rack should include the following parts. Please inspect
box contents to ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact
TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be
requested online at www.trinityii.com (Help & More, Contact Us).
A Phillips head screwdriver is required.
BOTTOM SHELF (1)
w/ CASTERS
A
TOP SHELF (1)
B C
HANGING BAR
SUPPORT (1)
G
E
POST (2)
W/ SCREWS
LARGE
SCREW (20)
F
HANGING BAR (7)
PARTS LIST
D
POST SUPPORT (4)
H
SPLIT
WASHER (20)
I
FLAT
WASHER (20)
J
SMALL
SCREW (7)
K
SMALL BIN (64)
L
MEDIUM BIN (30)
© 2016 TRINITY - 800.985.5506 2
ASSEMBLY INSTRUCTIONS
Secure a diagonal POST SUPPORT(D)
to each side of the POSTS (C) with the
LARGE SCREWS (G), SPLIT
WASHERS (H) and FLAT WASHERS (I).
Screw one end of each diagonal POST
SUPPORT (D) into the POST (C) and the
other end into the BOTTOM SHELF (A).
Insert both POSTS (C) into the BOTTOM
SHELF (A). Make sure that the screws on
the POSTS (C) are facing INWARD, and
that the “UP” sticker end of the POST (C)
is at the top. Line up the nuts on the
POSTS (C) with the holes on the side of
the BOTTOM SHELF (A). Insert a LARGE
SCREW (G) through SPLIT WASHER (H)
then FLAT WASHER (I) and hand fasten
to nut on the POSTS (C). Loosely secure
both POSTS (C). Do NOT tighten
completely until STEP 4.
STEP 1
STEP 2
H (6) I (6)
C (2)
C
A
A (1)
D
G
I
G (6)
H
D (4) H (8) I (8)
G (8)
G
I
H
Phillips
© 2016 TRINITY - 800.985.5506
3
ASSEMBLY INSTRUCTIONS
Loosen the screws on the inside of both
POSTS (C) so that the HANGING
BARS (E) can be inserted. Starting with
the lowest BAR (E), insert all BARS (E)
in the same direction.
The "L" (left) stickers on the HANGING
BARS (E) indicate proper positioning
so that the HANGING BAR SUPPORT
(F) can be properly installed in Step 5.
Slide the HANGING BARS (E) in, and
then down as shown. Tighten the
screws on both POSTS (C).
STEP 3
E (7)
E
Slide the TOP SHELF (B) onto the top of
both POSTS (C) and secure it with the
LARGE SCREWS (G), SPLIT
WASHERS (H) and FLAT WASHERS (I)
on both sides.
Tighten all LARGE SCREWS (C),
including LARGE SCREWS (C) at the
bottom of POSTS (C) from STEP 1.
STEP 4
B (1) H (6) I (6)
G (6)
BG
IH
ASSEMBLY INSTRUCTIONS
Attach the HANGING BAR SUPPORT (F)
to the HANGING BARS (E) with the
SMALL SCREWS (J). The HANGING
BAR SUPPORT (F) should be flush
against the HANGING BARS (E), and the
U-shaped channel should be facing out.
The "UP" sticker indicates proper
positioning.
STEP 5
J (7)
J
Secure each BIN (K+L) in place
by pressing one thumb against
the inside back of the BIN (K+L)
and press firmly onto the
HANGING BAR (E) until the
back lip of the BIN (K+L)
catches the top of the
HANGING BAR (E). Be sure to
place the rows of BINS (K+L)
from the bottom up. The
SMALL BINS (K) belong on the
top (4) HANGING BARS (E),
while the MEDIUM BINS (L)
belong on the bottom
HANGING BARS (E).
Note: Do NOT load items into
BINS (K+L) before hanging on
Rack.
STEP 6
© 2016 TRINITY - 800.985.5506 4
F (1)
F
L (30)
K (64)
K
L

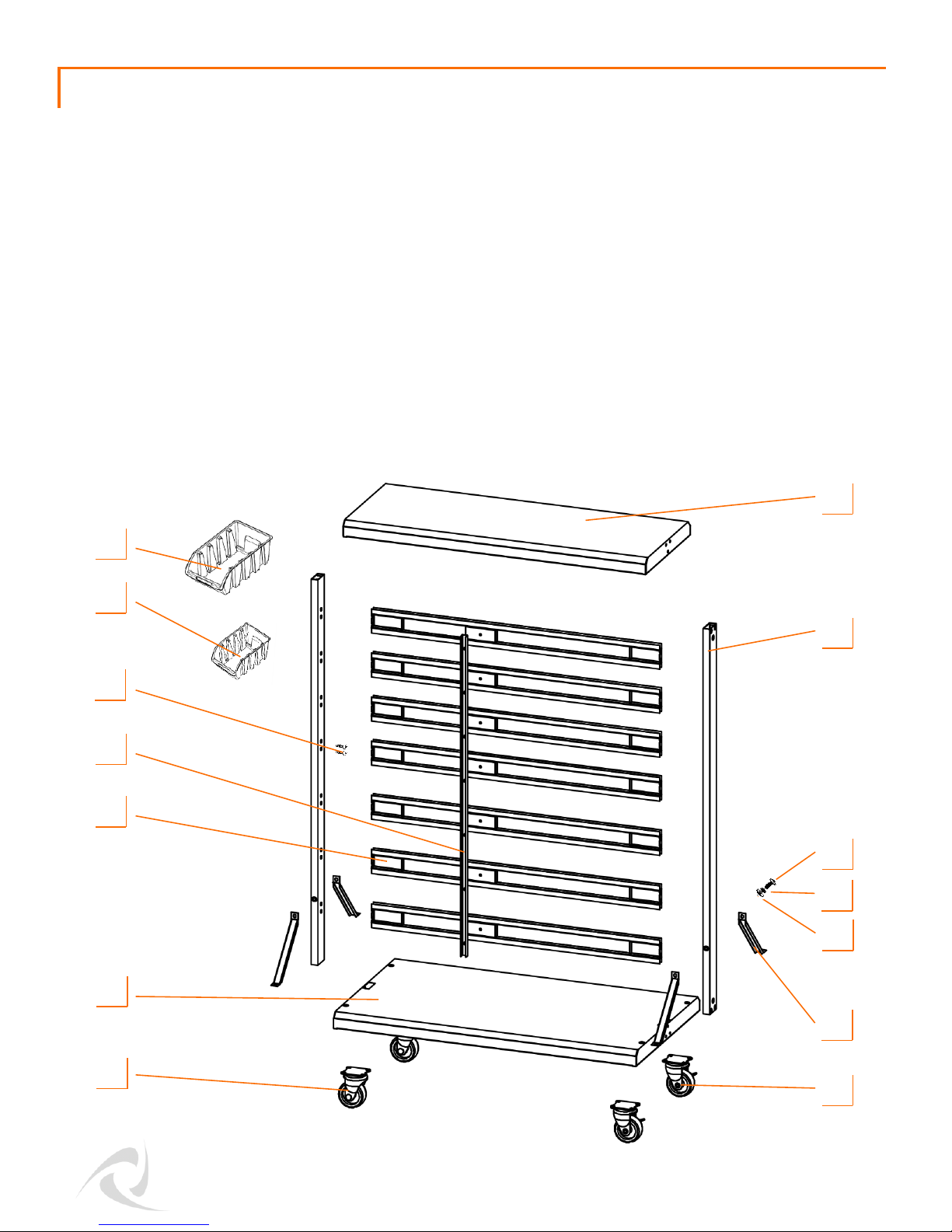

SERVICE PARTS LIST –TXK-1701
Part Number Description Part Number Description
1) PBK-03-015-3614 Top Shelf 8) ZSV-99-002-3010 Non-locking Caster
2) PBK-04-016-4475 Post 9) PBK-03-016-3620 Bottom Shelf
3) ZBK-01-004-0615 Large Screw 10) PBK-13-005-3375 Hanging Bar
4) XSV-01-020-0608 Split Washer 11) PBK-19-002-3725 Hanging Bar Support
5) XSV-01-019-0612 Flat Washer 12) ZBK-01-004-0410 Small Screw
6) PBK-19-001-0900 Post Support 13) XOR-21-007-0403 Small Bin
7) ZSV-99-004-3010 Locking Caster 14) XGR-21-007-0605 Medium Bin
TRINITY Customer Service provides the following replacement parts:
6
2
10
9
1
5
8
© 2016 TRINITY - 800.985.5506
5
4
3
7
11
12
13
14
WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in
injury and/or damage.
2. The warnings, cautions, and instructions discussed in this manual cannot cover
all possible conditions or situations that may occur. The user must always be
aware of their environment and ensure that they use the product in a safe and
responsible manner.
3. Do NOT modify the product in any way. Unauthorized modification may impair the
function and/or safety of the product, and may affect the life of the product.
4. Check for damaged parts. Before using this product, carefully check that all parts are
in good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the
operation of this product. Replace damaged or worn parts, and never use this product
with a damaged part.
5. Store the bin rack in a secure place out of the reach of children when not in use.
6. If storing the bin rack for a long time, unload the bins to prevent cracking over
time.
7. Do NOT overload the product.
CARE AND MAINTENANCE
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
•Do not use scouring pad for cleaning.
•Keep the bins, shelves and rack dry, clean, and free from oil and grease.
•Use only identical replacement parts for the bin rack. Parts that may be suitable for
one tool may create a risk of injury when used with another tool.
Small Bin capacity 2 lb
Medium Bin capacity 4 lb
Total weight capacity 330 lb
© 2016 TRINITY - 800.985.5506 6
© 2016 TRINITY - 800.985.5506
7
Thank you for purchasing a TRINITY Double-Sided Mobile Bin Rack. In order to register your
product and receive streamlined customer service, please fill out the following Product
Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration
Form online at www.trinityii.com or (3) scan and email the form to
customerservice@trinityii.com. Include a copy of your original receipt with your submission.
First Name: Last Name:
Address:
City: State: Zip Code:
Email Address: Phone:
Product Model #: TXK-1701 Purchase Date: / /
Location of Purchase:
Please rate the importance of each feature (1=least important; 10=most important)
Quality Price Size/Capacity Appearance Other
How did you hear about our product?
Magazine Ad Catalog Salesperson Word of Mouth
Internet Store Display Other
Marital Status: Single Married
Household Income: Below $50,000 $50,000-$150,000 $150,000+
Education: High School College Graduate School
Primary Residence: Own Rent
Comments/Suggestions:
PRODUCT REGISTRATION
© 2016 TRINITY - 800.985.5506 8
