Trion Air Bear Series Guida

247381-001 05-09

Air Bear

Right Angle

Media Air Cleaner

Installation Operation Maintenance

Caution

Read Installation, Operation and Maintenance Instructions

Carefully For Safe Operation

Air Bear Right Angle

Unit Model Number

Replacement Filter

Cartridge Part

Number

Number Of

Filters

Per Carton

Flter Cartridge

Size (Inches)

MERV 8 447380-002 255649-102 3 5 X 19 3/4 x 24 1/4

MERV 11 459202-001 259112-102

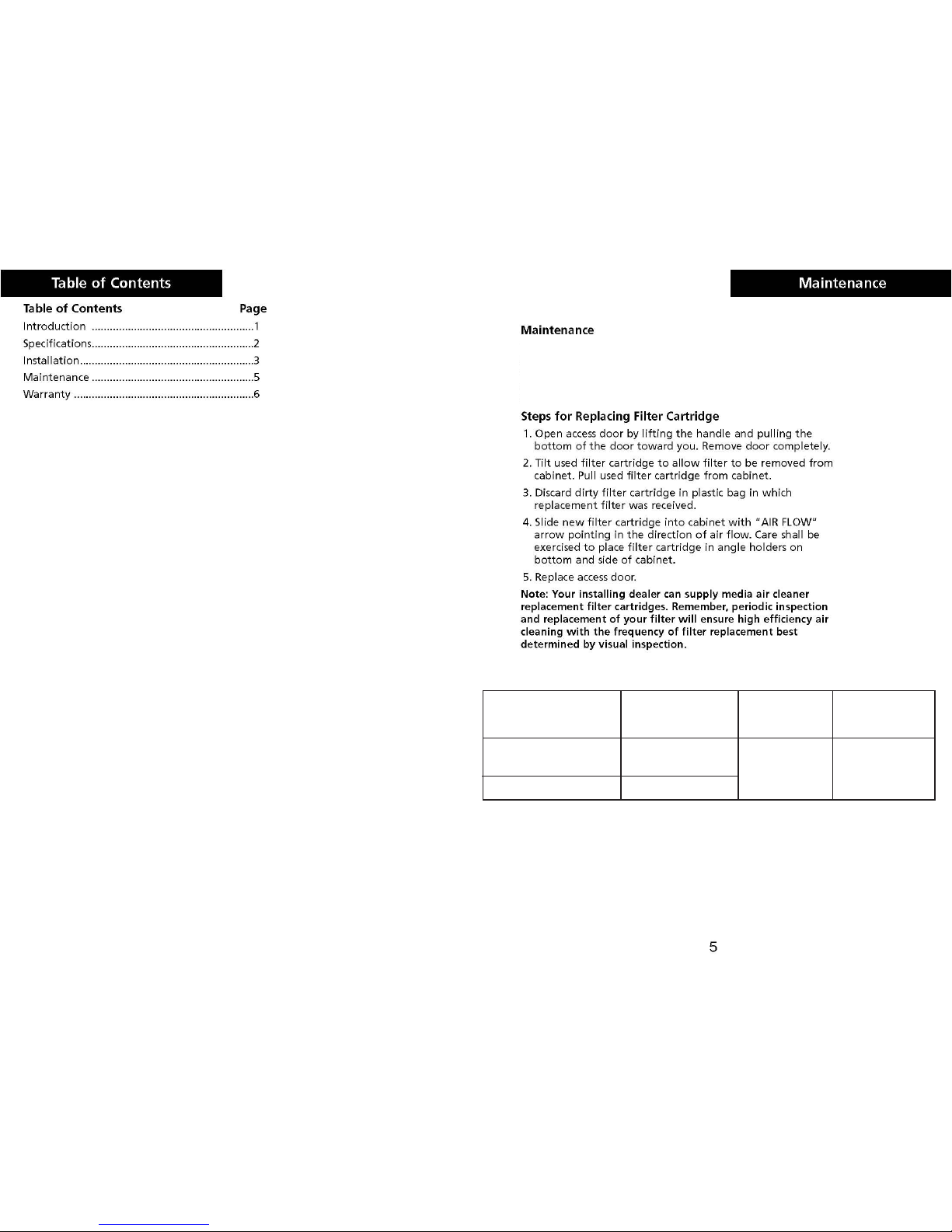

The lter cartridge in the air cleaner must be replaced periodi-

cally. The frequency of lter replacement is best determined

by visual examination. On average, MERV 8 lter cartridges

should be replaced over 9-12 months and MERV 11 lter

cartridges, every 4-6 months of normal usage.

Air Bear Right Angle

Unit Model Number

Replacement Filter

Cartridge Part

Number

Number Of

Filters

Per Carton

Flter Cartridge

Size (Inches)

MERV 8 447380-002 255649-102 3 5 X 19 3/4 x 24 1/4

MERV 11 459202-001 259112-102

.187”

Filter Resistance To Air Flow

Air Flow

(CFM)

Pressure Drop

(Inches Water Guage)

MERV 8 MERV 11

600 0.04 0.05

800 0.07 0.08

1000 0.09 0.10

1200 0.11 0.13

1400 0.14 0.17

1600 0.17 0.21

1800 0.20 0.26

2000 0.23 0.31

Application

The air cleaner is to be installed in a forced air

heating, cooling and ventilating system. It should be

installed in the system such that all the system air is

circulated through the air cleaner. Maximum perfor-

mance is obtained when the system blower is set for

continuous operation.

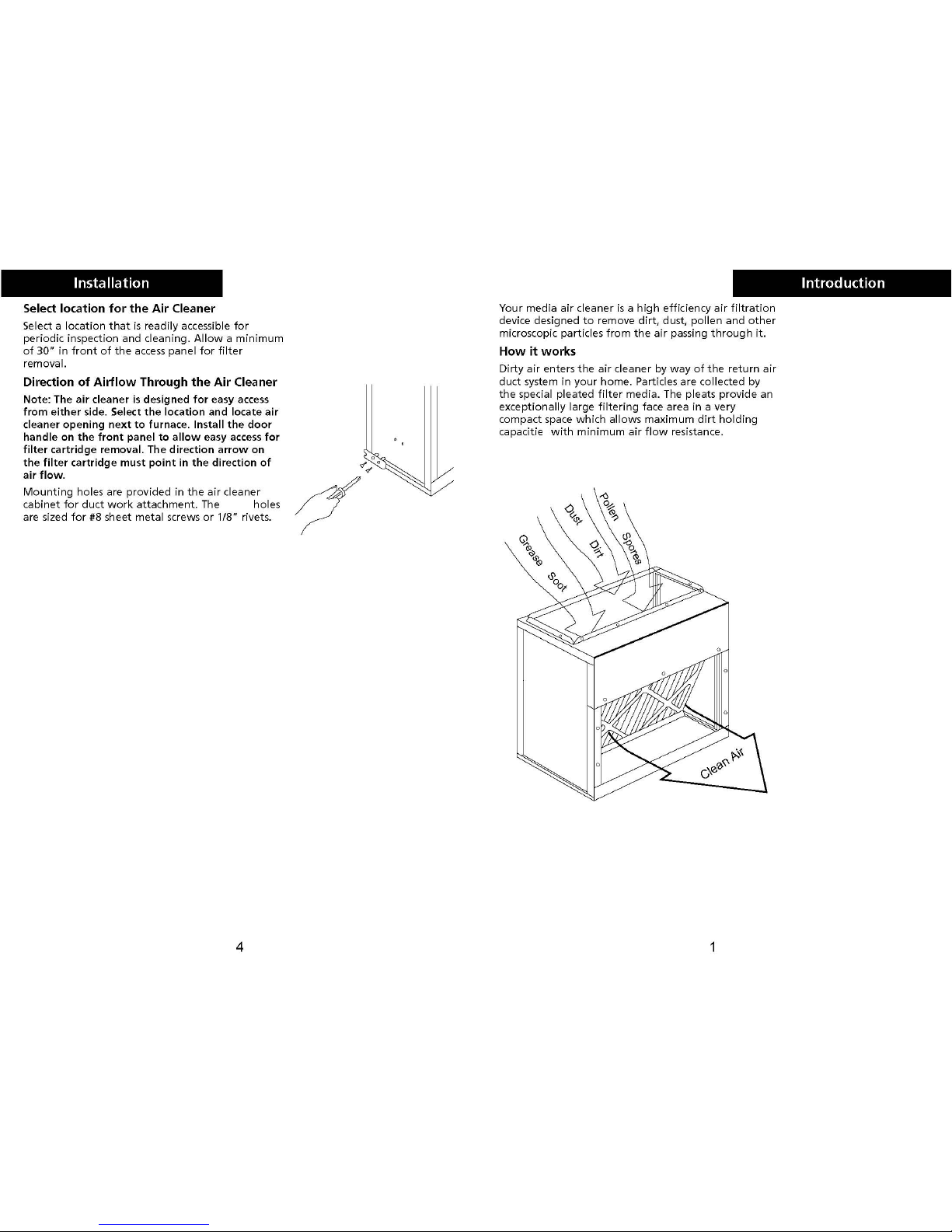

Installation Requirements

Locate the air cleaner in the return air duct next to

the blower compartment. In this location, the blower

motor and the cooling coils will be kept clean. Do

not install the air cleaner in the discharge air

duct. Do not install the air cleaner where it is

directly exposed to UV Lighting.

The unit must be readily accessible for

periodic inspection and replacement of the lter

cartridge to maintain maximum efciency and trou-

ble-free operation. A clean coil will reduce utility cost

by maintaining the coil’s efciency. Failure to replace

the lter cartridge can cause damage to the cooling

system. Allow a minimum of 30” clearance in front of

the access panel for lter cartridge replacement.

Air Cleaner Installation and Maintenance

This right angle media air cleaner has been

designed specically for highboy furnaces with

direct installation to the heating and cooling system

return air duct.

The duct opening of the air cleaner is supplied with

an adjustable inlet ange.

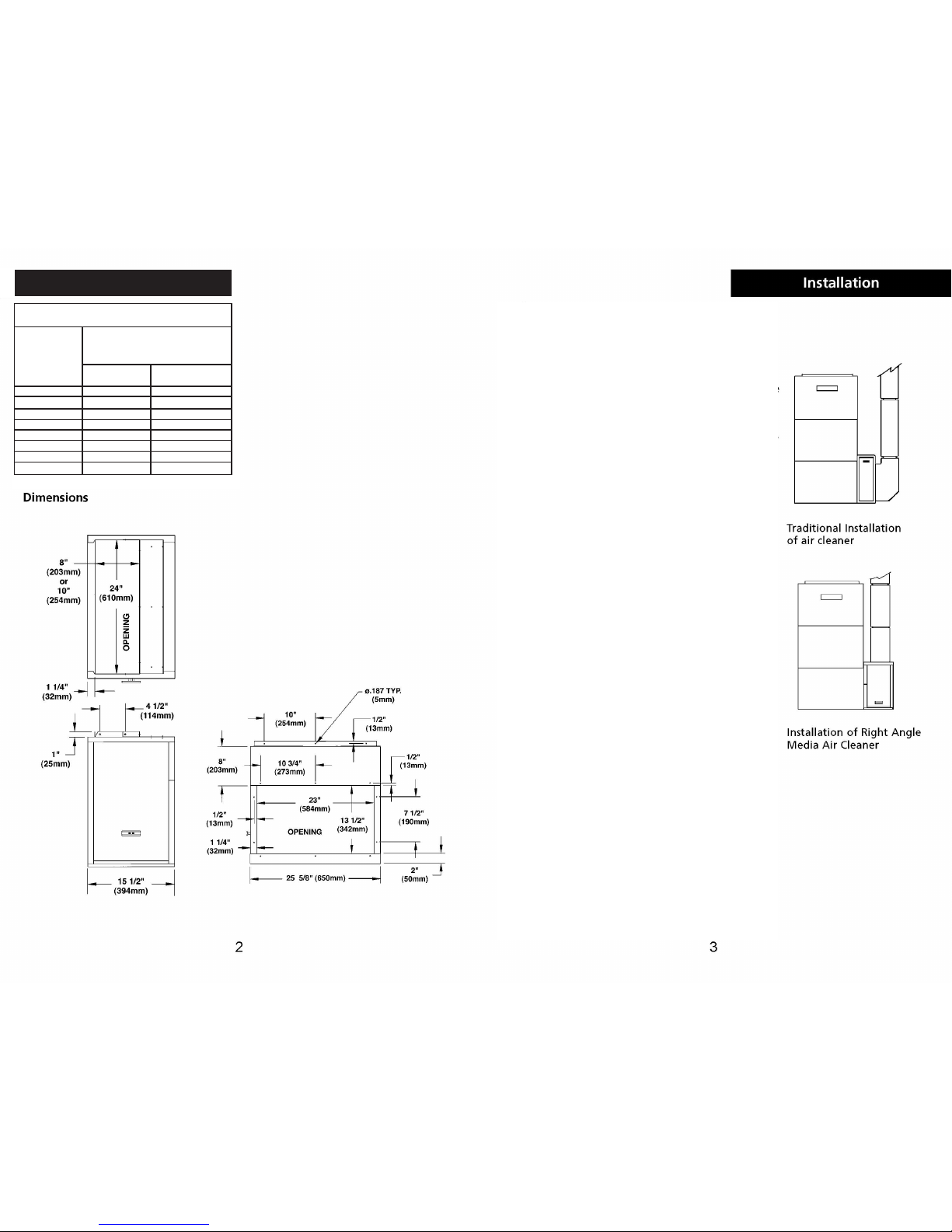

The unit is shipped with the ange set at 24”x 8”. If

the incoming duct is 24”x 8”, attach the duct directly

to the ange and secure with sheet metal screws

through the pre-drilled holes.

If the ange requires adjustment to 24”x10”, remove

the ve #6 sheet metal screws securing the ange

to the cabinet. Adjust ange to 24”x10” and secure

with screws. Proceed with installation.

Specications
