Trion HE Plus 1400 Manuale utente

Residential & Light Commercial HVAC

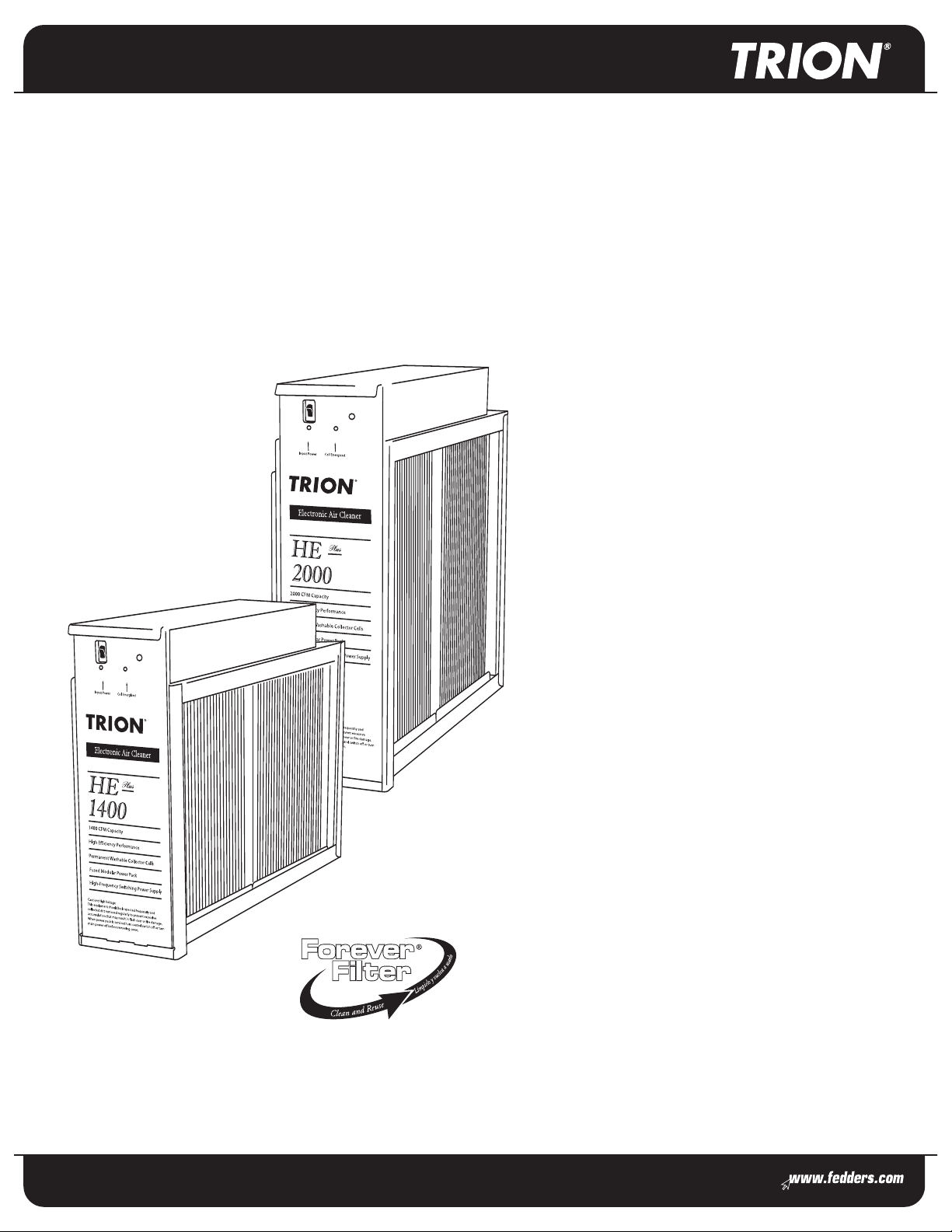

HE Plus

1400/2000

Electronic Whole-House Air Cleaners

PERFORMANCE:

Rated air flow up to 2000 cfm

Tested in accordance with ANSI/ASHRAE

52.1-1992

Aluminum mesh pre-filter traps large particles

such as dirt, lint and pet hair

FEATURES:

The strongest, most reliable power supply and

the sturdiest cell in the industry – recognized by

dealersnationwide

Forever Filter® never needs replacing – just clean

and reuse

Connects directly to heating or cooling system

Permanent, washable aluminum collection cells

deliverlongerservice life and are easy-to-clean

Greater overall HVAC system efficiency because

units keep cooling coils clean

Electronic airflow sensor – standard on HE Plus

1400/2000 models. Automatically senses air

movement within the duct, resulting in reduced

powerusage.

Built-in internal fuse protects the 24V transformer

in the event of a power supply failure

All units are UL/C-UL listed and are easily

converted to 240V

Ruggedcabinet construction for long life

Optional charcoal after-filter greatly reduces

common household odors

9/16

MODEL HE PLUS 1400—16x25 HE PLUS 1400—20x20 HE PLUS 2000—20x25

SKU NUMBER 633-2703 633-2706 633-2705

Part No. 455601-001 455603-001 455600-001

Max. Capacity 1400 cfm (2379

m3/hr)

1400 cfm (2379

m3/hr)

2000 cfm (3398

m3/hr)

Cell Weight (2) 10 lbs. (4.5 kg) each (2) 9 lbs. (4.1 kg) each (2) 12 lbs. (5.4 kg) each

Unit Weight 32 lbs. (14.5 kg) 35 lbs. (15.9 kg) 36 lbs. (16.3 kg)

Electrical Input 120 V, 50 Hz / 60 Hz, 1 ph 120 V, 50 Hz / 60 Hz, 1 ph 120 V, 50 Hz / 60 Hz, 1 ph

Electrical Output 2.5 mADC 2.5 mADC 3.2 mADC

Dimensions — inches (mm)

A20 1/4 (514) 24 1/4 (616) 24 1/4 (616)

B13 7/8 (352) 17 7/8 (454) 17 7/8 (454)

C16 15/16 (430) 20 15/16 (532) 20 15/16 (532)

D22 1/2 (572) 19 (483) 22 1/2 (572)

E24 7/8 (632) 21 3/8 (543) 24 7/8 (632)

F71/8 (181) 7 1/8 (181) 7 1/8 (181)

G21 7/16 (545) 18 5/8 (473) 2 17/16 (545)

HE Plus 1400/2000

Trion

101 McNeill Road

Sanford, NC 27330

Phone: 800 884-0002 Fax: 800-458-2379

www.trioninc.com

Form No. T-ABS-1206

All product specifications reflect available information at the printing

of this brochure. Trion reserves the right to revise or modify products

Trion is a registered trademark of Trion, Inc. TR-014-1206
