Owner’s Manual

HDMI over IP 4K Extender Transmitter

with PoE: B162-001-POE

HDMI over IP 4K Extender Receiver

with PoE: B162-100-POE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Este manual está disponible en español en la página de Tripp Lite: tripplite.com/support

Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

Table of Contents

1. FCC Information 3

2. User Notice 3

3. Package Contents 3

4. Introduction 4

5. Product Features 4

6. Getting Started 7

7. Hardware Setup 8

7.1 Components 8

7.2 Mounting the Device 11

7.3 Connecting the Device 12

8. Panel Operation 14

8.1 Overview 14

8.2 Status LEDs 14

8.3 Panel Controls 15

8.4 Assigning Sources 16

Using the Device Panel

9. Management 16

9.1 Overview 16

9.2 Looking Up the Login IP Address 16

9.3 Logging In and 17

Conﬁguring DVOE Manager

9.4 The Main Screen 20

9.4.1 Apply/Auto Apply 21

9.5 Assigning Sources Using 21

DVOE Manager

9.6 Conﬁguring and Setting Up 24

a Video Wall

9.6.1 Creating a Video Wall Layout 24

9.6.2 Editing a Video Wall Layout 26

9.6.3 Editing a Preview 27

9.7 Proﬁle 27

9.7.1 Creating a Proﬁle 28

9.7.2 Editing, Deleting and 29

Disconnecting a Proﬁle

9.7.3 Select/Apply a Proﬁle 30

9.7.4 Setting Up Proﬁle Schedules 30

9.8 Managing B162 Devices 32

9.8.1 Checking B162 Status 32

10. System Settings 33

10.1 Overview 33

10.2 General Settings 33

10.3 Transmitter Settings 34

10.4 Receiver Settings 36

10.5 Batch Conﬁguration 38

10.6 Maintenance 39

10.6.1 Upgrading Device Firmware 39

10.6.2 Synchronizing All Devices 39

10.6.3 Backing Up Device Settings 40

10.6.4 Restoring Device Settings 40

10.6.5 Recovery Mode 41

10.7 Account Settings 41

11. CLI Commands 42

11.1 Overview 42

11.2 Before You Start 42

11.3 Executing Commands 43

11.4 Commands 44

11.4.1 Guidelines 44

11.4.2 Switching Sources 44

` 11.4.3 Switching Video, USB, 45

RS-232 and/or IR Paths

11.4.4 Disabling Video, USB, 45

RS-232 and/or IR Paths

11.4.5 Displaying Port-Switching Alerts 46

11.4.6 Looking Up System Settings 46

11.4.7 Conﬁguring Video Wall Settings 47

11.4.8 Muting Receivers or Video Walls 47

11.4.9 Disabling a Video Output 48

11.4.10 Enabling or Disabling a 48

Receiver’s OSD Display

11.4.11 Conﬁguring EDID Mode 49

11.4.12 Rebooting the B162 Units 49

11.4.13 Setting the Baud Rate 50

11.4.14 Displaying Device Status 50

12. Important Safety Instructions 51

12.1 General Safety Instructions 51

12.2

Rack-Mounting Safety Instructions

13. Speciﬁcations 52

14. Supported Browsers 53

15. Warranty and Registration 54

1. FCC Information

FCC Notice, Class A

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may

cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required

to correct the interference at his own expense. The user must use shielded cables and connectors with this equipment. Any

changes or modiﬁcations to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate

this equipment.

2. User Notice

All information, documentation, and speciﬁcations contained in this manual are subject to change without prior notiﬁcation by

the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and speciﬁcally disclaims any warranties as to merchantability or ﬁtness for any particular purpose. Any of the

manufacturer’s software described in this manual is sold or licensed as is. Should the programs prove defective following their

purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing,

repair and any incidental or consequential damages resulting from any defect in the software.

The manufacturer of this system is not responsible for any radio and/or TV interference caused by unauthorized modiﬁcations

to this device. It is the responsibility of the user to correct such interference. The manufacturer is not responsible for any

damage incurred in the operation of this system if the correct operational voltage setting was not selected prior to operation.

PLEASE VERIFY THAT THE VOLTAGE SETTING IS CORRECT BEFORE USE.

3. Package Contents

B162-001-POE

• 4K HDMI over IP Extender Transmitter with PoE

• RS-232 Terminal Block

• 5V DC Power Adapter

• (4x) Foot Pads

• Quick Start Guide

Check to ensure all components are present and in good order. If anything is missing or was damaged in shipping, contact

your dealer.

Read this manual thoroughly, and follow the installation and operation procedures carefully to prevent any damage to the

product or to any other devices on the installation.

B162-100-POE

• 4K HDMI over IP Extender Receiver with PoE

• RS-232 Terminal Block

• 5V DC Power Adapter

• (4x) Foot Pads

• Quick Start Guide

4. Introduction

5. Product Features

Lightweight Compression with Ultra-Low Latency

• Delivers visually lossless high-quality video up to 4K @ 30 Hz (4:4:4).

• Ensures stunning quality video using advanced video lossless compression technology.

• Optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens.

• Offers different levels of video compression rate, including Smooth, Balance and High Quality, for users to choose depending

on practical usage.

Power over Ethernet Support

• Place the unit anywhere, including ceilings, without having to install additional power cabling and outlets.

Limitless Scalability and Flexibility

•

Extends AV connections from a simple point-to-point to a multipoint-to-multipoint setup via LAN without distance limitations.

• Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy-chain applications.

• Mix and match the latest 4K displays. Built-in scaler automatically scales up incoming video signal to match the maximum

resolution of the connected display devices.

Collaboration with Control System

•

Integrated solution - compatible with Control System, allowing users to operate B162 extender directly via CLI Telnet or

RS-232 protocol.

•

Effortless operation - one click to operate display, projector, source device and related equipment effectively via touch panel

and keypad.

The Tripp Lite B162 HDMI over IP Extenders deliver visually lossless 4K signals with low latency over long distance via a

standard Gigabit Ethernet switch.

Tripp Lite’s solution is designed to address the challenges that system integrators encounter when implementing AV over IP

solutions. It is an effective, easy-to-use and economical digital signage solution with the following features and advantages:

• Limitless scalability and ﬂexibility

• No complicated IP setup

• No additional server PCs or software required

• Go further for less with daisy-chaining

• Convenient integration and installation

Engineered to meet today’s demands of large-scale, multi-display 4K signal transmission and designed for easy setup and

operation, the B162 HDMI over IP Extenders are ideal for a wide range of environments, such as trade shows, airports,

university campuses, conference centers and shopping centers.

5. Product Features

Note:

• B162 PoE extenders can be installed in combination with PoE Ethernet switches to reduce power cabling and additional

power outlets.

Spontaneous Scheduling Management

• Offers a user-friendly scheduling management function for users to pre-plan the display schedule.

• Provides robust and intuitive scheduling management options to help users manage all events in

the calendar and set events to one-minute intervals.

• Integrates all B162 units to arrange the proﬁle by grouping individual receivers or video walls.

• Multiple proﬁles can be arranged to play in any order over a selected period.

No Complicated IP Setup

• Simple conﬁguration that requires no extensive IT experience or extra learning.

• Effortlessly switches among input sources via top-panel push buttons.

5. Product Features

Web GUI-Based Management: No Additional Server PCs

or Software Required

• Simple access – users can use the browser or IP address to link directly to the DVOE Manager.

Go Further For Less with Daisy-Chaining

• Connects multiple displays through a single port to utilize every port of the Ethernet switch and maximize its value.

• Easily expandable – cabling and system deployment is easy with no huge Ethernet switches and fewer cables needed.

• Recommended for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university

campuses, stations, shopping malls and exhibition centers.

Note:

• Depending on your network architecture, we recommend daisy-chaining up to 30 units.

• For daisy-chain installation setup, only the ﬁrst level supports PoE. All B162 units connected on the second level or above

will need a power adapter.

5. Product Features

Video Wall Support

• Supports up to 8 x 8 video wall (64 displays).

• Supports horizontal or vertical (90° and 270° rotation) display orientation.

• Easily switches layout proﬁles, preview and drag-and-drop video sources via the intuitive web GUI.

Note: If you experience issues related to your network architecture, please contact Tripp Lite for support.

Embedded / De-Embedded Audio Support

• Separate audio signal can be embedded into the HDMI stream (B162-001-POE only).

• Audio stream can be extracted from the HDMI stream and delivered as a separate audio signal (B162-100-POE only).

Multiple Control Channels

• Multiple control methods – the system can be managed via Ethernet or top-panel push buttons.

• USB Connectivity - USB port (USB 2.0) allows connection of devices, such as keyboard, mouse, ﬂash drive,

printer and other USB peripherals.

Note: Each B162 transmitter can be controlled by 4 USB touchscreens connected to B162 receivers.

• Bi-Directional IR Channel – IR transmission is processed one way at a time.

• RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals, such as touchscreens and

barcode scanners.

6. Getting Started

Follow the steps below to install, connect, conﬁgure and get started with your B162 devices:

1. Decide your network architecture and conﬁguration.

2. Mount your B162 devices on walls or racks. For more information, see Mounting the Device.

3. Connect the B162 devices to sources, displays, network and other hardware devices as required. For more information,

see the installation diagrams in Connecting the Device.

4. Use one of the following methods to assign input sources:

• Note: Skip this step if you have a point-to-point setup. In a point-to-point setup, source input is automatically assigned.

• Assign input sources using the device panel. For more information, see Assigning Sources Using the Device Panel.

• Assign input sources using DVOE Manager. For more information, see Logging In and Conﬁguring DVOE Manager.

7.1 Components

Before proceeding to hardware setup:

•Review the safety information regarding the placement of this device in Important Safety Instructions.

•Do not power on the device until all necessary hardware is connected.

B162-001-POE Front View

1HDMI Input – Connects an HDMI cable to the source device.

2Audio Input – Connects an audio cable to the source device’s analog output.

Note: Does not support microphones.

3Bi-Directional IR Port – Connects an IR receiver/transmitter to allow conﬁguration using a remote control.

4RS-232 Serial Port – Connects to a computer for serial control.

5USB-B Port – Connects to the source device.

B162-001-POE Rear View

1LAN Port with PoE – Connects a Gigabit Ethernet cable to the LAN.

2DC Power Jack – Connects the DC Power Adapter to provide power to the transmitter.

7. Hardware Setup

ID NUMBER

POW ER

LINK

4K HDMI Over IP Extender with POE

B162-001-POE

Transmitter

AUDIO

IR USB

RS-232

Tx GND Rx

LAN

ID NUMBER

POW ER

LINK

4K HDMI Over IP Extender with POE

B162-001-POE

Transmitter

AUDIO

IR USB

RS-232

Tx GND Rx

LAN

21 3 4 5

7. Hardware Setup

B162-001-POE Top View

1ID Display Panel – Identiﬁes the unit’s ID number.

2Prev (+)/Next (-) Buttons – Assigns ID numbers on B162 devices,

and assigns the source video (transmitter) for the receiver.

3Link LED – Lights orange to indicate the LAN Port 1 is connected to an Ethernet switch.

4Power LED – Lights green to indicate the unit is receiving power.

B162-100-POE Front View

1USB-A Ports – Connect virtual media or USB peripherals.

2RS-232 Serial Port – Connects to a serial device.

3Bi-Directional IR Port – Connects an IR receiver/transmitter

to allow conﬁguration using a remote control.

4Audio Output – Connects speakers.

5HDMI Output – Connects an HDMI cable to the display.

ID NUMBER

POWER

LINK

4K HDMI Over IP Extender with POE

B162-001-POE

Transmitter

AUDIO

IR USB

RS-232

Tx GND Rx

LAN

IDNUM BER Tx / Rx

4K HDMI Over IP Extender with POE

B162-100-POE

Receiver

LAN

1 2

USB

RS-232

Tx GND Rx

IR AUDIO

OUT

21 3 4 5

1 2

3 4

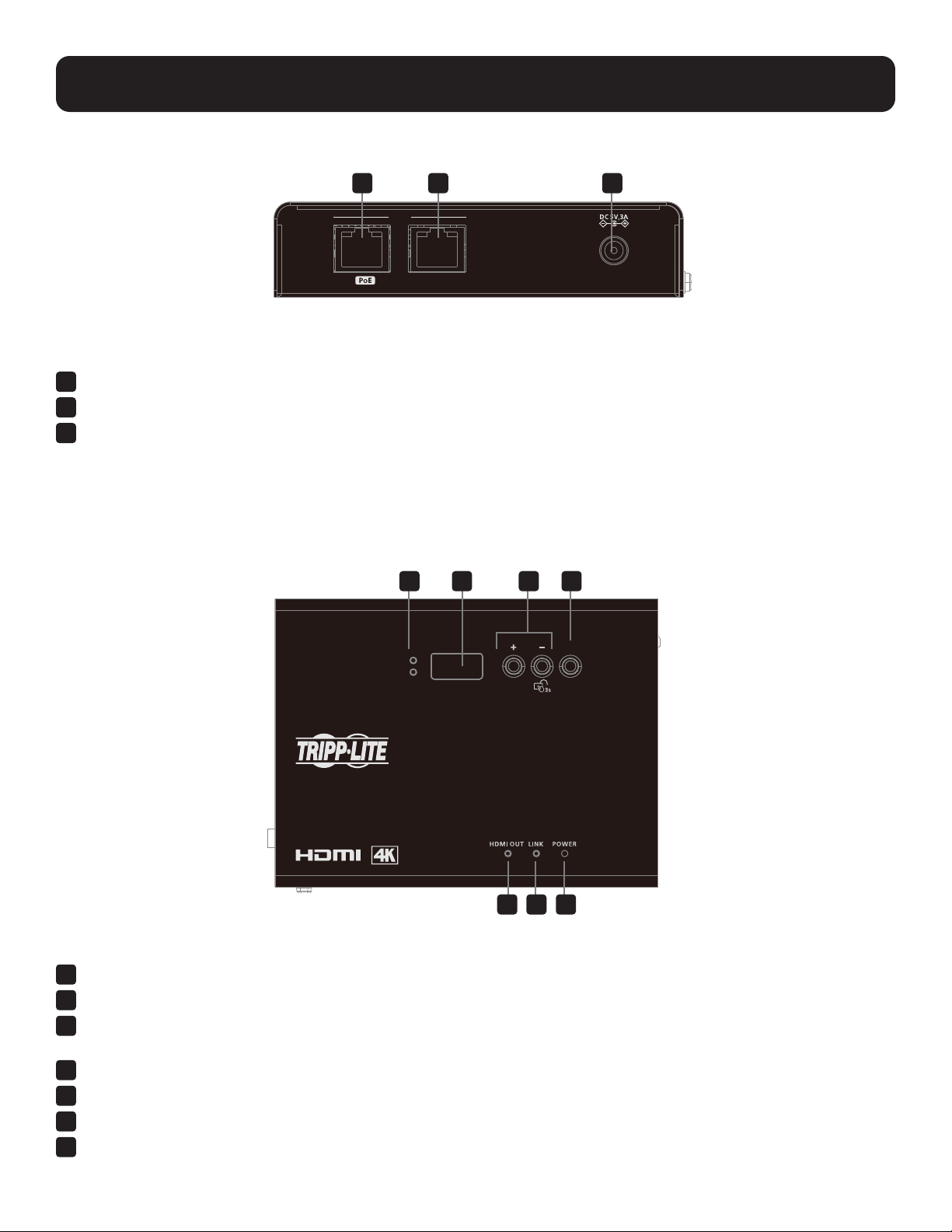

7. Hardware Setup

B162-100-POE Rear View

1LAN 1 Port with PoE – Connects a Gigabit Ethernet cable to the LAN.

2LAN 2 Port (no PoE) – Connects to another B162-100-POE with an Ethernet cable in a daisy-chain setup.

3DC Power Jack – Connects the DC Power Adapter to provide power to the receiver.

B162-100-POE Top View

1Tx/Rx LEDs – Light to indicate whether the displayed ID number is for the transmitter or receiver.

2ID Display Panel – Identiﬁes the transmitter’s or the receiver’s ID number.

3Prev (+)/Next (-) Buttons – Assigns ID numbers on B162 devices,

and assigns the source video (transmitter) for the receiver.

4Tx/Rx Switch Button – Press to switch control between the receiver and its corresponding transmitter.

5HDMI Out LED – Lights orange to indicate a stable video output.

6Link LED – Lights orange to indicate the LAN Port 1 is connected to an Ethernet switch.

7Power LED – Lights green to indicate the unit is receiving power.

IDNU M BER Tx / Rx

4K HDMI Over IP Extender with POE

B162-100-POE

Receiver

LAN

1 2

USB

RS-232

Tx GND Rx

IR AUDIO

OUT

21 3 4

65 7

IDNUM BER Tx / Rx

4K HDMI Over IP Extender with POE

B162-100-POE

Receiver

LAN

1 2

USB

RS-232

Tx GND Rx

IR AUDIO

OUT

21 3

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Tripp Lite Estensione

Tripp Lite

Tripp Lite B120-000-SL Manuale utente

Tripp Lite

Tripp Lite B132-100A Manuale utente

Tripp Lite

Tripp Lite B162-001-POE Manuale utente

Tripp Lite

Tripp Lite B136-100-WP-1 Manuale utente

Tripp Lite

Tripp Lite B130-101A Manuale utente

Tripp Lite

Tripp Lite Cat5 Smart KVM Extender Manuale utente

Tripp Lite

Tripp Lite B132-100-WP Manuale utente

Tripp Lite

Tripp Lite B127-1A1-DH Manuale utente

Tripp Lite

Tripp Lite B122-000-4K6 Manuale utente

Tripp Lite

Tripp Lite B127F-1A1-MM-HH Manuale utente

Tripp Lite

Tripp Lite B130-101-2: B130-101A-2 Manuale utente

Tripp Lite

Tripp Lite B126-1A1-WHD3 Manuale utente

Tripp Lite

Tripp Lite HDMI B122-000-60 Manuale utente

Tripp Lite

Tripp Lite B013-000 Manuale utente

Tripp Lite

Tripp Lite B130-101S-WP Manuale utente

Tripp Lite

Tripp Lite B127M-101-H Manuale utente

Tripp Lite

Tripp Lite B127-1A1-HH Manuale utente

Tripp Lite

Tripp Lite B140-101X-U Manuale utente

Tripp Lite

Tripp Lite B126-1A1 Manuale utente

Tripp Lite

Tripp Lite B126-1A0-U Manuale utente

Tripp Lite

Tripp Lite B164-101-WIR Manuale utente

Tripp Lite

Tripp Lite B140-002-DD Manuale utente

Tripp Lite

Tripp Lite B203-101-IND Manuale utente

Tripp Lite

Tripp Lite B130-202 Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
