Congratulations! You’ve purchased a high-quality inverter designed to

function as a mobile energy source powered by your automotive bat-

tery. Tripp Lite inverters convert 12V DC (battery) power into 120V AC

(household) power, allowing you to use equipment you commonly use

at home—computers, appliances, electronics, power tools and more—

while traveling by automobile or working at remote locations that lack

AC power. Tripp Lite inverters include advanced features that protect

your equipment, lengthen the service life of your battery and ensure

you’ll always have battery power to start your vehicle:

• Automatic Overload Protection

• Automatic Low-Battery Protection

• High-Performance DC-to-AC Inversion

• Frequency-Controlled Output Power

• Simple, Maintenance-Free Operation

• GFCI Protected AC Outlets

• USB 5V 2.0A Charging Port(s)

Important Safety Instructions 3

Feature Identiﬁcation 6

Battery Selection 9

Mounting 10

Battery Connection 14

Operation 18

Troubleshooting/Maintenance 20

Service 23

Warranty & Product Registration 24

Reliable AC Power Wherever You Need It

19-04-283-9338A1.indb 2 5/2/2019 3:49:28 PM

Important Safety Instructions

SAVE THESE INSTRUCTIONS!

This manual contains important instructions and warnings

that should be followed during the installation, operation and

storage of all Tripp Lite Inverters.

Location Warnings

• Install your Inverter (whether for a mobile or stationary application)

in a location or compartment that minimizes exposure to heat, dust,

direct sunlight and moisture.

• Although your Inverter is moisture resistant, it is NOT waterproof.

Flooding the unit with water will cause it to short circuit and could

cause personal injury due to electric shock. Never immerse the

unit, and avoid any area where standing water might accumulate.

Mounting should be in the driest location available.

• Leave a minimum of 2 inches (5 cm) clearance at front and back of

the Inverter for proper ventilation. The heavier the load of connected

equipment, the more heat will be generated by the unit. Any

compartment that contains the Inverter must be properly ventilated

with adequate outside airﬂow to avoid overheating the Inverter.

• Do not install the Inverter directly near magnetic storage media, as

this may result in data corruption.

• Do not install near ﬂammable materials, fuel or chemicals.

• Do not mount unit with its front or rear panel facing down (at any

angle). Mounting in this manner will seriously inhibit the unit’s

internal cooling, eventually causing product damage not covered

under warranty.

19-04-283-9338A1.indb 3 5/2/2019 3:49:28 PM

Important Safety Instructions

Battery Connection Warnings

• Multiple battery systems must be comprised of batteries of identical

voltage, age, amp-hour capacity and type.

• Because explosive hydrogen gas can accumulate near batteries

if they are not kept well ventilated, your batteries should not be

installed (whether for a mobile or stationary application) in a “dead

air” compartment. Ideally, any compartment would have some

ventilation to outside air.

• Sparks may result during ﬁnal battery connection. Always observe

proper polarity as batteries are connected.

• Do not allow objects to contact the two DC input terminals. Do not

short or bridge these terminals together. Serious personal injury or

property damage could result.

• Connect the Inverter to the battery with recommended DC fusing

(see Battery Connection) along with properly sized battery cabling

Ground Connection Warnings

• Safe operation requires connecting the Inverter’s main grounding

screw directly to the frame of the vehicle or earth ground.

Equipment Connection Warnings

Use of this equipment in life support applications where failure of this

equipment can reasonably be expected to cause the failure of the life

support equipment or to signiﬁcantly affect its safety or effectiveness is

not recommended.

• You may experience uneven performance results if you connect a

surge protector, line conditioner or UPS system to the modiﬁed sine

wave output of the inverter.

19-04-283-9338A1.indb 4 5/2/2019 3:49:28 PM

Important Safety Instructions

Operation Warnings

• Your inverter produces a modiﬁed sine wave, not a pure sine

wave. Inductive loads like a refrigerator or drill are not suitable for

long-term use with a modiﬁed sine wave inverter. Otherwise, it may

damage or shorten the working life of the inverter or associated

devices.

• Your inverter does not require routine maintenance. Do not open the

device for any reason. There are no user-serviceable parts inside.

• Potentially lethal voltages exist within the inverter as long as the

battery is connected. During any service work, the battery should

therefore be disconnected.

• Do not connect or disconnect batteries while the inverter is

operating. Dangerous arcing may result.

19-04-283-9338A1.indb 5 5/2/2019 3:49:28 PM

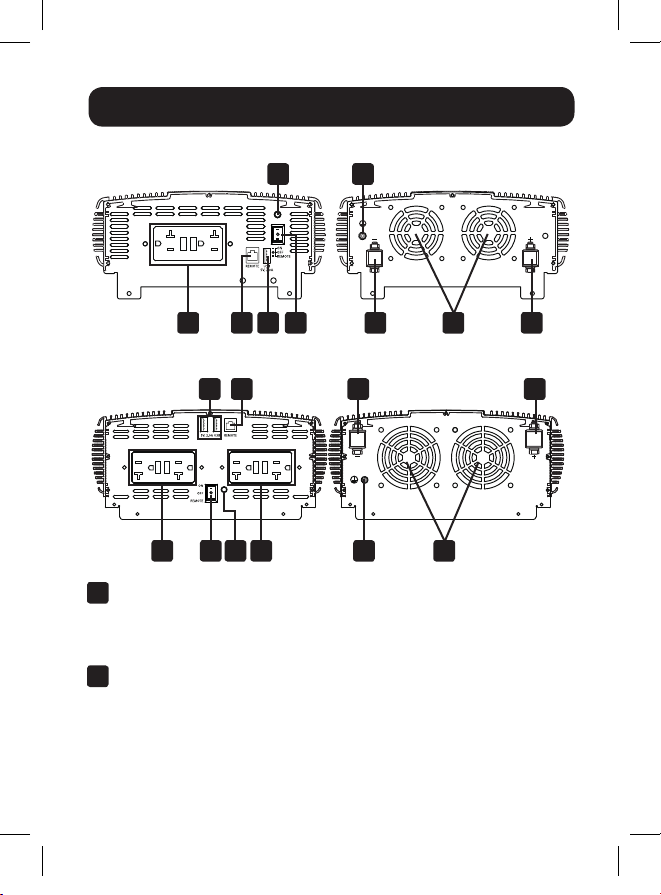

Feature Identiﬁcation

PINV2000

PINV2000HS/PINV3000

AGFCI Protected AC Outlets: NEMA 5-15/20R outlets allow you

to connect equipment that normally plugs into an AC utility outlet.

Enhancing safety, the ground fault circuit interrupter switch trips if

there is excessive current on the ground safety wire.

BUSB Charging: 2.0A USB-A charging port(s) support charging of

mobile phones, tablets and other personal electronic devices.

A C

D G

BH E

A A GC D

B H

19-04-283-9338A1.indb 6 5/2/2019 3:49:30 PM

Feature Identiﬁcation

CON/OFF/REMOTE Switch: When you set the switch to the ON

(I) position, the Inverter provides AC power by converting DC

power from the connected 12V battery system. Set the switch to

the OFF (O) position to shut down the Inverter and conserve the

battery’s charge when you are not using connected equipment.

Also set the switch to the OFF position to reset the Inverter if

it has shut down due to overload or other critical events. Both

inverters are equipped with the capability to extend its ON/OFF

control to a remote location with the included PINVRM remote

panel. The remote provides ON/OFF operation and a status LED

to let you know the inverter is ON. See the Operation section for

more information.

DLED Status Indicators: When the switch is set to the ON

position, the LED system will illuminate green during normal, low

voltage alarm and output short circuit conditions. If there is an

overload, over-temperature, or if a high/low DC voltage shutdown

condition occurs, the LED system will illuminate red.

LED

Operation

Status

Normal

Voltage

(12V)

Low

Voltage

Alarm

Low

Voltage

Shutdown

High

Voltage

Shutdown

Over-

Temperature

Output

Overload

Output

Short

Circuit

Green LED

Status ON ON OFF OFF OFF OFF ON

Red LED

Status OFF OFF ON ON ON ON OFF

Alarm OFF ON ON ON OFF OFF OFF

ETemperature/Load-Controlled Cooling Fan: This fan regulates

the internal temperature of the inverter and prolongs service

life. It will only come on if the temperature or load demand goes

beyond the set thresholds.

FDC Power Terminals: These positive and negative terminals

connect to the battery via the included or user-supplied cabling.

See Battery Connection for instructions.

19-04-283-9338A1.indb 7 5/2/2019 3:49:30 PM

GMain Ground Screw: Connect to an earth ground or a vehicle

grounding system in order to properly ground the inverter. See

Battery Connection for instructions.

HRemote Control Module Connector: All models feature a

6-conductor telephone style jack on the front panel for use with

an optional remote control module (Tripp Lite model PINVRM,

included with all models). The remote module allows the Inverter

to be mounted out of sight in a compartment or cabinet, while

operated conveniently from your vehicle’s dashboard. See

Mounting and Operation sections instructions for use of the

remote control module.

Not Shown:

Audible Alarm: The internal audible alarm activates when either a low

or high DC voltage condition exists.

Feature Identiﬁcation

19-04-283-9338A1.indb 8 5/2/2019 3:49:30 PM

Battery Selection

Match Battery Amp-Hour Capacity to Your

Application

Select a battery or system of batteries that will provide your Inverter

with proper DC voltage and an adequate amp-hour capacity to power

your application. Even though Tripp Lite Inverters are highly efﬁcient

at DC-to-AC inversion, their rated output capacities are limited by the

total amp-hour capacity of connected batteries, plus the output of an

alternator (when one is used).

STEP 1) Determine Total Wattage Required

Add the wattage ratings of all equipment you will connect to your

Inverter. Wattage ratings are typically listed in equipment manuals

or on nameplates. If your equipment is rated in amps, multiply that

number times AC utility voltage to estimate watts. (Example: a drill

requires 2.5 amps. 2.5 amps × 120 volts = 300 watts.)

Note: Your Inverter will operate at higher efﬁciencies around 75% - 80% of

nameplate rating.

Step 2) Determine DC Battery Amps Required

Divide the total wattage required (from Step 1, above) by the battery

voltage to determine the DC amps required, then multiply by 1.2 to

account for conversion losses.

Step 3) Estimate Battery Amp-Hours Required

Multiply the DC amps required (from Step 2, above) by the number of

hours you estimate the equipment will operate exclusively from battery

power before recharging the batteries. This will provide an estimate of

how many battery power amp-hours (from one or several batteries) you

should connect to your Inverter.

Note: Battery amp-hour ratings are usually given for a 20-hour discharge rate.

Actual amp-hour capacities are less when batteries are discharged at faster

rates. For example, batteries discharged in 55 minutes provide only 50% of their

listed amp-hour ratings, while batteries discharged in 9 minutes provide as little

as 30% of their amp-hour ratings.

19-04-283-9338A1.indb 9 5/2/2019 3:49:30 PM

Mounting

WARNING!

Mount your Inverter BEFORE DC battery connection. Failure

to follow these instructions may lead to personal injury and/

or damage to the Inverter and connected systems. Ensure the

inverter never is mounted in a vertical position (fan or outlet side

facing up or down). Mounting an inverter in a vertical position

allows debris to enter the unit and inhibit proper operation of its

cooling system, which can void the inverter’s warranty.

Tripp Lite recommends permanently mounting the Inverter in the

conﬁgurations illustrated below. The Inverter features integral mounting

brackets on the left and right sides of the unit. The user must supply

mounting hardware and is responsible for determining whether

hardware and mounting surfaces adequately support the weight of the

unit.

Use the measurements as shown in the following diagram to install two

user-supplied fasteners to the right or bottom (wall-mount) mounting

slots of the unit, leaving the heads slightly raised. Slide the unit over

the fasteners to engage the mounting slots. Tighten fasteners. Install

and tighten two additional fasteners to the remaining mounting slots

for proper securement.

Flat Surface

Mount

Wall Mount

19-04-283-9338A1.indb 10 5/2/2019 3:49:31 PM

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Tripp Lite Invertitore

Tripp Lite

Tripp Lite PowerVerter Manuale utente

Tripp Lite

Tripp Lite APSX1012SW Manuale utente

Tripp Lite

Tripp Lite PowerVerter PV 1000HF Manuale utente

Tripp Lite

Tripp Lite PowerVerter APS Inverter/Charger APS1250F Manuale utente

Tripp Lite

Tripp Lite PowerVerter APS 1012 Manuale utente

Tripp Lite

Tripp Lite PowerVerter Plus PV 2000FC Manuale utente

Tripp Lite

Tripp Lite PowerVerter 200712159 Manuale utente

Tripp Lite

Tripp Lite PowerVerter MRV2012UL Manuale utente

Tripp Lite

Tripp Lite PowerVerter RV1012UL Istruzioni per l'installazione e il funzionamento

Tripp Lite

Tripp Lite PowerVerter PV700HF Manuale utente

Tripp Lite

Tripp Lite APSWX Series Manuale utente

Tripp Lite

Tripp Lite PINV300SW-120 Manuale utente

Tripp Lite

Tripp Lite PowerVerter APS1524 Manuale di installazione e funzionamento

Tripp Lite

Tripp Lite PowerVerter APSX3024SW Manuale utente

Tripp Lite

Tripp Lite EMS1012UL Manuale di installazione e funzionamento

Tripp Lite

Tripp Lite PINV750 Manuale utente

Tripp Lite

Tripp Lite PowerVerter 200310080 Manuale utente

Tripp Lite

Tripp Lite PowerVerter PV1250FC Manuale utente

Tripp Lite

Tripp Lite PV100USB Manuale utente

Tripp Lite

Tripp Lite PV1000FC Manuale di installazione e funzionamento

Tripp Lite

Tripp Lite PowerVerter RV Inverter/Charger RV750ULHW Manuale utente

Tripp Lite

Tripp Lite PV 400FC Manuale utente

Tripp Lite

Tripp Lite PowerVerter PV375 Manuale utente

Tripp Lite

Tripp Lite PowerVerter APSX3024SW Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
