Tripp Lite SUPDM56HW Manuale utente

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SUPDM56HW

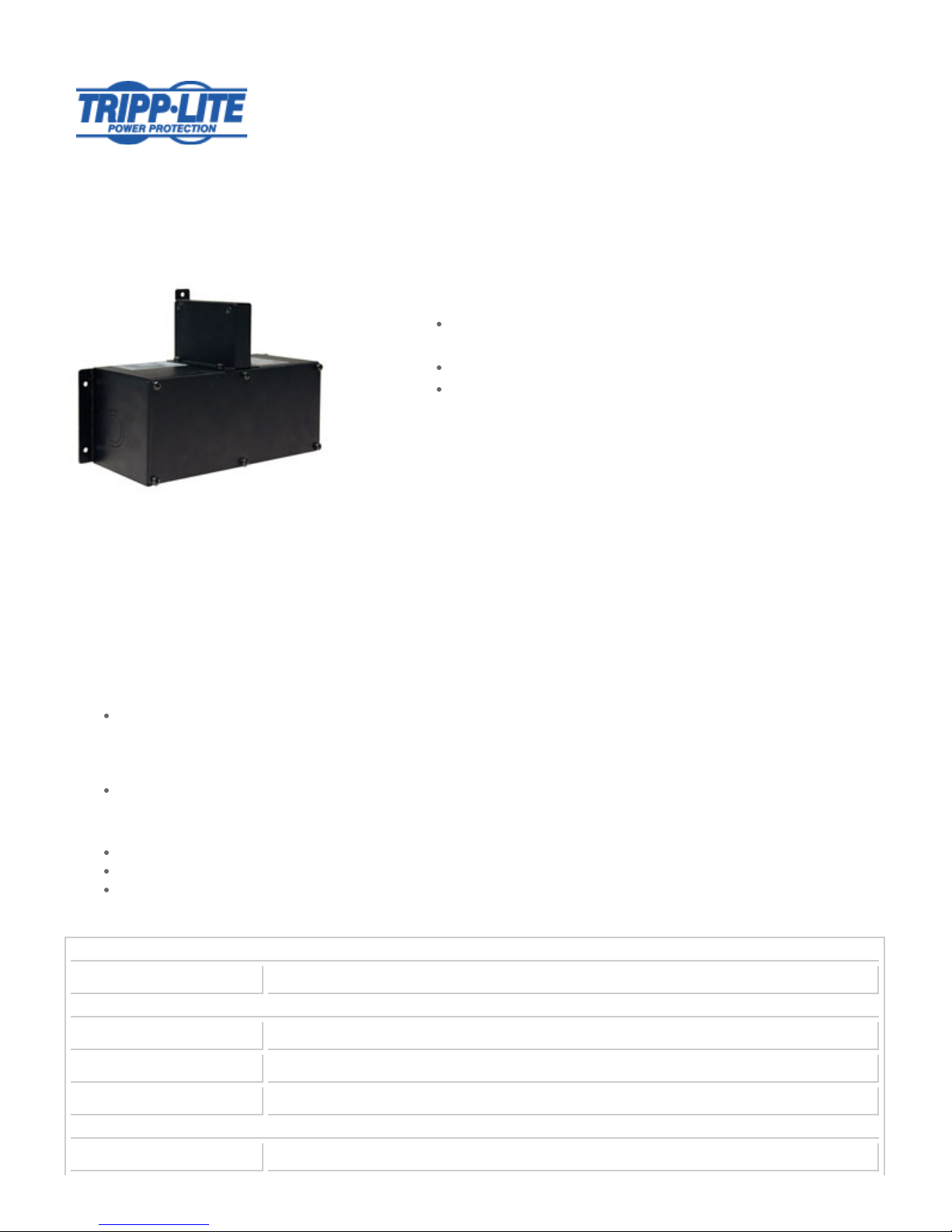

SUPDM56HW - UPS Accessory - Hardwire PDU Module

Highlights

Converts compatible SmartOnline Hot-Swappable Modular UPS systems to

hardwire input and output

For use with input voltages of 120/208 or 120/240 VAC split-phase power

Convenient quick-disconnect terminal block allows installation in minutes

Description

The SUPDM56HW hardwire input/output PDU module converts compatible SmartOnline Hot-Swappable Modular UPS Systems (models

SU5000RT4U and SU6000RT4U) to a totally hardwired solution. Easy quick-connect terminal block allows installation of hardwire distribution

module in minutes. Can accept input voltages of 120/208 or 120/240 VAC split-phase power. Detachable hardwire module allows for effortless UPS

maintenance without the need to power down connected loads and re-wire input/output connections.

Applications

Use with Tripp Lite SU5000RT4U and SU6000RT4U UPS systems in 120, 208/240V applications where hardwire input/output connections

are required

System Requirements

Use with SU5000RT4U and SU6000RT4U split-phase SmartOnline Hot-Swappable Modular UPS Systems

Package Includes

SUPDM56HW hardwire PDU

Mounting Hardware

Owner's Manual

Specifications

OVERVIEW

Model Type PDU Modules

OUTPUT

Frequency compatibility 50 / 60 Hz

Output nominal voltage 120/208, 120/240

Outlet quantity / type Split-phase hardwire (4-wire)

INPUT

Input connection type Split-phase hardwire (4-wire)

Voltage compatibility (VAC) 100-140

PHYSICAL

Shipping weight (lbs) 4

Shipping weight (kg) 1.8

Unit Dimensions (HWD/in) 6 x 8.25 x 3.25

Unit Dimensions (HWD/cm) 15.24 x 21 x 8.3

Shipping Dimensions

(HWD/in)

5.75 x 12 x 10

Shipping Dimensions

(HWD/cm)

14.6 x 30.5 x 25.4

Unit weight (lbs) 2.75

Unit weight (kg) 1.24

Material of construction Steel

SPECIAL FEATURES

Appearance All-black color scheme

CERTIFICATIONS

Certifications Tested to UL1778 (USA), CSA (Canada), RoHS compliant

WARRANTY

Product Warranty Period

(Worldwide)

2-year limited warranty

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=3183.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
