Tripp Lite SRX2 Manuale utente

3. Measure from the bottom of the Mounting Angle to the

top clip nut. Assemble clip nuts onto the three other rails

at the measured height.

Rack Mount Fixed And Roll-Out Shelves

Clip Nuts provide mounting points for rack mount

fixed and roll-out shelves.

Clip nuts have a front or screw side. Consider which

way it should face for ease of access to the screw

head during component installation. (figure 1)

To remove a clip nut from a mounting angle, insert a flat

blade screwdriver or knife under the tab on the front and

pry up, freeing the retaining ring from the mounting

angle. (figure 2)

1. Select the location at which the shelf will be mounted

in the enclosure assembly.

2. Snap one clip nut into the top hole of the selected

location.

(note: When mounting a roll-out shelf, insert a

10-32 screw partially into each clip nut.)

If the weight load will exceed 75 lbs. on a roll-out shelf,

use four clip nuts and screws in each of the brackets.

It will be necessary to select a four-hole grouping that

matches the mounting holes in the brackets. The center

two holes will measure 1/2" apart.

Two screws per bracket, one at the front and one at the

rear, is sufficient if the weight load will be less than

75 lbs.

CLIP NUT INSTALLATION

Rack Mount Fixed And Roll-Out Shelves

Figure 2

Mounting angle

Clip nut

#10-32 x 5/8" Pan

Head Machine Screw

Front or screw side

Clip nut

Figure 1

SRX2, SRX3 and SRX4

Manual Part #93-1937

01/18/02 rev. A

2. Align the shelf with the previously installed

clip nuts and attach the shelf with the 10-32

screws that are provided. Once the screws have

started in all four corners, tighten all of the screws.

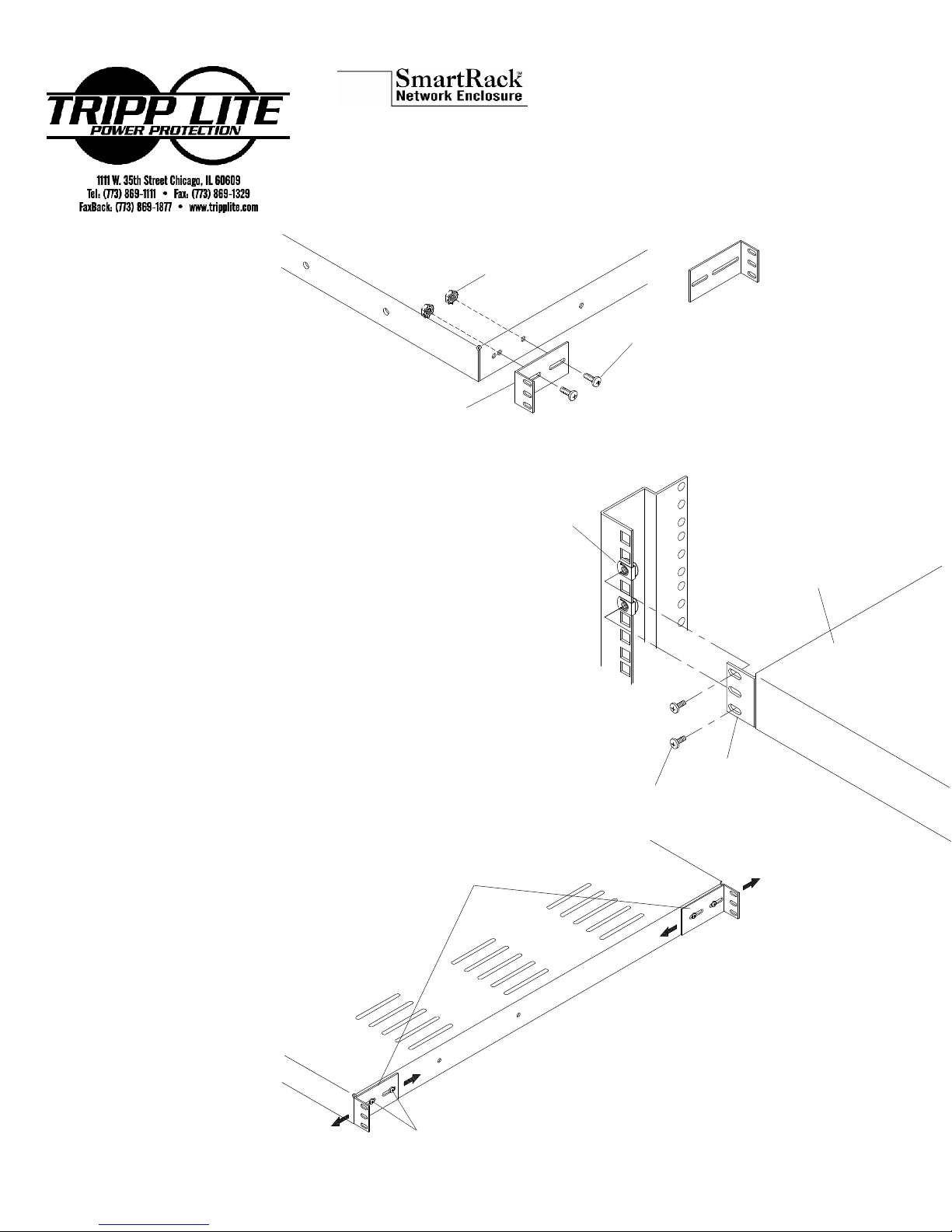

FIXED SHELF ADJUSTMENT

1. To adjust the Fixed Shelf, loosen the bracket screws,

move the brackets, then re-tighten the screws.

(figure 5)

1. Install the front and rear shelf brackets as

shown on both the left hand and on the

right hand side of the shelf.

(figure 3)

FIXED SHELF INSTALLATION Figure 3

Clip nuts

Fixed shelf

#10-32 x 5/8" Pan

Head Machine Screws

Bracket

Shelf brackets

Screws

Shelf bracket

Lock nuts

#10-32 x 3/8" Phillips

Pan Head Screws

Figure 4

Figure 5

Rack Mount Fixed Shelves

SRX2 and SRX3

Manual Part #93-1937

01/18/02 rev. A

Required Tools:

Phillips Head Screwdriver

3/8” Nut Driver (or Socket Wrench)

11/32” Nut Driver (or Socket Wrench)

Fasteners That May Be Required:

#10-32 x 5/8” Phillips

Machine Screw

#10-32 x 3/8” Phillips

Pan Head Screw #10-32 Keps Locking Nut #10-32 Clip Nut

SRX2 & SRX3 Parts List

Item Description Qty.

1#10-32 x 5/8" Screw 12

2#10-32 x 3/8" Screw 8

3#10-32 Keps Locking Nut 8

12#10-32 Clip Nut

Stationary Shelf Bracket

Rack Mount Fixed And Roll-Out Shelves

SRX2, SRX3 and SRX4

Cable Management Arm

(included with SRX4 only)

SRX4 Parts List

Item Description Qty.

1#10-32 x 5/8 Screw 16

2#10-32 Clip Nut 16

3Slide Bracket 2

1Warning Label

#8-32 x 3/8 Screw

6#8-32 Keps Locking Nut

7Cable Management Arm

#8-32 x 3/8" Phillips Pan

Head Machine Screw

#8-32 Hex Lock Nut

Manual Part #93-1937

01/18/02 rev. A
