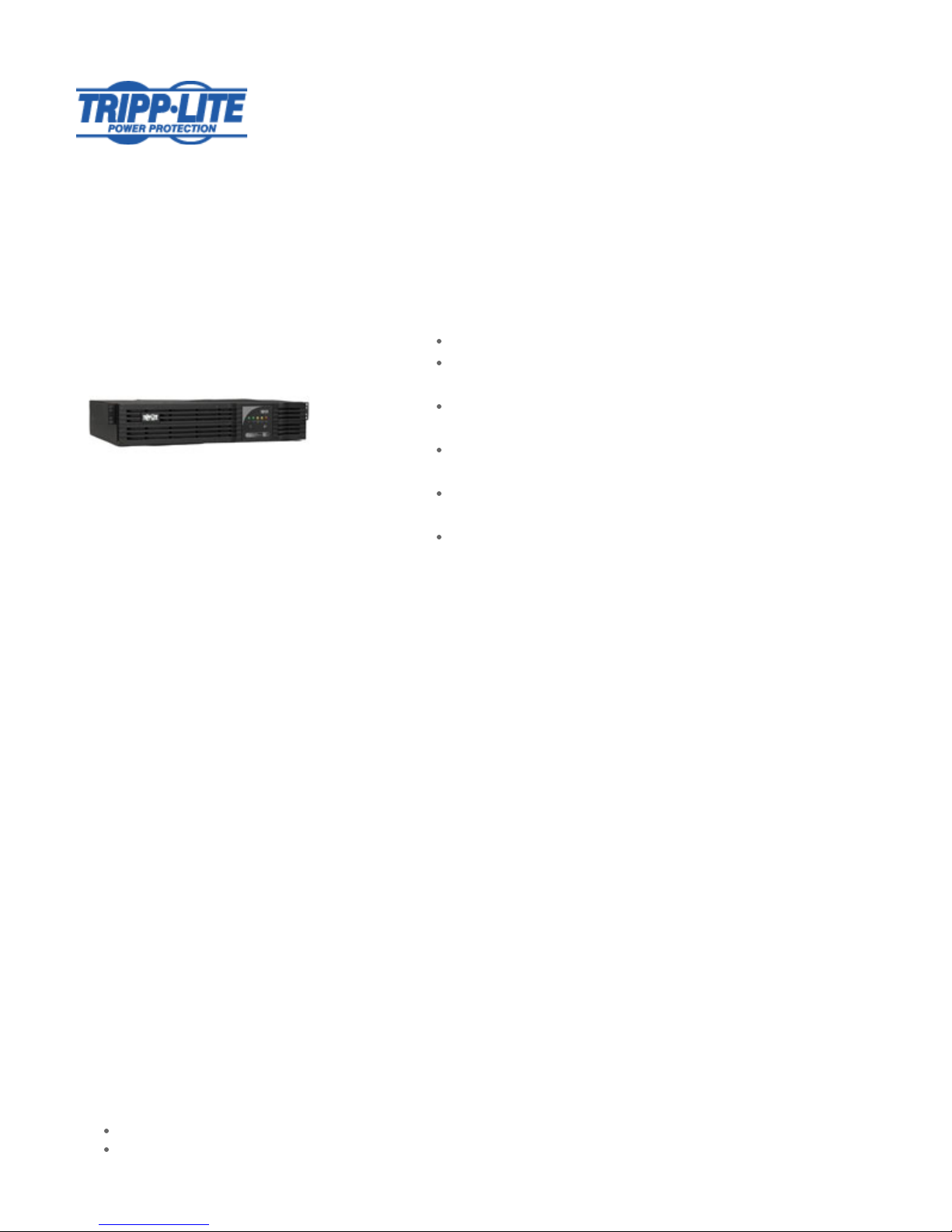

Tripp Lite SM2200RMNAFTA Manuale utente

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SM2200RMNAFTA

Smart Pro Line Interactive 2U Rack/Tower Extended Run UPS - NAFTA assembled version of

SMART2200RMXL2U

Highlights

2200VA / 2.2kVA line interactive, extended-run 2U rack / tower UPS

Maintains sine-wave 100/110/120V nominal output over an input range of 83

to 145V

Network communications supported via HID enabled USB port, DB9 serial

port, SNMP/Web card slot and EPO interface

Current monitoring and switched PDU control via 3 individually controllable

load banks

Input: NEMA 5-20P (120V 20A / includes 5-15P plug 120V 15A) / Output: 4

NEMA 5-15/20R, 4 NEMA 5-15R (120V)

$250,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only)

Description

2200VA line interactive UPS system for server, network and telecommunications equipment. 2U rackmount or tower form factor with an installed

depth of only 19 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT-3U external battery packs. Uninterruptible Power

Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage

Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages to maintain regulated 100,

110, 120v selectable output over an input range of 83-145V. Includes NEMA 5-20P input plug (with NEMA 5-15P plug option) and both NEMA

5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous

communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables full integration with built-in power

management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test

data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off

(EPO) interface. Integrated 3-bank PDU switching supports load shedding and remote-reboot of connected equipment. 3-stage metered current

monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount accessories

included; 2-9USTAND tower kit and 2POSTRMKITWM two post rack & wallmount accessories available. Field-replaceable, hot-swappable internal

batteries and external battery packs. Attractive all-black color scheme. $250,000 connected equipment insurance;

Package Includes

SM2200RMNAFTA UPS system

PowerAlert software CD-ROM

USB, serial and EPO cabling

Owner's manual with warranty information

Features

SmartPro line interactive UPS system is ideal for voice, data, medical and industrial networking applications

Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during

overvoltages

Maintaints continuous operation through blackouts, voltage fluctuations and surges

Corrects line voltage conditions as low as 83V and as high as 145 back to selectable 100/110/120V nominal values

Standard internal battery set offers 16 minutes at half load (800w) and 6 minutes at full load (1600w)

Optional BP48V24-2U and BP48V60RT3U external rack/tower battery packs enable extended runtime operation

Compact rackmount form factor installs using only 2 rack spaces (2U) with a maximum installed depth of only 19 inches

Ships with all mounting accessories for 4 post rackmount installation

Optional 2POSTRMKITWM enables 2 post rackmount or wallmount installation

Optional 2-9USTAND accessory enables small-footprint upright tower placement

Network interfaces support simultaneous communications via built-in USB, DB9 serial and SNMPWEBCARD slot

HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, with

the built-in ability to shutdown any number of additional servers over IP

UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current,

battery capacity, AC line frequency, timed inverter sutoff, activate self-test, load bank output power control and remote reboot

Built-in Emergency Power Off (EPO) interface with cable

NEMA 5-20P input plug (user-installable NEMA 5-15P replacement plug included) / NEMA 5-15R & NEMA 5-15/20R output receptacles

Integrated 3 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual load banks (Each

bank controls 1 outlet per load bank)

Front panel LEDs offer current monitoring and battery charge level information

UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user required

$250,000 ULtimate Lifetime Insurance

Specifications

OUTPUT

Output Volt Amp

Capacity (VA)

2200

Output kVA capacity

(kVA)

2.2

Output Watt Capacity

(watts)

1600

Output kW capacity 1.6

Output power factor 0.7

Nominal Output

Voltage(s) Supported

100V; 110V; 120V

Nominal Voltage details 120V default (voltage selection via back panel dipswitches)

Frequency compatibility 50 / 60 Hz

Output voltage

regulation (line mode)

-14%, +6%

Output voltage

regulation (Battery mode)

+/- 5%

Built-in UPS output

receptacles

4 5-15R outlet(s); 4 5-15/20R outlet(s)

Built-in controllable

switched load banks

Three switchable single-outlet 5-15R load banks

Basic PDU options PDU1220 (1U / 13 5-15/20R outlets); PDUNV (1U / 2 C19, 12 C13 outlets); PDUV20 (0U / 12 5-15/20R outlets);

PDU40TDUAL (0U / 40 5-15/20R outlets)

Metered PDU options PDUMH20 (1U / 13 5-15/20R outlets); PDUMH20AT (1U / 16 5-15/20R outlets)*; PDUMV20 (0U / 16 5-15/20R

outlets); PDUMV40 (0U / 32 5-15/20R outlets)

Switched PDU options PDUMH20ATNET (1U / 16 5-15/20R outlets)*; PDUMV20NET (0U / 24 5-15/20R outlets)

External PDU

redundancy options

*Auto Transfer Switch features utilizing the secondary PDU input cord are compatible with Smart Online UPS

models only

Output AC waveform (AC

mode)

Sine wave

Output AC waveform

(battery mode)

Pure Sine wave

INPUT

Rated input current (at

maximum load)

13.3A (120V), 14.6A (110V), 16.0A (100V)

Nominal Input Voltage(s)

Supported

120V AC

UPS input connection

type

5-20P

Input circuit breaker 20A

UPS Input cord length

(ft.)

UPS Input cord length

(m)

Recommended Electrical

Service

20A 120V

BATTERY

Full load runtime

(minutes)

6 min. (1600w)

Half load runtime

(minutes)

16 min. (800w)

Expandable battery

runtime

Extended runtime supported via optional external battery packs

External battery pack

compatibility

BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V60-3UNAFTA (multi-pack compatible)

DC system voltage (VDC) 48

Battery recharge rate

(included batteries)

Less than 4.5 hours from 10% to 90%

Replacement battery

cartridge (internal UPS

battery replacement)

RBC94-2U

Battery Access Front panel battery access door

Battery replacement

description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation

description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79 to

overvoltages to 147

Overvoltage correction Voltage reduction of 12% applies when input is between 127 and 145 (120V), 116 and 133 (110V), 106 and 121

(100V)

Undervoltage correction Voltage boost of 12% applies when input voltage is between 96 and 108 (120V), 87 and 99 (110V), 83 and 90

(100V)

Severe undervoltage

correction

Voltage boost of 24% applies when input voltage is between 83 and 95 (120V only)

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure, overload and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches

support nominal voltage selection

SURGE / NOISE SUPPRESSION

UPS AC suppression

joule rating

570

UPS AC suppression

response time

Instantaneous

EMI / RFI AC noise

suppression

Yes

PHYSICAL

Installation form factors

supported with included

accessories

4 post 19 inch rackmount (mounting rail kit included)

Included mounting

accessory description

Adjustable mounting rail kit included

Installation form factors

supported with optional

accessories

2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)

Primary form factor Rackmount

UPS / Power Module

dimensions in primary

form factor (height x

width x depth / inches)

3.5 x 17.5 x 19

UPS / Power Module

dimensions in primary

form factor (height x

width x depth / cm)

8.9 x 44.4 x 48.3

Installed whole system

total rack space height

(rack spaces)

Secondary form factor Tower (requires 2-9USTAND)

Installed whole system

dimensions in secondary

form factor (height x

width x depth / inches)

17.5 x 3.5 x 19

UPS dimensions in

secondary form factor

(height x width x depth /

cm)

44.4 x 8.9 x 48.3

UPS / Power Module

weight (lbs)

UPS / Power Module

weight (kg)

29.1

UPS Shipping

dimensions (height x

width x depth / inches)

9 x 23.5 x 20

UPS Shipping

dimensions (height x

width x depth / cm)

22.9 x 59.7 x 50.8

Shipping weight (lbs) 72

Shipping weight (kg) 32.7

UPS housing material Steel

Cooling method Fan

Installed whole system

dimensions in secondary

form factor (height x

width x depth / cm)

44.45 x 8.89 x 48.26

ENVIRONMENTAL

Operating Temperature

Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature

Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full

load)

168.2

Battery mode BTU / hr.

(full load)

604.4

COMMUNICATIONS

Communications

interface

USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring port

description

Supports detailed monitoring of UPS and site power conditions

PowerAlert software Included

Communications cable USB and DB9 cabling included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to

battery power (setpoint)

83 (120V), 87 (110V), 83 (100V)

High voltage transfer to

battery power (setpoint)

145 (120V), 133 (110V), 121 (100V)

SPECIAL FEATURES

Grounding lug Back panel grounding lug

Cold Start (startup in

battery mode during a

power failure)

Cold-start operation supported

High availability UPS

features

Hot swappable batteries

Green & high efficiency

features

Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A

(EMI); ROHS (Restriction of Hazardous Substances)

WARRANTY

Product Warranty Period

(Worldwide)

2-year limited warranty

Connected Equipment

Insurance (U.S., Canada

& Puerto Rico)

$250,000 Ultimate Lifetime Insurance

Related Items

Optional Products

Product Type Related Model Description Qty.

Audio Cables CT120 Instant-Read- AC Outlet Circuit Tester 1

Extended Warranties WEXT3-2200-3000 3-Year Extended Warranty - For Smart Line-Interactive and Online

Tower or Rack models, 2200-3000VA

Extended Warranties WEXT5-2200-3000 5-Year Extended Warranty - For Smart Line-Interactive and Online

Tower or Rack models, 2200-3000VA or less

External Battery Packs BP48V24-2U BP48V242U - External Battery Pack for UPS System 1

External Battery Packs BP48V60RT-3U External Battery Pack and Cable. 3U, Expandable, Blue 2-Point

Connector

Power Distribution PDU1220 Basic PDU / Power Distribution Unit - Safe, reliable power distribution

for critical networking equipment

Power Distribution PS7224-20 Tripp Lite Power Strip - Multiple outlets wherever you need them 1

Rackmount/Wallmount Kits 2POSTRMKITWM Enables 2-Post Rackmount or Wallmount Installation of Select

Rackmount UPS Systems

SNMP Accessories ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires

SNMPWEBCARD or switched PDU.)

SNMP Accessories SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1

Software WATCHDOGSW WatchDog Service Monitoring / Reboot Software 1

Surge Protectors DCATV Network Surge Suppressor - Essential protection for TV/VCR coaxial

lines

Surge Protectors DNET1 Network Surge Suppressor - Essential protection for data and

communication lines

Surge Protectors DTEL2 Network Surge Suppressor - Essential protection for data and

communication lines

Tower Stands 2-9USTAND Enables Tower Placement of Rackmount UPS Systems 1

UPS Accessories MODBUSCARD For remote monitoring and control via MODBUS protocol 1

USB Hubs/Accessories U022-010 10-ft. USB2.0 A/B Gold Device Cable

(A Male to B Male)

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=3540.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.

Indice

Altri manuali Tripp Lite UPS

Tripp Lite

Tripp Lite SmartPro 1050RM Istruzioni per l'installazione e il funzionamento

Tripp Lite

Tripp Lite SmartOnline Manuale utente

Tripp Lite

Tripp Lite SmartPro 700 HG Istruzioni per l'installazione e il funzionamento

Tripp Lite

Tripp Lite SmartPro SMART3000RMXL2U Manuale utente

Tripp Lite

Tripp Lite OMNISMART OMNIVS500 Manuale utente

Tripp Lite

Tripp Lite SMART1500LCD Manuale utente

Tripp Lite

Tripp Lite G1000UB Guida alla configurazione

Tripp Lite

Tripp Lite OmniPro 500 Manuale utente

Tripp Lite

Tripp Lite INTERNET900U Guida

Tripp Lite

Tripp Lite BCPRO1050 Manuale utente

Tripp Lite

Tripp Lite SMART1500CRMXL Manuale utente

Tripp Lite

Tripp Lite Smart INT 1000 Manuale utente

Tripp Lite

Tripp Lite SUPDM13 Manuale utente

Tripp Lite

Tripp Lite BCPERS450 Manuale utente

Tripp Lite

Tripp Lite SMART1200LCD Manuale utente

Tripp Lite

Tripp Lite OMNIPOWER PRO550 Manuale utente

Tripp Lite

Tripp Lite OmniPro 300VA Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU10KRT3U Manuale utente

Tripp Lite

Tripp Lite OmniSmart OMNISMART1400 Manuale utente

Tripp Lite

Tripp Lite SmartOnline Intelligent True On-Line UPS... Istruzioni per l'installazione e il funzionamento

Tripp Lite

Tripp Lite AVRX550UA Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART5000RT3U Manuale utente

Tripp Lite

Tripp Lite INTERNET OFFICE 350 Manuale utente

Tripp Lite

Tripp Lite SMART700HG Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
