Tripp Lite SmartOnline 3-Phase UPS Systems SU20KX Manuale utente

Owner’s Manual

SmartOnline™3-Phase UPS Systems

Models: SU20KX, SU40KX, SU60KX, SU80KX

Input/Output: 220/380V, 230/400V or 240/415V AC, 3O, 4-wire + ground, wye

Not suitable for mobile applications.

1111 W. 35th Street, Chicago, IL 60609 USA

+1 773 869 1234 • www.tripplite.com

200706017 93-2688 SU manual 4C.indd 1200706017 93-2688 SU manual 4C.indd 1 11/29/2007 2:02:11 PM11/29/2007 2:02:11 PM

Table of Contents

1 Introduction 3

2 Important Safety Instructions 4

3 Control Panel Features 6

4 Front and Rear Panel Features 7

5 Cabinet Installation 9

5-1 Preparation 9

5-2 Unpacking 9

5-3 Placement 10

6 Internal Battery Connection 11

(Models SU20KX and SU40KX Only)

6-1 Internal Battery Wiring Diagrams 11

6-2 Internal Battery Connection Procedure 13

7 Wiring 16

7-1 Wiring Warnings 16

7-2 Wiring Preparation 16

7-3 UPS System Terminal Block Diagram 17

7-4 External Battery Cabinet Wiring Diagrams 17

7-5 Electrical and Cable Data 18

7-6 External Battery Cabinet Wiring 19

7-7 AC Input/Output Wiring (Single UPS) 20

7-8 AC Input/Output Wiring (Parallel UPS – Single Input) 21

7-9 AC Input/Output Wiring (Parallel UPS – Dual Inputs) 21

8 Operating Modes 22

8-1 Online (Normal) Mode (Single UPS) 22

8-2 Battery Backup Mode (Single UPS) 22

8-3 Auto Bypass Mode (Single UPS) 22

8-4 Manual Bypass Mode (Single UPS) 22

8-5 Online Mode (Parallel UPS) 23

8-6 Battery Backup Mode (Parallel UPS) 23

8-7 Auto Bypass Mode (Parallel UPS) 23

8-8 Manual Bypass Mode (Parallel UPS) 24

8-9 Hot Standby Mode (Parallel UPS) 24

9 Start-Up, Shutdown and Bypass 25

9-1 Control Panel and Breaker Diagrams 25

9-2 Preliminary Checklist (Single UPS) 25

9-3 Normal Start-Up Procedure (Single UPS) 25

9-4 Battery Start-Up Procedure (Single UPS) 26

9-5 Manual Bypass Procedure (Single UPS) 27

9-6 Shutdown Procedure (Single UPS) 27

9-7 Preliminary Checklist (Parallel UPS) 28

9-8 Start-Up Procedure (Parallel UPS) 28

9-9 Shutdown Procedure (Parallel UPS) 29

9-10 Manual Bypass Procedure (Parallel UPS) 30

9-11 Switching from Manual Bypass to Normal (Parallel UPS) 31

10 Display and Conﬁguration 32

10-1 Control Panel Diagram 32

10-2 Display Hierarchy 32

10-3 Default Display 33

10-4 Status Messages and Diagrams 33

10-5 Main Menu 35

10-6 UPS System “Measure” Menu 35

10-7 UPS System Setup Menu 36

10-8 Bypass Setup Menu 36

10-9 Output Setup Menu 37

10-10 Battery Setup Menu 38

10-11 Local Setup Menu 40

10-12 Maintenance Menu 41

10-13 Statistics Menu 42

10-14 Event Log Menu 43

10-15 Manual Setup & Test Menu 44

10-16 Firmware Upgrade Menu 45

10-17 Other Menu Choices 45

11 Communications 46

11-1 Communications Interfaces 46

11-2 SNMPWEBCARD Slot 46

11-3 Input Dry Contact Interface 46

11-4 Remote Emergency Power Off (EPO) Circuit Diagram 47

11-5 Auxiliary Dry Contact Input Circuit Diagram 47

11-6 External Battery Cabinet Temperature Inputs 47

11-7 External Battery Status Input 47

11-8 Output Dry Contact Interface Detail 48

11-9 Output Dry Contact Circuit Diagram 49

11-10 RS-232 Serial Port Circuit Diagram 50

11-11 Parallel Redundancy Port 50

12 Speciﬁcations 51

12-1 UPS System Technical Speciﬁcations 51

12-2 UPS System Floor Loading Table 51

12-3 Battery Pack Floor Loading Table 51

13 Storage and Service 52

14 Warranty 52

Español 53

Français 105

Ðóññêèé 157

200706017 93-2688 SU manual 4C.indd 2200706017 93-2688 SU manual 4C.indd 2 11/29/2007 2:02:16 PM11/29/2007 2:02:16 PM

1 – Introduction

Tripp Lite’s SmartOnline 3-Phase UPS Systems (Models SU20KX, SU40KX, SU60KX and SU80KX) are ideal for backing up and protecting data

centers, telecommunications (VoIP), networks, industrial facilities, security/emergency systems and more.

Advanced Features:

True on-line double conversion with superior IGBT inverter technology•

Low input current THD allows 1:1 generator sizing for maximum efficiency and cost savings•

Internal N+1 power module redundancy (SU40KX, SU60KX and SU80KX)•

Built-in parallel or hot standby redundancy (1+1) capability for increased capacity or fault-tolerance•

Up to 80kVA capacity in a compact footprint; up to 160kVA in parallel redundancy (1+1) configuration•

High input power factor and high efficiency with low thermal loss and low noise•

Simplified, easy-to-repair, long-life, high-availability system design•

Redundant auxiliary power and control circuits•

Dual input design with separated rectifier and bypass input•

All models support external battery cabinets for extended battery backup runtime•

High-resolution LCD status screen simplifies operation and delivers detailed operational information, including system block diagrams•

200706017 93-2688 SU manual 4C.indd 3200706017 93-2688 SU manual 4C.indd 3 11/29/2007 2:02:17 PM11/29/2007 2:02:17 PM

2 – Important Safety Instructions

SAVE THESE INSTRUCTIONS

All sections of this manual contains instructions and warnings that should be followed during the installation and operation of the UPS

systems described in this manual. Read all instructions thoroughly before attempting to move, install or operate the UPS systems described in

this manual. Failure to comply may invalidate the warranty and cause property damage and/or personal injury.

Location Warnings

Install the UPS system in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive•

contaminants, dust and direct sunlight.

Install the UPS system in a• level, structurally sound location.

The UPS system is extremely heavy; be extremely careful when moving or lifting the unit.•

Operate the UPS system at indoor temperatures between 32° F and 104° F (0° C and 40° C) only. For best results, maintain indoor temperatures•

between 62° F and 84° F (17° C and 29° C).

Leave adequate space around all sides of the UPS system for proper ventilation. Do not block, cover or insert objects into the external ventilation•

openings of the cabinet.

Do not place any object on the unit, especially containers of liquid.•

Do not mount the unit with its front or rear panel facing down (at any angle). Mounting in this manner will seriously inhibit the unit’s internal•

cooling, eventually causing product damage not covered under warranty.

Do not install the UPS system near magnetic storage media, as this may result in data corruption. Keep all recorded magnetic media a minimum•

of 60 cm (24 inches) away from the UPS system.

Do not attempt to stack the UPS system. Attempting to stack the UPS system may cause permanent damage and create a potential for serious•

personal injury.

The casters are designed for minor position adjustments within the final installation area only. The casters are not designed for moving the UPS•

system over longer distances.

The casters are not designed to provide long-term support for the UPS system after final installation. Use the levelers to provide long-term•

support.

When moving the UPS system, push from the front or rear, not from the sides.•

Do not attempt to unpack or move the UPS system without assistance.•

Connection Warnings

The UPS system must be installed in accordance with the requirements of IEC 60364-4-48. Compliance with the following standards•

is required: EN 50091-1-1, EN 50091-2 Class A, IEC 61000-4-2 Level 4, IEC 61000-4-3 Level 3, IEC 61000-4-4 Level 4, IEC 61000-4-5

Level 4, IEC 61000-4-6.

The UPS system contains hazardous high voltages that have the potential to cause personal injury or death from electric shock.•

The UPS system has its own energy source (battery – internal and/or external). The output terminals may be live even when the UPS system is•

not connected to an AC supply.

The power supply for the UPS system must be 3-phase rated in accordance with the equipment nameplate.•

The power supply for the UPS system must be suitably grounded according to all applicable electrical wiring regulations.•

If the UPS system receives power from a motor-powered AC generator, the generator must provide clean, filtered, computer-grade output.•

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life•

support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a

flammable anesthetic mixture with air, oxygen or nitrous oxide.

The UPS system is designed to power modern computer loads and associated peripheral devices. Do not use the UPS system to power pure•

inductive or capacitive loads.

Input and output wiring should be performed by trained, qualified electricians only.•

Due to high leakage current, a proper earth ground connection is essential before connecting the AC supply.•

Isolate the UPS system before working on the circuit. An easily accessible disconnect device should be incorporated in the fixed wiring. The•

disconnect device must be a 4-pole device and must disconnect all line conductors and the neutral conductor.

200706017 93-2688 SU manual 4C.indd 4200706017 93-2688 SU manual 4C.indd 4 11/29/2007 2:02:17 PM11/29/2007 2:02:17 PM

2 – Important Safety Instructions

Battery Warnings

The UPS system does not require routine maintenance. There are no user-serviceable parts inside. Only qualified service personnel should open•

the access panels for any reason.

Batteries present a risk of electrical shock and burns from high short-circuit current. Battery connection or replacement should be performed•

only by qualified service personnel, observing proper precautions. Turn off the UPS system before connecting or disconnecting internal

batteries. Use tools with insulated handles. Do not open the batteries. Do not short or bridge the battery terminals with any object.

Replace batteries with equivalent batteries available from Tripp Lite. Do not operate the UPS system without batteries.•

The batteries are recyclable. Refer to local codes for disposal requirements.•

Do not dispose of the batteries in a fire, mutilate the batteries or open the battery coverings.•

Battery fuses should be replaced by qualified service personnel only. Blown fuses must be replaced with the same number and type of fuses.•

Potentially lethal voltages exist within the UPS system as long as the battery supply is connected. Service and repair should be performed•

by trained personnel only, while the UPS system is turned off or placed into bypass mode. Disconnect internal batteries (if present) before

performing any service work by switching off the internal battery circuit breaker and removing the battery fuse(s). Disconnect external batteries

(if present) by switching off the external battery cabinet breaker and disconnecting the external battery cabling from the UPS system.

Do not connect or disconnect batteries when the UPS system is operating from the battery supply or when the unit is not in bypass mode.•

Do not remove the plastic sleeves covering internal batteries.•

Internal and external batteries must be replaced by equivalent batteries available from Tripp Lite.•

Before connecting an external battery cabinet to the UPS system, read the external battery cabinet’s documentation. Use only external battery•

cabinets that have been approved by Tripp Lite.

If the UPS system remains off for an extended period of time, it should be turned on periodically to allow the batteries to recharge. The UPS•

system should be turned on and the batteries should be recharged at least one uninterrupted 24-hour period every 3 months. Failure to recharge

the batteries periodically may cause irreversible battery damage.

Wiring Warnings

See• Section 7-1 for wiring warnings

200706017 93-2688 SU manual 4C.indd 5200706017 93-2688 SU manual 4C.indd 5 11/29/2007 2:02:17 PM11/29/2007 2:02:17 PM

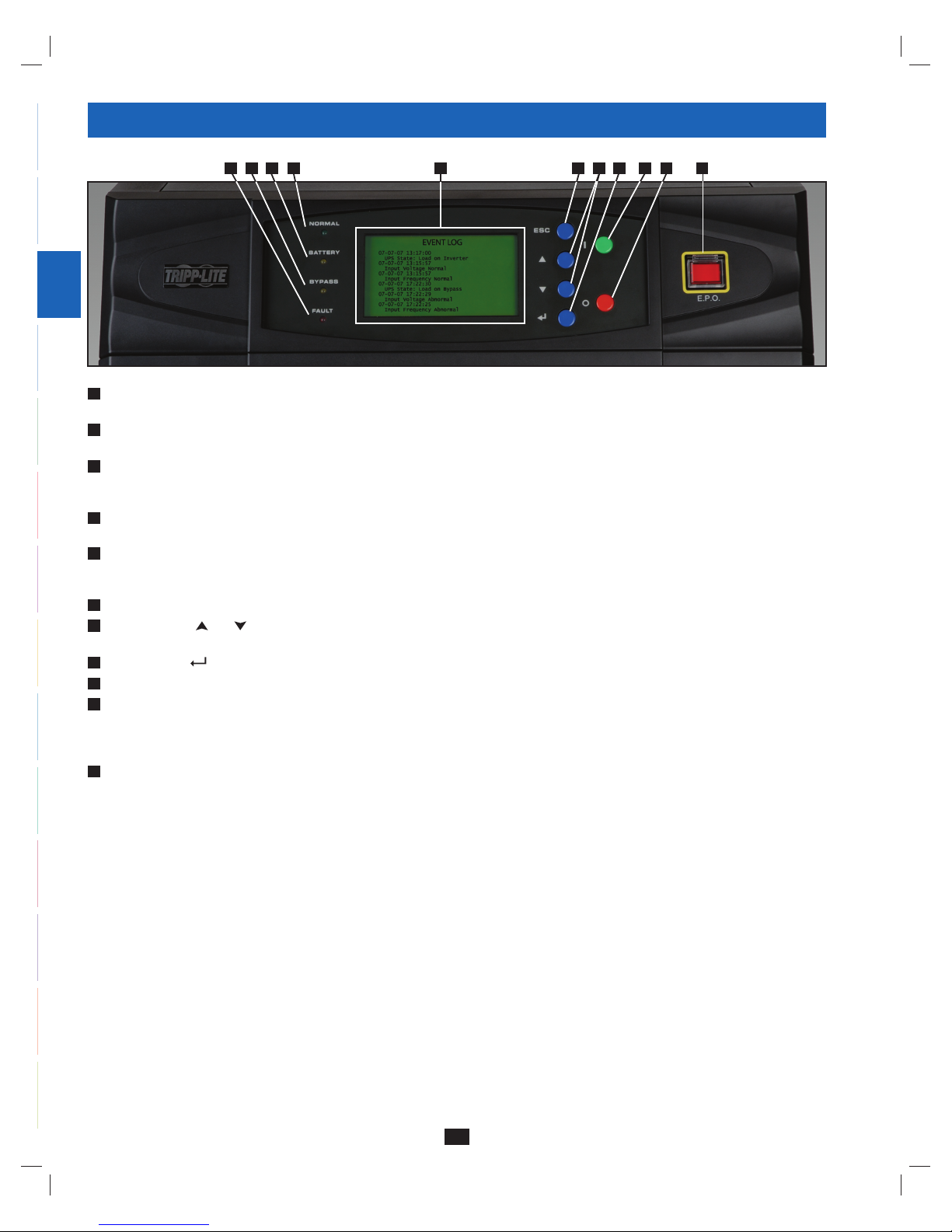

3 – Control Panel Features

“NORMAL” LED:• This green light illuminates to indicate that the UPS system is in online (normal) mode. The primary AC input supply is

present and within standard operating parameters.

“BATTERY” LED:• This amber light illuminates when the UPS system is in battery backup mode, discharging the batteries to provide power

to connected equipment. An audible alarm will also sound.

“BYPASS” LED:• This amber light illuminates when the UPS system is in bypass mode (auto bypass or manual bypass). Battery backup

power will not be available to connected equipment while the UPS system is in bypass mode, but connected equipment loads will be

supported by the bypass (reserve) power source.

“FAULT” LED:• This red light illuminates when any UPS system or input power fault occurs. Available diagnostic information will be

displayed on the LCD screen.

LCD Status Screen:• This illuminated LCD status screen displays text and graphics to indicate a wide range of UPS system operating

conditions and diagnostic data. Note: The LCD backlight will turn off after 10 minutes of inactivity. Turn on the backlight by momentarily

pressing the ON button or one of the scroll buttons.

“ESC” (Escape) Button:• Press this button to return to the previous page or menu.

Scroll Buttons (• and ): Press these buttons to move the cursor up or down and navigate the control panel menus and screens. These

buttons are also used for data entry in several screens.

Enter Button (• ): Press this button to select a menu item or confirm a setting change.

ON Button:• Press and hold this button for 3 seconds to turn the UPS system’s inverter ON.

OFF Button:• Press and hold this button for 3 seconds to turn the UPS system’s inverter OFF. If the UPS system is in online (normal) mode,

it will switch to auto bypass mode. Note: If the UPS system remains off for an extended period of time, the batteries should be recharged

periodically. The UPS system should be turned on and the batteries should be recharged at least one uninterrupted 24-hour period every

3 months. Failure to recharge the batteries periodically may cause irreversible battery damage.

“EPO” (Emergency Power Off) Button:• Press this button to turn the UPS system’s output OFF and also disable bypass output.

If the UPS system is in battery backup mode when the EPO button is activated:

Main output and bypass output are turned off, the alarm sounds, fans shut down after approximately one minute, and control circuitry•

remains active.

Releasing the EPO button (by pressing it again) turns off the UPS system completely, including the alarm and control circuit. Press the•

ON button for 3 seconds to restart the UPS system.

If the UPS system is in online (normal) mode when the EPO button is activated:

Main output and bypass output are turned off, the alarm sounds, fans and control circuitry remain active.•

Releasing the EPO button (by pressing it again) turns off the alarm and places the UPS system in auto bypass mode. Press the ON button•

for 3 seconds to return the UPS system to online (normal) mode.

See Section 10 – Display and Configuration for detailed information about the control panel’s menus and displays.

A E F G H I J KBCD

200706017 93-2688 SU manual 4C.indd 6200706017 93-2688 SU manual 4C.indd 6 11/29/2007 2:02:18 PM11/29/2007 2:02:18 PM

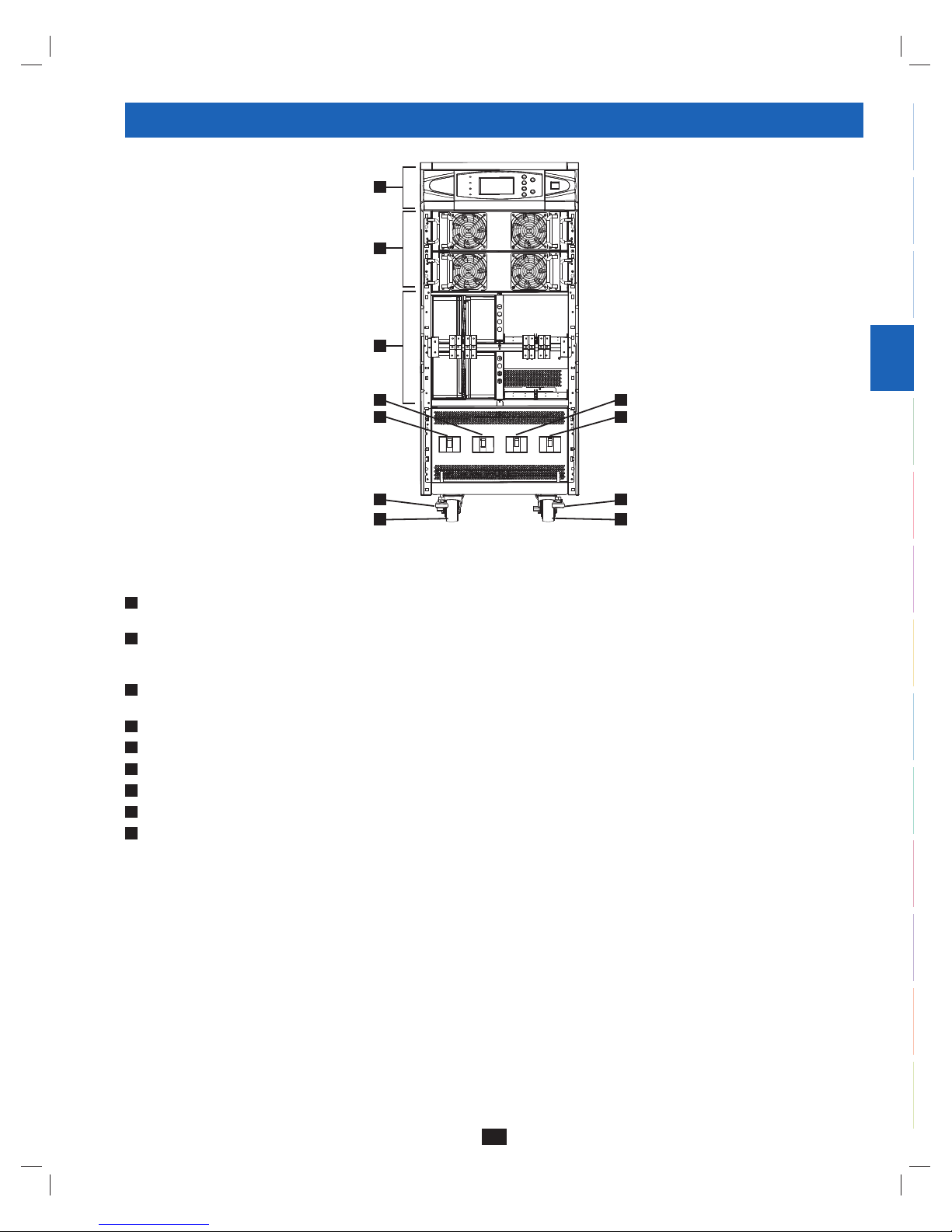

4 – Front and Rear Panel Features

Note: Individual models may vary from diagrams. Unit shown with front bezels removed.

Control Panel:• The control panel allows the operator to monitor and control the UPS system. See Section 3 – Control Panel Features for

more information.

Internal Power Modules:• 20kVA internal power modules can be replaced in the field without powering down connected equipment loads.

The number of internal power modules varies by model. The internal power modules are capable of N+1 redundancy in SU40KX, SU60KX

and SU80KX models.

Internal Battery Pack Compartment (SU20KX and SU40KX only; shown without batteries):• Internal batteries must be connected by a

qualified electrician. See Section 6 – Internal Battery Connection for more information.

Output Circuit Breaker Switch (Q4):• Controls AC output power.

Manual Bypass Circuit Breaker Switch (Q3):• Controls AC input power to the UPS system during manual bypass operation.

Bypass Input Circuit Breaker Switch (Q2):• Controls AC input power to the UPS system during auto bypass operation.

Main Input Circuit Breaker Switch (Q1):• Controls AC input power to the UPS system during online (normal) operation.

Levelers:• The levelers provide long-term support for the UPS system.

Casters:• The casters are designed for small position adjustments within the final installation location only; they are not designed for moving

the UPS system over longer distances. The casters are not designed to provide long-term support for the UPS system after final installation.

Use the levelers to provide long-term support.

H H

I I

E F

SU40KX shown (front)

200706017 93-2688 SU manual 4C.indd 7200706017 93-2688 SU manual 4C.indd 7 11/29/2007 2:02:20 PM11/29/2007 2:02:20 PM

Note: Individual models may vary from diagrams. Unit shown with front bezels removed.

Levelers:• The levelers provide long-term support for the UPS system.

Casters:• The casters are designed for small position adjustments within the final installation location only; they are not designed for moving

the UPS system over longer distances. The casters are not designed to provide long-term support for the UPS system after final installation.

Use the levelers to provide long-term support.

Accessory Slot:• Remove the cover panel to install a Tripp Lite SNMPWEBCARD accessory. The SNMPWEBCARD accessory provides an

Ethernet interface for the UPS system and enables remote monitoring and control via SNMP, Web browser or telnet. Call +1 773 869 1234 for

more information about the SNMPWEBCARD accessory.

RS-232 Serial Communications Port:• This DB9 port connects the UPS system to compatible workstations or servers, enabling automatic

shutdown during extended blackouts and monitoring of operating and power conditions.

Parallel Redundancy Port:• This DB9 port connects the UPS system to another UPS system of identical type and capacity for use in a

parallel redundancy (1+1) configuration. See Section 7 – Wiring and Section 8 – Operating Modes for more information.

Input Dry Contact Interface:• This interface receives dry contact signals that allow the UPS system to receive commands and monitor

external battery conditions. See Section 11 - Communications for more information.

Output Dry Contact Interface:• This interface allows the UPS system to send information via dry contact communications. See Section 11 –

Communications for more information.

Internal Battery Circuit Breaker Switch (SU20KX and SU40KX only):• Controls the input/output power of the UPS system’s internal

batteries.

Terminal Block Cover:• Remove the terminal block cover to access the UPS system’s input, bypass input, external battery cabinet, output and

grounding connection terminals. Wiring conduits pass through the circular knockouts in the terminal block cover. See Section 7 – Wiring for

more information, including a detailed diagram of the terminal block.

4 – Front and Rear Panel Features (continued)

I I

SU40KX shown (rear)

200706017 93-2688 SU manual 4C.indd 8200706017 93-2688 SU manual 4C.indd 8 11/29/2007 2:02:21 PM11/29/2007 2:02:21 PM

5 – Cabinet Installation

Read Section 2 – Important Safety Instructions Before Installation

5-1 Preparation

The UPS system must be installed in a structurally sound area with a level floor that is able to bear the weight of the UPS system, any external

battery cabinet and other equipment that will be installed nearby. The installation site should also have a dedicated AC circuit available that is

compatible with the UPS system’s input requirements. (See Section 12 – Specifications for details on input requirements and floor loading

requirements.) Before unpacking the unit, you should transport the shipping container closer to the final installation site to minimize the distance

you will need to move the unit after the protective shipping container has been removed. If you plan to store the UPS system for an extended

period before installation, follow the instructions in Section 13 – Storage and Service. (Unpacking and storage instructions are also printed on the

“Unpacking and Storage Instructions” sheet secured to the shipping container.) Warning: Do not attempt to unpack or move the UPS system

without assistance.

5-2 Unpacking

Inspect the shipping container(s) for visible damage. If you•

determine that the unit has been damaged during shipping, contact

Tripp Lite for assistance. Do not attempt to use the UPS system if

it has been damaged or mishandled.

Confirm that the shipping container is upright and use a•

screwdriver to remove its top panel, front panel and back panel.

Also remove the plastic wrap and interior cushioning material.

Confirm that the model name and rating at the rear of the cabinet

match the unit you ordered. Examine the cabinet for any damaged

or loosened parts. Confirm that the shipping container includes the

accessories that ship with the unit. The UPS system should include

an RS-232 serial cable, a parallel redundancy cable, a remote EPO

wiring connector, a dry contact input connector (4 contacts), a dry

contact output connector (12 contacts) and a software CD-ROM. If

anything is missing or damaged, contact Tripp Lite for assistance.

Confirm that the unit is stable, then remove the side panels from•

the shipping container.

Remove the bolts from the shipping brackets securing the unit•

to the pallet, then remove the shipping brackets from the UPS

system. Warning: Be extremely careful, as the unit could shift

unexpectedly.

Use several of the screws you removed in step 2 to attach the top•

panel of the shipping container to the front edge of the shipping

pallet. The smooth surface of the panel should face upward so

that it can be used as a ramp for rolling the unit off the shipping

pallet. Do not attempt to use the top panel as a ramp if it is cracked

or otherwise structurally damaged. Make sure the casters at the

bottom of the unit are unlocked. Using extreme caution, slowly roll

the unit down the ramp with the aid of several assistants.

200706017 93-2688 SU manual 4C.indd 9200706017 93-2688 SU manual 4C.indd 9 11/29/2007 2:02:22 PM11/29/2007 2:02:22 PM

5 – Cabinet Installation (continued)

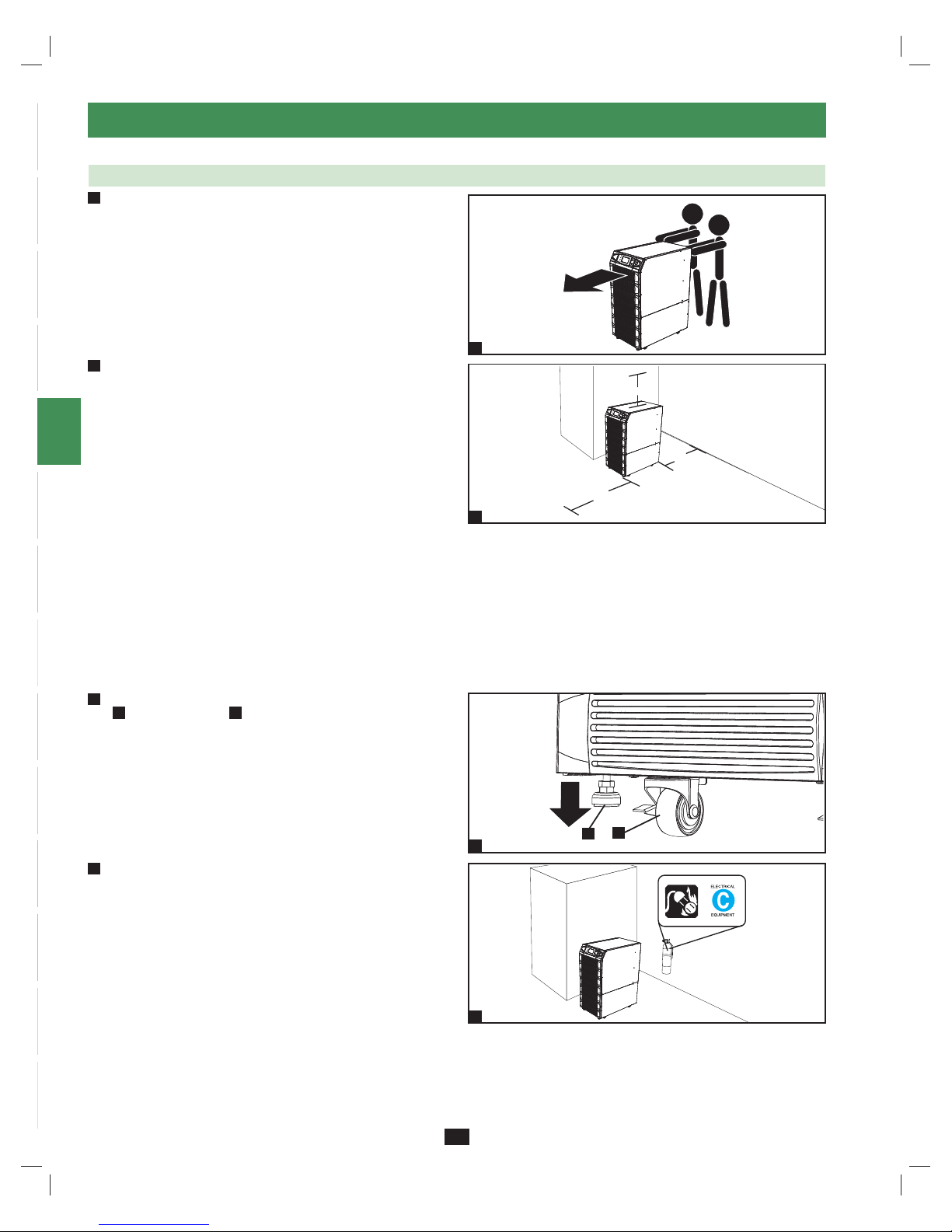

5-3 Placement

Use the casters to move the UPS system for a short distance over•

a level, smooth, stable surface. Do not attempt to use the casters

to move the UPS system over longer distances. The UPS system

should be moved close to its final installation location inside

its shipping container before it is unpacked from the shipping

container. Use a mechanical device of sufficient capacity to move

the shipping container. Warning: The UPS system could tip if it

is moved over an unstable surface. Be extremely careful when

moving the UPS system. Push the UPS system from the front or

rear, not from the sides.

Position the UPS system in a structurally sound area with a•

level floor that is able to bear the weight of the UPS system,

any external battery cabinets and other equipment that will be

installed nearby. The installation site should also have a dedicated

AC circuit available that is compatible with the UPS system’s

input requirements. (See the Section 12 – Specifications for

more information about input requirements and floor loading

requirements.) The UPS system must be installed in a clean,

secure environment with a relative humidity less than 90% (non-

condensing). Operate the UPS system at indoor temperatures

between 17° C and 29° C (62° F and 84° F). Prevent damage to

cabling by using suitable protective conduits. In order to maintain

proper airflow and service access, you must maintain the following

clearances:

At least 100 cm clearance in front of the UPS system.•

At least 50 cm clearance behind the UPS system.•

At least 50 cm clearance above the UPS system.•

Warning: The cooling fans circulate air from front to back. Do not

use any air conditioning or fan that blows air directly toward the

rear of the UPS system.

After moving the UPS system to its final location, lock the casters•

Aand use the levelers Bto stabilize the cabinet. Ensure that all

four levelers make firm contact with the floor.

For emergency use, install a fire extinguisher rated for energized•

electrical equipment fires (Class C rating or exact equivalent, with

a non-conductive extinguishing agent) near the UPS system.

50 cm

100 cm

200706017 93-2688 SU manual 4C.indd 10200706017 93-2688 SU manual 4C.indd 10 11/29/2007 2:02:23 PM11/29/2007 2:02:23 PM

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Tripp Lite UPS

Tripp Lite

Tripp Lite TE600 Manuale utente

Tripp Lite

Tripp Lite SUPDM15 Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU8000RT3UN50TF Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU1500LCD1U Manuale utente

Tripp Lite

Tripp Lite ECO550UPSTAA Manuale utente

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU5000RT4UTF Guida alla configurazione

Tripp Lite

Tripp Lite SmartOnline SU3000RTXR3UHW Guida all'installazione

Tripp Lite

Tripp Lite AGBC5755 Manuale utente

Tripp Lite

Tripp Lite SM2200NAFTA Manuale utente

Tripp Lite

Tripp Lite ECO1000LCD Manuale utente

Tripp Lite

Tripp Lite AVRX550UA Manuale utente

Tripp Lite

Tripp Lite INTERNET350U Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL3U Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU3000RTXLCD3U Guida alla configurazione

Tripp Lite

Tripp Lite LCDT Series Manuale utente

Tripp Lite

Tripp Lite SmartOnline 5KVA Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU6000RT3U Guida alla configurazione

Tripp Lite

Tripp Lite 1500SLT Manuale utente

Tripp Lite

Tripp Lite Line-Interactive UPS System SMART750USB Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART750RMXL2U Manuale utente

Tripp Lite

Tripp Lite SMART550USBTAA Manuale di installazione e funzionamento

Tripp Lite

Tripp Lite INTERNET550U Manuale utente

Tripp Lite

Tripp Lite SmartOnline 220/230/240V Input/Output Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
