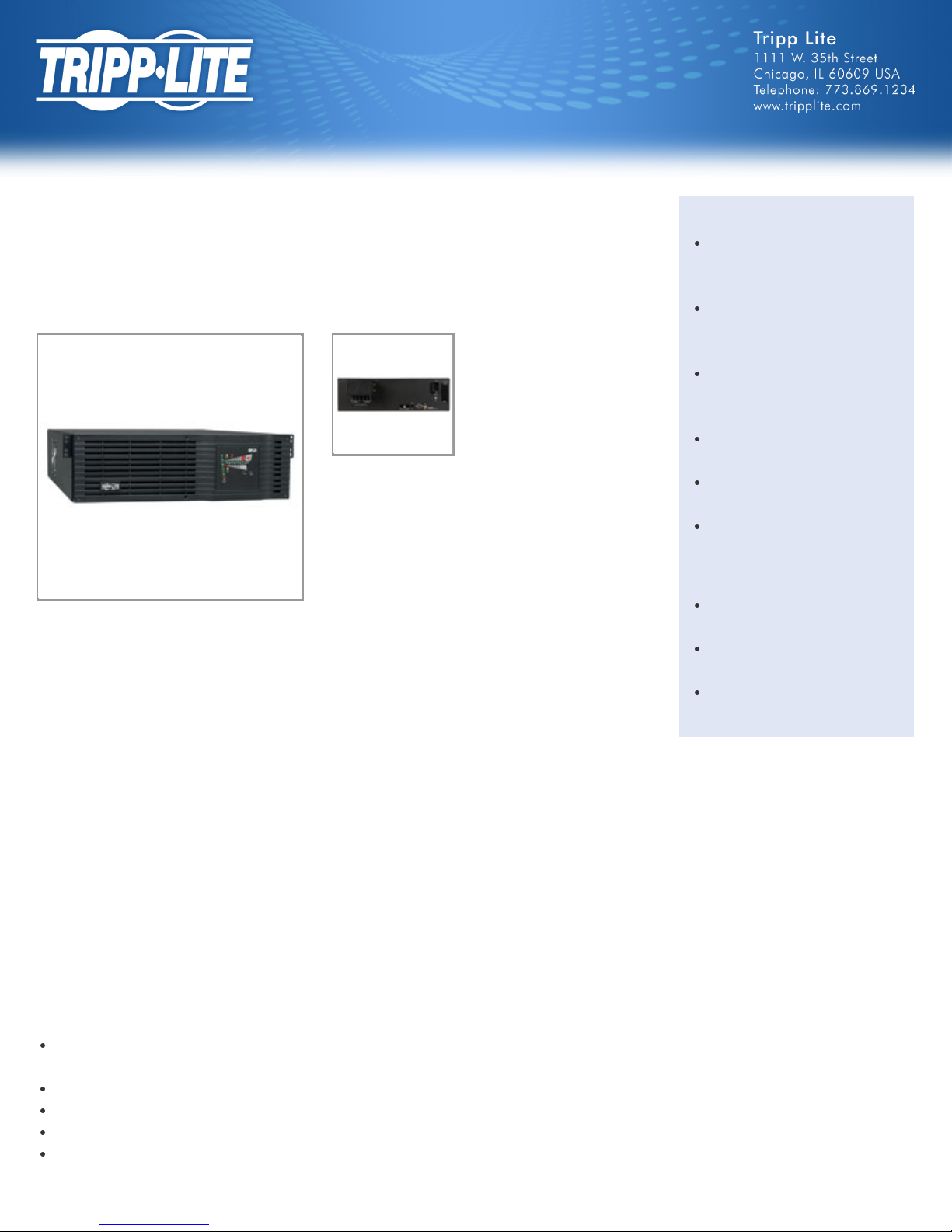

Tripp Lite SmartOnline SU3000RTXR3UHW Guida all'installazione
SmartOnline 3kVA On-Line Double-Conversion
UPS, 3U Rack/Tower, 110/120V Hardwire input &
output
MODEL NUMBER: SU3000RTXR3UHW
Description
3000VA / 3kVA online, double-conversion UPS system in 3U rackmount form factor for critical server, network
and telecommunications equipment. 3U rackmount form factor with an installed depth of 29.5 inches (75cm).
Expandable battery runtime with optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and
BP72V18-2US (multi-pack compatible) external battery packs. Full time sine wave 110 or 120V output with +/-2%
voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output
back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V.
Hardwired AC input and output (L-N-G, 120V). Highly efficient operation in optional economy mode setting, saves BTU heat output and energy costs.
Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous
communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232
enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto
shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions
via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Multi-stage metered current
monitoring and battery charge status LEDs. LED display panel easily rotates for better viewing in rackmount or tower configurations. Dataline surge
suppression for dialup, DSL or network ethernet connection. Mains power and voltage regulation LEDs. Audible Alarm. Self-test. Fault-tolerant auto-bypass
mode. 4 post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITHD 2-post rackmount accessories available. Field replaceable, hot
swappable internal batteries and external battery packs. Attractive all-black UPS design. $250,000 Ultimate Lifetime Insurance.
Features
3000VA / 3kVA / 2400 watt online, double-conversion UPS system in 3U rackmount form factor for critical server, network and telecommunications
equipment
True online, double-conversion UPS provides perfectly regulated sine wave output within 2% of 110/120V (user selectable) under all usage conditions
Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time
Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types
Corrects line voltage conditions as low as 65V and as high as 150V back to selectable 110/120V (+/-2%) values
Highlights
3000VA / 3kVA / 2400 watt
on-line double-conversion 3U
rack / tower UPS
110/120V +/-2% output at
50/60Hz, high efficiency
economy mode option
Oversize internal batteries,
Expandable runtime,
Hot-swappable batteries
USB, RS232 & EPO ports;
includes SNMPWEBCARD slot
Front panel status LEDs with
detailed load and battery metering
Hardwire input & output
connections
Package Includes
SU3000RTXR3UHW UPS
System
PowerAlert Software CD and
cabling
Owner's manual with warranty
information
1 / 6
Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs
Internal battery set offers 30 minutes runtime at half load (1200W) and 12 minutes at full load (2400W)
Optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs
Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Compact rackmount form factor installs using only 3 rack spaces (3U) with a maximum installed depth of 26 inches
Ships with all mounting accessories for 4 post rackmount installation
Optional 2POSTRMKITHD enables 2 post rackmount installation
Optional 2-9USTAND accessory enables small-footprint upright tower placement
Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
Network interfaces support simultaneous communications via built-in USB, DB9 serial/contact-closure and SNMPWEBCARD slot
HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number
of additional servers over IP
UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery
capacity, AC line frequency, timed inverter shutoff, activate self-test, load bank output power control and remote reboot, UPS nominal voltage adjustment
and UPS line to battery power voltage setpoints
Built-in Emergency Power Off (EPO) interface with cable
Hardwire 120V AC input/output (L-N-G)
Front panel LEDs offer current monitoring and battery charge level information
Single line TEL/DSL or network ethernet line surge suppression
$250,000 Ultimate Lifetime Insurance
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 3000
Output kVA capacity (kVA) 3
Output Watt Capacity (watts) 2400
Output kW capacity 2.4
Output power factor 0.8
Crest Factor 3:1
Nominal Output Voltage(s)
Supported 110V; 120V
Nominal Voltage details 120V default
Frequency compatibility 50 / 60 Hz
Frequency compatibility details Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
Output voltage regulation (line mode) +/- 2%
Output voltage regulation (Economy
line mode) +/- 10%
Output voltage regulation (Battery
mode) +/- 2%
2 / 6
Built-in UPS output receptacles Hardwire
Output AC waveform (AC mode) Sine wave
Output AC waveform (battery mode) Pure Sine wave
INPUT
Rated input current (at maximum
load) 24A
Nominal Input Voltage(s) Supported 110V AC; 120V AC
UPS input connection type Hardwire
Recommended Electrical Service 30A 120V (L-N-G)
Phase Single-Phase
BATTERY
Full load runtime (minutes) 12 min. (2400w)
Half load runtime (minutes) 30 min. (1200w)
Expandable battery runtime Supports extended runtime with optional external battery packs
External battery pack compatibility BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18-2US (multi-pack compatible)
DC system voltage (VDC) 72
Battery recharge rate (included
batteries) Less than 6 hours from 10% to 80%
Replacement battery cartridge
(internal UPS battery replacement) RBC96-3U (quantity 2)
Battery Access Front panel battery access door
Battery replacement description Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation description Online, double-conversion power conditioning
Overvoltage correction 2% output voltage regulation during overvoltages to 150
Undervoltage correction 2% output voltage regulation during undervoltages to 80
Severe undervoltage correction 2% output voltage regulation during undervoltages to 65 (under 70% load only)
LEDS ALARMS & SWITCHES
LED Indicators
14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery
and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in
rack/tower formats
Alarms Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
3 / 6
SURGE / NOISE SUPPRESSION
UPS AC suppression joule rating 480
UPS AC suppression response time Instantaneous
UPS Dataline suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC noise suppression Yes
PHYSICAL
Installation form factors supported
with optional accessories 2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND)
Optional mounting accessory notes Wallmount installation not recommended
Primary form factor Rackmount
UPS / Power Module dimensions in
primary form factor (height x width x
depth / inches)
5.2 x 17.8 x 29.5
UPS / Power Module dimensions in
primary form factor (height x width x
depth / cm)
13.3 x 45.1 x 75
Rack Height 3U
Secondary form factor Tower (requires 2-9USTAND)
UPS / Power Module weight (lbs) 111.3
UPS / Power Module weight (kg) 50.5
UPS Shipping dimensions (height x
width x depth / inches) 11.2 x 31.5 x 23
UPS Shipping dimensions (height x
width x depth / cm) 28.6 x 80 x 58.4
Shipping weight (lbs) 149.9
Shipping weight (kg) 68.1
Cooling method Fan
UPS housing material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full load) 1112.7
AC economy mode BTU / hr. (full
load) 520.9
Battery mode BTU / hr. (full load) 1219.3
4 / 6
AC mode efficiency rating (100%
load) 88%
AC economy mode efficiency rating
(100% load) 94%
COMMUNICATIONS
Communications interface USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring port description Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure
communications.
PowerAlert software Included
Communications cable USB and DB9 cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time No transfer time (0 ms.) in online, double-conversion mode
Low voltage transfer to battery
power (setpoint) 80V (100% load), 65V ( <70% load)
High voltage transfer to battery
power (setpoint) 150
SPECIAL FEATURES
Cold Start (startup in battery mode
during a power failure) Cold-start operation supported
High availability UPS features Automatic inverter bypass; Hot swappable batteries
Green & high efficiency features High efficiency economy mode operation; Schedulable daily hours of economy mode operation
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
Related Items
Optional Products
Model Number Description Qty.
BP72V18-2US BP72V18-2US - 2U External 72V Rack/Tower Battery pack for select Tripp Lite UPS Systems 1
BP72V15-2U BP72V15-2U - External Battery Pack for UPS System 1
5 / 6
BP72V28RT-3U BP72V28RT-3U - External Battery Pack for UPS System 1
WEXT3-2200-3000 3-Year Extended Warranty - For Smart Line-Interactive and Online Tower or Rack models,
2200-3000VA 1
WEXT5-2200-3000 5-Year Extended Warranty - For Smart Line-Interactive and Online Tower or Rack models,
2200-3000VA or less 1
ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires UPS with SNMPWEBCARD,
monitored PDU or switched PDU.) 1
SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1
MODBUSCARD For remote monitoring and control via MODBUS protocol 1
RELAYIOCARD Programmable Relay I/O Card 1
AS400CABLEKIT2 Power Management Tools - UPS Communication Cable Kit for System i / AS400 / iSeries Servers 1
2-9USTAND Enables Tower Placement of Rackmount UPS Systems 1
2POSTRMKITHD Enables 2-Post Rackmount Installation of 3U and Larger UPS, Transformer and Battery Pack
Components 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/SU3000RTXR3UHW.
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
6 / 6
