Tripp Lite TE Series Manuale utente

1111W.35thStreet

Chicago, IL 60609 USA

Customer Support: (773) 869-1234

www.tripplite.com

Owner'sManual

TE Series

Line-InteractiveUPSSystems(120V)

ESPAÑOL: p. 7

FRANÇAIS:p.14

Quick Installation: p. 3

Basic Operation: p. 4-5

Storage & Service: p. 6

Specifications: p. 6

Important Safety Instructions: p. 2

Warranty & Insurance: p. 6

This manual contains important instructions and warnings that should be

followed during the installation, operation and storage of all Tripp Lite UPS

Systems. SAVE THESE INSTRUCTIONS.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, dust or

direct sunlight.

• For best performance, keep the indoor temperature between 32º F and

104º F (0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS to a properly grounded AC power outlet. Do not

modify the UPS's plug. Do not use adapters that eliminate the UPS's

ground line.

• Do not plug your UPS into itself; this will damage the UPS and void

your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the

generator must provide clean, filtered computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support appliances in which

a malfunction or failure of a Tripp Lite UPS System could cause failure

or significantly alter the performance of a life-support device.

• Do not connect surge suppressors to the output of your UPS. This may

damage your UPS and will void both the surge suppressor and UPS

warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your

UPS for any reason. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel.

Because the batteries present a risk of electrical shock and burn from

high short-circuit current, observe proper precautions. Unplug and

turn off the UPS before performing battery replacement. Use tools with

insulated handles, and replace the existing batteries with the same

number and type of new batteries (Sealed Lead-Acid). Do not open the

batteries. Do not short or bridge the battery terminals with any object.

• The UPS batteries are recyclable. Refer to local codes for disposal

requirements, or in the USA only call 1-800-SAV-LEAD for recycling

information. Do not dispose of the batteries in a fire.

• Do not attempt to add external batteries.

Important Safety Instructions

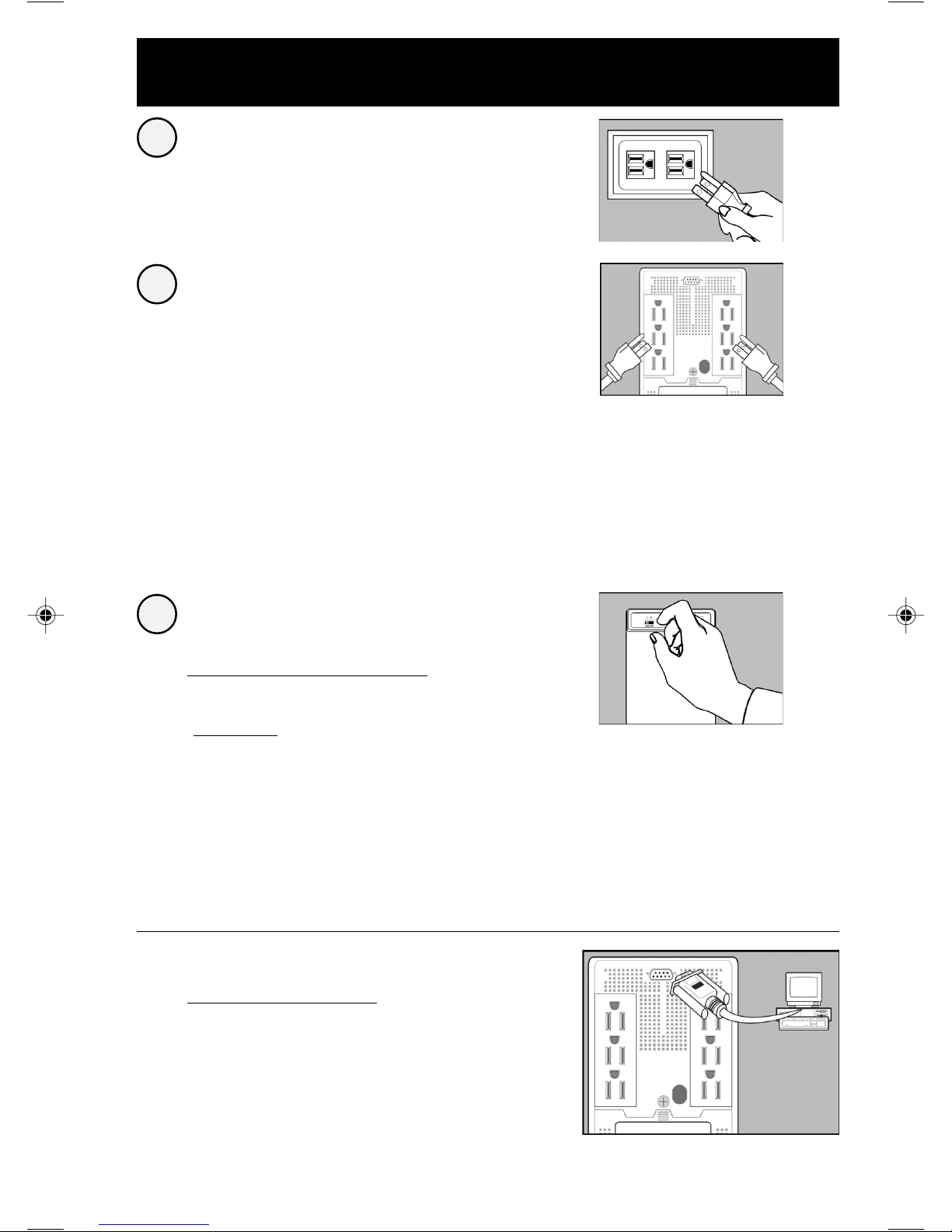

Quick Installation

Plug your UPS into an

electricaloutlet.

Plug your computer, monitor

and external modem into your

UPS's battery-supported

outlets.

*Your UPS is designed to support only computer equipment.

You will overload your UPS if you connect devices with high

power draws (such as some household appliances, laser

printers and surge suppressors) to battery-supported outlets.If

your UPS is equipped with "Surge Only" outlets (which would

be labelled as such on the back of your UPS), you may connect

these devices to the "Surge Only" outlets. Equipment connected

to "Surge Only" outlets will not receive battery power in the

event of a power outage.

Set your UPS’s “OFF – ON”

Switch.**

USA,Canada&WesternEurope

• Set it and leave it “ON” at all times.

AllOther Countries

• Setto “OFF” when you arenot using connected

equipment.

(WARNING! When set to “OFF,” UPS will not provide battery

backup during a blackout or brownout)

• Set to “ON” when you are using connected

equipment.

**See Basic Operation section for the Switch Function, UPS

Conditions and Setting Advantages.

OptionalInstallation†

ComputerConnection

If your UPS features a DB9 port, it may be connected

to a computer for use with UPS monitoring software.

Using a serial cable (user supplied), connect the DB9

port of your computer to the DB9 port of your UPS.

DownloadFREE PowerAlertsoftware from

www.tripplite.comand run the installationprogram

appropriateto yourcomputer's operatingsystem.

†Phone line and DB9 port connections are optional. Your UPS

will function properly without these connections.

Basic Operation

OFF ON

Switches

With your UPS plugged in, set this switch according to the

recommendations in Step 3 of the Quick Installation section.

“ON” Position

Function: ENABLES battery backup. UPS Conditions: The UPS

battery is charging. Power is ON at the UPS receptacles. The “ ”

indicator light is illuminated. Setting Advantages: Provides

battery backup during blackouts or brownouts.

“OFF” Position

Function: DISABLES battery backup. UPS Conditions: The UPS

battery is charging. Power is ON at the UPS receptacles. The “ ”

indicator light is illuminated. The “ ” indicator light is flashing.

Setting Advantages: Continues to charge the battery when

power is present while turning OFF the inverter to prevent battery

backup operation when equipment is not in use.

Use this momentary switch to do three things:

Silence the UPS On-Battery alarm

Move this switch to the left and release it to silence the UPS On-

Battery alarm, a series of short beeps followed by a brief pause

that is activated when the UPS is providing AC power from battery.

Note: When the battery is nearly depleted, the Low Battery

alarm—a continuous beep that cannot be silenced—will alert you

to immediately shut down connected equipment.

Test your UPS's battery charge

Leave your connected equipment ON. With your UPS plugged in

and turned ON, move this switch to the left, hold it there for 2

seconds and release it. The UPS will emit several short beeps as

it momentarily switches to battery to test its charge. If the UPS

low battery alarm sounds (a long, continuous beep) or the

properly-sized load is not supported, let your UPS charge its

batteries for 12 hours and repeat the test. If the long, continuous

alarm still sounds, contact Tripp Lite for service. CAUTION: Do

not unplug your UPS to test its batteries. This will remove safe

electrical grounding and may introduce a damaging surge into

your network connections.

Cold-Start your UPS

You may “cold start” your UPS and use it as a stand-alone power

source when utility power is not present, providing that the UPS's

battery is charged. To “cold start” your UPS, first turn the “OFF/

ON” switch ON. Then, move the “MUTE/TEST” switch to the left,

hold momentarily and release when the “ ” indicator light

begins to flash.

Indicator Lights

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet and turned on.

This green light will turn ON whenever your UPS is plugged in and

receiving normal AC line power.

This red light will turn ON when your UPS is providing your

equipment with battery power.

This yellow light will turn ON continuously after you test your UPS

battery’s charge with the “MUTE/TEST” Switch if the UPS’s battery

is less than fully charged. If it stays on continuously, contact Tripp

Lite for service. The light will flash after you set the “OFF/ON”

Switch to the “OFF” position to indicate that the UPS will not

provide battery backup during a blackout or brownout.

Whenever your UPS is automatically correcting high or low AC line

voltage, this green light will turn ON and the UPS will gently click.

The more the UPS has to correct voltage, the more the green light

will turn ON and the more the UPS will click. These are both

normal, automatic operations of your UPS, and no action is

required on your part.

Other UPS Features

AC Receptacles

The receptacles on your UPS provide your connected equipment

with AC line power during normal operation and with battery

power during blackouts and brownouts. They also protect your

equipment against damaging surges and line noise. Select UPS

models also feature “surge-only” AC receptacles (labelled on the

back of the UPS) that provide peripherals with surge protection

without committing precious battery power to support them

during blackouts.

DB9 Port

The DB9 port connects your UPS to any workstation or server.

Use with Tripp Lite software and cabling to automatically save

open files and shut down equipment during a blackout. This port

sends contact-closure signals to indicate line-fail and low-

battery status. Consult your software’s Owner’s Manual for

complete information.

Battery Replacement Door

Under normal conditions, the original battery in your UPS will

last several years. Battery replacement should be performed

only by qualified service personnel. Refer to “Battery Warnings” in

the Safety section on page 2.

Storage & Service

Storage

First turn your UPS OFF and disconnect its power cord from the wall outlet.

Then disconnect all equipment to avoid battery drain. If you plan on storing your

UPS for an extended period of time, fully recharge the UPS batteries once every

three months by plugging the UPS into a live AC outlet and letting the UPS

charge for 4 to 6 hours. If you leave your UPS batteries discharged for an

extended period of time, they will suffer a permanent loss of capacity.

Service

If returning your UPS for service, contact your local Tripp Lite dealer or

distributor. They will refer you to a service center. Please carefully pack the UPS

using the ORIGINAL PACKING MATERIAL that came with the unit. Enclose a

letter describing the symptoms of the problem. If the UPS is within the

warranty period, enclose a copy of your sales receipt.

Specifications

TE600 TE1200

Output Capacity (VA/Watts): 600/425 1200/940

Battery Runtime (Half Load/

Full Load) Minutes: 34/10 34/10

Battery Recharge Time: 2-4 hrs. 2-4 hrs.

Approvals: UL, cUL, NOM UL, cUL, NOM

Input Voltage/Frequency (120V/60 Hz); On-Line Input Voltage Range (75 - 147 volts); Voltage-Regulated Output Voltage Range (120V +7%

/ -18%); On Battery Output Voltage Range (120V ±5%); Output Waveform Line Mode (filtered sinewave); Output Waveform Battery Mode

(PWM sine wave); AC Surge Suppression (exceeds IEEE 587 Cat. A & B standards); AC Noise Attenuation (>40 dB); AC Protection Modes

(H to N, H to G, N to G).

FCC Radio/TV Interference Notice

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference

toradiocommunications.However, thereis noguarantee thatinterference willnot occurin aparticular installation.If thisequipment doescause

harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try

to correct the interference using one or more of the following measures: reorient or relocate the receiving antenna; increase the separation

betweenthe equipmentand receiver; connect the equipmentinto anoutlet on a circuit differentfrom thatwhich the receiveris connected;consult

the dealer or an experienced radio/television technician for help. The user must use shielded cables and connectors with this product. Any

changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to

operatethe equipment.

1111W.35thStreet

Chicago, IL 60609 USA

Atenciónalcliente(EE.UU.): (773)869-1234

www.tripplite.com

Manual de Operación

Línea TE

No-break / Sistema UPS Interactivo (120V)

Instalación Rápida: p. 9

Operación Básica: p. 10-12

Almacenaje y Servicio: p. 13

Especificaciones: p. 13

Seguridad: p. 8

Warranty & Insurance: p. 6

Este manual contiene advertencias e instrucciones importantes que deben seguirse

durante la instalación, operación y almacenaje de todos los no-breaks / sistemas UPS

Tripp Lite. GUARDE ESTAS INSTRUCCIONES.

Advertencias Sobre la Instalación

• Instale este no-break / sistema UPS bajo techo, alejado de calor o humedad

excesiva, polvo o luz solar directa.

• Para obtener mejores resultados, mantenga la temperatura ambiental entre

0°C y 40°C (32°F y 104º F).

• Mantenga suficiente espacio alrededor del no-break / sistema UPS para

permitir una ventilación adecuada.

Advertencias Sobre la Conexión

• Conecte este no-break / sistema UPS a una toma de energía de CA de tres

alambres y con conexión a tierra. No remueva o modifique la clavija de

conexión a tierra del enchufe del no-break / sistema UPS. No utilice

adaptadores de dos alambres con el enchufe de este no-break / sistema

UPS.

• No conecte este no-break / sistema UPS a sí mismo; esto causará daños al

no-break / sistema UPS y anulará su garantía.

• Si usted desea conectar este no-break / sistema UPS a un generador

motorizado de energía de CA, dicho generador debe suministrar energía

filtrada y limpia apta para computadoras.

Advertencias Sobre la Conexión de Equipos

• No utilice no-breaks/ sistemas UPS Tripp Lite en aplicaciones para el

soporte de la vida humana donde una falla del no-break / sistema UPS

pueda causar anomalías o alterar significativamente el rendimiento del

dispositivo de soporte de vida.

• No conecte supresores de picos a los receptáculos de salida de este

no-break / sistema UPS. Esto puede causar daños al no-break / sistema

UPS y anulará las garantías del no-break / sistema UPS y del supresor de

picos.

Advertencias Sobre las Baterías

• Este no-break / sistema UPS no requiere mantenimiento rutinario alguno.

No abra el no-break / sistema UPS por ninguna razón. Esta unidad no

contiene partes interiores que puedan ser reparadas por el usuario.

• El reemplazo de las baterías debe ser realizado por personal técnico

capacitado. Debido a los riesgos que presentan las baterías en relación a los

choques eléctricos y quemaduras causadas por alta corriente de corto

circuito interior, el personal técnico capacitado debe observar todas las

precauciones pertinentes. Desconecte y apague el no-break / sistema UPS

antes de reemplazar las baterías. Utilice herramientas con asas aisladas y

reemplace las baterías con el mismo número y tipo de baterías nuevas

(selladas de plomo y ácido). No abra las baterías. No permita que ningún

objeto entre en contacto con ambos bornes o terminales de las baterías.

• Las baterías utilizadas en conexión con este no-break / sistema UPS

son reciclables. Refiérase a su código local para obtener más información de

reciclado o (en EE.UU. solamente) llame al 1-800-SAV-LEAD (1-800-728-

5323). No utilice fuego para desechar las baterías.

• No intente conectar baterías externas.

Seguridad

Instalación Rápida

Conecte el no-break /

sistema UPS a una toma de

energía eléctrica.

Conecte su computadora,

monitor y módem externo a los

enchufes adecuados del no-

break / sistema UPS.

*Este no-break / sistema UPS ha sido diseñado para respaldar

equipos de computación solamente. El no-break / sistema UPS se

sobrecargará si conecta dispositivos con consumos elevados de

energía (como por ejemplo electrodomésticos, impresoras láser o

supresores de picos). Si su no-break / sistema UPS está equipado

con salidas únicamente para supresor de picos “Surge Only” (las

cuales están etiquetadas de esa manera en la parte posterior de

su no-break / sistema UPS), sólo podrá conectar dichos

dispositivos a las salidas “Surge Only”. El equipo conectado a las

salidas únicamente para supresor de picos “Surge Only” no

recibirá energía de la batería en el caso de que se presente una

falla en el suministro de corriente.

Regule el interruptor“OFF-ON”

(encendido-apagado). **

EE.UU.,Canadá yEuropa Occidental

•Póngalo y manténgaloen la posición“ON” (encendido)

entodomomento.

Otrospaíses

•Póngalo en laposición “OFF” (apagado)cuando no esté

utilizandolosequiposconectados.(¡ADVERTENCIA!

Cuando el interruptor esté en la posición “OFF”

(apagado), el no-break / sistema UPS no suministrará

energía de batería durante un apagón o baja de voltaje)

•Póngalo enla posición “ON”(encendido) cuandodesee

utilizarlos equipos conectados.

**Refiérase a la sección de Operación Básica para obtener

información sobre las funciones de este interruptor, las

condiciones del no-break / sistema UPS y las ventajas de cada

posición.

Instalación Optativa†

ConexiónaunaComputadora

Si su no-break / sistema UPS cuenta con un puerto DB9,

éstepuede conectarse a unacomputadora para utilizarlo

junto con el software de observación UPS. Utilizando un

cable de serie (no incluido), conecte el puerto DB9 de su

computadora al puerto DB9 de su no-break / sistema UPS.

DescargueGRATUITAMENTE elsoftware PowerAlertde la

dirección de Internet www.tripplite.com y ejecute el

programa de instalación apropiado para el sistema

operativodesu computadora.

†Las conexiones de la línea telefónica y del puerto DB9 son

optativas. Este no-break / sistema UPS funcionará correctamente

aún sin estas conexiones.

Interruptores

Con el no-break / sistema UPS conectado a una toma eléctrica,

coloque este interruptor en la posición deseada de acuerdo con

las recomendaciones especificadas en el Paso 3 de la sección

“Instalación Rápida”.

Posición “ON” (encendido)

Función: ACTIVA el respaldo a batería. Condiciones del no-

break / sistema UPS: Las baterías del no-break / sistema UPS se

están recargando. Hay energía en los receptáculos del no-break

/ sistema UPS. La luz indicadora “ ” está encendida. Ventajas

de esta posición: El no-break / sistema UPS suministra energía

de batería durante bajas de voltaje o interrupciones en el

suministro de la energía eléctrica.

Posición “OFF” (apagado)

Función: DESACTIVA el respaldo de batería. Condiciones del

no-break / sistema UPS: Las baterías del no-break / sistema UPS

se están recargando. Hay energía en los receptáculos del no-

break / sistema UPS. La luz indicadora “ ” está encendida. La

luz indicadora “ ” parpadea.

Ventajas de esta posición: El no-break / sistema UPS continúa

cargando sus baterías cuando la energía eléctrica está disponible,

mientras que el inversor de energía se apaga para prevenir el

desgaste innecesario de las baterías cuando los equipos

conectados no están en uso.

Utilice este interruptor momentáneo para realizar tres funciones:

Silenciar la alarma de apagones.

Mueva este interruptor hacia la izquierda y suéltelo para silenciar

la alarma de apagones; se activa una serie de sonidos breves

intermitentes que indican que el sistema UPS está suministrando

energía de la batería. Observación: Cuando la batería esté casi

agotada la alarma indicadora de esta condición sonará, y no podrá

ser silenciada, para indicarle que deben apagarse inmediatamente

los equipos conectados.

Prueba de la carga de las baterías del no-break / sistema UPS

Mantenga encendidos los equipos conectados. Con el no-break /

sistema UPS encendido (“ON”) y conectado a una toma de energía

eléctrica, mueva este interruptor hacia la izquierda; sosténgalo

en esta posición durante 2 segundos y suéltelo. El no-break /

sistema UPS emitirá sonidos intermitentes mientras cambia

momentáneamente al modo de batería para probar la carga de las

mismas. Si suena la alarma de baja energía del no-break /

sistema UPS (un sonido continuo de larga duración) o la carga

apropiadamente determinada no fuera respaldada, permita que el

no-break / sistema UPS cargue sus baterías por un período de 12

Operación Básica

OFF ON

Altri manuali per TE Series

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Tripp Lite UPS

Tripp Lite

Tripp Lite SUTX20K Manuale utente

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART700 Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU2200XLNAFTA Manuale utente

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1500XLRT2U Guida alla configurazione

Tripp Lite

Tripp Lite BC Personal Datashield BCPERS300 Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU20KX Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU8000RT3UHW Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU10KRT3U Manuale utente

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U Manuale utente

Tripp Lite

Tripp Lite OMNISMART1400HG Istruzioni per l'installazione e il funzionamento

Tripp Lite

Tripp Lite SmartOnline SU2000RTXLCD2U Manuale utente

Tripp Lite

Tripp Lite Internet Office INTERNET350SER Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU16000RT4U Manuale utente

Tripp Lite

Tripp Lite SmartPro 3U Manuale utente

Tripp Lite

Tripp Lite SUPDM15 Manuale utente

Tripp Lite

Tripp Lite SmartPro 3U Rackmount 5000 VA Manuale utente

Tripp Lite

Tripp Lite Power Supply Manuale utente

Tripp Lite

Tripp Lite OmniPro 500 Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART750RMXL2U Manuale utente

Tripp Lite

Tripp Lite SmartOnline 220/230/240V Input/Output Manuale utente

Tripp Lite

Tripp Lite SMX1500LCD Manuale utente

Tripp Lite

Tripp Lite SU10000RT3UG Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
