Installation & Assembly Instructions
Please contact Customer Service with any questions at:
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙ support@tritonproducts.com
For a full line of products visit www.tritonproducts.com 1
Read all instructions completely before installing. Should you have any questions about your installation, please call
Customer Service at 440-248-5480.
Inventory and inspect all components before starting assembly (Use Parts Call Out figure 1-1 on page 3).
Report any missing parts and/or damaged goods within 5 days from receipt.
QTY Description
(1) Aluminum Bottom Tray
(2) Left Hand Aluminum Corner Angle brackets
(1) Right Hand Aluminum Corner Angle bracket with holes for 4 handle holes with fittings
(1) Right Hand Aluminum Corner Angle bracket without attachment handle holes
(2) Rail End Brackets interchangeable (With 4 preinstalled threaded fasteners)
(1) Top Rail (48” Long)
(2) Internal Center Braces (With 90° Bends on Ends)
(1) Cart Handle
(2) Fixed Casters
(2) Swivel Casters
(4) Louvered Panels 24”x48”
(72) 1/4"-20 X 3/4” Truss Head Bolts
(16) Lock Nuts for caster installation
(4) 1/4"-20 x 1/2" Tapered Head Screws (For Handle Attachment)
(16) 1/4" Flat Washers
Note: While attaching components it’s important to remember not to fully tighten any bolt or screw until system is fully
assembled. Freedom of movement will allow for proper alignment between bolts and their associated preinstalled
threaded fasteners. For assembly purposes, the END will always be the narrowest dimension of the cart.
Assembly:
1. Locate the (4) corner angle brackets. (Using Parts Call Out figure 1-1 page 3 and close-up Figure 2-3 on page 4) Identify
the left hand from the right hand angle bracket and their top edge from their bottom edge.) The top’s edge can be
identified by its 2 bolt holes when looking from the end view.
2. Position the bottom tray with its lip facing up and one end facing you.

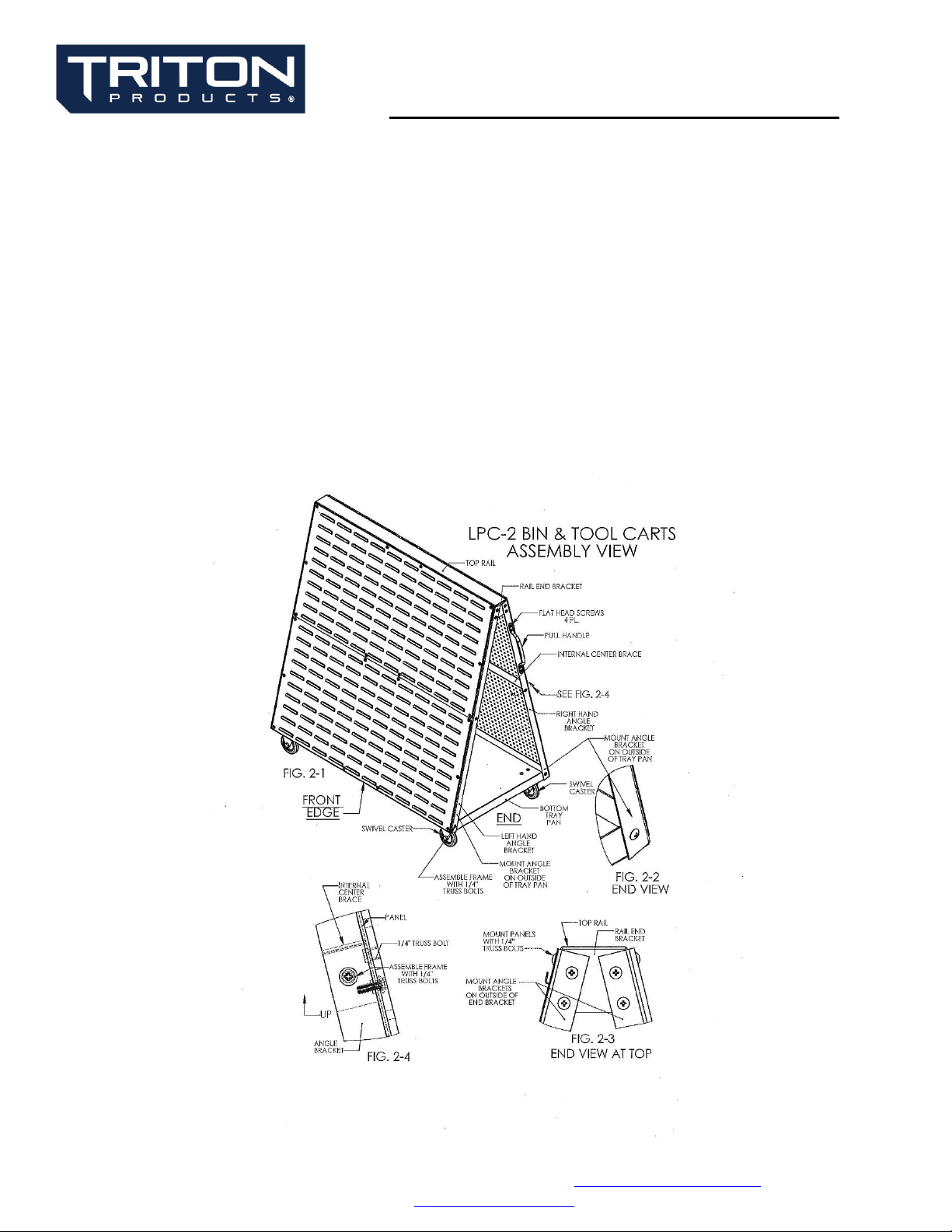

3. (Refer to Figures 2-1, 2-2 and 2-3) Note: All corner angle brackets will install outside of the bottom tray. Starting with a
left corner angle bracket and using ¼” truss head bolt align end bolt hole in tray with pre-installed fastener with
through-hole in angle bracket. Insert bolt and hand tighten (Do not tighten all the way). From the front edge of the
same angle bracket install a second truss head bolt in the same manner. Repeat step #3 for each corner angle bracket.
4. (Refer to Figure 2-3) Using one rail end bracket; position rail end bracket inside of both the left and right installed
corner angle brackets with preinstalled fasteners facing away from you. Align through holes in corner angle bracket
with preinstalled fasteners on rail end bracket. Partially install (4) ¼” bolts. Install bolts about halfway only. (Repeat
steps 2 thru 4 for opposite end.)
5. (Refer to Figure 2-1 and 2-3) Installing Top Rail: Top rail will be positioned between corner angle brackets installed at
each end. Insert top rail from the underneath at slight angle and let set on bolts/fasteners of rail end brackets. Using
holes located on the top front edge of corner angle bracket insert truss head bolt through corner angle and into corner
threaded insert in top rail. (Repeat for all four top corners.)
