True GDIM-26 Manuale utente

............ www.truemfg.com ............

TABLE OF CONTENTS

Safety Information

Safety Precautions 1

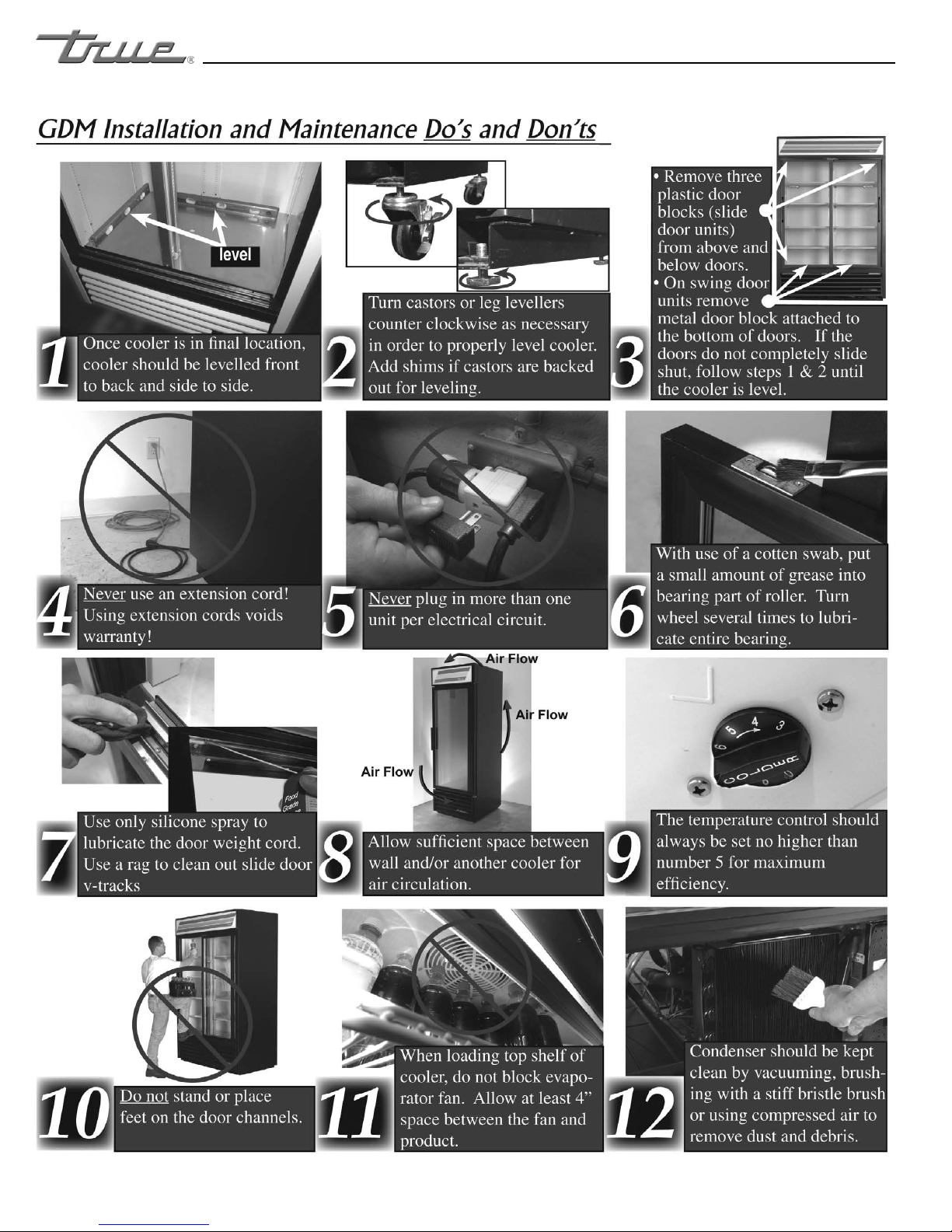

Do’s and Don’ts 2

Proper Disposal 3

Connecting Electricity 4

Adapter Plugs 4

Ownership

Required Tools 5

Uncrating 5

Locating & Installation of Leg/Castors 6

Leveling Cabinet 7

Wire Gauge Chart 8

Sealing Cabinet to Floor & Electrical Inst. 9

Start-up and Light Switch Location 10

Defrost Time Clock Operation (Grasslin) 11

Field Troubleshooting 12-13

Maintenance, Care and Cleaning

Cleaning Condenser Coil 14-15

Cabinet Cleaning 16-17

Light Bulb Replacement 17

Warranty (U.S.A. & Canada Only!) 18

INSTALLATION MANUAL FOR GDIM

(GLASS DOOR ICE MERCHANDISERS)

GDIM - GLASS DOOR

ICE MERCHANDISERS

TRUE FOOD SERVICE EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434

(636)-240-2400 • FAX (636)272-2408 • INT’L FAX (636)272-7546 • (800)325-6152

Parts Department (800)424-TRUE • Parts Department FAX# (636)272-9471

CONGRATULATIONS!

You have just purchased the finest commercial

freezer available. You can expect many years of

trouble-free operation.

GDIM-26

GDIM-26NT

GDIM-49

#897013 • WP-103

*Spanish, German, French and Dutch versions included.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

............ www.truemfg.com ............

SAFETY INFORMATION

True Food Service Equipment, Inc.

 





 





 





 





 







NOTE

We strongly recommend that any

servicing be preformed by a qualified

individual.

  

 

 





WARNING!

Use this appliance for its intended purpose as described in this Owner Manual.

This cabinet contains fluorinated greenhouse gas covered by the Kyoto Protocol

(please refer to cabinet’s inner label for type and volume,

GWP of 134a= 1,300. R404a= 3,800).

How to Maintain Your Freezer

to Receive the Most Efficient and

Successful Operation

You have selected one of the finest commercial freezer units made. It is manufactured under

strict quality controls with only the best quality materials available. Your TRUE freezer when

properly maintained will give you many years of trouble-free service.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

2 2

............ www.truemfg.com ............

True Food Service Equipment, Inc.

SAFETY INFORMATION

............ www.truemfg.com ............

True Food Service Equipment, Inc.

SAFETY INFORMATION

PROPER DISPOSAL OF THE REFRIGERATOR

DANGER!

RISK OF CHILD ENTRAPMENT











Before You Throw Away Your Old Refrigerator or

Freezer:

 

 



Refrigerant Disposal

















USE OF EXTENSION CORDS

NEVER USE AN EXTENSION CORD! TRUE will not warranty any refrigerator that has been connected to

an extension cord.

4 4

............ www.truemfg.com ............

True Food Service Equipment, Inc.

















































HOW TO CONNECT ELECTRICITY

WARNING!







USE OF ADAPTER PLUGS

NEVER USE AN ADAPTER PLUG! Because of potential safety hazards under certain conditions, we strongly recommend

against the use of an adapter plug.

SAFETY INFORMATION

North America Use Only!











Do not, under any circumstances, cut or remove the ground prong from the power cord.

For personal safety, this appliance must be properly grounded.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

INSTALLATION / OPERATION INSTRUCTIONS

















TRUE is not responsible for damage incurred during

shipment.

OWNERSHIP

 

 

 

REQUIRED TOOLS





A. 







B. 



C. 



NOTE

Keys for coolers with door locks are located in warranty

packets.

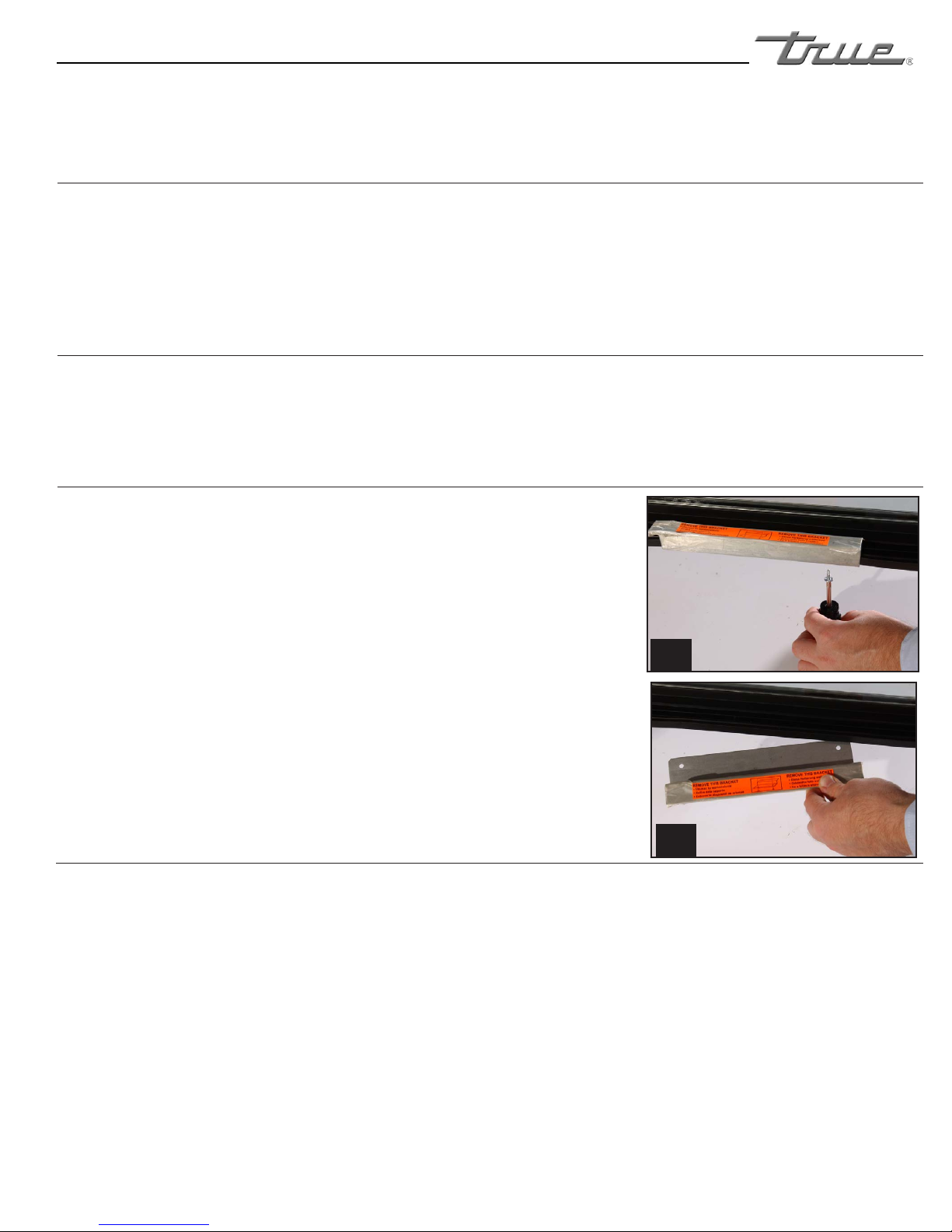

UNCRATING

INSTALLATION / OPERATION INSTRUCTIONS

REMOTE UNITS (This section applies to remotes only!)

  

 

 

 

 

  

 

  

  

 

  

 

  

 

  

 

If you have any questions regarding this section,

please call TRUE at 1-(800)-325-6152.

6 6

LOCATING

............ www.truemfg.com ............

True Food Service Equipment, Inc.

INSTALLATION / OPERATION INSTRUCTIONS

Rail End

Lower Rail

Assembly

Snug Fit

Here

Leveling Shim

CastorLeg

Bearing

Race

Lower Rail Assembly

Snug Fit

Here

Rail End

Thread castor into the underside

of cabinet frame rail.

Thread leg into cabinet bottom

frame rail.

The end of the leg is adjustable to

easy leveling.

Use the tool provided to tighten

the castor into place.

For leveling, insert the shim between

the castor and frame rail.

1234

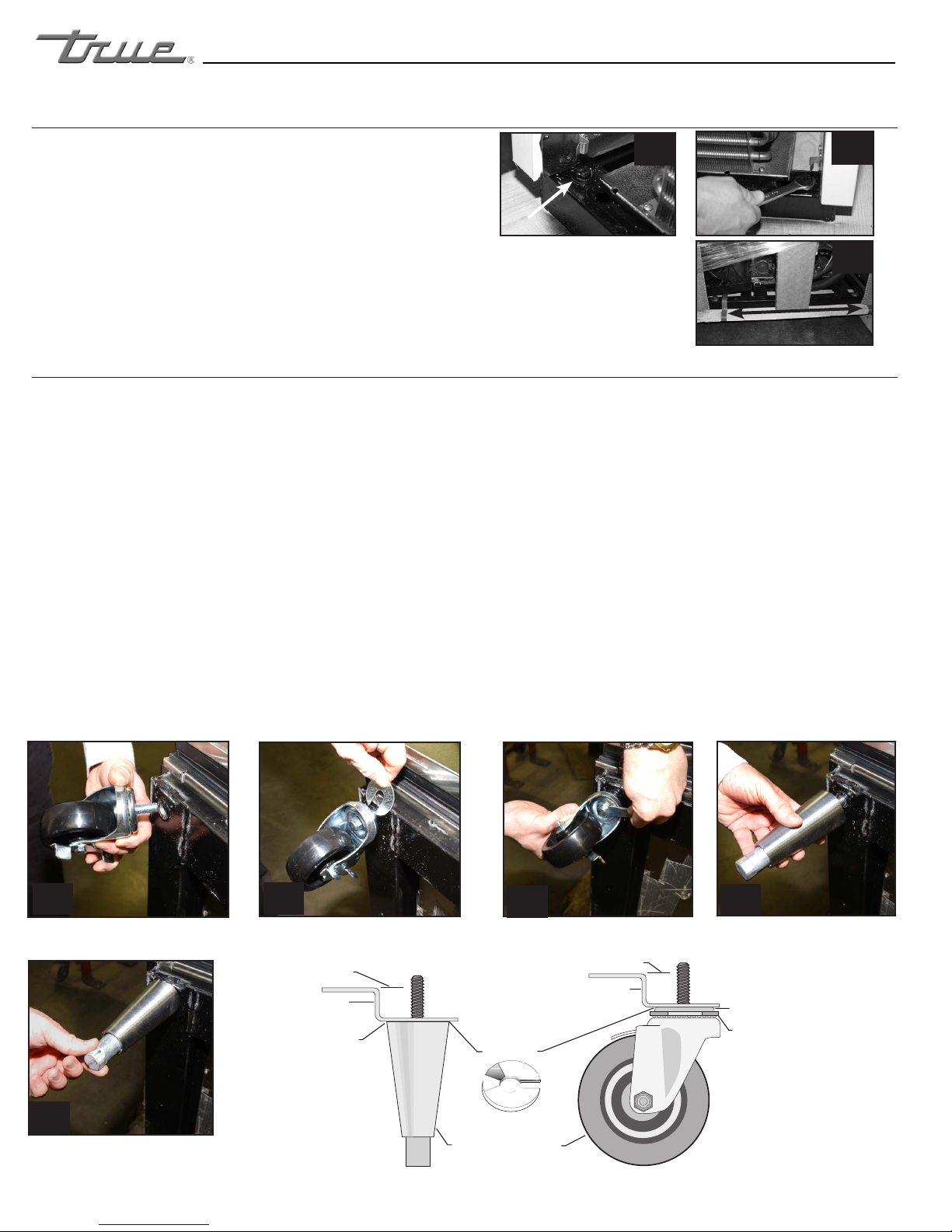

INSTALLATION OF LEGS AND CASTORS

Important Safeguard for installation of leg/castor (Images 1-5 demonstrate procedure)

Securing Castors and Legs











Unit leveling







A. 





B. 





C. 



D. 





CAUTION

To avoid damage to lower rail assembly,

slowly raise unit to upright position.

NOTE

Open holes located on the cross members of the frame rail

should be plugged before unit is in use.

A. 



B. 



C. 

D. 

E. 

Removing skid from bottom

of cabinet.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

INSTALLATION / OPERATION INSTRUCTIONS

NEPCO/CENTRALAB

1227-5

REMOVECOVERMAKEPOWER CONNECTIO N

A. 







WARNING

Warranty is void if ventilation is insufficient.

B. 







C. 



D. 



E. 



F. 





WARNING

Cabinet warranties are void if OEM power cord is tampered

with. TRUE will not warranty any units that are connected to

an extension cord.

LEVELING

8 8

............ www.truemfg.com ............

True Food Service Equipment, Inc.

CONDUCTORS AND CIRCUITS

INSTALLATION / OPERATION INSTRUCTIONS

Wire Gauge for 2% Voltage Drop in Supply Circuits

115 Volt Distance In Feet To Center of Load

Amps 20 30 40 50 60 70 80 90 100 120 140 160

2 14 14 14 14 14 14 14 14 14 14 14 14

3 14 14 14 14 14 14 14 14 14 14 14 12

4 14 14 14 14 14 14 14 14 14 12 12 12

5 14 14 14 14 14 14 14 12 12 12 10 10

6 14 14 14 14 14 14 12 12 12 10 10 10

7 14 14 14 14 14 12 12 12 10 10 10 8

8 14 14 14 14 12 12 12 10 10 10 8 8

9 14 14 14 12 12 12 10 10 10 8 8 8

10 14 14 14 12 12 10 10 10 10 8 8 8

12 14 14 12 12 10 10 10 8 8 8 8 6

14 14 14 12 10 10 10 8 8 8 6 6 6

16 14 12 12 10 10 8 8 8 8 6 6 6

18 14 12 10 10 8 8 8 8 8 8 8 5

20 14 12 10 10 8 8 8 6 6 6 5 5

25 12 10 10 8 8 6 6 6 6 5 4 4

30 12 10 8 8 6 6 6 6 5 4 4 3

35 10 10 8 6 6 6 5 5 4 4 3 2

40 10 8 8 6 6 5 5 4 4 3 2 2

45 10 8 6 6 6 5 4 4 3 3 2 1

50 10 8 6 6 5 4 4 3 3 2 1 1

Wire Gauge for 2% Voltage Drop in Supply Circuits

230 Volts Distance In Feet To Center of Load

Amps 20 30 40 50 60 70 80 90 100 120 140 160

5 14 14 14 14 14 14 14 14 14 14 14 14

6 14 14 14 14 14 14 14 14 14 14 14 12

7 14 14 14 14 14 14 14 14 14 14 12 12

8 14 14 14 14 14 14 14 14 14 12 12 12

9 14 14 14 14 14 14 14 14 12 12 12 10

10 14 14 14 14 14 14 14 12 12 12 10 10

12 14 14 14 14 14 14 12 12 12 10 10 10

14 14 14 14 14 14 12 12 12 10 10 10 8

16 14 14 14 14 12 12 12 10 10 10 8 8

18 14 14 14 12 12 12 10 10 10 8 8 8

20 14 14 14 12 10 10 10 10 10 8 8 8

25 14 14 12 12 10 10 10 10 8 8 6 6

30 14 12 12 10 10 10 8 8 8 6 6 6

35 14 12 10 10 10 8 8 8 8 6 6 5

40 14 12 10 10 8 8 8 6 6 6 5 5

50 12 10 10 8 6 6 6 6 6 5 4 4

60 12 10 8 6 6 6 6 6 5 4 4 3

70 10 10 8 6 6 6 5 5 4 4 2 2

80 10 8 8 6 6 5 5 4 4 3 2 2

90 10 8 6 6 5 5 4 4 3 3 1 1

100 10 8 6 6 5 4 4 3 3 2 1 1
