INSTALLATION GUIDE

DUAL ZONE

WINE CABINET

956657

Thank you for purchasing your new True Professional Series unit. For over

65 years, True® has been a leader in commercial refrigeration. No other

refrigeration company has the reputation for being the industry’s best when

it comes to superior quality and service. And while our reputation for quality

reaches across the globe, all of our products are proudly made in the USA.

Respected by the culinary world,True’s unmatched performance is proven

—our products are carried in some of the most prestigious restaurants

and hotels around the world.

And now, we are pleased to bring this performance to you —crafting products

for your home of the same quality that the world’s

best chefs demand in their kitchens.

This guide will answer most of your questions about the installation of yourTrue

Professional unit. If you have questions that are not answered here, contact

True customer service at 800-325-6152 or info@true-residential.com.

Or you may also visit our website at true-residential.com.

Thank You

For

Your Purchase

Ownership 1

Safety Precautions 1

Disposal of Old Refrigerator 1

CFC Disposal 1

Uncrating 2

Electrical Specications 3

Leveling Refrigerator 4

Installing Anti-Tip Brackets 5

Installing the Door Stop 6

Installation Specications for Dual Zone Wine Cabinet 8-11

Installation Specications - Dual Zone with Overlay Panel 12-17

Home Alarm System 18

Dual Zone Wine Cabinet Components 19

True Precision Control Operation 20

Shelving Adjustment 21-22

General Maintenance, Replacement Parts, Installation Checklist

& FAQs 23-26

INDEXInstallation Guide

True Professional Dual Zone Wine Cabinet Installation Guide

OWNERSHIP

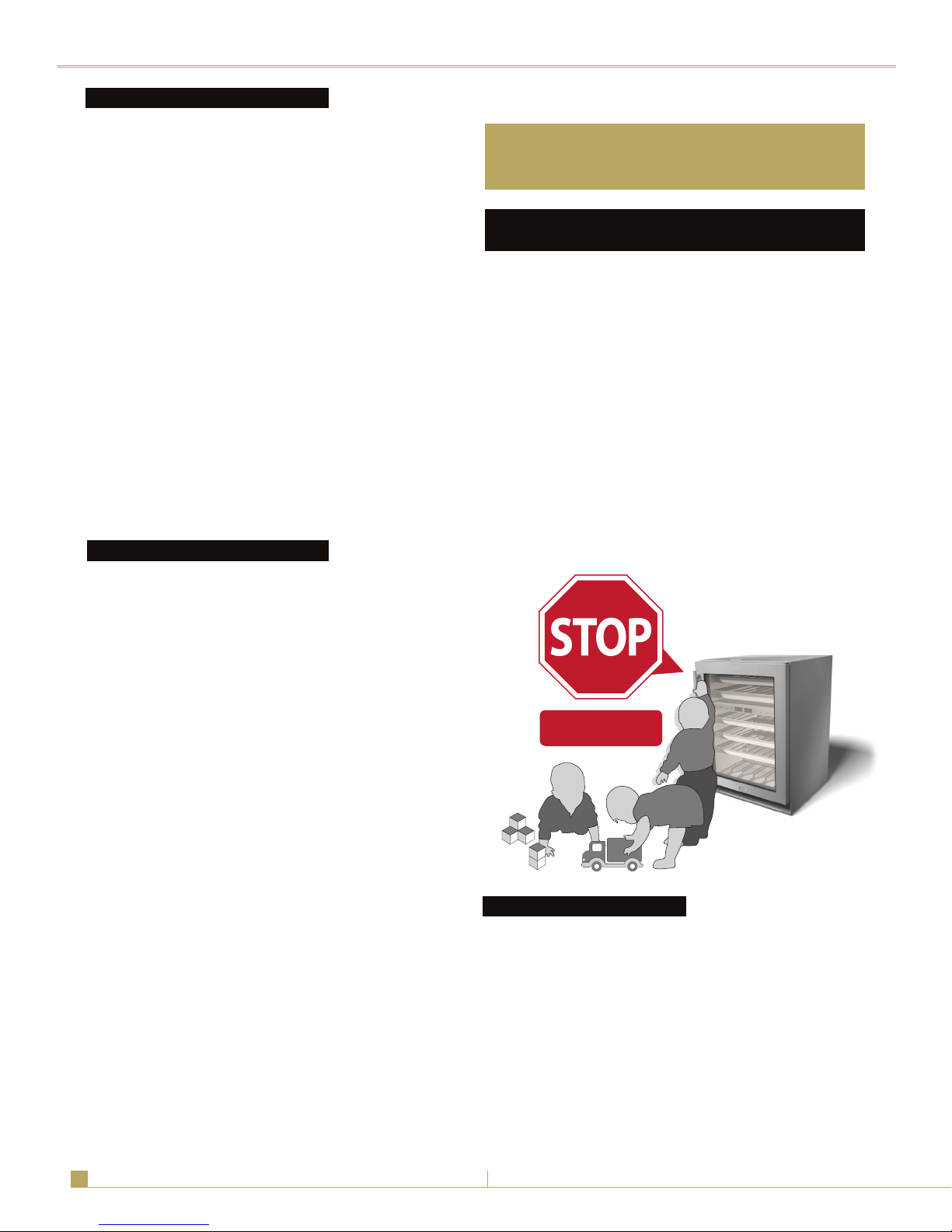

SAFETY PRECAUTIONS

DANGER!

RISK OF CHILDREN

ENTRAPMENT

To insure that your unit works properly from the

rst day, it must be installed properly. (We highly

recommend a trained refrigeration mechanic and

electrician install your True Professional Cabinet.) The

cost of a professional installation is money well spent.

Before you start to install yourTrue Professional

Cabinet, carefully inspect it for freight damage. If

damage is discovered, immediately le a claim with

the delivery freight carrier. True is not responsible for

damage incurred during shipment.

Any questions about the installation please contact

yourTrue dealer or True Technical Service Department

at 1-800-325-6152 (Please have your model and

serial numbers available when you call our Service

Department).

• This refrigerator must be properly installed

and located in accordance with the installation

instructions before it is used.

• Do not allow children to climb, stand or hang on

the shelves in the refrigerator. They could damage

the refrigerator and seriously injure themselves.

• Do not store or use gasoline or other ammable

vapors and liquids in the vicinity of this or any

other appliance.

• Keep hands away from the “pinch point” areas

(gaps between the doors and between the doors

and cabinet) small areas are not necessarily safe.

• Unplug the refrigerator before cleaning and

making repairs.

NOTE: We strongly recommend that any

servicing be performed by a qualied individual.

• Setting temperature control to OFF only removes

power from the refrigeration system, it does not

remove power from other circuits. For example,

temperature control and lights.

NOTE: WE STRONGLY RECOMMEND THAT ANY

SERVICING BE PERFORMED BY A QUALIFIED

INDIVIDUAL

PROPER DISPOSAL OF THE OLD

REFRIGERATOR

Child entrapment and suffocation are not problems

of the past. Junked or abandoned refrigerators are

still dangerous... even if they will sit for “just a few

days”. If you are getting rid of your old refrigerator,

please follow the instructions below to help prevent

accidents.

Before You Throw Away Your Old Refrigerator or

Freezer:

• Take off the doors.

• Leave the shelves in place so that children may not

easily climb inside.

CFC DISPOSAL

Your old refrigerator may have a cooling system that

used CFC’s (chlorouorocarbons). CFCs are believed

to harm stratospheric ozone. If you are throwing away

your old refrigerator, make sure the CFC refrigerant is

removed for proper disposal by a qualied service. If

you intentionally release this CFC refrigerant you can

be subject to nes and imprisonment under provisions

of the environment legislation.

True Professional Dual Zone Wine Cabinet Installation Guide 2

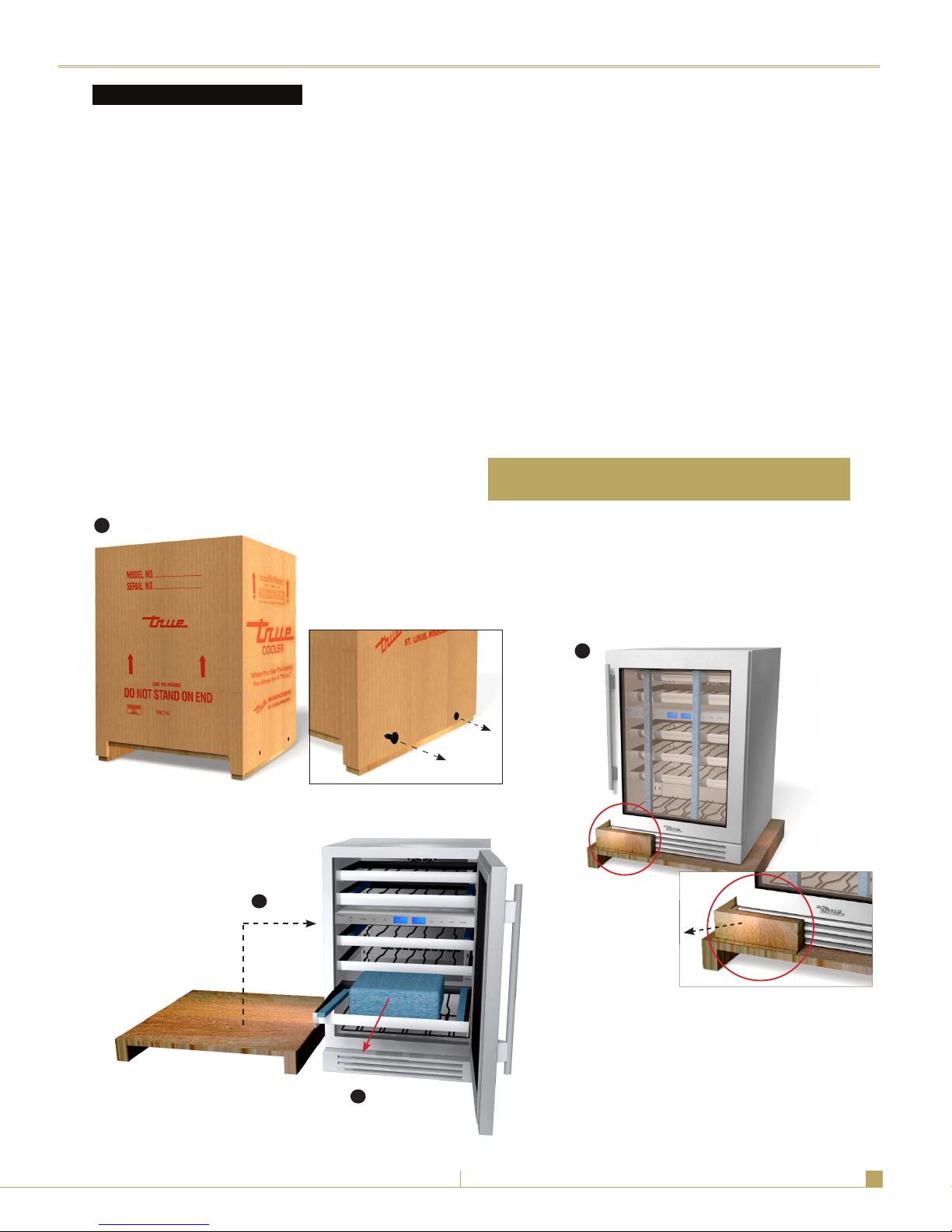

Tools Required:

• Cutting utensil (utility knife)

• Hammer

• Crowbar

• Phillips head screwdriver

The following procedure is recommended for

uncrating the unit:

MOVE YOUR UNIT AS CLOSE TO THE FINAL

LOCATION AS POSSIBLE BEFORE REMOVING

THE WOODEN SKID.

A. Remove nails securing cardboard box to the

wooden skid.Then discard any outer packaging

(cardboard, clear plastic).

Inspect for concealed damage. Again, immediately le

a claim with the freight carrier if there is damage.

B. IMPORTANT: Remove wooden block with Phillips

head screw driver before removing refrigerator

from pallet.

C. Remove skid by carefully lifting the refrigerator off

and place skid aside. Remove clear plastic

coating from cabinet.

D. Open the unit and remove any packing material.

Styrofoam, tape, and any other material used

for shipping purposes.

NOTE: KEYS FOR UNIT ARE PROVIDED WITH

THIS PACKET

UNCRATING

True Professional Dual Zone Wine Cabinet Installation Guide

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord. For personal

safety, this appliance must be properly grounded.

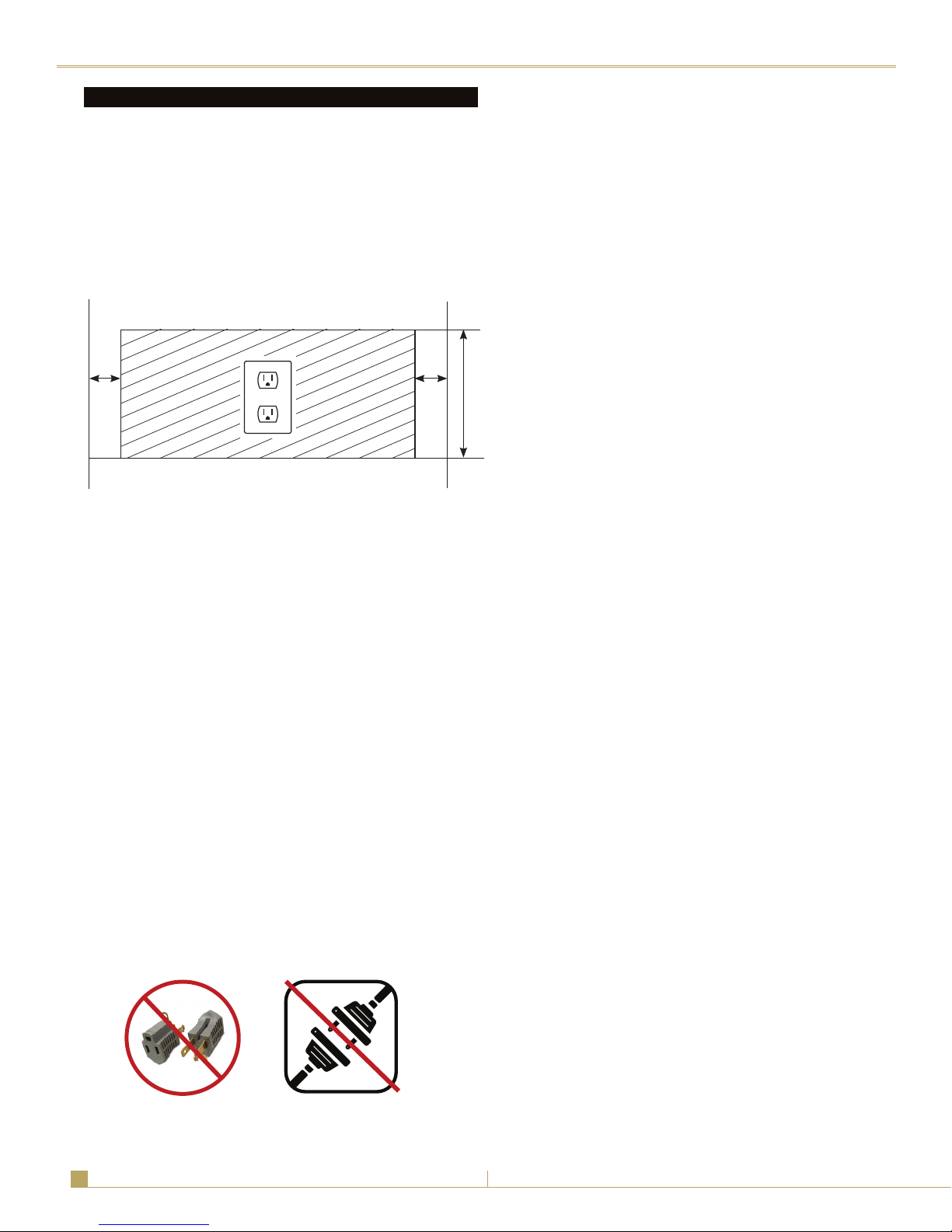

To minimize the depth of the cutout opening, the

electrical outlet must be positioned as shown below.

Outlet must be ush with wall.

Before your new unit is connected to a power supply,

check the incoming voltage with a volt meter. If anything

less than 100% of the rated voltage for operation is

noted, correct immediately.

The power cord of this appliance is equipped with a

3-prong (grounding) plug which mates with a standard

3-prong (grounding) wall outlet to minimize the

possibility of electric shock hazard from this appliance.

A 115V AC, 60 Hz, 15 amp circuit breaker and electrical

supply are required.

Have the wall outlet and circuit checked by a qualied

electrician to make sure the outlet is properly grounded.

If the outlet is a standard 2-prong outlet, it is your

personal responsibility and obligation to have it replaced

with the properly grounded 3 prong wall outlet.

Do not use an extension cord or two prong adaptor.

Electrical ground is required on this appliance.

2” 2” 8”

Rear wall of cut out

ELECTRICAL SPECIFICATIONS

The unit should always be plugged into its own

individual electrical outlet, which has a voltage rating

that matches the rating plate. This provides the best

performance and also prevents overloading house

wiring circuits which could cause a re hazard from

overheated wires. Never unplug your refrigerator by

pulling on the power cord. Always grip plug rmly

and pull straight out from the outlet.

Repair or replace immediately all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either end. When moving the

refrigerator away from the wall, be careful not to roll

over or damage the power cord.

True Professional Dual Zone Wine Cabinet Installation Guide 4

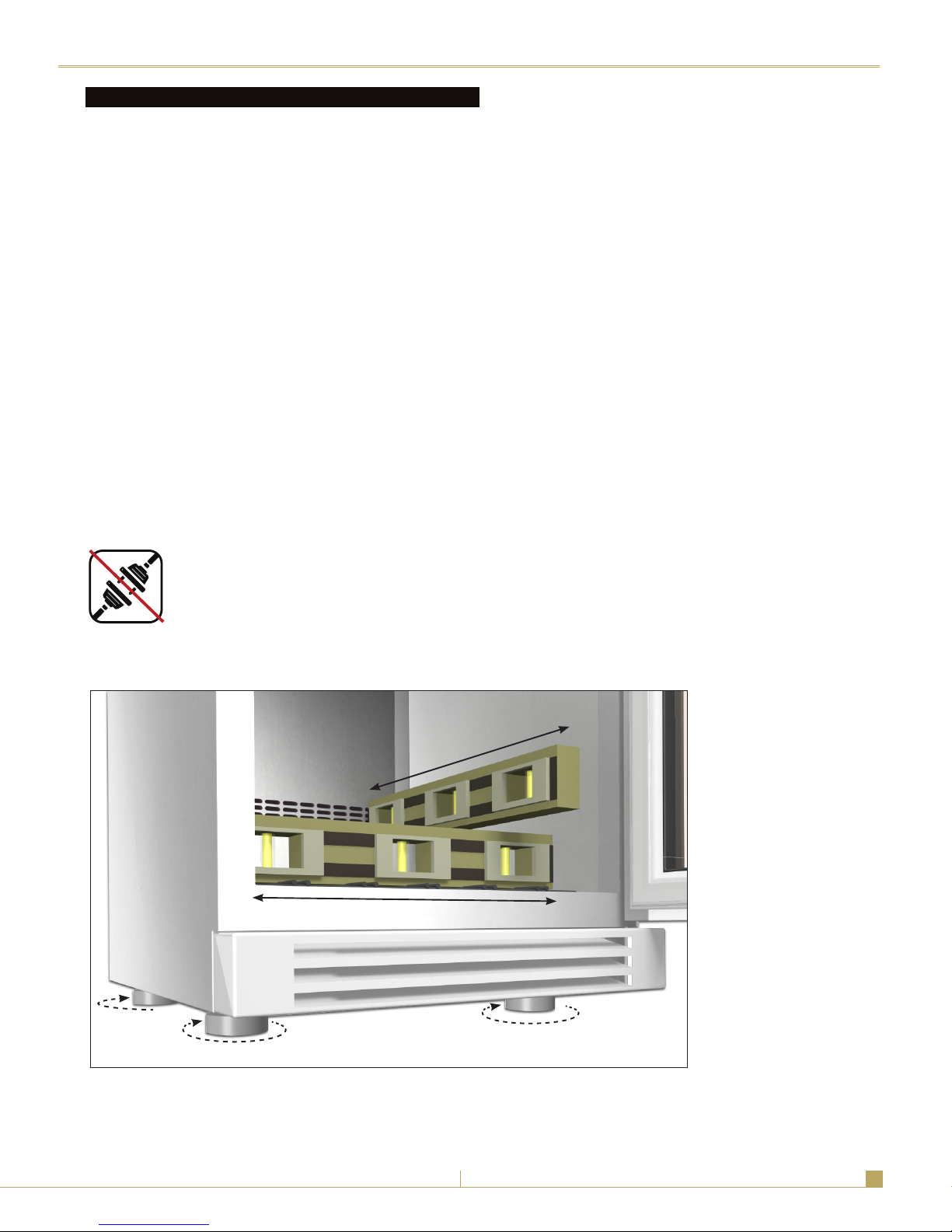

1. Set unit in its nal location. Be sure there is adequate ventilation in

your room.

2. Proper leveling of your True unit is critical to operating success

(for non-mobile models). Effective condensate removal and door

operation will be effected by leveling. Adjust leg levelers on the front

and back of the cabinet if it needs to be lowered or raised.

3. The unit should be leveled from the interior of the unit front to back

and side to side with a level. If the refrigerator is not level adjust the

stainless steel leg levelers. The leg levelers can be adjusted by turning

to reach the desired leveling height as shown in the illustration below.

4. Free plug and cord from back of cooler (do not plug in).

5. The unit should be placed close enough to the electrical supply so

that extension cords are never used.

WARNING: COMPRESSOR WARRANTIES ARE VOID IF

THE UNIT IS MORE THAN 7 FT. (2.1M) FROM PLUG-IN

CONNECTION OR IF AN EXTENSION CORD IS USED.

LEVELING REFRIGERATOR

True Professional Dual Zone Wine Cabinet Installation Guide

To prevent this the anti-tip brackets need to be installed.

Reconnect the anti-tip bracket if the product is moved.

Failure to follow these instructions can result in property

or bodily harm.

Read all installation instructions rst. Install the anti-tip

brackets to hold both rear legs of the unit. Follow these

steps to secure the brackets to the oor before moving

the unit into nal operating position.

Contact a qualied oor covering installer for the best

procedure of drilling mounting holes through your type

of oor covering.

BEFORE MOVING UNIT TAKE PRECAUTIONS TO

PROTECT THE FLOOR COVERING.

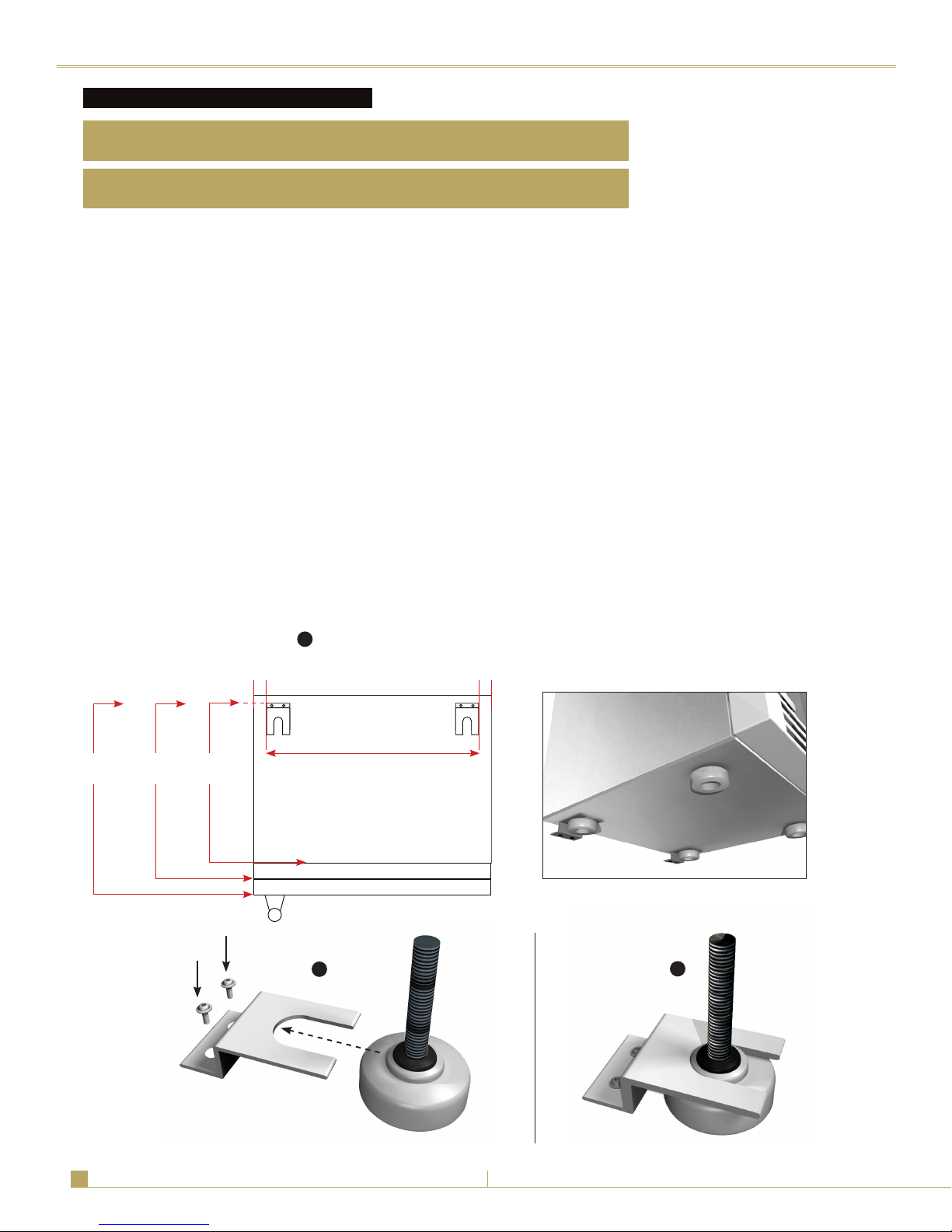

AANTI-TIP BRACKET LOCATOR - TOP VIEW

INSTALLING ANTI-TIP BRACKETS

ALL FREE STANDING, DRAWER OR STACKED UNITS MUST HAVE

THE ANTI-TIP BRACKETS INSTALLED.

TIP OVER HAZARD: A CHILD OR ADULT CAN TIP THE REFRIGERATOR

AND MAY CAUSE PROPERTY OR BODILY HARM.

A. Determine the location of the unit. From the front

of the determined location of the lower louver grill

measure back 201/2”. From the determined side of

the unit measure over 27/32”. This is where the back

and outer side of the bracket should sit. Using the

bracket as a template mark the holes for drilling.

B. To mount the anti-tip bracket to wood oor, drill

pilot holes for each of the bracket holes. To mount

the anti-tip bracket to concrete or ceramic oor

use a masonry bit to drill pilot holes. Align anti-tip

bracket holes with the holes in the oor. Fasten anti-

tip bracket with screws provided using the brass

colored screw for wood, or blue colored masonry

screw for concrete.

C. Move unit into nal position making sure rear leveling

legs slide into the anti-tip brackets.

Back of the unit

Cabinet Front

27/32” 27/32”

223/16”

2225/32”201/2”

Overlay Panel

221/32”

True Professional Dual Zone Wine Cabinet Installation Guide 6

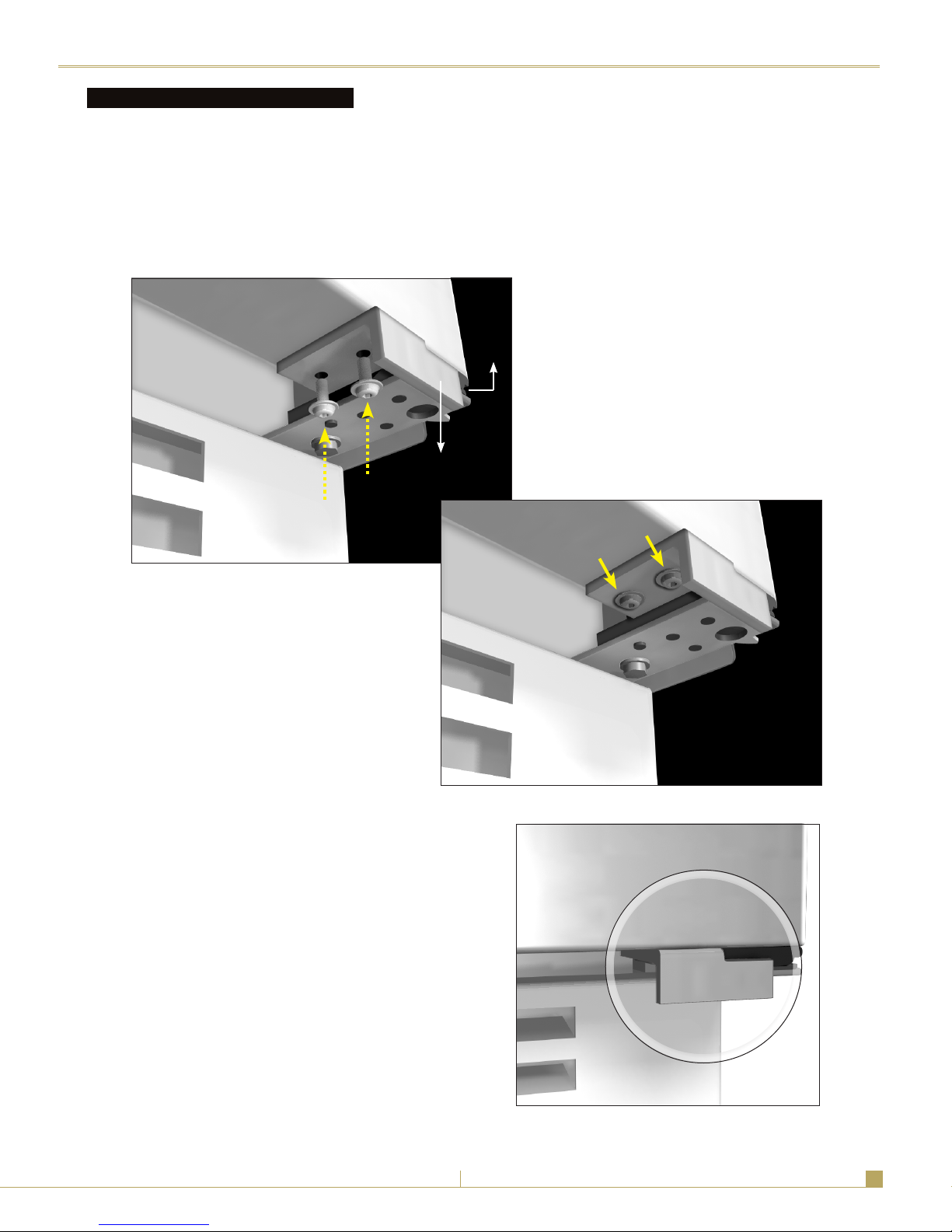

INSTALLING THE DOOR STOP

All units are provided with an optional door stop. When installed, the door stop will restrict the door from

opening past approximately 120º to prevent damage to surrounding cabinets.To install the door stop, use the

2 screws provided and secure the bracket to the bottom of the door on the same side as the hinge.

Cabinet door

Hinge

Door stop

installed

Cabinet grill

True Professional Dual Zone Wine Cabinet Installation Guide

NOTES

Indice

Altri manuali True Refrigeratore per vino

True

True Professional Series Manuale utente

Manuali Refrigeratore per vino popolari di altre marche

U-Line

U-Line Echelon Wine Captain 2075WC Manuale del proprietario

Haier

Haier WS50GA Manuale utente

Cavist

Cavist 62 Manuale utente

Kenmore

Kenmore 461.99130 Manuale utente

Miele

Miele KWT 6422 iG Manuale utente

Danby

Danby DWC113BLSDB Manuale utente

Caple

Caple Wi6128 Manuale utente

Avanti

Avanti WC1001 Manuale utente

Frigidaire

Frigidaire FFWC38F6LS Manuale utente

Titan

Titan TT-W2454SZ Manuale di installazione

Klarstein

Klarstein Botella 166 Uno Manuale utente

Costway

Costway FP10130WL Manuale utente

Lemair

Lemair LWC59 Manuale utente

Haier

Haier JC-125GEA Manuale utente

Caple

Caple WCi46B Manuale utente

Climadiff

Climadiff CLI24 Guida rapida

Viking

Viking VCWB301LSS Manuale utente

Caple

Caple WC6511 Manuale utente
