TRUlink 81657 Manuale utente

QUICK START GUIDE

WIRELESS USB TO VGA ADAPTER KIT

Model: 81657

Thank you for purchasing the TruLink™ Wireless USB To VGA Adapter Kit. This Quick Start Guide will

assist you in setting up your unit properly. For instructions on adjusting settings and product

specification information, please refer to the User Guide which is included in the package. We

recommend that you read this Quick Start Guide thoroughly and retain for future reference.

INTRODUCTION

Supports high resolution UXGA video of 1600 x 1200 at distances up to 10 metres

Works in both extended desktop and mirror screen modes

Supports native mode for playback of high resolution video

Up to six computers can share one wireless display

Supports video streaming at up to 720p

Operates in WiMedia Band Group 1 frequency range (4.2 GHz to 4.8 GHz)

Certified Wireless USB 1.0 compliant

WiMedia 1.0 MAC & 1.1 PHY compliant

FEATURES

Microsoft® Windows® XP 32-bit with Service Pack 3 or higher

or Microsoft® Vista® 32-bit/64-bit

VGA cable to connect from the Wireless VGA Device Adapter to your display device

SYSTEM REQUIREMENTS

Wireless USB Host Adapter for your computer

Wireless VGA Device Adapter for your display

Two (2) Dipole Antennae (one for each adapter)

1 m USB A Male/Mini-B Male Cable

USB Extender with Cradle

One (1) Power Adapter (cord approx. 1.2 m)

Pin-Association Stickers

User Guide

Quick Start Guide

Driver CD w/Electronic User Guide

PACKAGE CONTENTS

WIRELESS USB HOST ADAPTER

1. Link: Data Connection Indicator

LED is solid when transfer device is connected.

LED blinks when data is being transferred.

2. PWR: Power

LED is solid when powered by the PC.

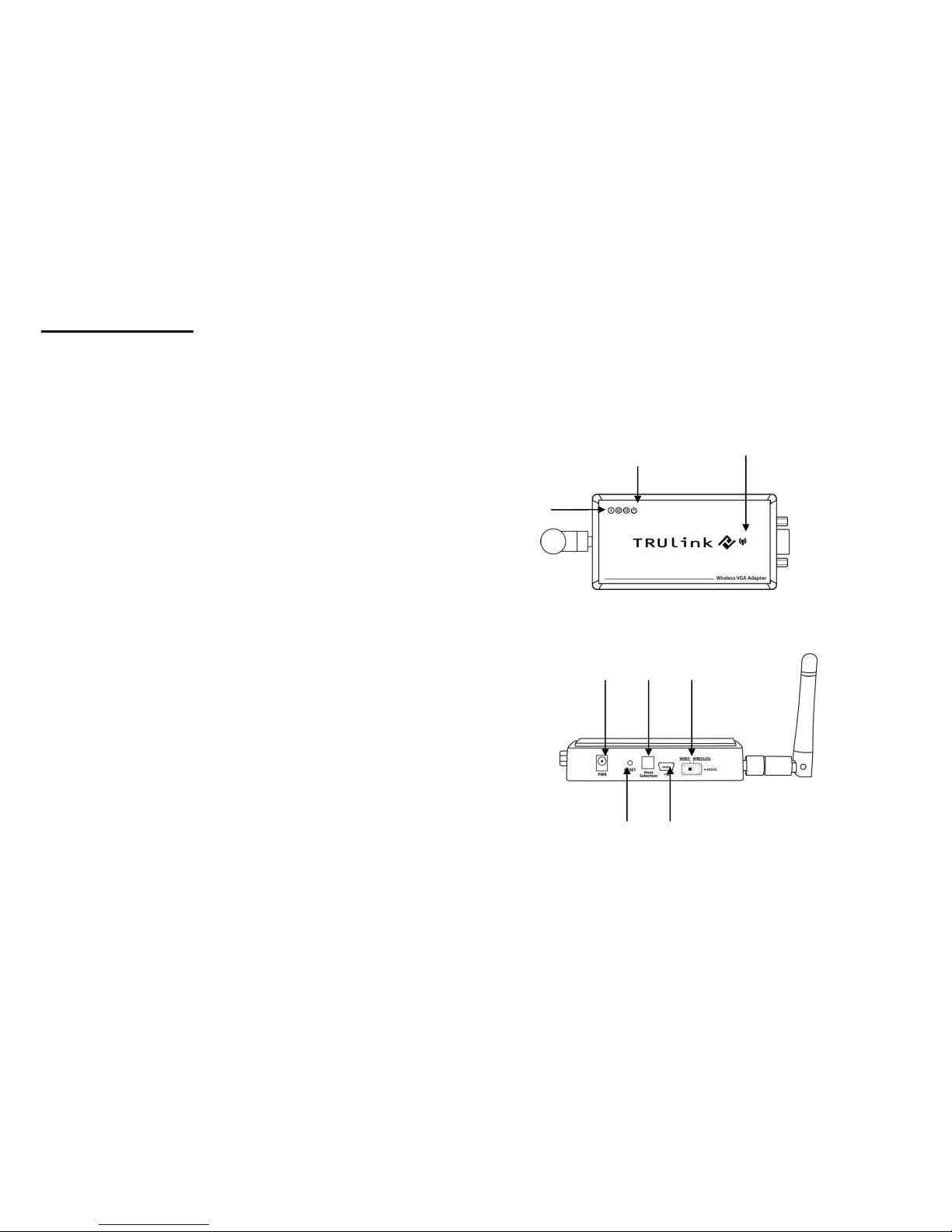

DEVICE OVERVIEW

WIRELESS VGA DEVICE ADAPTER

1. VGA : VGA Activity Indicator

LED is solid when display cable is connected.

LED blinks when data is being transferred.

2. PWR: Power Indicator

LED is solid when power is applied.

3. 1-2-3: Status Indicator

Illuminated number/s indicates the Wireless USB host

adapter that is currently synched with the Wireless

VGA Device Adapter.

4. PWR plug

Power adapter socket

5. RESET

Association history can be deleted by pressing and

holding this button for 10 seconds.

6. HOST

This button is used to select a different Wireless

USB host adapter.

7. USB connector

In wireless mode, this connector is used for cable association.

In wired mode, this connector is used for wired operation.

8. WIRELESS/WIRED switch

Choose from wired or wireless mode by using this switch.

DEVICE OVERVIEW

IMPORTANT NOTE:

If installing on Windows XP, Service Pack 3 (SP3) is required. Verify that this has been

installed before installing the Wireless USB To VGA Adapter Kit software.

Before installing the software, make sure that the Wireless USB Host Adapter and the

Wireless VGA Device Adapter are not connected to the computer and the Wireless VGA

Device Adapter is switched on.

STEP 1-INSTALLING THE SOFTWARE

Insert the CD provided and the software will run automatically. Please follow the instructions on the

InstallShield Wizard to proceed through the software installation.

SOFTWARE/DEVICE INSTALLATION

STEP 2-DRIVER INSTALLATION FOR THE WIRELESS USB HOST ADAPTER

Your Wireless USB to VGA Adapter Kit has been pre-associated for you, meaning the Wireless USB Host

Adapter will automatically recognise the Wireless VGA Device Adapter upon being switched on. After

software installation, you should see the Wireless USB Manager icon in your Windows icon tray. Double-

click on this icon to open the manager utility.

The Wireless USB Manager will open and instruct you on

what to do next. Screw on one of the supplied dipole

antennae to the Wireless USB Host Adapter and connect

the Wireless USB Host Adapter to an available USB port

on your computer. You also have the option of

connecting the Wireless USB Host Adapter to the USB

Cradle provided in the package if you need to make the

adapter more mobile.

SOFTWARE/DEVICE INSTALLATION

Figure: Wireless USB Manager

After you connect the Host Adapter to your computer, Windows will automatically install the Wireless USB

Host Adapter and you should get a successful install message in your icon tray as shown in the below

figure.

SOFTWARE/DEVICE INSTALLATION

Figure: Successful Install Message
