Trustech TY-EA-03 Manuale utente
Support@trustechproducts.com +1（855）620 5858
Please scan QR code to
extend your WARRANTY
USER MANUAL
MODEL：TY-EA-03
+1（855）620 5858
❄Thank you for choosing Trustech Air Cooler! ❄
Please take a few moments to thoroughly read it and start enjoying your cool summer!
Always here to help you ！
For any questions or help, please email us: Support@trustechproducts.com
Support@trustechproducts.com +1（855）620 5858
IMPORTANT SAFETY INSTRUCTIONS:
The manufacturer does not bear any responsibility for any damage from failure to comply
with this product guide.
People with limited physical, visual, or mental abilities or lacking proper experience and/or
knowledge should never use the device without the supervision of those responsible for their
safety or those capable of assistance in using the device.
NOTE BEFORE USING
- If you don't use the item for a long time, please empty the water tank, turn the unit on, and set
it to the highest fan speed for at least 4 hours before using.
- For best results, place the cooler fan on a higher surface like a table or countertop.
- Do not allow any foreign objects inside Air Cooler.
- Only use the original USB line supplied in the package.
- Works best in non-polluted areas. Large dust/dirt particles may reduce the lifetime of the unit.
- Use only clean water. If needed, use distilled water.
NOTE DURING USING
- If a water leak or spill occurs on the surface of the device, unplug Air Cooler and let it dry for 24
hours.
- Use only in dry locations. If using in a moist area or environment, take care not to get water on
external of the product.
- Do not block the front and back grills of the device.
- Do not place items on top Air Cooler.
-Do not touch the power supply or power cord with wet hands
-Do not carry Air Cooler when filled with water. Some water may remain in the unit even if the
tank is empty.
- Do not place the product at an angle.
NOTE AFTER USING
- The device can be switched off completely only when disconnected from the power supply.
- Do not place in direct sunlight for extended periods of time.
- Do not place Air Cooler near a heater or any electrical equipment.
- Do not place the device in passageways or high traffic areas where there is a possibility of
tripping or knocking it over.
Support@trustechproducts.com +1（855）620 5858

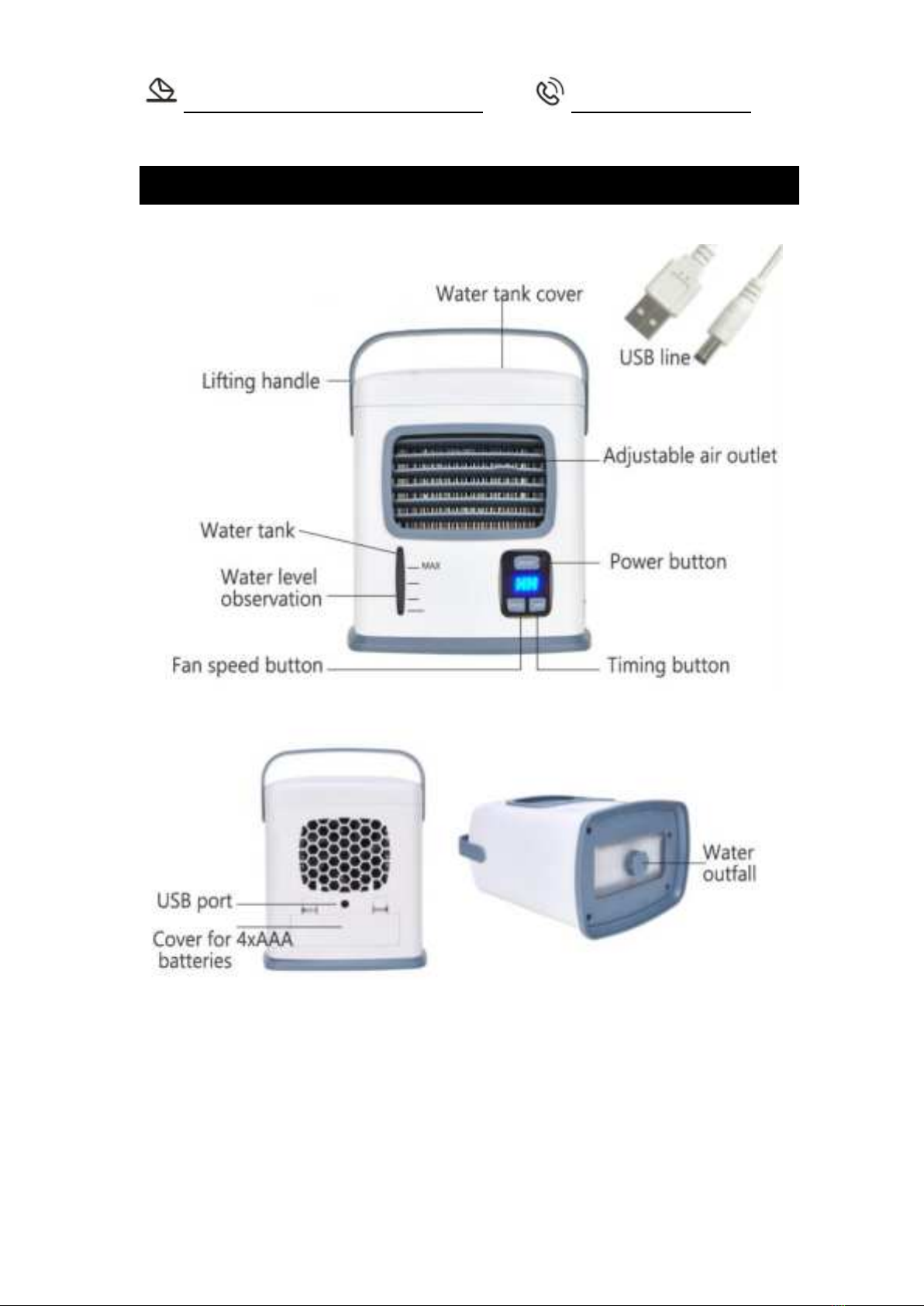

SPECIFICATION:
TIPS FOR USING COOLER：
❄Place Air Cooler on a raised such as a table, desk, or countertop. This is the best way to cool
your personal area faster.
❄After filling up the water, please stop the cooler for three minutes to allow the filter element to
fully absorb water and provide you with the coolest air.
❄We suggest you to sitting directly in front of the cooler to enjoy the cool air.
❄Even if the water tank is empty, the filter is still damp to cool the air.
Model No:
TY-EA-03
Scope of application
40-60 cm
Noise level
50 dB at maximum air velocity
Product size
177x123.5x195 mm
Net weight
700 g
Power supply
5V DC, micro USB 2A
Power
5W
Tank capacity
500 ml for 8-10 hours
Support@trustechproducts.com +1（855）620 5858
USE & OPERATION：
1. Place the air cooler on a flat surface and be careful not to tip it, otherwise, the water will leak
out.
2. Open the water tank cover and add water from the water inlet. We recommend using a
pitcher or measuring cup. Pay attention to the water level, the water in the water tank must
never exceed the maximum water level.
3. Power supply mode:
1Connect the USB power cord w/ 5V 1A adapter or the USB port of the computer/power
bank;
2Open the battery cover and put in 4xAAs batteries to power the cooler.
4. Press to turn on the cooler.
5. Press to change the fan speed. We provide You 2 modes to choose (Low and High mode).
And the indicator LED display show you which speed Air Cooler is currently running.
6. Set timer by pressing , setting timer from 1-12hours.
7. Press again to turn off the cooler.
Note:
1. We recommend running Air Cooler on High mode for at least 5 minutes before powering off to
allow for drying.
2. After each use, we recommend that you take out the filter element separately and expose it to
the sun to reduce odor.
CLEANING & MAINTENANCE：
1. Before cleaning the unit, please power off the unplug the appliance
2. To clean the surface, please use a damp cloth to remove dirt and dust. Do not swash the
item with water.
3. Do not use corrosive detergent or solvent to clean the appliance to avoid any discoloration
or damage.
4. When the product is not in use, please store the unit in a dry place and keep it away from
direct sunlight.
5. It is recommended to clean the water tank and clean the inside of the unit weekly with
clean water.
6. After each use, we recommend that you take out the filter element separately and expose
it to the sun to reduce odor.
Support@trustechproducts.com +1（855）620 5858
WARRANTY：
TRUSTECH warrants this product against defects in materials and/or workmanship under
normal use for a period of ONE YEAR from the date of purchase by the original purchaser
(“Warranty Period”). If a defect arises and a valid claim is received within the Warranty
Period, at its option, TRUSTECH will either 1) repair the defect at no charge, using new or
refurbished replacement parts, or 2) replace the product with a new product that is at least
functionally equivalent to the original product, or provide a store credit in the amount of the
purchase price of the original product. A replacement product or part, including a
user-installable part installed in accordance with instructions provided by TRUSTECH,
assumes the remaining warranty of the original product. When a product or part is
exchanged, any replacement item becomes your property and the replaced item becomes
TRUSTECH’s property. When a store credit is given, the original product must be returned to
TRUSTECH and becomes TRUSTECH’s property. To obtain warranty service, e-mail TRUSTECH
Limited Warranty Service at ❤Support@trustechproducts.com❤. Please be prepared to
describe the product that needs service and the nature of the problem.
This warranty does not apply to:
a) damage caused by failure to follow instructions relating to product’ use or the installation
of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake, or
other external causes; c) damage caused by service performed by anyone who is not a
representative of TRUSTECH; d) accessories used in conjunction with a covered product; e) a
product or part that has been modified to alter functionality or capability; f) items intended
to be periodically replaced by the purchaser during the normal life of the product including,
without limitation, batteries or light bulbs; g) any product sold “as is” including, without
limitation, floor demonstration models and refurbished items; or h) a product that is used
commercially or for a commercial purpose.
Support@trustechproducts.com +1（855）620 5858

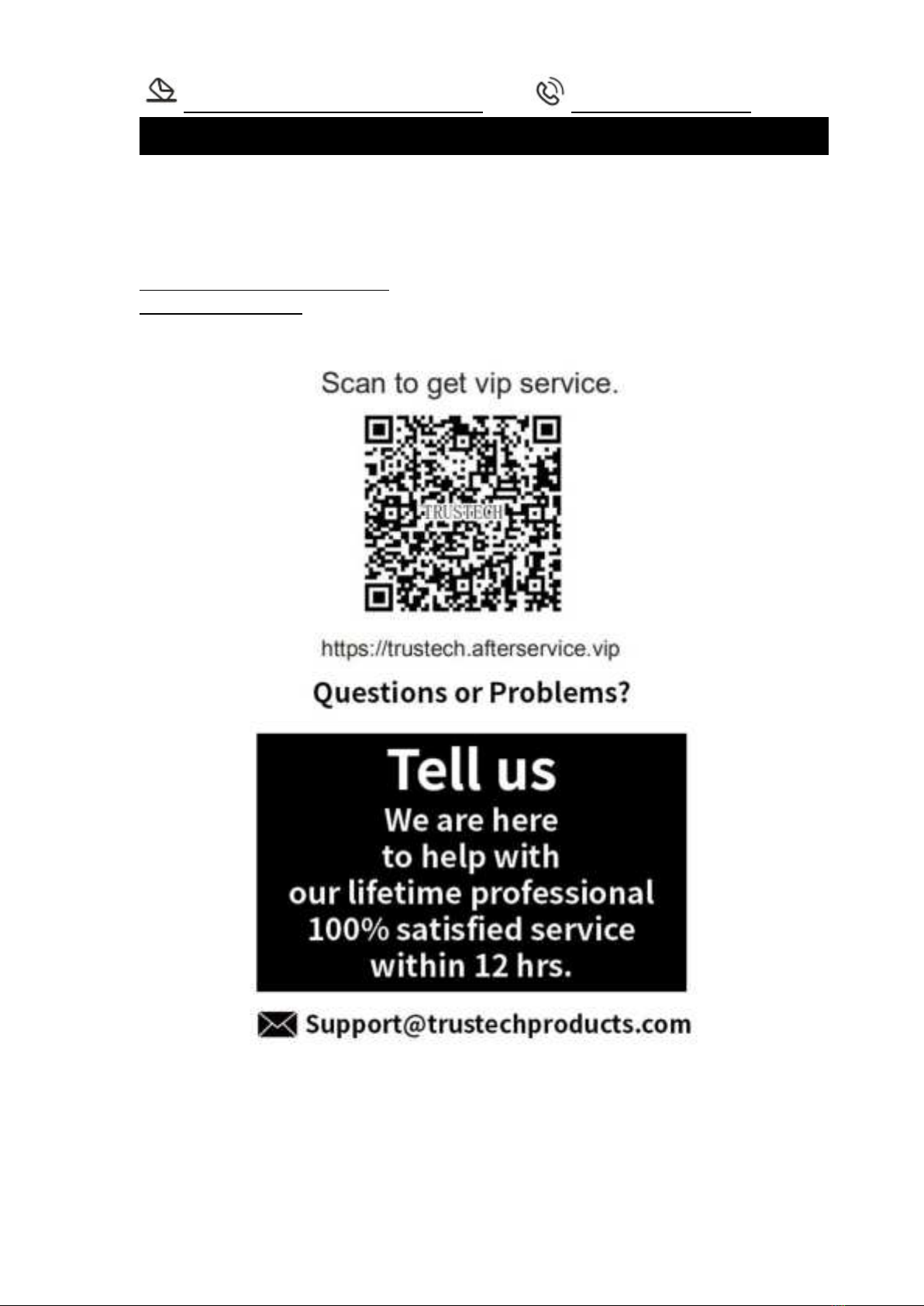

CONTACT US：
Thank you for choosing TRUSTECH product.
If there is a defect arises during one year, please feel free to contact us to get
your valid claim. To obtain warranty service, please your model and order of the
product via:
Support@trustechproducts.com
☎+1（855）620 5858
Our usual response time is within 12 hours!
