TRUSTECH

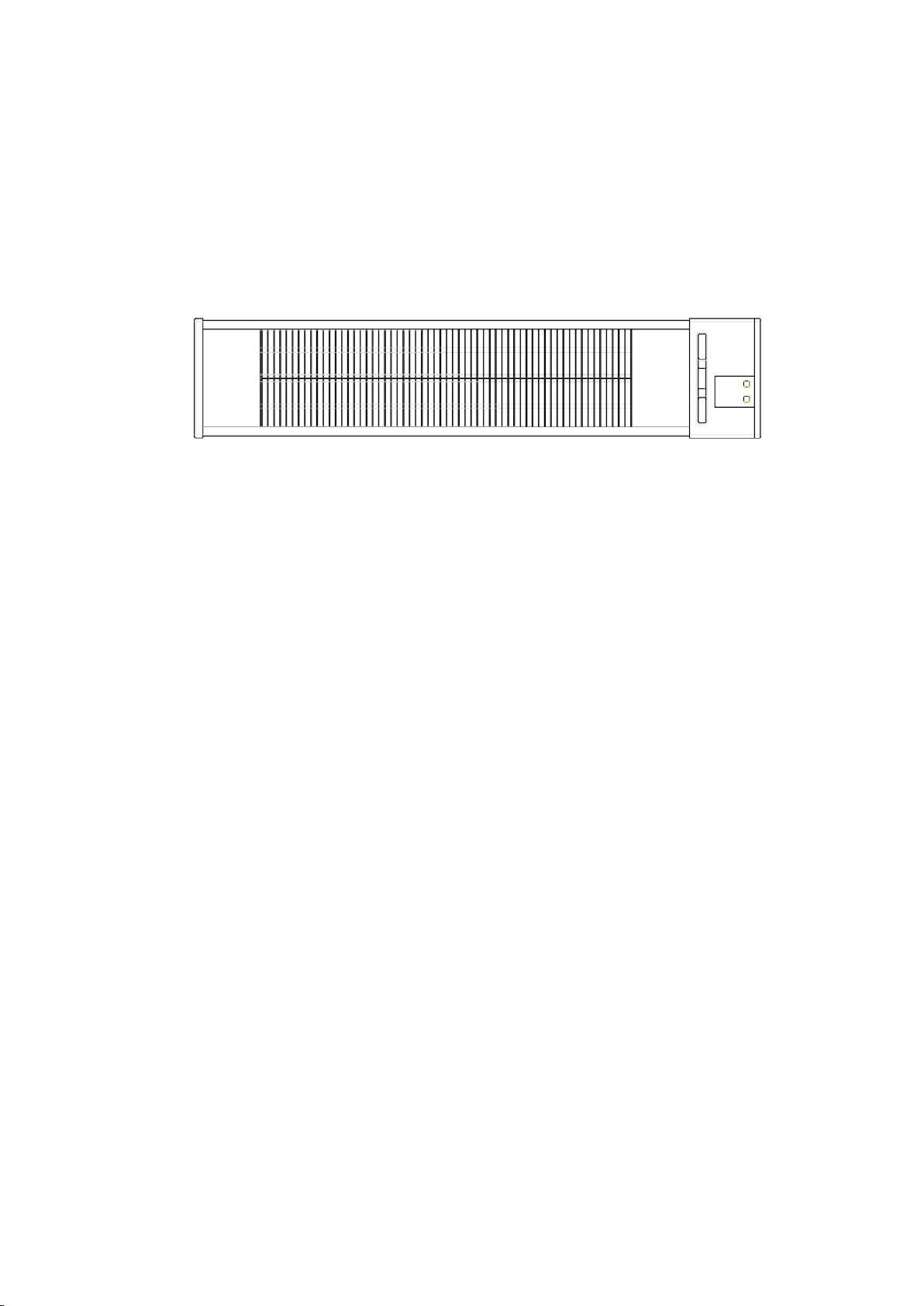

Electric Heater
Operating Instruction
MODEL: PW15R
Please read these instructions carefully before using your new heater
Thank you for choosing our Indoor/Outdoor Patio Heater. This owner's manual
will provide you with valuable information necessary for the proper care and
maintenance of your new product. Please take a few moments to thoroughly
read the instructions and familiarize yourself with all the operational aspects of
your new heater.
IMPROTANT INSTRUCTIONS
Warning:
◇Do not use the heater with a programmer, timer, separate remote-control
system or any other device that switches the heater on automatically, since
a fire risk exists if the heater is covered or positioned incorrectly.
◇It’s dangerous to install the appliance close to curtains and other
combustible materials.
◇Do not use the heater in reach of a shower, bath or a swimming pool.
◇Do not put heater below the outlet, which could potentially melt the outlet
and catch fire.
◇If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or a similarly qualified person in order to avoid a hazard.
◇In order to avoid overheating, do not cover the heater.
◇This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children unless they are older
than 8 and supervised.
◇Keep the appliance and its cord out of reach of children less than 8 years.
◇This heater is not equipped with a device to control the room temperature.
Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision
is provided
◇Pay attention that, no combustible material due to Wind or other
environmental influences covers or obstructs the appliance, such as
curtains, marquees, flags, plastic foil etc.
◇CAUTION — Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and vulnerable
people are present.
When using this electric unit, basic safety precautions should be followed to
reduce the risk of fire, electric shock, and injury to persons, including the
following:
1. Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater
yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin
touch hot surfaces. If provided, use handles when moving this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper,
clothes, and curtains at least 3 ft from the front of the heater and keep them
away from the sides, top, and rear. DO NOT place towels or other objects on
the heater.
5. Extreme caution is necessary when any heater is used by or near children
or the disabled, or when the heater is left operating and unattended.
6. DO NOT operate any heater malfunctions or that with a damaged cord. Also
was not allowed to use heater if product was dropped or damaged. If there is
any problem with your heater, please return to authorized service center to
check with electrical or mechanical adjustment and repaired.
7. This heater is not intended for use in bathrooms, laundry areas and similar
indoor locations. NEVER locate heater where it may fall into a bathtub or other
water container. To protect against electrical hazards, DO NOT immerse in
water or other liquids.
8. DO NOT touch the control panel with a wet hand.
9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs,
runners, or similar coverings. Arrange cord away from traffic area and where it
will not be tripped over.
10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, DO NOT blocks the air intakes or exhaust in any
manner. DO NOT use on soft surfaces, like a bed, where openings may
become blocked.
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas
where gasoline, paint, explosive and/or flammable liquids are used or stored.
Keep unit away from heated surfaces and open flames.
13. Avoid the use of an extension cord because the extension cord may
overheat and cause a risk of fire. However, if you have to use an extension
cord, the cord shall be 1.5m ㎡minimum size.
14. To disconnect heater, turn rocker switch OFF.
15. Always turn off the unit before moving or cleaning, or whenever the heater
is not in use.
16. Use only for intended household use as described in this manual. Any
other use not recommended by the manufacturer may cause fire, electric
shock, or injury to persons. The use of attachments not recommended or sold
by unauthorized dealers may cause hazards.
17. WARNING: To reduce the risk of fire or electric shock, DO NOT use this
unit with any solid-state speed control device.
18. DO NOT attempt to repair or adjust any electrical or mechanical functions
on this unit. Doing so will void your warranty. The inside of the unit contains no
user serviceable parts. Qualified personnel should perform all servicing only.
19. Connect to properly grounded outlets only.
20. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
21. Children should be supervised to ensure that they do not play with the
appliance.
22. The marketing concerning covering shall be visible after the heater has
been installed.
23. Save these instructions.
SPECIFICATIONS
3. Installation
3.1 Installation Instructions
1There are 4 brackets and fasteners used with the heater. Furthermore, in the
canal of back side of the heater there are 4 square fastener washers 25×25mm.
Relieve square washer sand fasten 2 brackets to the canal of the backside of the
heater by the help of screws
2Fasten the brackets at the appropriate distance of each other(45-55cm).
Voltage Rating
120V(60Hz)
Power Consumption
1500W
Unit Size
25.2(W)*3.34(D)*10(H) IN
Unit Weight
5.72 LBS
3Two other brackets are fastened by the help of fasteners at the appropriate
distance on the wall parallel to the floor(At least 1.8 m from the floor and at least
0.5 m from the ceiling).
④Join the brackets on the heater with the brackets, fastened on the wall, with help
of figured screw-nuts.Install the heater under necessary angle(in the direction to the
area being heated). Look at issue 4:(Main rules of heater using).
⑤Electric wiring for the heater has to be done by the qualified specialist.
OPERATING INSTRUCTIONS
A. These appliances must be supplied with proper voltage and frequency
(AC120V, 60Hz), and connected to an individual, properly grounded branch
circuit, protected by a circuit breaker which in accordance with wiring rules.
Power cord of this appliance must be fastened with the chain, installation can
only be carried out by qualified person in order to avoid a hazard.
B.Only operate the heater when it is mounted on the wall. The Electric Infrared
Heater have three heat settings (500/1000/1500W) that could be controlled by
the remote control. The rocker switch on the heater head is used to control the
power switch(ON/OFF).
Please use the rocker switch to turn on the heater, then use remote control to
operate the power setting which you need.

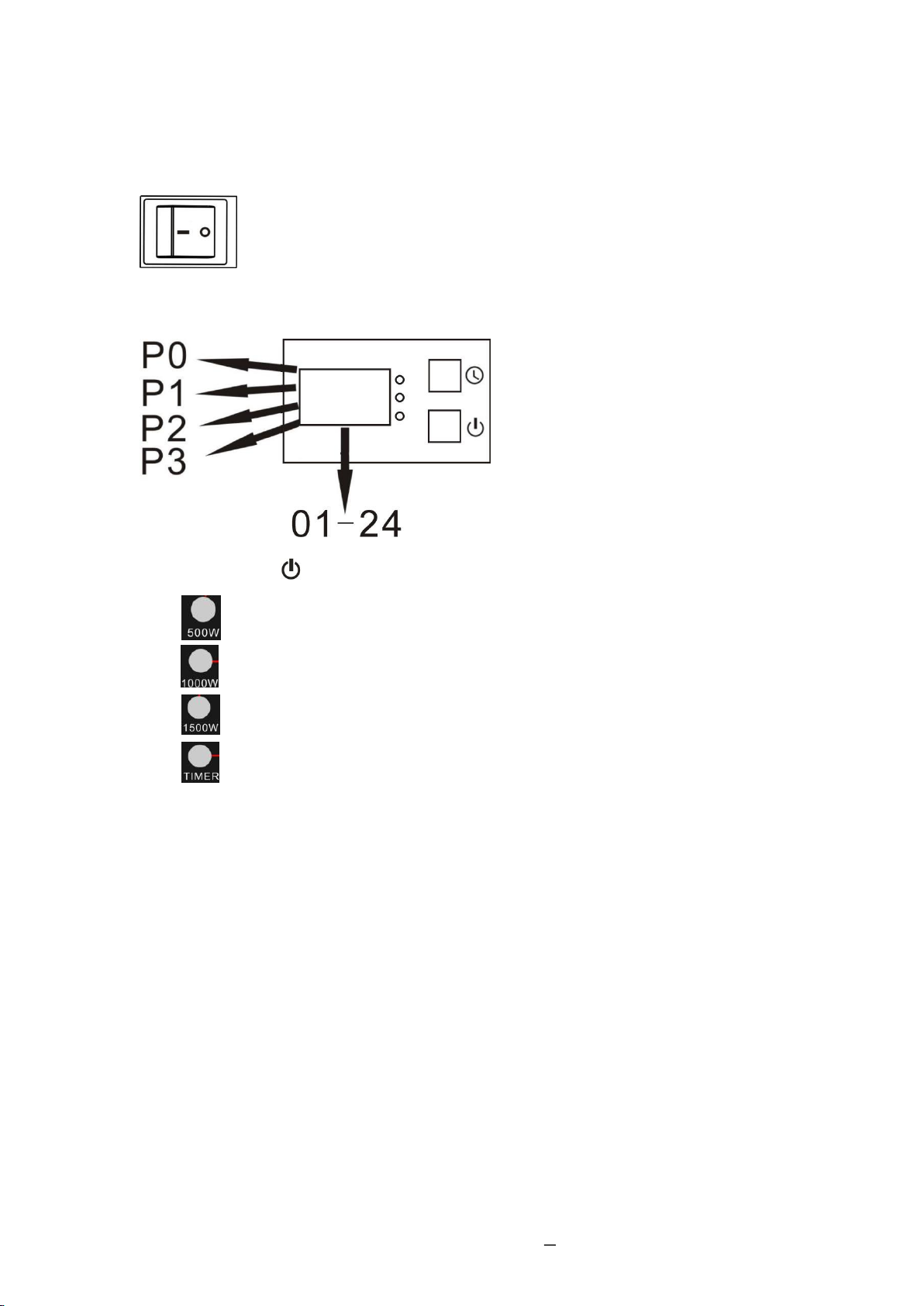

ON/OFF rocker switch
Open the power,press one time, the show window will show P0;
Press , the show window will show P1, the heater will operate in 500W;
press , the show window will show P2, the heater will operate in 1000W;
Press , the show window will show P3, the heater will operate in 1500W;
Press , will be the timer function, the timer is from 1-24 hours;
Definitions of the Buttons on the Remote Control
The functions of the heater may be controlled via the buttons on your remote control and
LED screen. You may also control some of the functions of your heater through the
buttons on the front side of the heater.
Remote Control
1. On / Off
Switches on or off the heater or stands it by.
2. First gear
After turn on the heater, you can choose low heating.
3. Second gear
After turn on the heater, you can choose moderate heating.
4. Third gear
After turn on the heater, you can choose high heating.
5. Timer Off
Switches off the heater in present time and starts stand by mode.
MAINTENANCE
Turn off the circuit breaker before maintenance and let the unit cool
completely.
• To keep the heater clean, the outer shell may be cleaned with a soft,
damp cloth. You may use a mild detergent if necessary. After cleaning, dry the
unit with a soft cloth.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or
rough brushes to clean the heater. This may cause damage or deterioration to
the surface of the heater.
• Although this heater is outdoor approved(Balconies and patios), DO
NOT immerse the heater in water for your safety. Wait until the unit is
completely dry before use.
STORAGE
If the heater will not be used for a long period of time, store it in a cool, dry
location when not in use. To prevent dust and dirt build-up, use the original
packaging to repack the unit.
TROUBLE SHOOTING
If the heater will not operate, please check the following before seeking repair
of service:
• Check if electricity to the main fuse is working.
• Make sure the power switch is turned on.
• Check if the plug is in good contact with the main power supply.
• Check whether it was put in the right way, please do NOT put it upright.
• Check whether the remote control battery low.
。
