TurboAnt V8 Manuale utente
Folding Electric Scooter
User Manual
V8
01
WARNING! RISK OF BATTERY EXPLOSION!
Do not use the battery if it is damaged or has been modified.
Do not expose to heat exceeding 95 °F (35 °C).
Only use the original charging adapter.
Wear protective gear such as a helmet.
Do not ride the scooter in wet conditions.
Thank you for purchasing this product. To avoid injury to the user and others, be sure to observe
the following safety instructions and guidelines. Keep this information for future reference.
Introduction
Featuring 9.3" tubed pneumatic tires, this scooter gives you a smooth riding experience. Its
powerful 450 W motor and 36 V batteries enable a speed of up to 20 mph with a range of up to
50 miles. The reinforced frame reliably supports a body weight of up to 275 lb.
Important Safety Instructions and Guidelines
Safety Checks
• Ensure the wiring and cables around the handlebar are not twisted, and that the throttle is on
the right side while riding the electric scooter.
• Make sure that no parts are damaged or have been modified.
• Make sure that the stem has been secured properly.
• Make sure that Hall cable (black) and brake cable (red) under the brake lever are connected
correctly and the brakes operate properly.
• Make sure that the tires are fully inflated.
• Make sure the battery is fully charged (the indicator light turns green).
• Test whether the scooter can be turned on/off.
• Make sure that the front and rear lights function properly in the dark.
• Children under 14 years old should be supervised by an adult.
Safety Guidelines
Package Contents
1 × Folding Electric Scooter
2 × Charging Adapters
3 × M5*8 Screws (including 1 spare screw)
5 × M4*10 Screws (including 1 spare screw)
1 × M3 Allen Wrench
1 × Valve Adapter
1 × User Manual
1 × Warranty Card
1 × Charging Dock
02
The maximum load is 275 lb (125 kg).
Do not ride under the influence of drugs or alcohol.
Do not use a cell phone or listen to music when riding
the e-scooter.
Check your local traffic regulations whether riding an
e-scooter in traffic is legal or not in your area.
Turn on the lights in the dark.
The scooter is only suitable for riding by a single person.
Technical Specifications
03
Product
Information
Unfolded Size
Folded Size
45.7 X 19.9 X 45.5 in
(1160 x 505 x 1155 mm)
45.7 X 19.9 X 18.1 in
(1160 x 505 x 460 mm)
LED headlight + taillight (1 W)
4 ambient lights under the deck
Ground Clearance
Product Weight
Adapter Input Voltage
Motor
Tire (Front & Rear)
Max Speed
Range
Max Climbing Capability
Load
Foldable Stem
Battery Pack
Brake System
Speed
Illumination
Warning Function
IP Rating
Operating Temperature
Storage Temperature
Input
Output
32 to 113 °F (0 to 45 °C)
-4 to 104 °F (-20 to 40 °C)
100-240 V AC, 50/60 Hz
42 V DC, 2 A
Yes
Detachable
Electronic brake and rear disc brake
3 settings (linear adjustment)
Bell
IP54
4.1 in (105 mm)
47.62 Ib (21.6 kg)
100-240 V AC, 50/60 Hz
36 V, 450 W
9.3-inch, tubed pneumatic tires
20 mph (32 km/h)
25-50 miles (40-80 km)
15°
44-275 lb (20-125 kg)
Drive System
Functions
Operating
Conditions
Charger
Notes
1. Max speed values stated in the user manual depend on the road conditions and the load. Values
stated on the rating label are related to average conditions.
2. Mileage is tested under the following conditions: the scooter is driven with the second speed
level, 41.8 V full power battery, a load of 165 lb (75 kg), temperature of 77 °F (25 °C), humidity of
70%, gentle breeze, tire pressure of 34.8 psi (240 kPa), and flat, dry road conditions. Actual results
may vary. If the load exceeds 275 lb (125 kg), the mileage and speed may be decreased, which can
affect the riding experience.
3. Please ride safely within the maximum speed limit set by local traffic officials. Everyone should
strictly abide by all traffic rules and regulations.
Battery Specifications
04
Type
Charging Time
Voltage
Capacity
Operating Temperature
Charging Temperature
Max Charging Voltage/Current
Storage Temperature
Storage Time
Li-ion
Approx. 4-8 hours
36 V
7.5 Ah x 2, 270 Wh x 2
32 to 113 °F (0 to 45 °C)
32 to 113 °F (0 to 45 °C)
42 V, 2.5 A
-4 to 104 °F (-20 to 40 °C)
3 months (after a full charge)
Product Overview

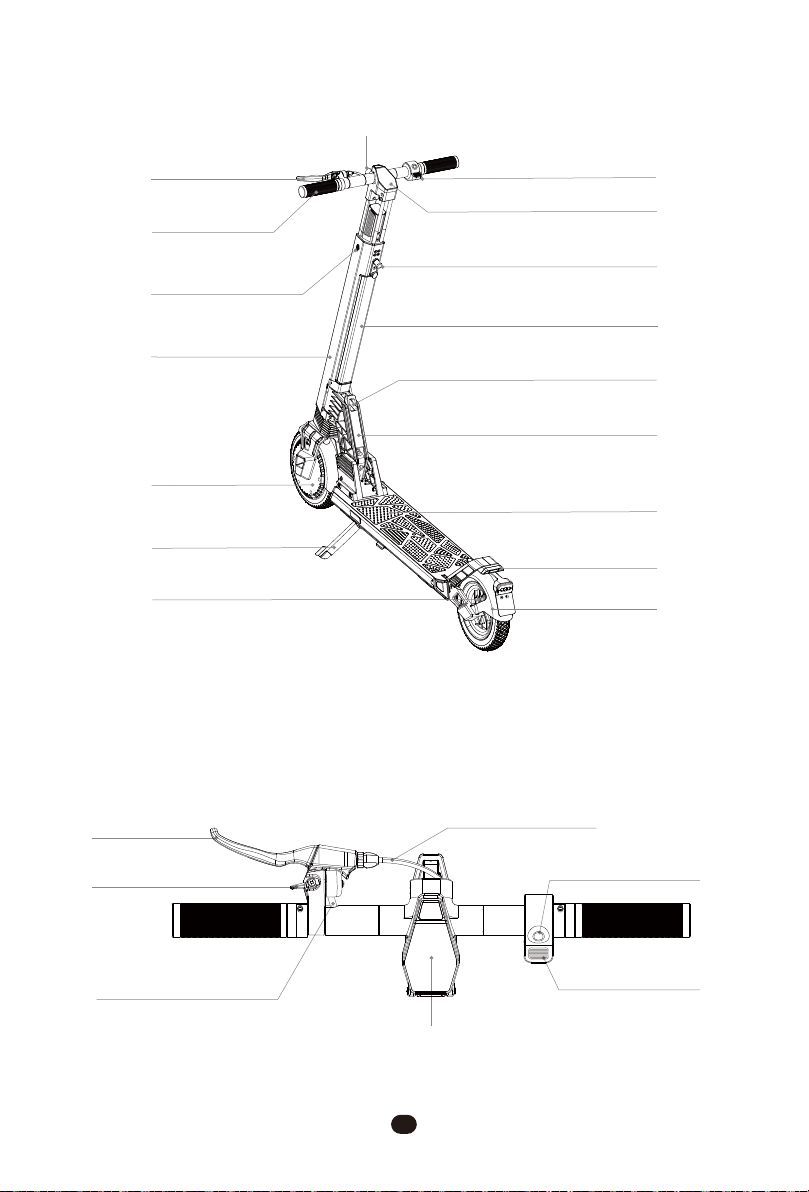

Controls Overview
05
Handlebar
Brake Lever
LED Headlight
Stem
Stem Lock
Motor
Kickstand
Disc Brake
Throttle
LED Display
Battery Release Button
Battery Pack
Charging Port
Stem Latch
Anti-skid Deck
Mudguard
Taillight
Brake Lever
Bell
LED Display
Brake Cable (Red)
Power Button
Throttle
Hall Cable (Black)
Note: If there is no operation within 10 minutes, the scooter will automatically turn off with a "beep" sound.
Controls Description
Control
Throttle
Power On/Off
Speed Level
Headlight
Cruise Mode
Operation
Level 1: shows the number “1”
Level 2: shows the number “2”
Level 3: shows the number “3”
Press down the throttle to accelerate.
Brake Lever
Squeeze the brake lever to stop the scooter. When the brake
lever is fully depressed, the scooter will come to a complete stop.
After that, it will have to be manually started (see the General
Troubleshooting and Solution Guide section).
Press and hold on the power button for 1 second or longer to turn
on/off the scooter.
Short press the power button while the scooter is on to turn
on/off the headlight and taillight.
Maintain a constant speed that you desire (must be at least 3.7 mph
or 6 km/h to activate cruise mode). Then, hold the throttle in the
same position for six seconds to enable cruise control. Exit cruise
mode by using either the throttle or brake lever.
Double press the
power button to
adjust the speed
level.
06

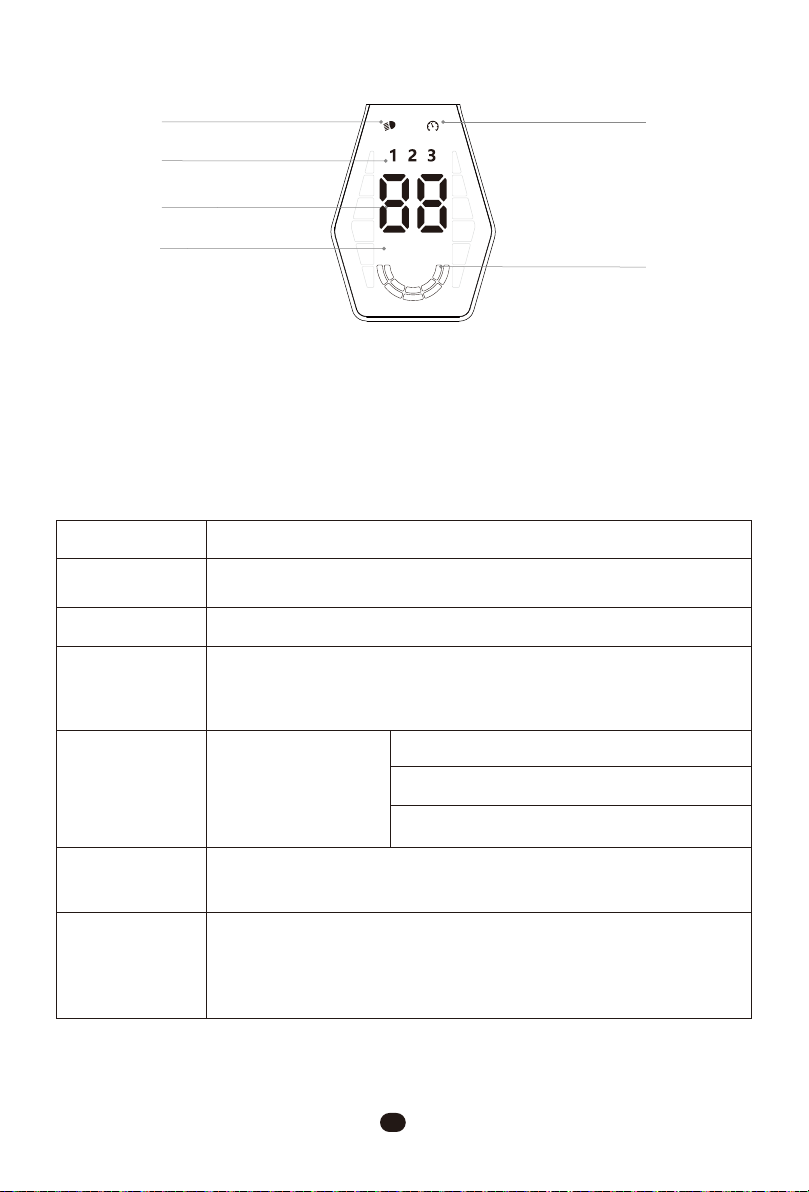

LED Display
Light Icon
Battery Status
Speed Level
Current Speed
Cruise Control Icon
Speed Unit Mph Km/h

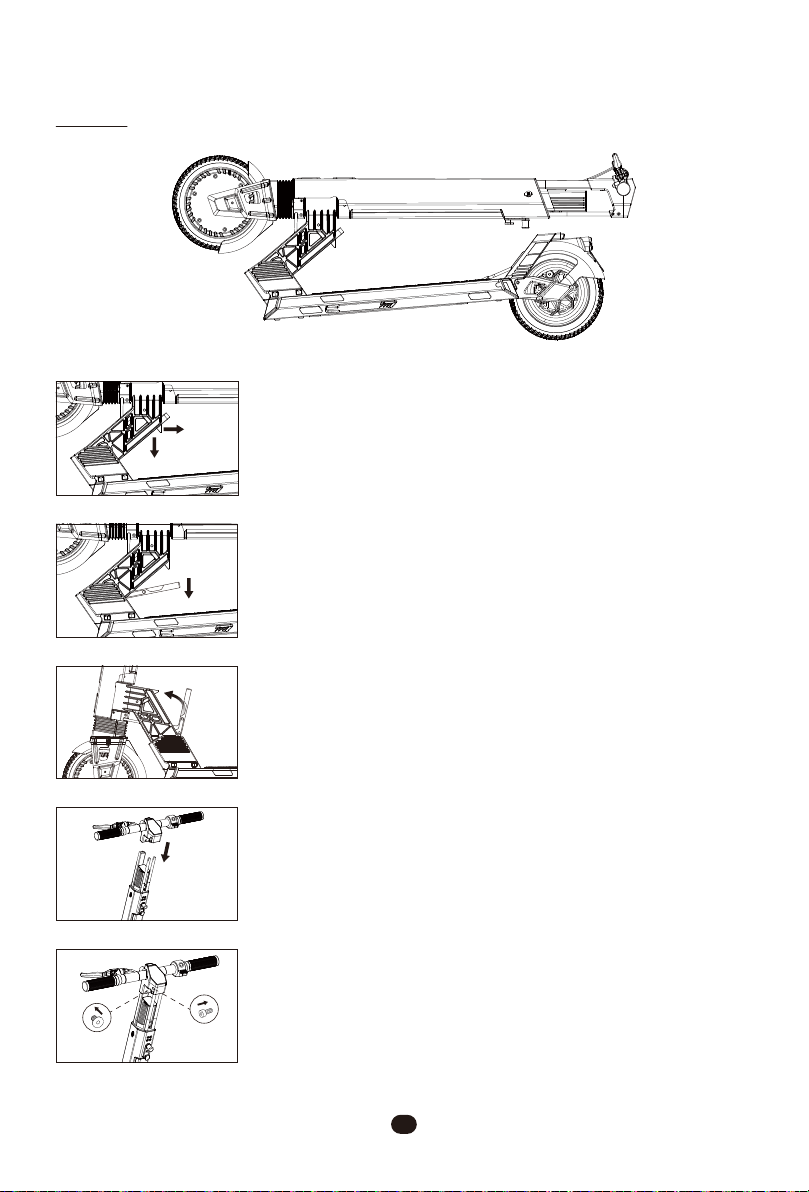

1. Pull up the lock in the middle to release the latch.
2. Press down the latch to completely unfold the stem.
3. Push the latch inwards until a “click” sound is heard.
4. Align the scooter’s head with the stem.
5. Tighten the screws to secure the scooter’s head with the
provided tool.
07
Operating Instructions
Assembly

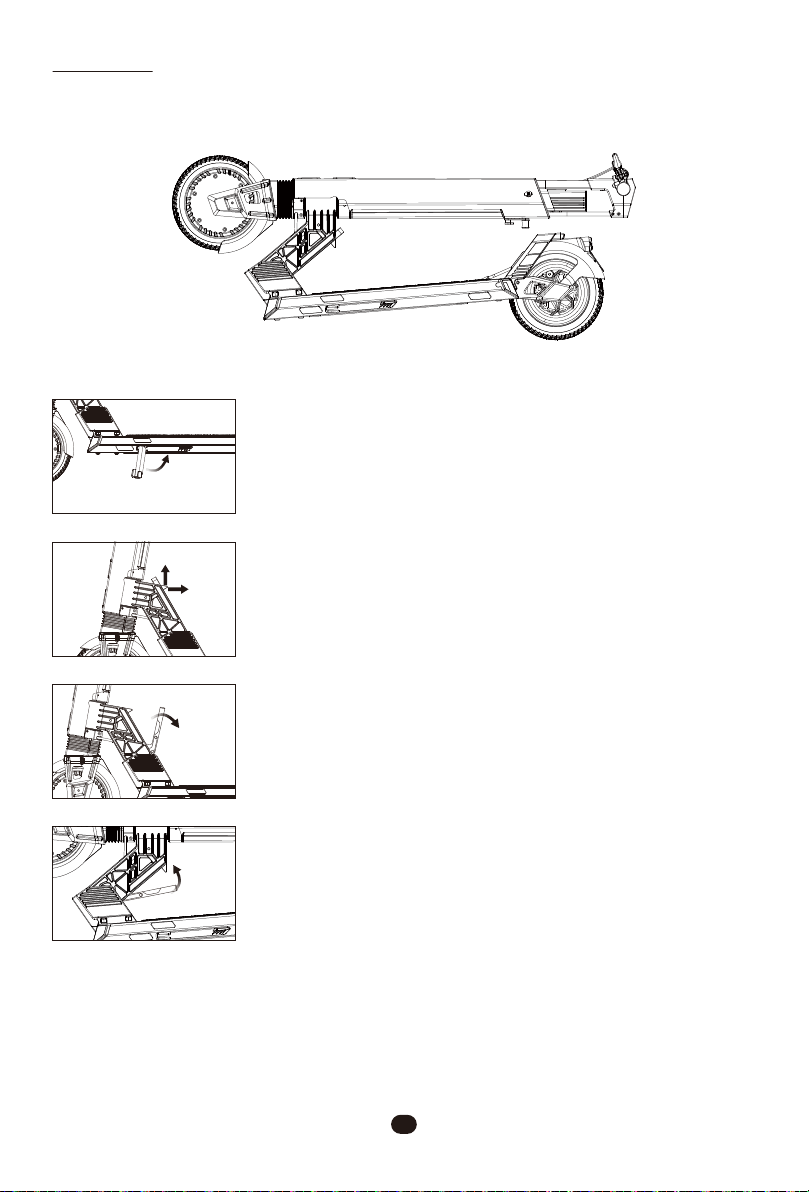

1. Fold the kickstand.
2. Pull up the lock in the middle to release the latch.
3. Press down the latch to completely fold up the stem.
4. Pull up the latch to secure it with the lock until a “click”
sound is heard.
08
Stem Folding
