Operating the LMS-D4

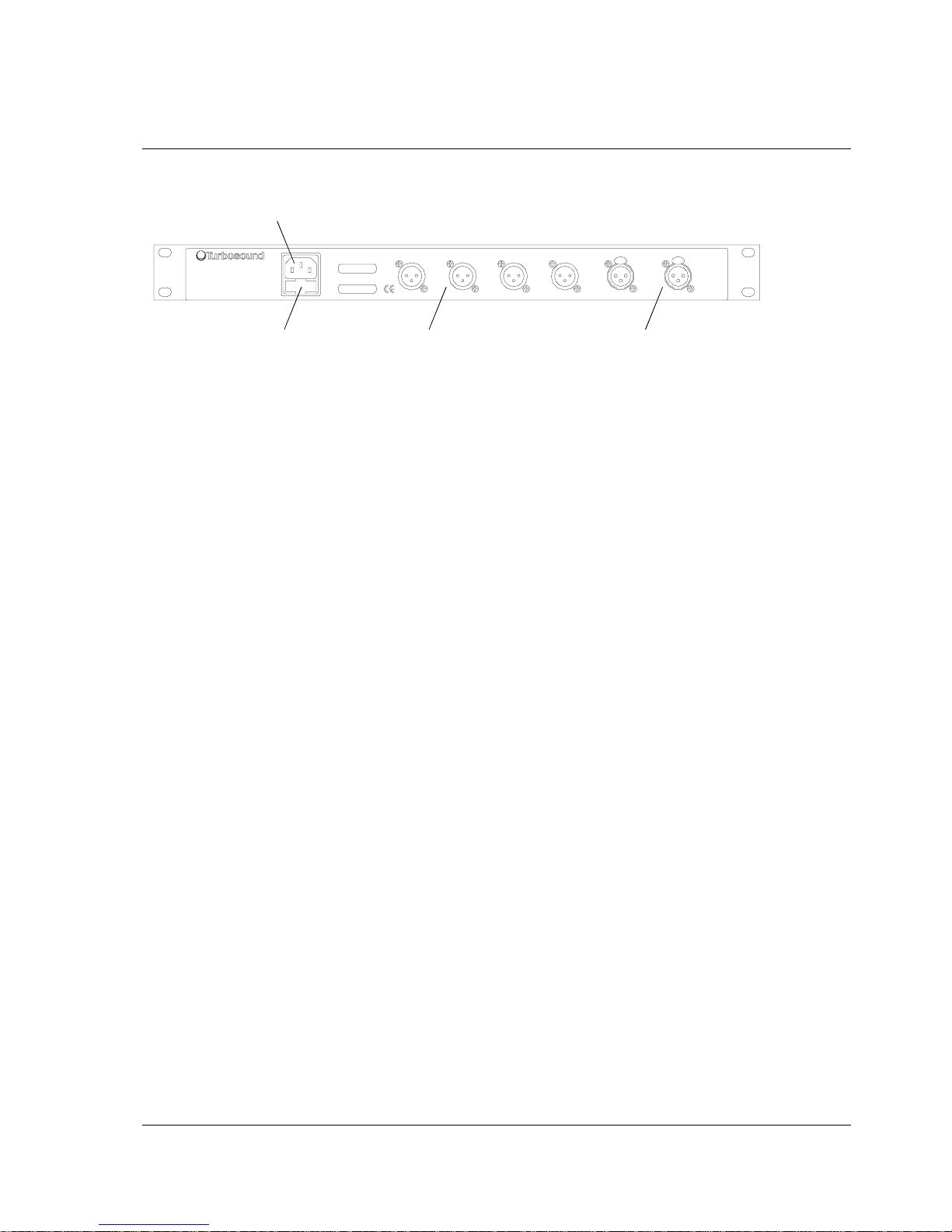

With the unit mounted in a rack or cabinet, securely plug in all connections and check especially
that the Low (LF or Bass) and High (HF or Top) outputs are connected to the correct amplifiers. It is
good practice to switch on the LMS-D4 before powering up the amplifiers.
When you plug the LMS-D4 into the mains power supply, the unit will power up and the LCD
display indicates the last system loaded; the unit will be configured as it was when it was last
turned off. The current software version is also displayed for 10 seconds at start-up. The red Mute
LED will also be illuminated, as the unit powers up by default with all outputs muted.

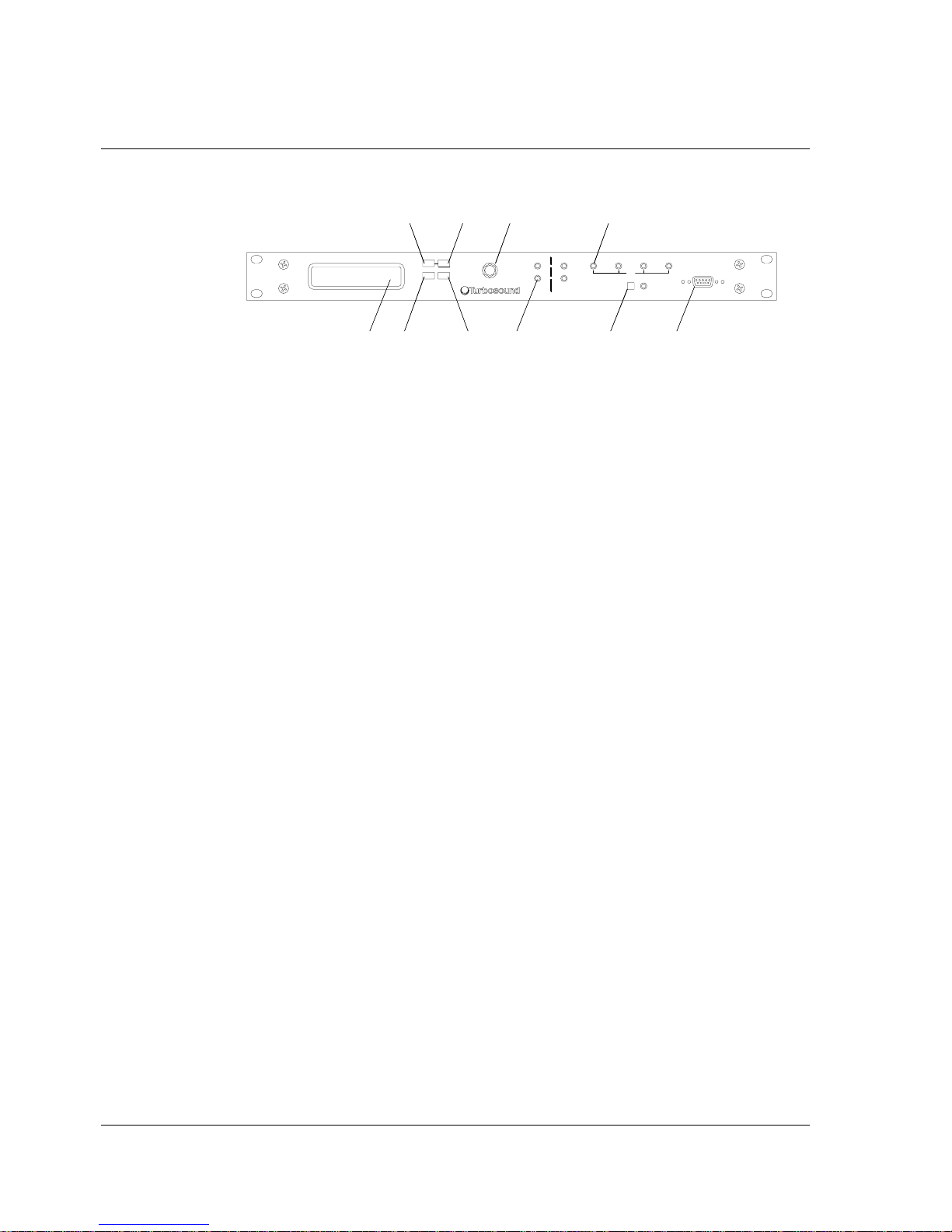

Menu Structure
The structure includes three sub-menus: Load a Xover
Load a XoverLoad a Xover
Load a Xover, Xover Setup
Xover SetupXover Setup
Xover Setup and Utilities
UtilitiesUtilities
Utilities. Their operation
is described in the next paragraphs. To access menus, press the ‘
MENU’
MENU’MENU’
MENU’
key and then use
‘BACK’
‘BACK’‘BACK’
‘BACK’
and
‘NEXT’
‘NEXT’‘NEXT’
‘NEXT’
to navigate. Finally press
‘ENTER’
‘ENTER’‘ENTER’
‘ENTER’
when the desired sub-menu appears on the display.
System Selection
This menu allows the selection of a particular loudspeaker system and configures the LMS-D4
accordingly. It sets equalisation, crossovers, and other parameters to optimal default values and
the factory presets.
To display and go through the available systems, use the
‘SCROLL’
‘SCROLL’‘SCROLL’
‘SCROLL’
rotary encoder. The system
names will appear on the bottom line of the display. Once the desired configuration appears,
confirm the selection by pressing
‘ENTER’.
‘ENTER’.‘ENTER’.
‘ENTER’.
Please note that this will cause the outputs to be
automatically muted; this is to limit accidental change that could endanger the loudspeaker
components. After a system
. After a system. After a system
. After a system is loaded the
is loaded theis loaded the
is loaded the limiter settings must be adjusted
limiter settings must be adjustedlimiter settings must be adjusted
limiter settings must be adjusted since the default
since the defaultsince the default
since the default
setting is ‘
setting is ‘setting is ‘
setting is ‘
OFF
OFFOFF
OFF’
’’’
.
...
Xover Setup
This menu allows you to change the settings of a number of parameters, also refered to as “user
controls”. They are detailed in the next section.
...
Having entered the ‘Xover Setup’ menu, the information displayed will generally include three
fields:
1) The top row:- the output channel(s) being refered to.
2) At the left hand side of the bottom row:- the name of the parameter being edited.
3) At the right hand side of the bottom row:- the value of the parameter.
As an exception when the control is not channel related, its description will appear on the top row
(e.g. for Bass Boost).
