INSTRUCTION MANUAL

AIR FRYER OVEN

TT-DAF7W

English

Thank you for buying dualchef - dual basket air fryer by TurboTronic®.

You will now be able to cook a wide assortment of food in a healthier manner –with little

or no oil! The air fryer uses hot air, in combination with high-speed air circulation, and a

top grill to prepare your dishes quickly and easily. The ingredients are heated from all

sides, at once, and there is no need to add oil in most cases.

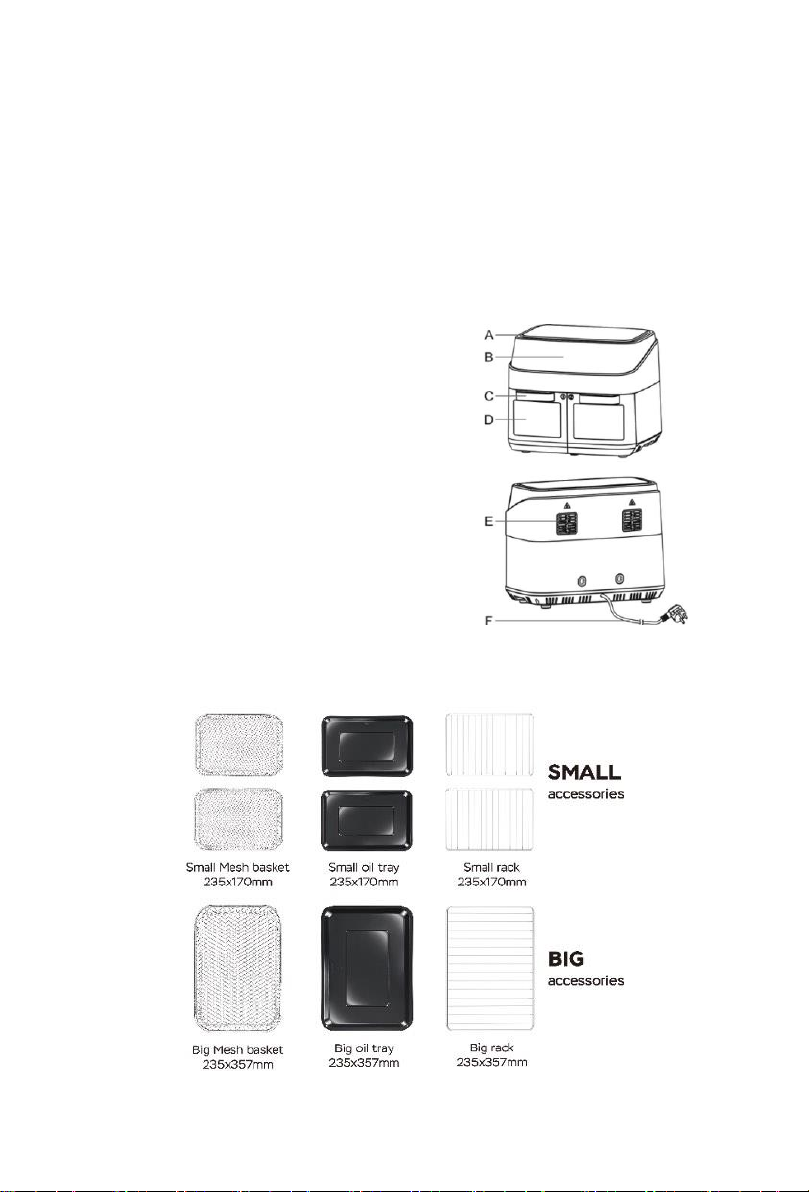

GENERAL DESCRIPTION

A: Air inlet

B: Control panel

C: Basket handle

D: Door

E: Vent windows

F: Power cord

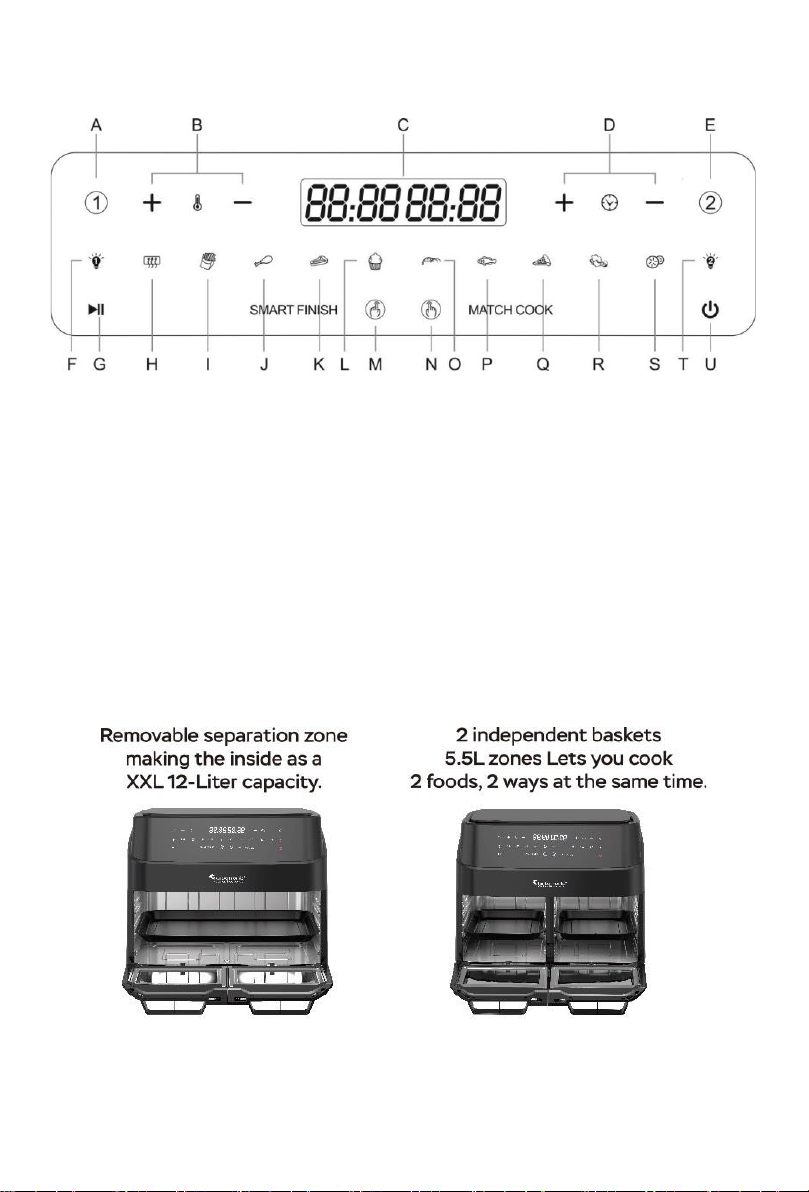

ACCESSORIES IN THE PACKAGE:

A: Zone 1

B: Temperature Plus/Minus C:

Time/ Temperature Display D: Time

Plus/Minus

E: Zone 2

F: Lamp 1

G: Start/Pause

H: Pre-Heat

I: French Fries

J: Drumsticks

K: Steak

L: Cake

M: Smart Finish

N: Match Cook

O: Shrimp

P: Fish

Q: Pizza

R: Vegetable

S: Dehydrate

T: Lamp 2

U: On/Off

IMPORTANT INFORMATION

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE THE USE OF THE

APPLIANCE AND KEEP IT SAFELY FOR FUTURE REFERENCE.

Danger

- Never immerse the housing, which contains electrical components and the heating

elements, in water and rinse it under the tap.

- Do not let any water or other liquid enter the appliance in order to prevent electric shock.

- Always put the ingredients to be fried in the tray, so as to prevent it from coming into

contact with the heating elements.

- Do not cover the air inlet and the air exhaust openings while the appliance is operating.

- Do not fill the frying tray with oil as this may cause a fire hazard.

- Never touch the inside of the appliance while it is operating.

- Check whether the voltage indicated on the appliance corresponds to the local mains

voltage in your country before you connect the appliance.

- Do not use the appliance if the plug, the power cord or the appliance itself is damaged.

- If the power cord is damaged, you must have it replaced at a service center authorized

by similarly qualified persons in order to avoid a hazard.

- This appliance is not suitable for children or people who are either physically or mentally

handicapped or those who lack experience and knowledge. If you want anyone else to

use the appliance, that person should be properly guided on its use.

- Keep the appliance and its mains cord out of the reach of children when the appliance is

switched on or is cooling down.

- Keep the main cord away from hot surfaces.

- Do not plug in the appliance or operate the control panel with wet hands.

- Only connect the appliance to an earthed wall socket, and always make sure that the

plug is inserted into the wall socketproperly.

- Never connect this appliance to an external timer switch.

- Do not place the appliance on or near combustible materials such as a tablecloth or

curtains.

- Do not place the appliance against a wall or against other appliances; Leave at least

10cm free space at the back and sides and 10cm free space above the appliance; Do

not place anything on top of the appliance.

- Do not use the appliance for any purpose other than what described in this manual.

- Do not let the appliance have an unattended operation.

- During hot air frying, hot steam is released through the air exhaust openings; Keep your

hands and face at a safe distance from the steam and the air exhaust openings; Be

careful of hot steam and hot air when you remove the frying tray from the appliance.

- The surface below the appliance may become hot during use.

- Immediately unplug the appliance if you see dark smoke coming out of the appliance;

Wait for the smoke emission to stop before you remove the frying tray from the

appliance.

Caution

- Place the appliance on a horizontal and stable surface.

- Always unplug the appliance after use.

- Let the appliance cool down for about 30 minutes before you handle or clean it.

- Remove burnt remnants.

- This appliance is intended for normal household use only. It is neither intended for use in

environments such as staff kitchens, offices, farms or other work environments, nor

intended to be used by clients in hotels or other similar environments.

- If the appliance is used improperly or if it is not used according to the instructions in the

user manual, the warranty becomes invalid and seller refuses any liability for any

damage that may be caused.

Indicates to read and review instructions to understand operation and use of product.

Indicates the presence of a hazard that can cause personal injury, death or substantial

property damage if the warning included with this symbol is ignored.

Take care to avoid contact with hot surface. Always use hand protection to avoid burns.

For indoor and household use only.

PRIOR TO THE FIRST USE

1. Remove all packing materials.

2. Remove any stickers or labels from the appliance, other than the rating label.

3. Thoroughly clean the frying tray, with hot water and some liquid washing soap using a

non-abrasive sponge.

Note: You can also clean these parts in the dishwasher.

4. Wipe the inside and outside of the appliance with a moist cloth.

PREPARING FOR USE

1. Place the appliance on a stable, horizontal, and heat-resistant surface.

2. Place the crisper rack in the frying tray properly.

Do not fill the frying tray with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airflow and affects

the air-frying result.

USING THE APPLIANCE

1. Power on

There is a BEEP sound when you plug the appliance in. The Power Button

will illuminate in RED.

2. Menu selection/Temperature/Time

Zone1 or Zone2 works individually.

Plug in, it is at the standby mode. press , Then press or , select

cooking function. you can adjust the time and temperature freely by using Time

+/- and Temperature +/- button. You can also press any function icon to cook

different food. then press unit start to work.

Zone1 and Zone2 works at the same time.

1). Plug in, it is at the standby mode. press , Then press , select

cooking function. you can adjust the time and temperature freely by using Time

+/- and Temperature +/- button. You can also press any function icon to cook

different food.

2). After finish function, press and select cooking function. you can

adjust the time and temperature freely by using Time +/- and Temperature +/-

button. You can also press any function icon to cook different food.

3). After finish above program then press unit start to work. Every function

has its own default time and temperature (As shown in the table). Customer can

adjust the time and temperature freely by using Time +/- and Temperature +/-

button.

The temperature control range is 50-200°C, every click on the + / - temperature

will increase or reduce 10°C. At 200°C, ，press the "+", will loop back to a

temperature of 50°C, press the "-" at 50°C temperature will cycle back to 200°C.

In the process of temperature control, temperature digital display will flicker on

the screen (not flashing during working), after flickering 3 times, the temperature

has been done of setting;

The adjusting time range is 1 to 60 mins. every click on the + / - time will

increase or reduce 1 min. At 60 min if you press "+", the time will cycle back to

01 min, At 01 min, if you press "-", the temperature will cycle back to 60 min. In

the process of time control, time digital display will flicker on the screen (not

flashing during working), after flickering 3 times, the time has been done of

setting.

3. Start, pause/stop

After select function, set the right time and right temperature, press , the

start to flicker, after BEEPS sounds, machine start to work. During the machine

working, press , after BEEPS sounds, machine stop working,

stop flickering. During the machine working, press , after BEEPS, machine

stop working, and machine back to standby mode.

Noted:

(1). During working, you can take frying tray out, stop working, and you can

check cooking result or add more food, machine continue to work on the

program if pull in the frying tray.

4. End of program

Heating element stop working when working time is done, show 00 min, motor

continues to work, buzzer warning. motor continues to work 1 min, cooling

machine, then machine enter the standby mode.

SMART FINISH

Cooking 2 foods using 2 different functions, temps or cook times and finish at the

same time.

Step1: Program Zone1

Place food in basket

press

Select a cooking function

Step2: Program Zone2

Place food in basket

Press

Select a cooking function

Step3: Begin cooking

Select SYNC FINISH

Press to begin cooking

MATCH COOK

Cooking the same food in each zone

Set Zone 1 and use DUAL COOK to automatically match settings to zone 2.

Step1: Select DUAL COOK

Step2: Select a cooking function

Press to begin cooking.

MENU TABLE

program logistics

Default time

(min)

Default

temperature

（°C ）

function

Pre-heat

180

French fries

200

Drumsticks

200

Steak

180

Cake

160

Shrimp

180

Fish

180

Pizza

180

Vegetable

160

Dehydrate

360(Adjustable time:

0.5 hour to 24 hours)

Caution: Do not touch the pan during and about 30mins after use, as it gets very hot.

Only hold the pan by the handle.

Operation step

1. Put the mains plug in an earthed wall socket.

2. Put the ingredients into the frying tray.

3. Put the frying tray in the right position; Choose function from menu and press

START/PAUSE to start cooking.

4. Screen display

It will show temperature and time. Temperature is the setting temperature and time is

remaining working time.

The function we have selected is flicker.

5. Some ingredients require shaking halfway through the preparation time (see section

'Settings' in this chapter). To shake the ingredients, you can pull the frying tray out of the

appliance by the handle and shake it. Then, you can slide the frying tray back into the air

fryer.

6. When you hear the timer bell, the set preparation time has elapsed. You can pull the pan

out of the appliance and place it on a heat-resistant surface.

7. Check whether the ingredients are ready.

If the ingredients are not ready yet, you can simply slide the frying tray back into the

appliance and cook it extra minutes.

8. Empty the tray into a bowl or onto a plate.

Tip: To remove large or fragile ingredients, you can use a pair of tongs to lift the

ingredients out of the tray.

9.When a batch of ingredients is ready, the air fryer is instantly ready for preparing another

batch.

Note: When you use the Air Fryer for the first time, a slight smoke or odor

may be emitted. This is normal and will soon disappear. It is essential to

ensure that there is sufficient ventilation around the Air Fryer.

Settings

Apart from the preset menu, you also can use this air fryer to make other food by setting

the time and temperature. This table below helps you to select the basic settings for the

ingredients you want to prepare.

Note: Keep in mind that these settings are only for reference. As ingredients differ in origin,

size, shape and brand, we cannot guarantee the best setting for your ingredients.

Because the Rapid Air Technology instantly reheats the air inside the appliance,pulling the

frying tray briefly out of the appliance during hot air frying barely disturbs process.

Cooking Tips

Air Fryer and Parts will become hot during the cooking process.

Do not over fill Fry tray with foods.

Do not pack foods into Fry tray.

Using Oil

Adding a small amount of oil to food can make them crispier.

Oil sprays are good for applying small amounts of oil evenly to food.

Food Tips

You can air fry frozen food that can be baked in the oven.

To make cakes, hand-pies, or any foods with filling or batter, you can place foods in heat-

safe container and put that in Fry Tray.

Pat dry foods with marinades before adding to Fry Tray.

Reheating Foods

Simply set temperature to 150℃for up to 10 minutes.

Indice

Altri manuali TurboTronic Friggitrice

TurboTronic

TurboTronic TurboAir TT-AF3 Manuale utente

TurboTronic

TurboTronic TurboAir TT-AF1 Manuale utente

TurboTronic

TurboTronic TT-AF5 Manuale utente

TurboTronic

TurboTronic XL airchef TT-AF7W Manuale utente

TurboTronic

TurboTronic TT-AF3D Manuale utente

TurboTronic

TurboTronic Chefry TT-AF10M Manuale utente

TurboTronic

TurboTronic XL airchef TT-AF12D Manuale utente

TurboTronic

TurboTronic airchefPro Manuale utente

TurboTronic

TurboTronic airchef Pro TT-AFO12W Manuale utente

TurboTronic

TurboTronic Xlairchef TT-AF7D Manuale utente

TurboTronic

TurboTronic dualchef TT-AF118 Manuale utente

TurboTronic

TurboTronic TT-AG700 Manuale utente

TurboTronic

TurboTronic TT-AFO24 Manuale utente

TurboTronic

TurboTronic TT-AFD32 Manuale utente

TurboTronic

TurboTronic XL airchef TT-AF13D Manuale utente

TurboTronic

TurboTronic airchefPro TT-AF190 Manuale utente

TurboTronic

TurboTronic Dualchef TT-DAF5 Manuale utente

TurboTronic

TurboTronic TurboFry Chef Manuale utente

TurboTronic

TurboTronic dualchef TT-DAF6W Manuale utente

TurboTronic

TurboTronic TT-AF10D Manuale utente

TurboTronic

TurboTronic airchef Pro TT-AFO14 Manuale utente

TurboTronic

TurboTronic airchef Pro TT-AF32DRD Manuale utente

TurboTronic

TurboTronic TurboAir TT-AF4 Manuale utente

TurboTronic

TurboTronic aircherf Pro TT-AF32MFD Manuale utente

Manuali Friggitrice popolari di altre marche

Innsky

Innsky 55SA1US Manuale utente

Falcon

Falcon G350/11 Guida utente

GoWISE USA

GoWISE USA GW22612 Manuale utente

Wolf

Wolf IF15/S Manuale utente

Electrolux

Electrolux Thermetic 9CHG583284 Guida rapida

Gourmia

Gourmia GAF799 Manuale utente

DeLonghi

DeLonghi D677UX Manuale utente

SEVERIN

SEVERIN DEEP FRYER - Guida utente

Toastmaster

Toastmaster TMFG18-NAT Manuale utente

Domo

Domo DO465FR Manuale utente

Henny Penny

Henny Penny PFG-691 Manuale utente

Farberware

Farberware FBW FT 43721 B Manuale utente

GERMANICA

GERMANICA GEAF5L3LD Manuale utente

Roller Grill

Roller Grill MF 120 R Manuale operativo

Philips

Philips HD9211 Manuale utente

Linea 2000

Linea 2000 Domo DO536FR Manuale utente

Lakeland

Lakeland 31796 Manuale utente

Dash

Dash Tasti-Crisp DFAF755 Manuale utente

TurboTronic dualchef TT-DAF7W Manuale utente

Manuali Friggitrice popolari di altre marche
