Turnigy TrackStar 10th Waterproof Sensored ESC Manual
Transmitter Calibration:
Connect the ESC, battery and signal line, and then press the switch button for about 3 seconds, the blue LED
long bright solid, the ESC is into the transmitter calibration mode:
1. Push the transmitter stick to maximum forward position, the blue LED will flash and then the red LED lights
will go solid.
2. Then push the throttle stick to max brake position, the red LED will start flashing and then the blue and red
LED lights.
3. Return the throttle stick to neutral position, the red and blue LED will flash, then along light for about 2
seconds, the red and blue LED light will flash twice.The transmitter calibration is complete.
Normal Operation:
Blue and Red LEDs on for Forward with pause then Reverse
Blue LED on for Forward Only
As the battery voltage gets low there is a low voltage warning. The
Red LED will blink. As Temperature getsto warning point, Blue LED
will blink.
Boosttiming set tozero,Blue LED flashing.
Sensored alarm, the red and blue LED lights flash, ESC does not work.
Default Settings:
Operation Mode - For/Rev/Brake
Initial Braking - = Drag Brake
Drag Brake - 5%
Brake Strength - 80%
Voltage Cut Off - 3.2V/cell
Punch Profile - Level 7
Neutral DeadBand - 3%
Boost Timing - 0 deg
Reverse Speed - 75%
Drive Frequency - 8KHz
Brake Frequency - 1KHz
Temperature Set - On

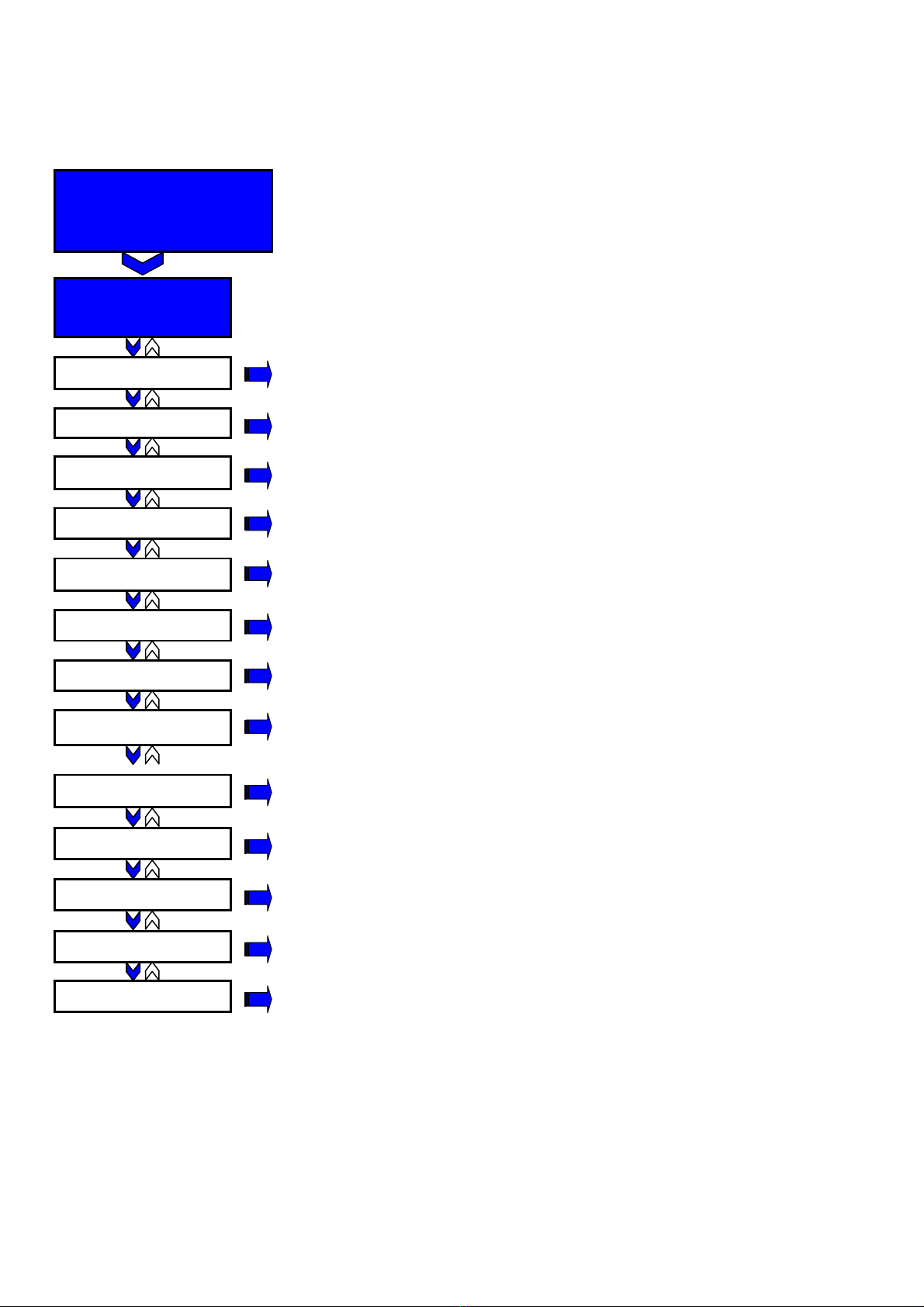

Programming BOX set flow Chart：
PROGRAM BOX V2.1
Press any key
TrackStar Tburbo
For/Brake、For/Rev/Brake
O
p
eration MOde
=Dra
g
Brake、10%、20%、30%、40%
Ini
t
i
a
l Br
a
k
e
0%、5%、10%、15%、20%、25%、30%、35%、40%
Dra
g
Brake
50%、60%、75%、80%、85%、90%、100%
Brake Stren
g
th
None、3.0V/cell、3.2V/cell、3.4V/cell、3.5V/cell
V
olta
g
e Cut-Off
Level 1、Level 2、Level 3、Level 4、Level 5、Level 6、Level 7、Level 8、Level 9
Punch Profile
1%、3%、5%、8%
Neutral DeadBand
Boost Timin
g
0deg、1deg、2deg、3deg、4deg、5deg、6deg、7deg、8deg、9deg、10deg … 30deg
25%、50%、75%、100%
Reverse Speed
8KHz、16KHz、24KHz
Drive Fre
q
uenc
y
TrackStar 70A
Ver: 14268101
1KHz、2KHz、4KHz、8KHz、16KHz
Brake Fre
q
uenc
y
On、Off
Tem
p
erature Set
No、Yes
Restore Defaults
