Turnigy Decathlon-46 Istruzioni operative

Wing Span:62.6in/1591mm Flying Weight:1900-2350g

Wing area:41.2sq.dm Radio:4channels 5servos

Length:43.3in/1100mm

CAUTION : this plane is not a toy!

Before use , please carefully read this manual.

●First-time builders should seek advice from people having building

experience in order to assemble the model correctly and to produce its

●Assemble this kit only in places out of children’s reach!

●Take enough safety percautions prior to operating this model.

You are responsible for this model’s assembly and safe operation!

●Always keep this instruction manual ready at hand for quick

reference,even after completing the assembly.

Engine:2cycle40-46;4cycle52

performance to full extent .

All manuals and user guides at all-guides.com

all-guides.com

Be sure to apply instant

e CA

lue to both sides

of the elevator.

Glow the hings to the

aileron of the elevator.

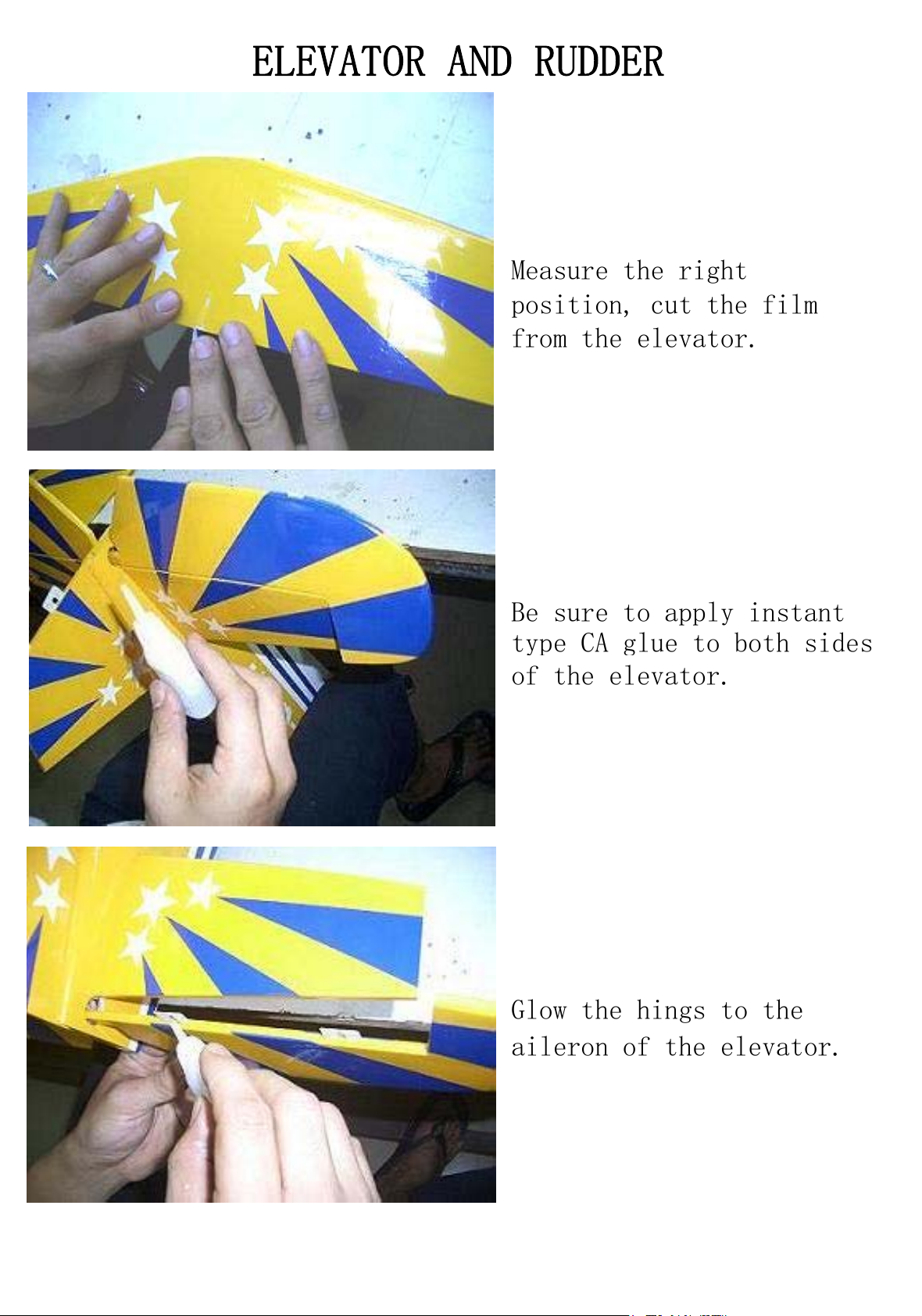

ELEVATOR AND RUDDER

Measure the right

position, cut the film

from the elevator.

All manuals and user guides at all-guides.com

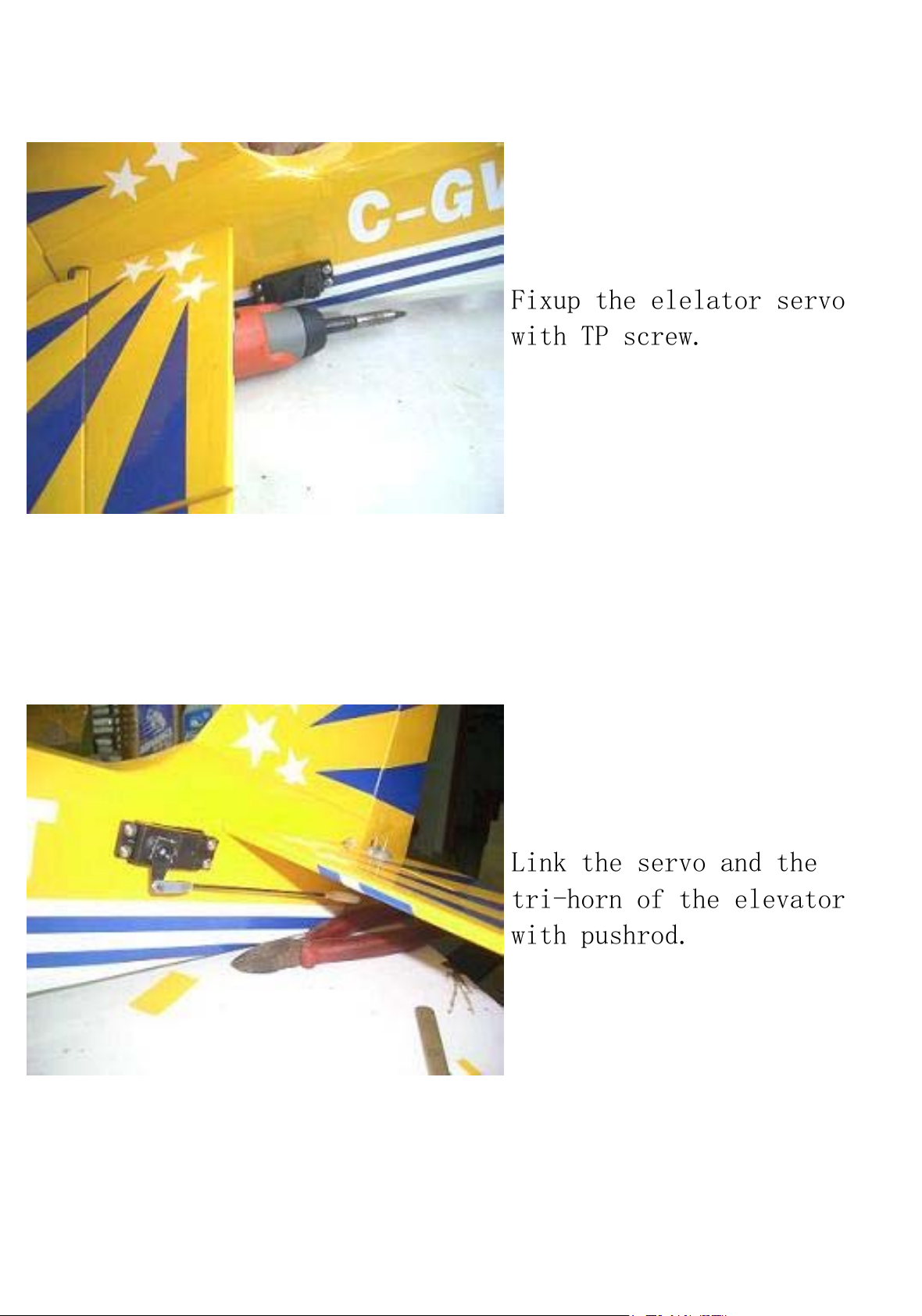

Fixup the elelator servo

with TP screw.

Link the servo and the

tri-horn of the elevator

with pushrod.

All manuals and user guides at all-guides.com

Install the rudder as shown

and glow it.

All manuals and user guides at all-guides.com

Find out the screw for the

wheel as shown.

Screw the collar of the

wheel.

Make sure it is screwed

securely.

Put the wheel cover in the

right position ,then screw

it to the landing gear.

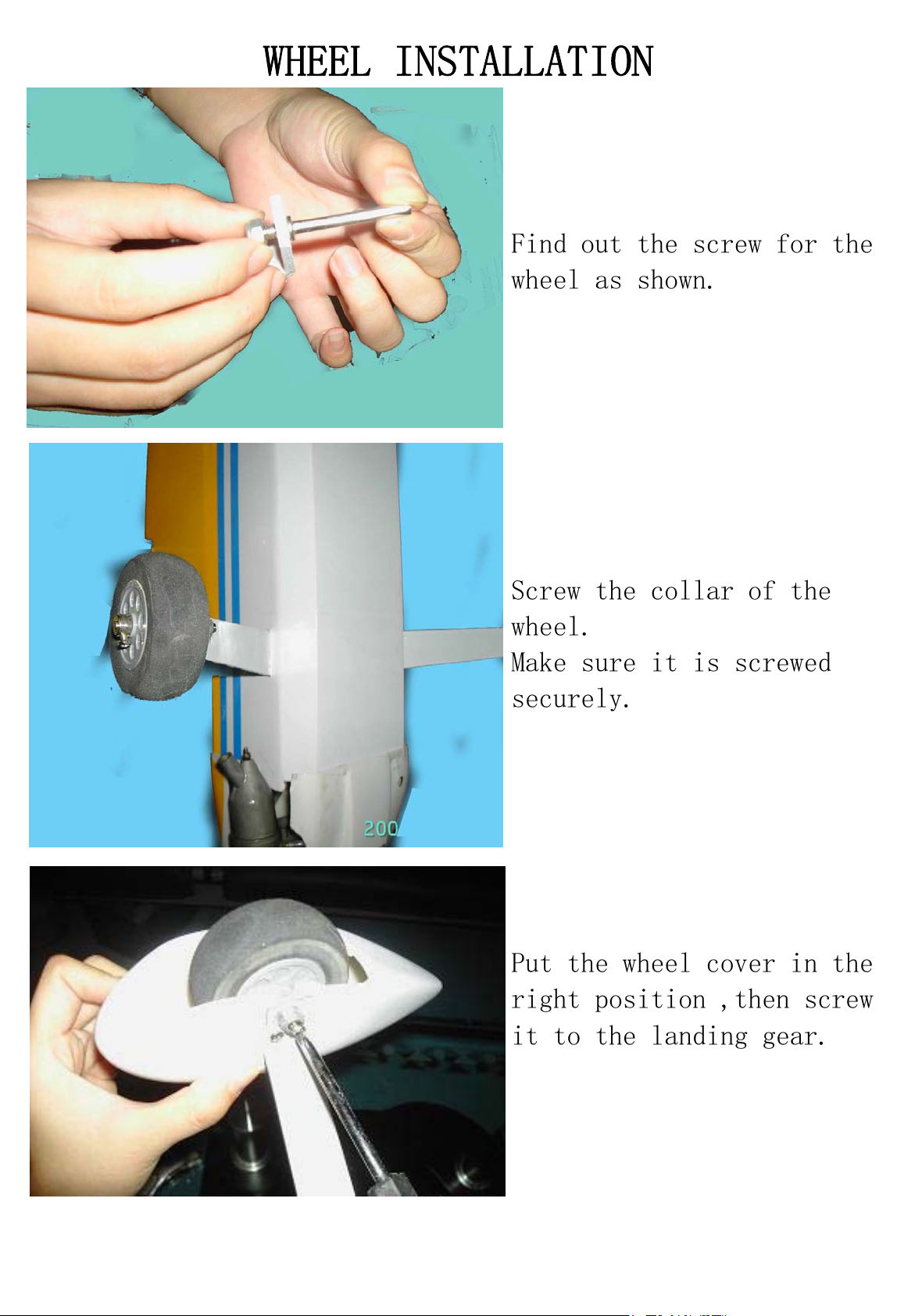

WHEEL INSTALLATION

All manuals and user guides at all-guides.com

Insert the hinges into the

holes, and glow it to the

aileron.

WING ASSEMBLY

Cut the hing's holes

carefully. Enlarge the

holes, to allow the glue

to fully infiltration.

All manuals and user guides at all-guides.com

all-guides.com

Install the servo into the

back of the main wing.

Screw the tri-horns to

the aileron in the right

position.

Be sure to apply instant

type CA each hinges. Glue

to both sides of each

hinges. (low viscosity

type)

All manuals and user guides at all-guides.com

Link servo and the tri-horn

with the pushrod as shown.

The position for the tube

to connect the main wings.

Before install the main

wing, pull the servo lines

out of the hole in the

fuselage as shown.

Link the main wings and the

fuselage with the tube.

All manuals and user guides at all-guides.com

Screw the main wing to the

fuselage, make sure the

safty when flying.

Screw the top window with

three TP screw.

All manuals and user guides at all-guides.com

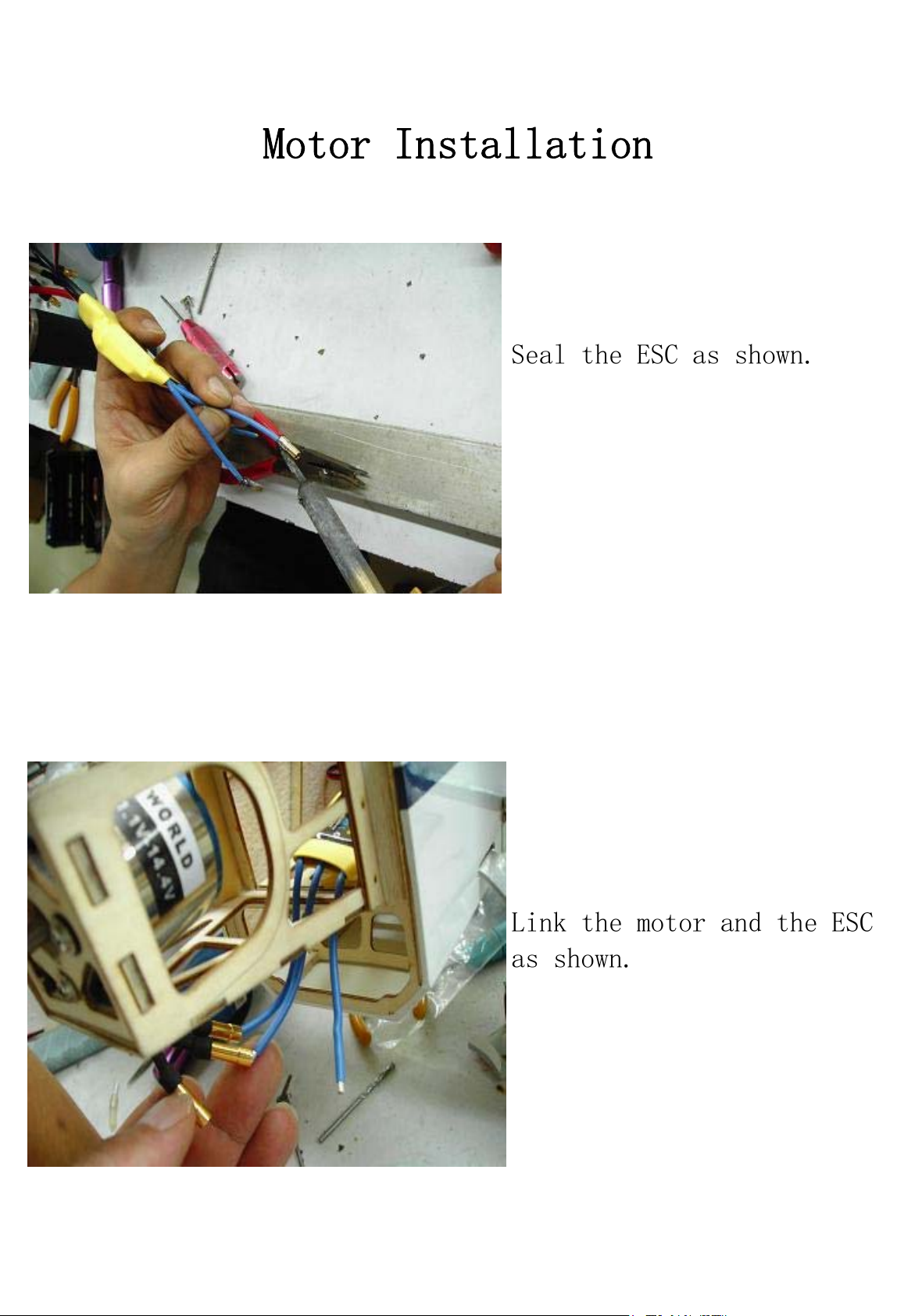

Seal the ESC as shown.

Link the motor and the ESC

as shown.

Motor Installation

All manuals and user guides at all-guides.com
