Turtle Beach Call of Duty Ghosts Manuale utente

User GUide

Limited edition ampLified GaminG Headset

Wired

For: PS3™ I Xbox 360® I PC

Mac® I Mobile

Congratulations on your purchase of the Call of Duty® Ghosts Ear Force® Shadow Limited Edition ampliﬁed

stereo headset from Turtle Beach. The Shadow works with your consoles, PC or Mac and all of your favorite

mobile devices. Welcome to the Turtle Beach Audio Advantage!

For our Knowledgebase and Technical Support Contact info please visit: http://www.turtlebeach.com/support

Table of Contents

Package Contents P4

Features P5

Ampliﬁer Function Map / Use P6

PS3™ Hardware Setup (HDMI / RCA) P7

PS3 System Settings Conﬁguration P9

Xbox 360® Hardware Setup (HDMI / RCA) P10

Xbox 360 E Setup (HDMI) P12

Xbox 360 System Settings Conﬁguration P13

PC / Mac Hardware Setup P14

PC Systems Settings Conﬁguration P15

Mac Systems Settings Conﬁguration P16

Mobile Setup P17

Speciﬁcations P19

Compliance / Conformity P20

Warranty P22

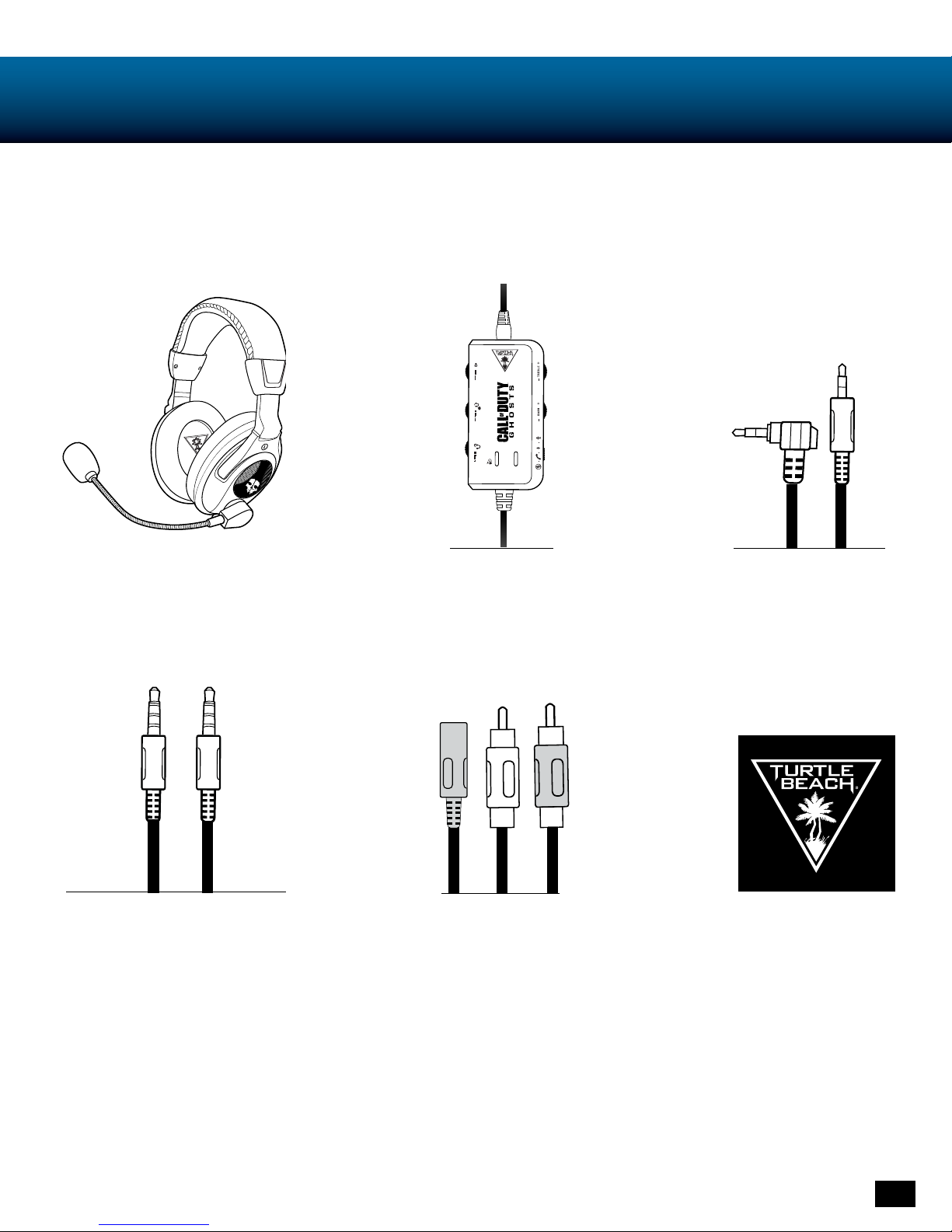

Package Contents

Xbox 360 Talkback Cable

RCA Splitter Cable

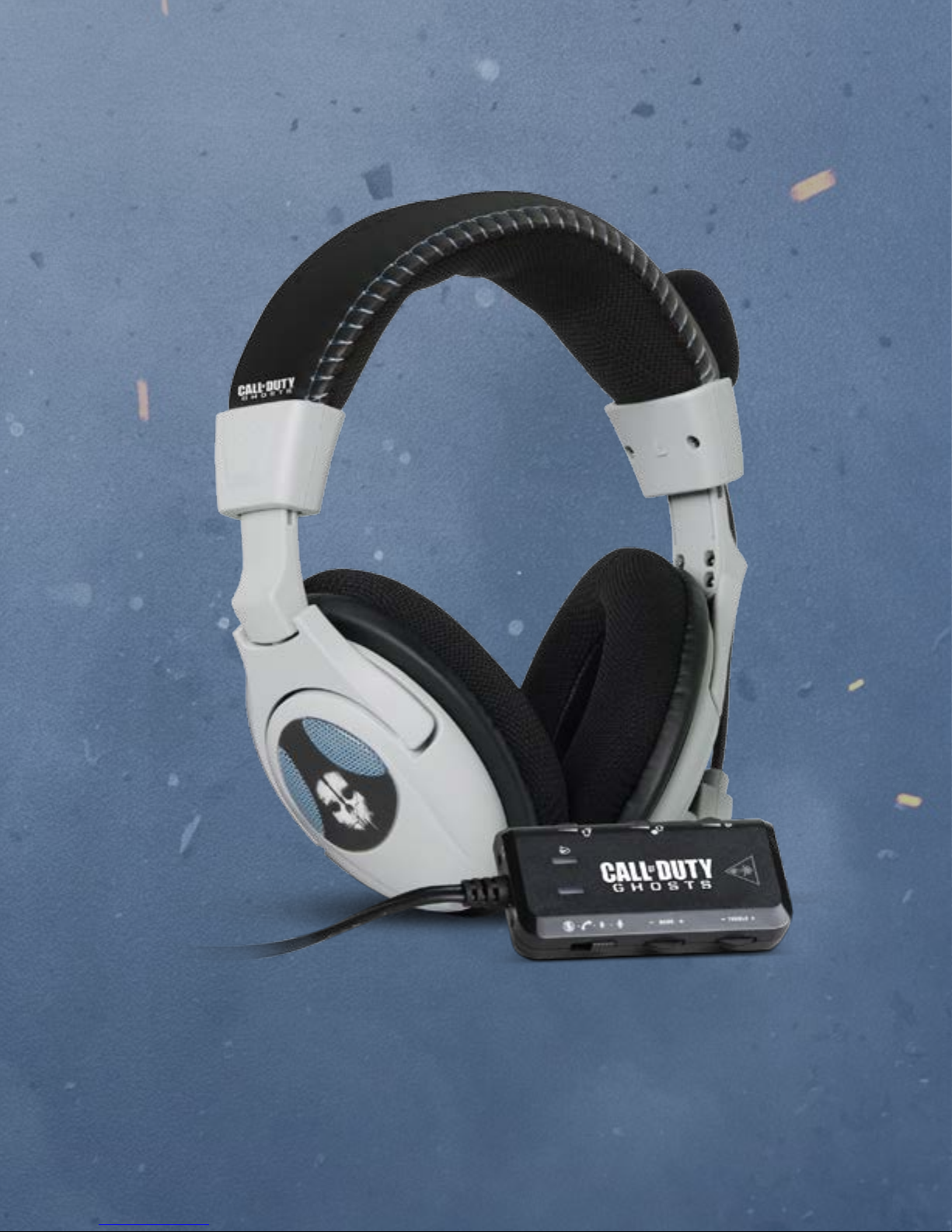

Ear Force® Shadow

Headset

Inline Ampliﬁer

3.5mm, 4-Pole Auxiliary Cable Turtle Beach Stickers

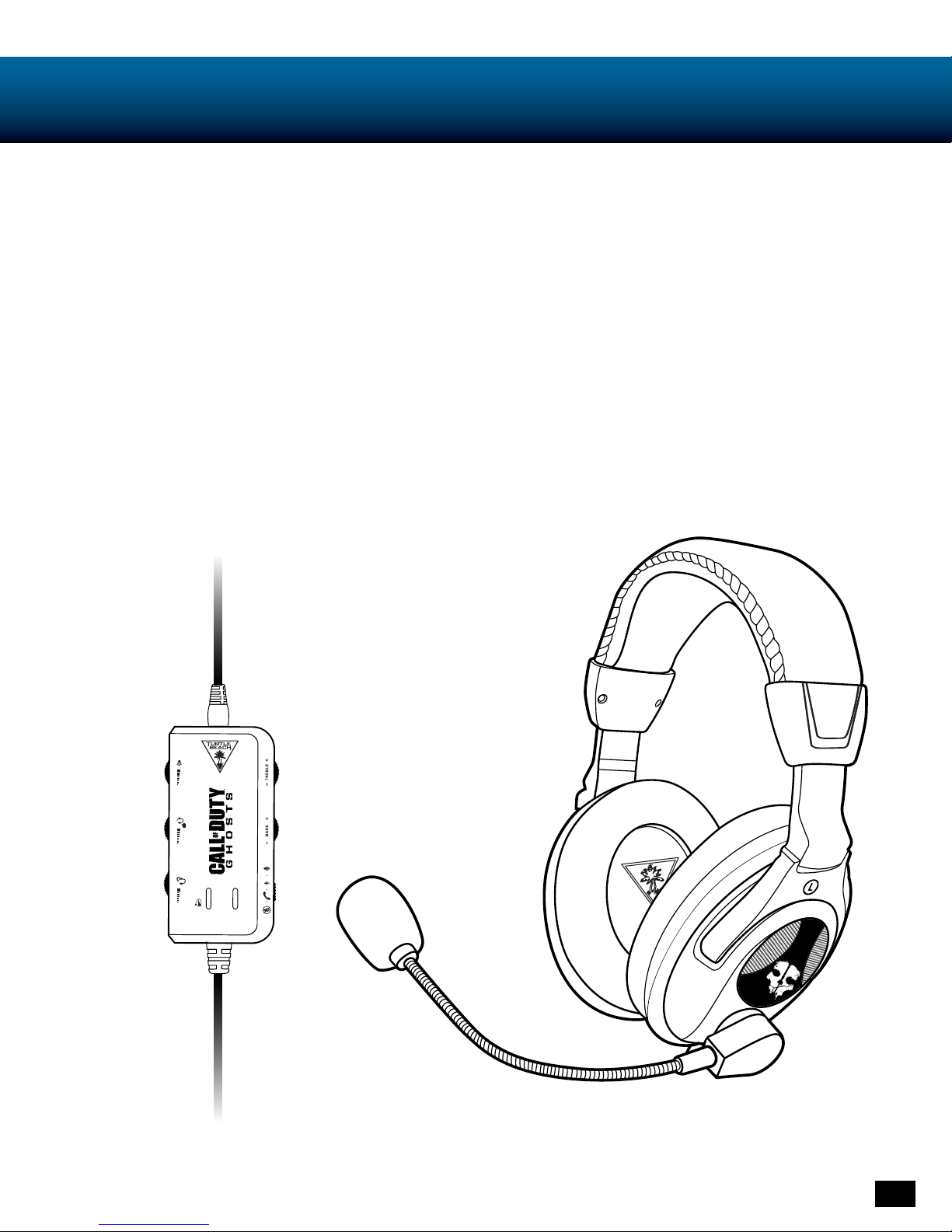

Features

· Adjustable Bass & Treble Controls: Tune bass and treble levels to add depth and realism.

· Dynamic Chat Boost: Automatically adjusts the volume of chat based on game volume changes.

· Independent Volume Controls: Separate game and chat volume controls plus mic mute on the inline amp.

· Variable Mic Monitor: Adjust the volume of your voice in the headset while speaking. To mute Mic Monitor, turn wheel

all the way down.

· Mobile Compatibility: The headset can disconnect from the inline amp and plug into all of your tablet and phone devices

for mobile gaming and entertainment.

· Phone/Music Input: Connect a mobile phone or digital music player to answer calls or enjoy your favorite music while

gaming. Note: Requires the included 3.5mm, 4-Pole Auxiliary Cable.

· USB Powered: No AC adapters or batteries required.

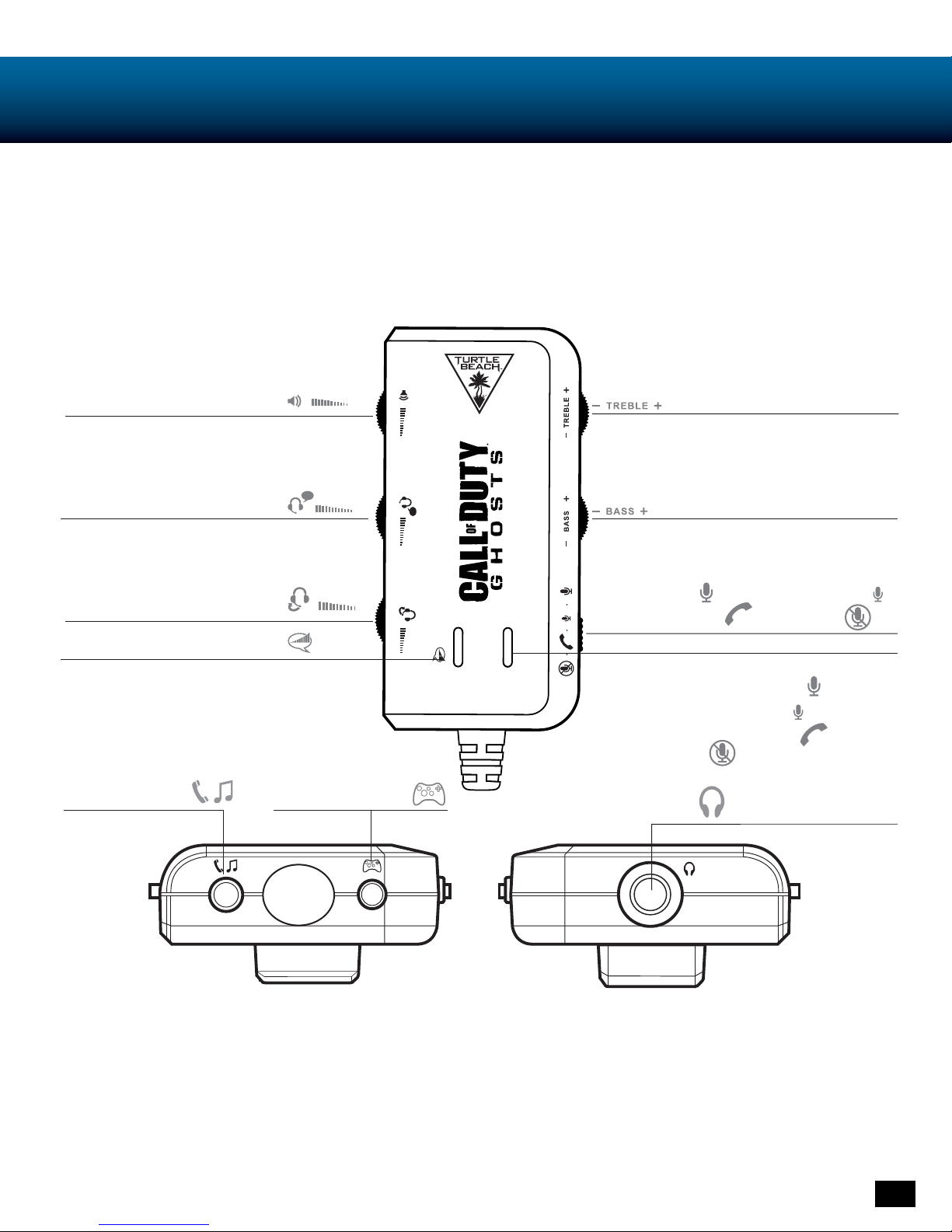

Ampliﬁer Function Map / Use

Inline Ampliﬁer

Mic Switch:

Mic On (High) Mic On (Low)

Phone Call Mode Mic Mute

Mic Mute Indicator LED:

bright blue = Mic On (High)

dark blue = Mic On (Low)

purple = Phone Call Mode

red = Mic Mute

MODE SWITCH

Headset Output Jack

Aux Input for

Phone & Music

Xbox 360 Talkback

Cable Input

Bottom View Top View

Chat Volume Control

Variable Mic Monitor

Bass Control

Treble Control

Chat Boost Indicator LED

Game Volume Control

PS3™ Hardware Setup (HDMI/RCA)

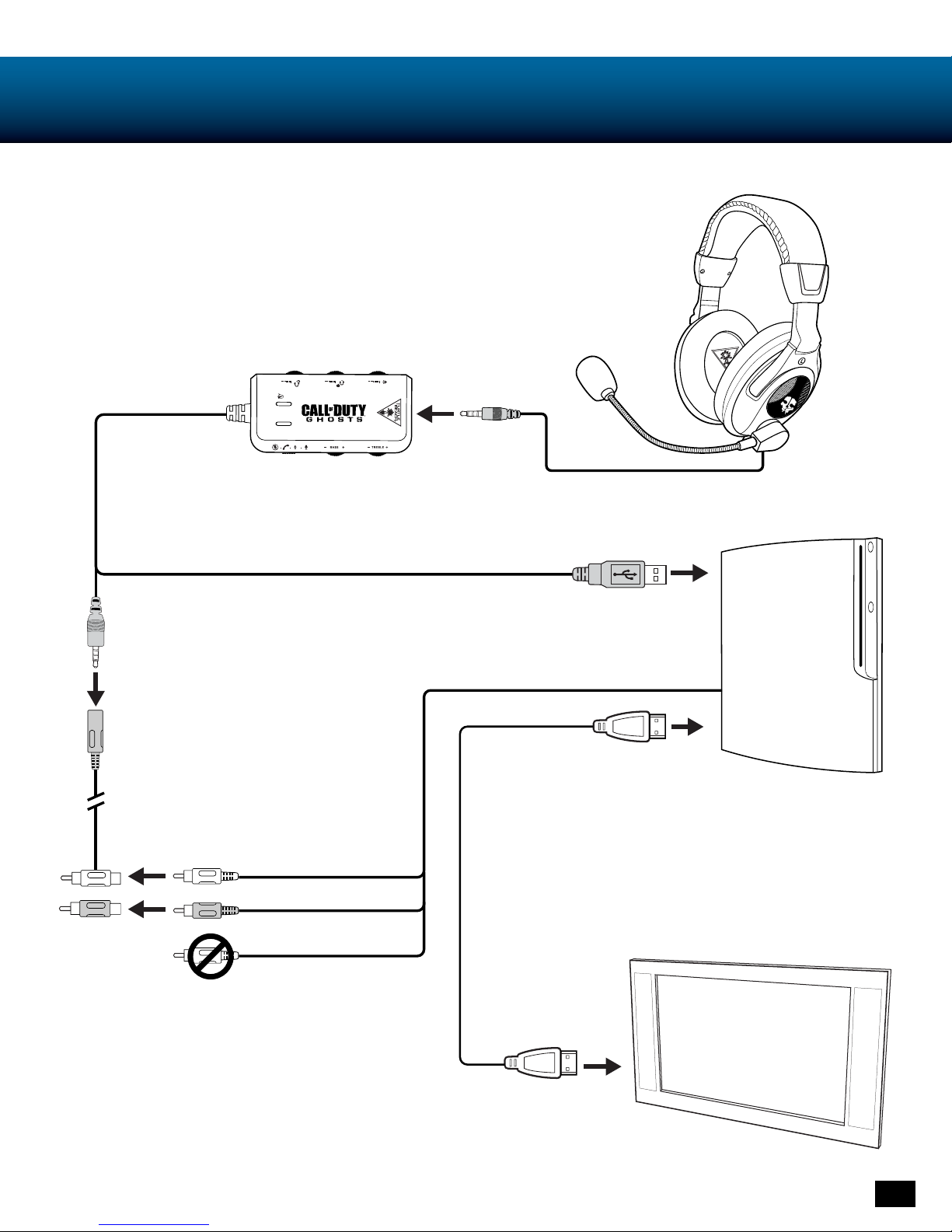

PS3™ Setup (HDMI)

Inline Ampliﬁer

HDMI

USB Power

RCA Splitter Cable

Video: Yellow

*PS3 AV cable is included with your console.

Headset

Audio: Red / White

(Black)

*PS3 AV Cable

PS3™ Hardware Setup (HDMI/RCA)

USB

white

red

yellow

Inline Ampliﬁer

USB Power

RCA Splitter Cable

Headset

Audio: Red / White

Video: Yellow

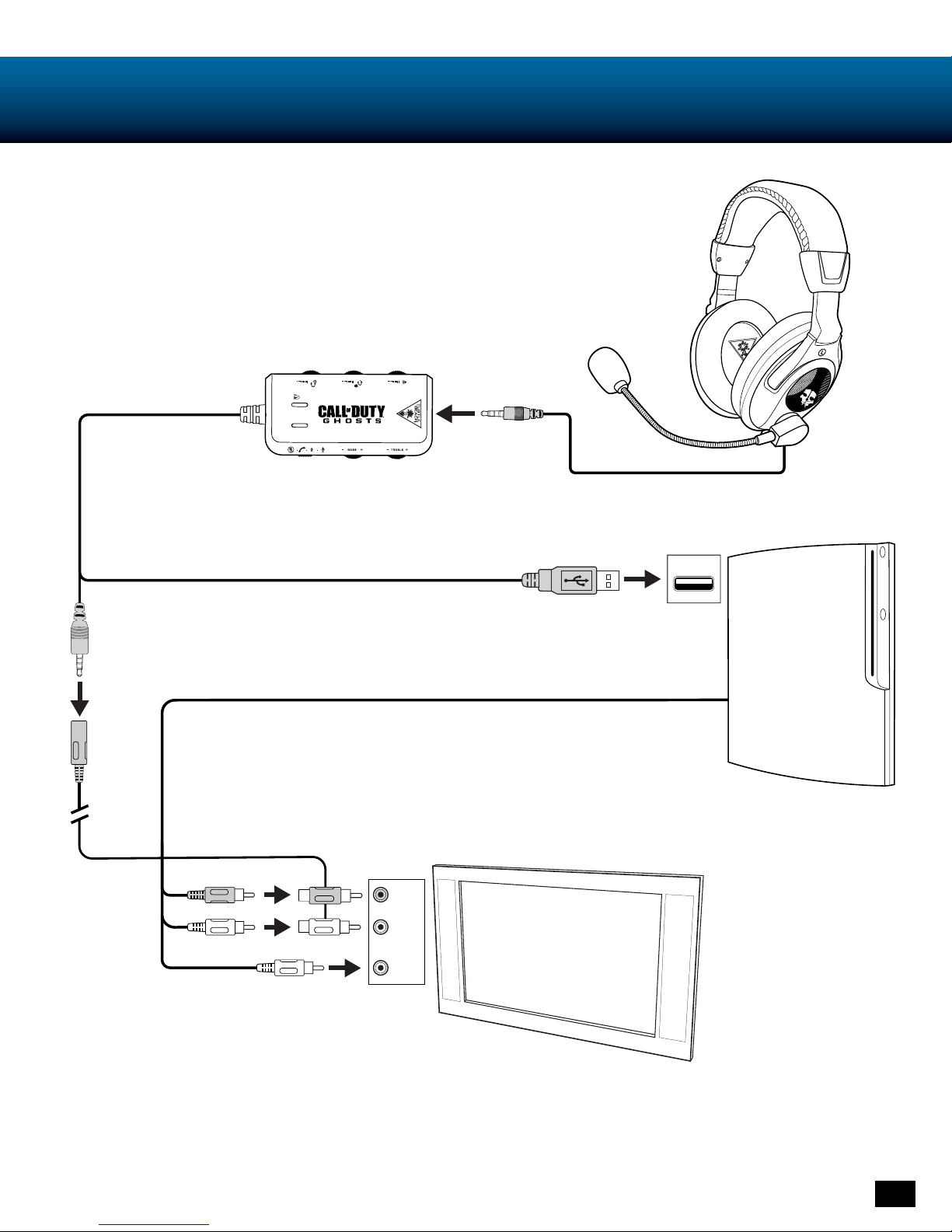

PS3™ Setup (RCA)

*PS3 AV Cable

*PS3 AV cable is included with your console.

(Black)

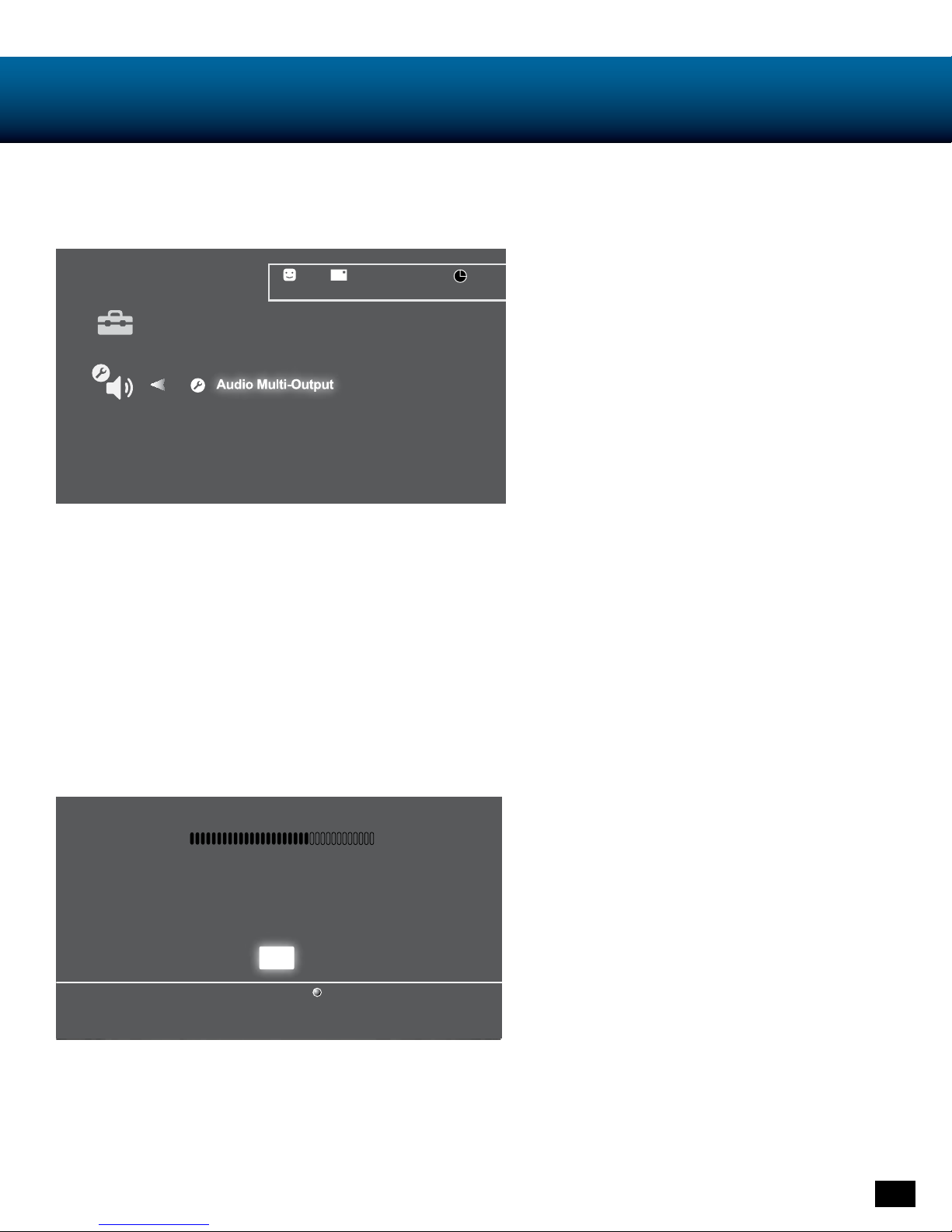

PS3 System Settings Conﬁguration

Audio Output Setup

Chat Setup

1. Go to Settings

- Choose “Sound Settings”

- Choose “Audio Multi-Output” and set to “On”

1. Go to PS3 Settings

- Choose “Accessory Settings”

- Choose “Audio Device Settings”

- Set “Input Device” to “TURTLE BEACH SHADOW”

- Set “Output Device” to “TURTLE BEACH SHADOW”

- Select “OK”

2. Set Microphone Level to 3 or 4

Audio Device Settings

Microphone Level 3

Input Device TURTLE BEACH SHADOW

Output Device TURTLE BEACH SHADOW

Back

X Enter

Audio Output Settings

12/14 12:15 PM

Sets to output audio through multiple connectors

simultaneously. Audio output to connectors that are

not selected in [Audio Output Settings] is downscaled

to 2 Ch.

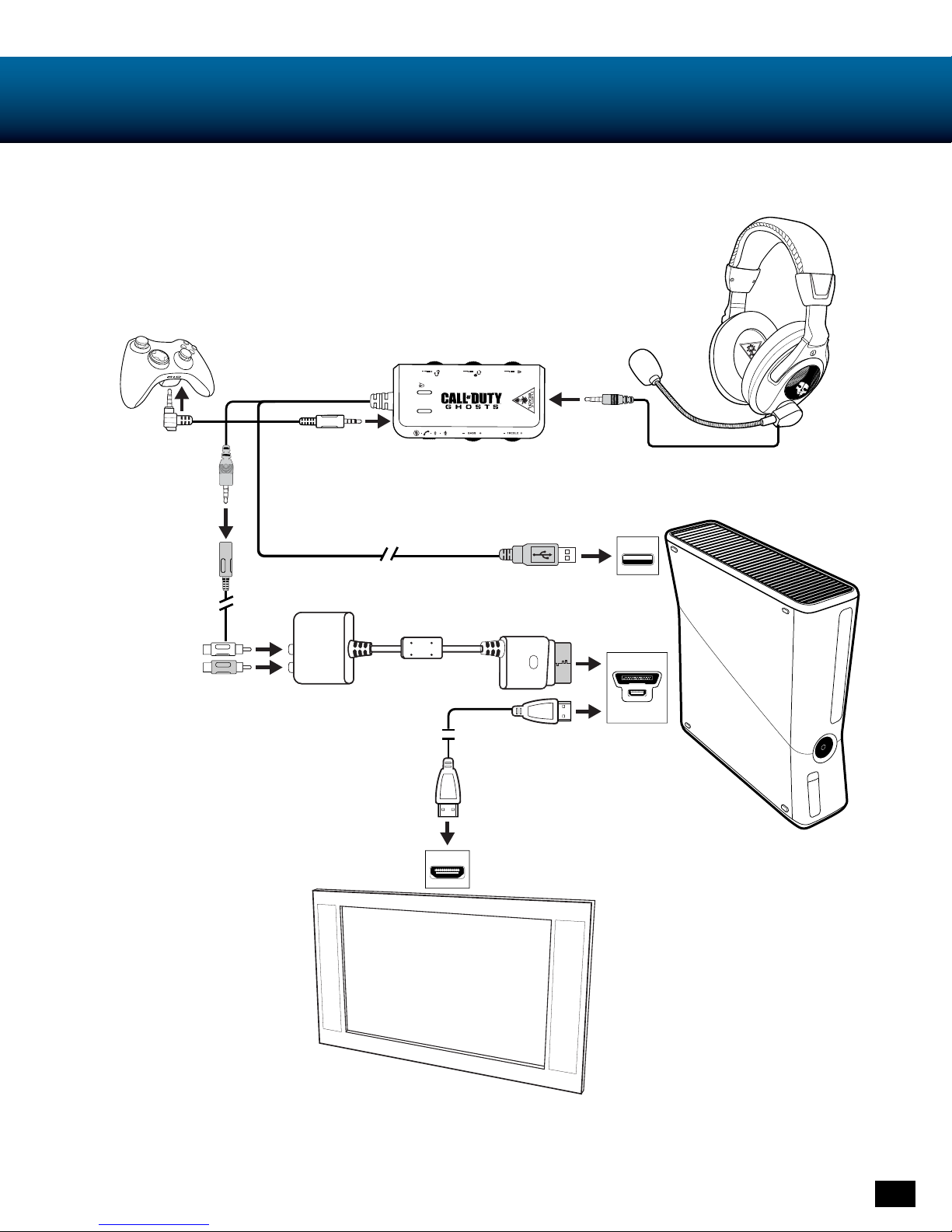

Xbox 360® Hardware Setup (HDMI/RCA)

USB

HDMI

Xbox 360® Setup (HDMI)

Inline Ampliﬁer Headset* Xbox 360

Talkback

Cable

RCA Splitter

Cable

USB Power

A/V Port

** Xbox 360 Audio

Adapter Cable

HDMI

*For best Xbox chat performance, use with ofﬁcial Microsoft Xbox 360 products. **Older Xbox 360 models and Xbox 360 Slim models require an Xbox 360 Audio

Adapter Cable for audio output when used with an HDMI connection (Adapter available from turtlebeach.com). NOTE: If your HDMI TV has red and white AUDIO

OUT RCA jacks, you can use it to feed the sound from your TV to your Ear Force® Shadow headset. (AUDIO IN jacks will not send sound to your headset. AUDIO

OUT is required).

(Black)
